We test LAB CodeTyphon 8.30 on Fedora 39
Fedora (formerly Fedora Core) is a Linux distribution developed by the community-supported Fedora Project and owned by Red Hat. Fedora contains software distributed under a free and open-source license and aims to be on the leading edge of such technologies. Fedora has a reputation for focusing on innovation, integrating new technologies early on and working closely with upstream Linux communities.
The default desktop in Fedora is the GNOME desktop environment and the default interface is the GNOME Shell. Other desktop environments, including KDE, Xfce, LXDE, MATE and Cinnamon, are available.
Fedora Project also distributes custom variations of Fedora called Fedora spins. These are built with specific sets of software packages, offering alternative desktop environments or targeting specific interests such as gaming, security, design, scientific computing and robotics.
It's one of our LAB Reference OSes
More for Fedora OS here
System: Entry level PC with 1 CPU (4-Cores) / 8 Gbyte RAM / 120 Gbytes Hard Disk / 1920x1200 pixels Monitor

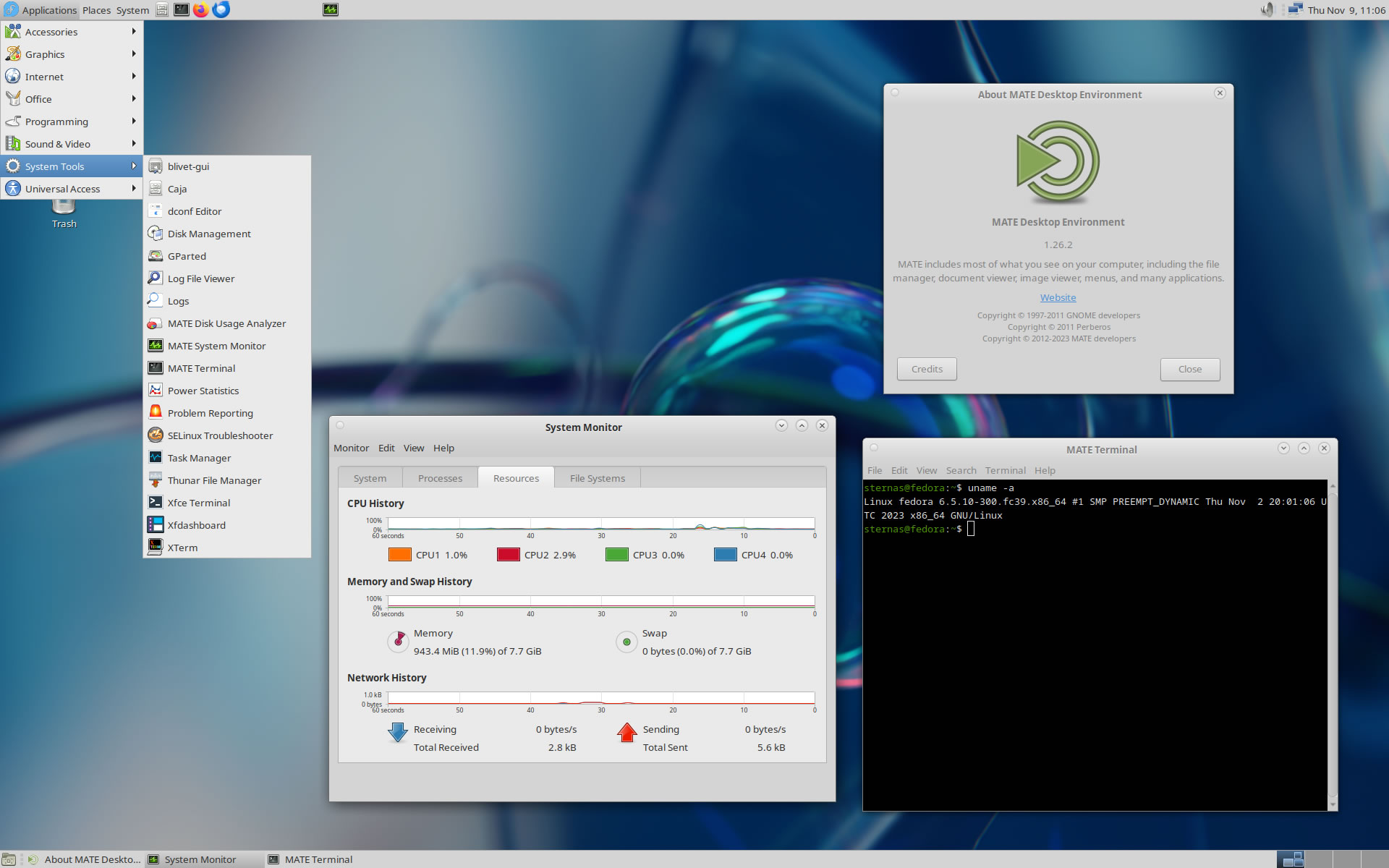

OS : Fedora Xfce 39 64bits, but with MATE as frontend Desktop (su dnf -y install @mate-desktop)
1. OS things and stuff..
Fedora Linux is a true Multi-CPU and Multi-Platform OS.
You can install many Desktops like: Gnome, Cinnamon, MATE, KDE (QT5), Xfce, LXDE etc.
For this test, we setup only MATE and Xfce Desktops
2. Preparation-Give "sudo" root privileges

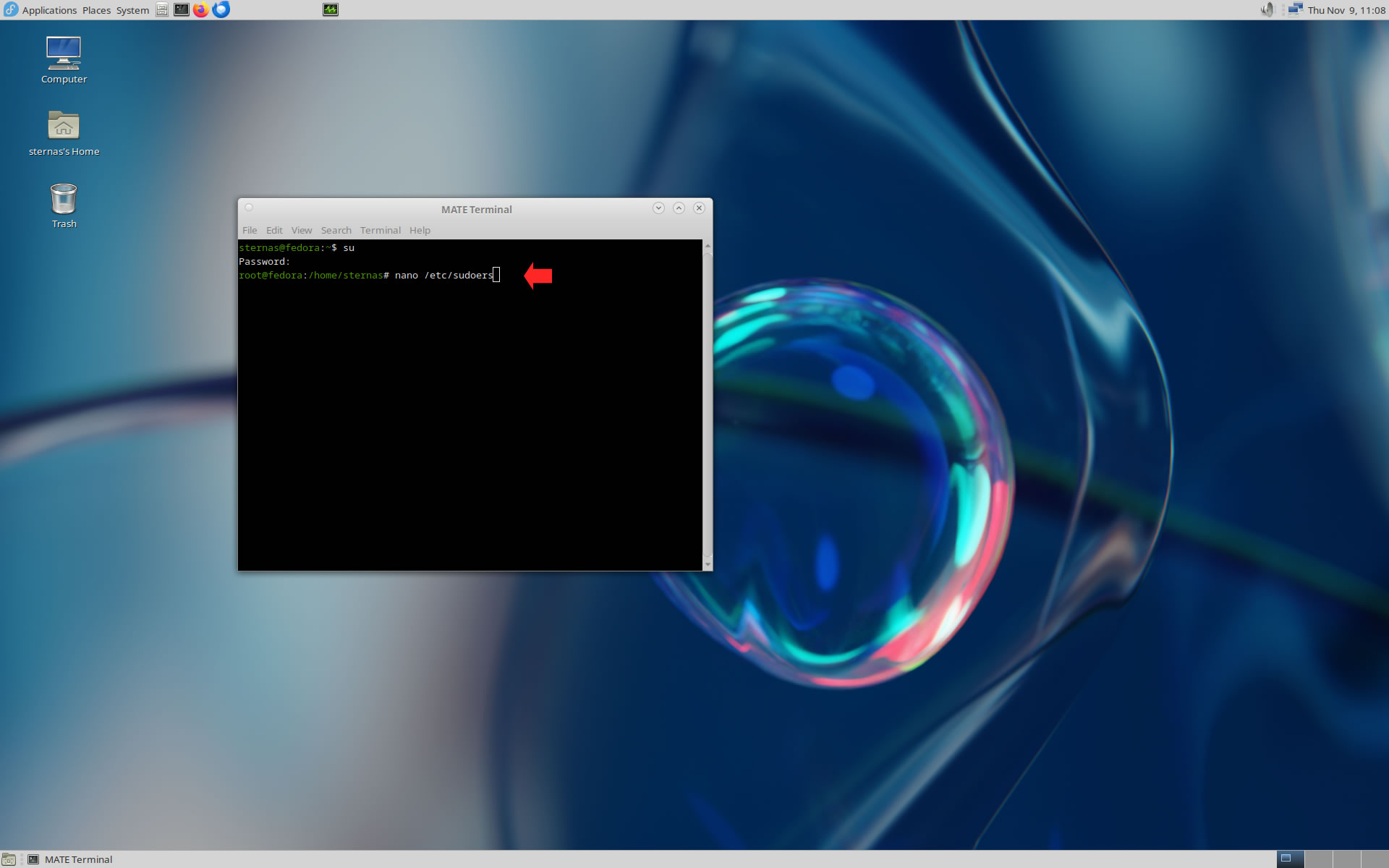

Open a terminal and exec
su
nano /etc/sudoers

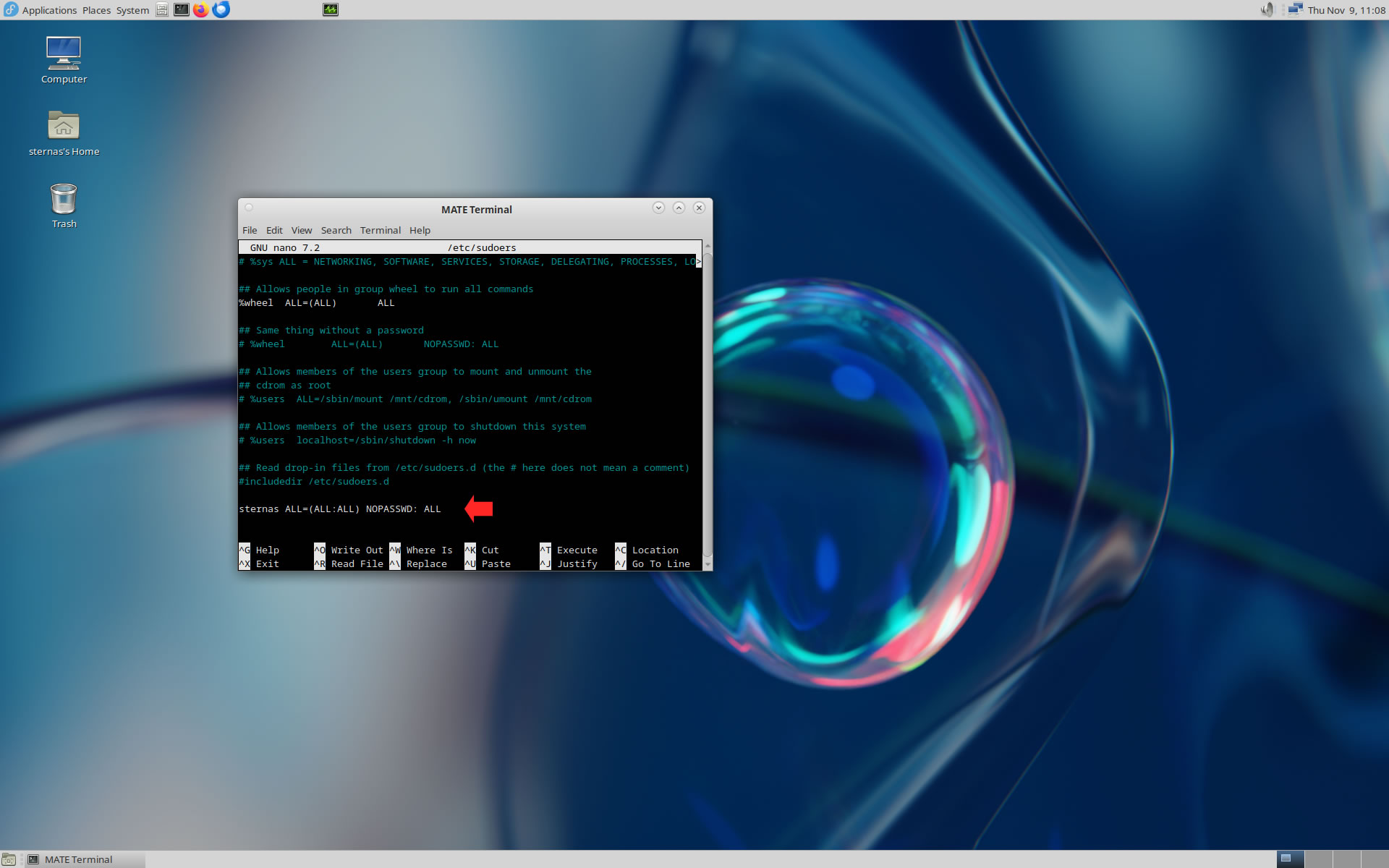

add at the end of /etc/sudoers the line
username ALL=(ALL:ALL) NOPASSWD: ALL
Ctl-X to exit and Y to save
3. Download-Unzip-Install

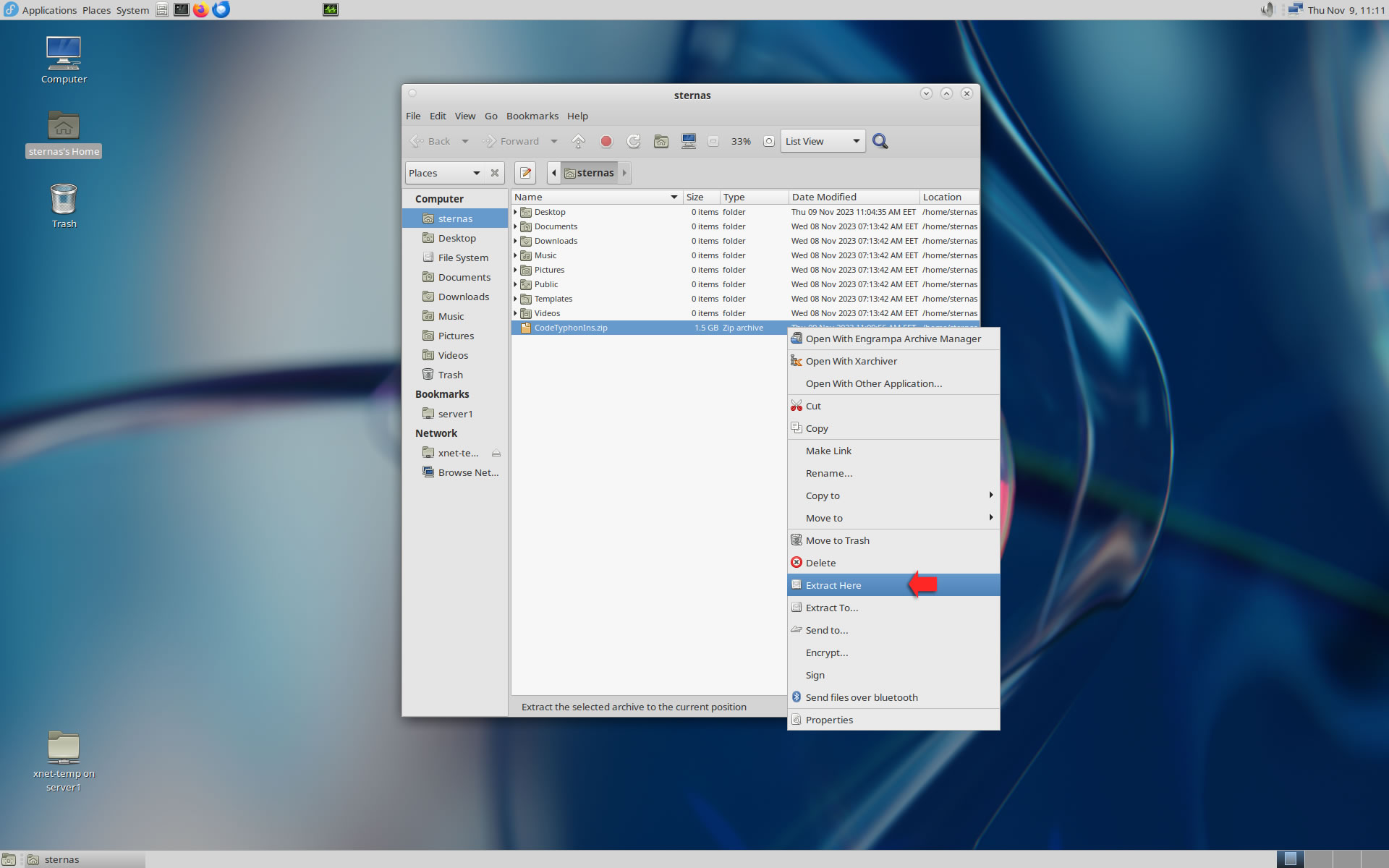

Download CodeTyphonIns.zip and unzip to your home directory
Open a terminal, and go to new CodeTyphonIns directory

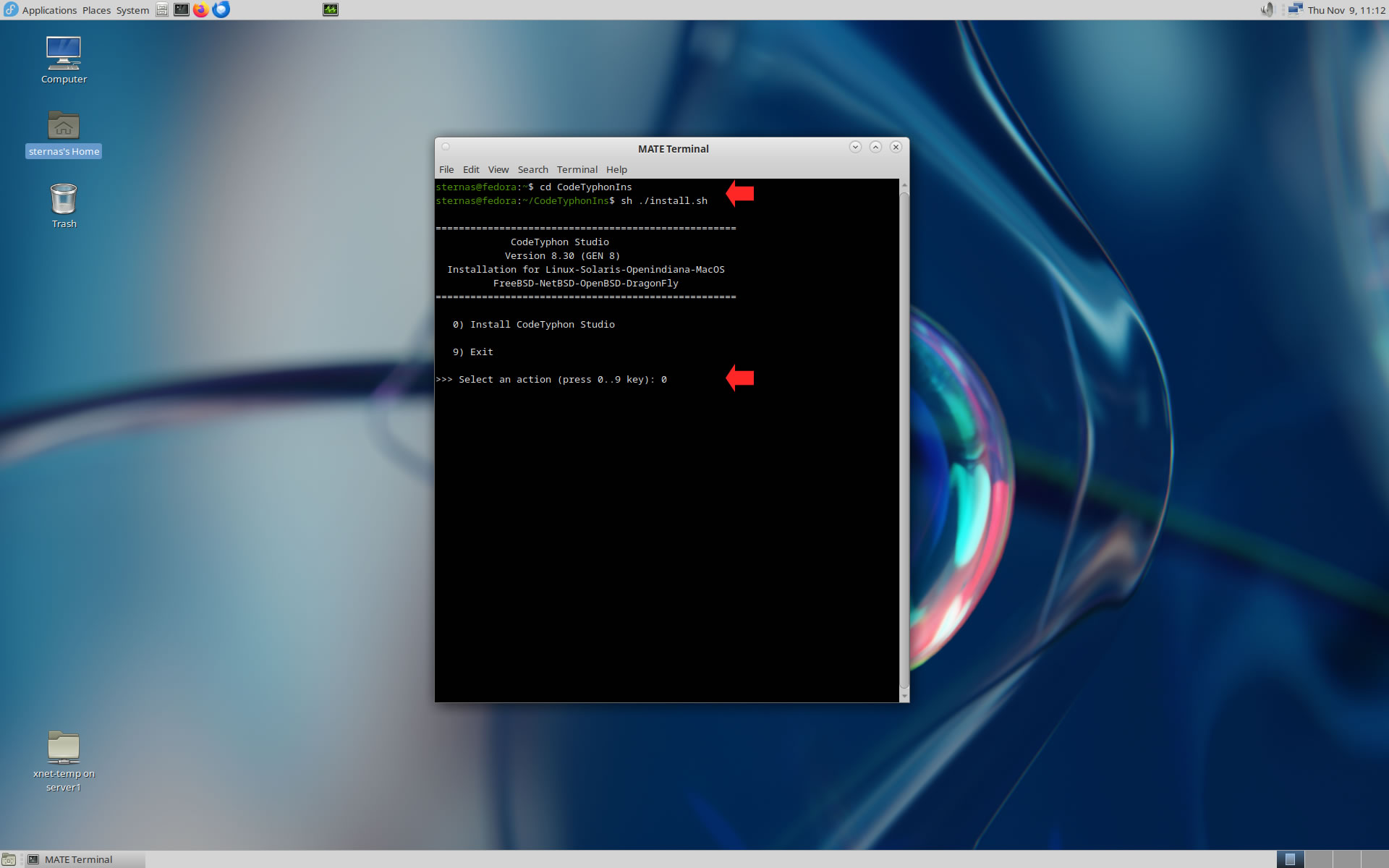

cd CodeTyphonIns
Start CodeTyphon Installation with command
sh ./install.sh
Give zero "0" to Install CodeTyphon
4. Setup and Build Typhon IDE for GTK2
After CT install you can start CTCenter or to continue with the open terminal.
At this test we continue with the open terminal.
We select "MultiArch" option but this is our choice for this test.
Please remember Fedora 39 + CodeTyphon Multiarch need more than 30 Gbites on your Hard Disk

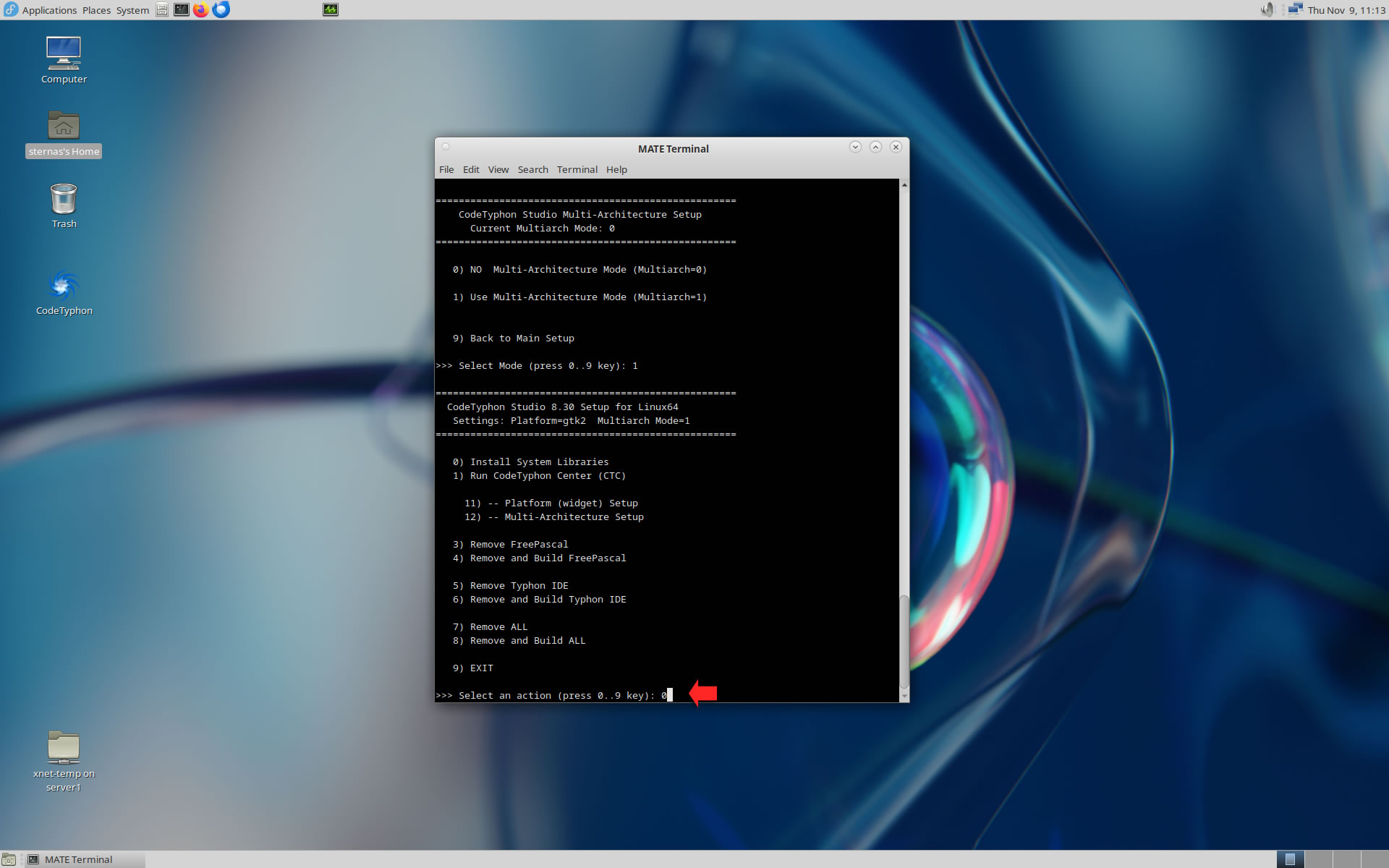

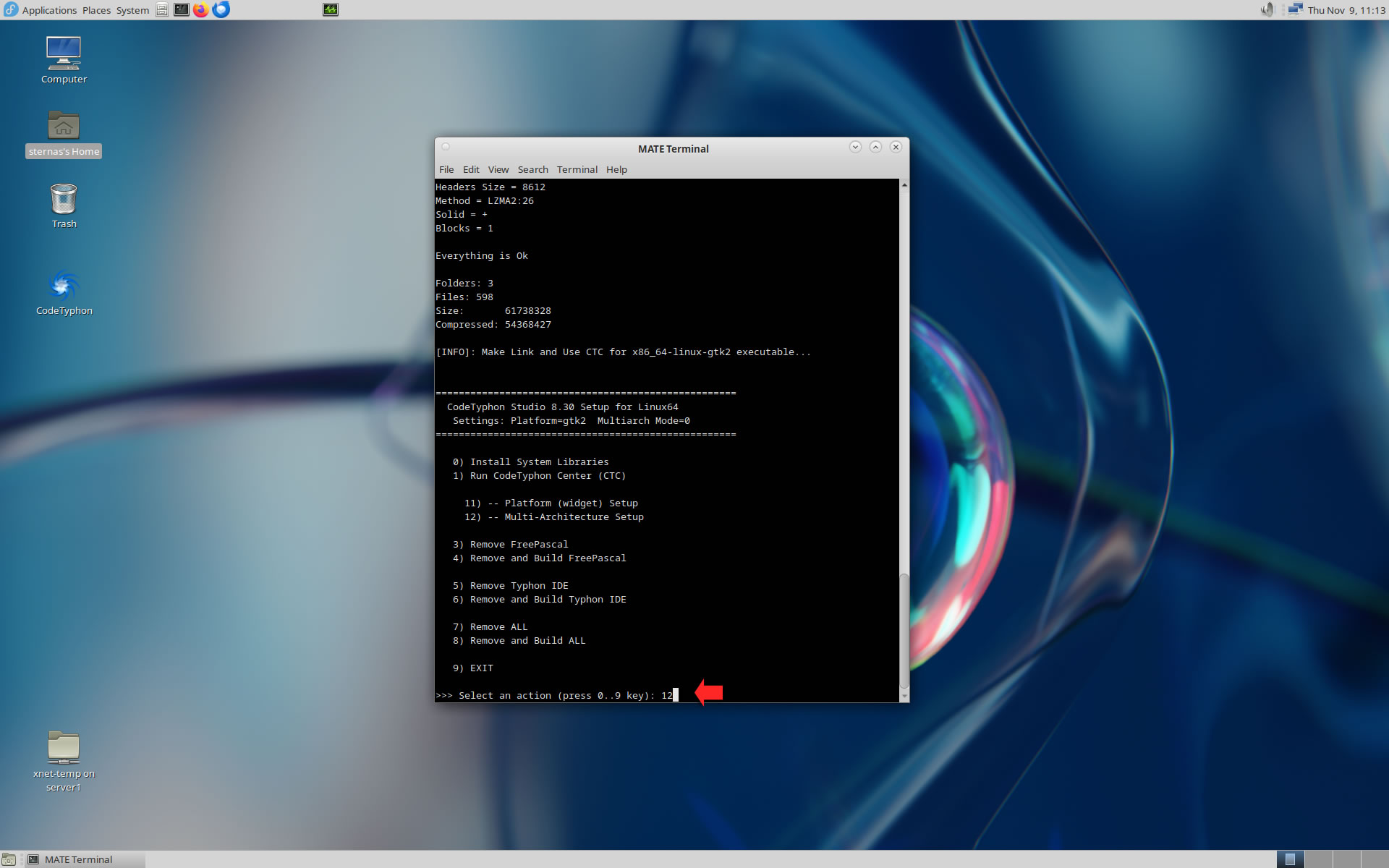

Select "12" for Multi-Architecture Setup page
Select "1" to enable Multi-Arch
It's the first installation of CodeTyphon on this PC, so we install "system libraries" select "0".

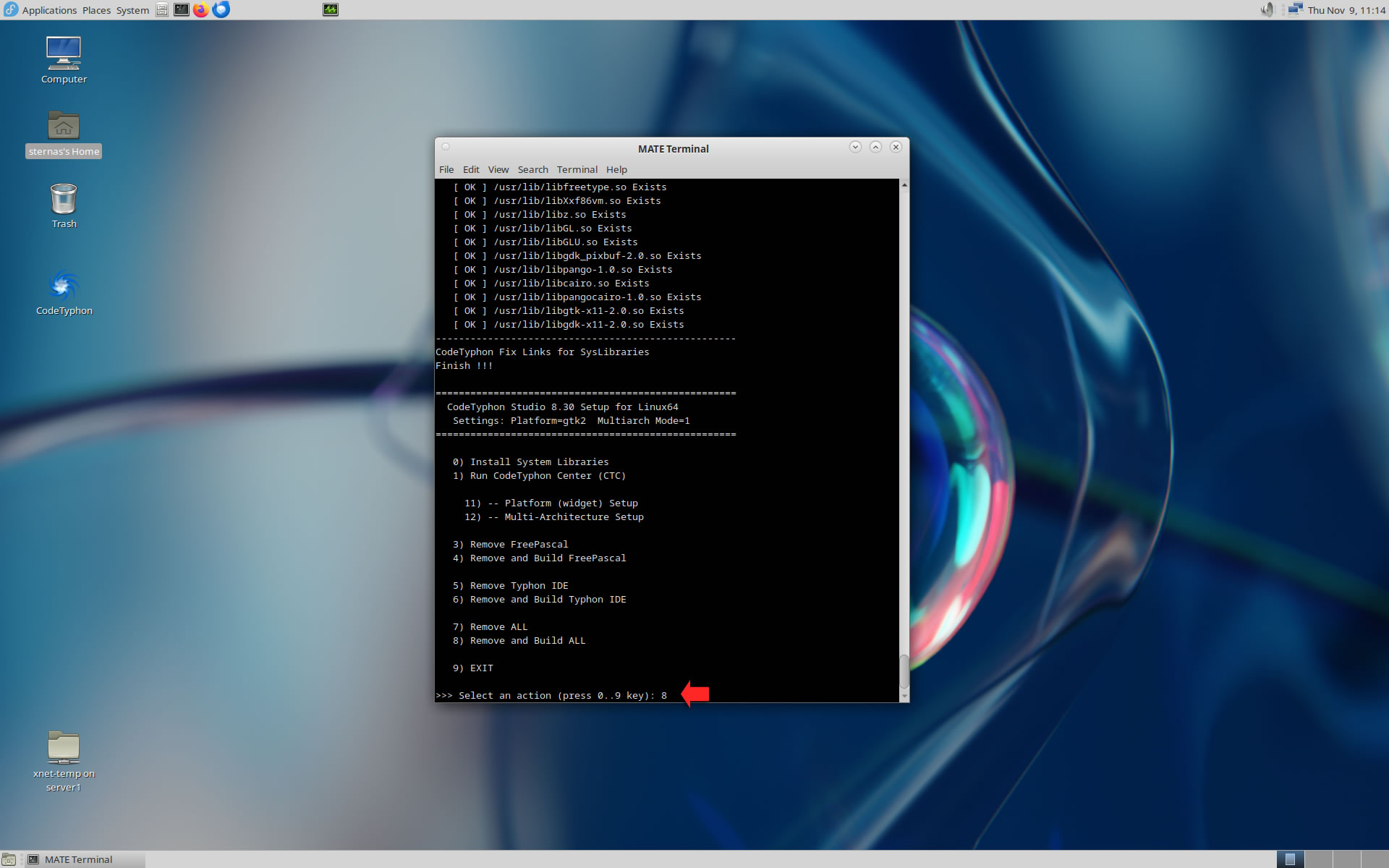

Select "8" to build all...
Finally

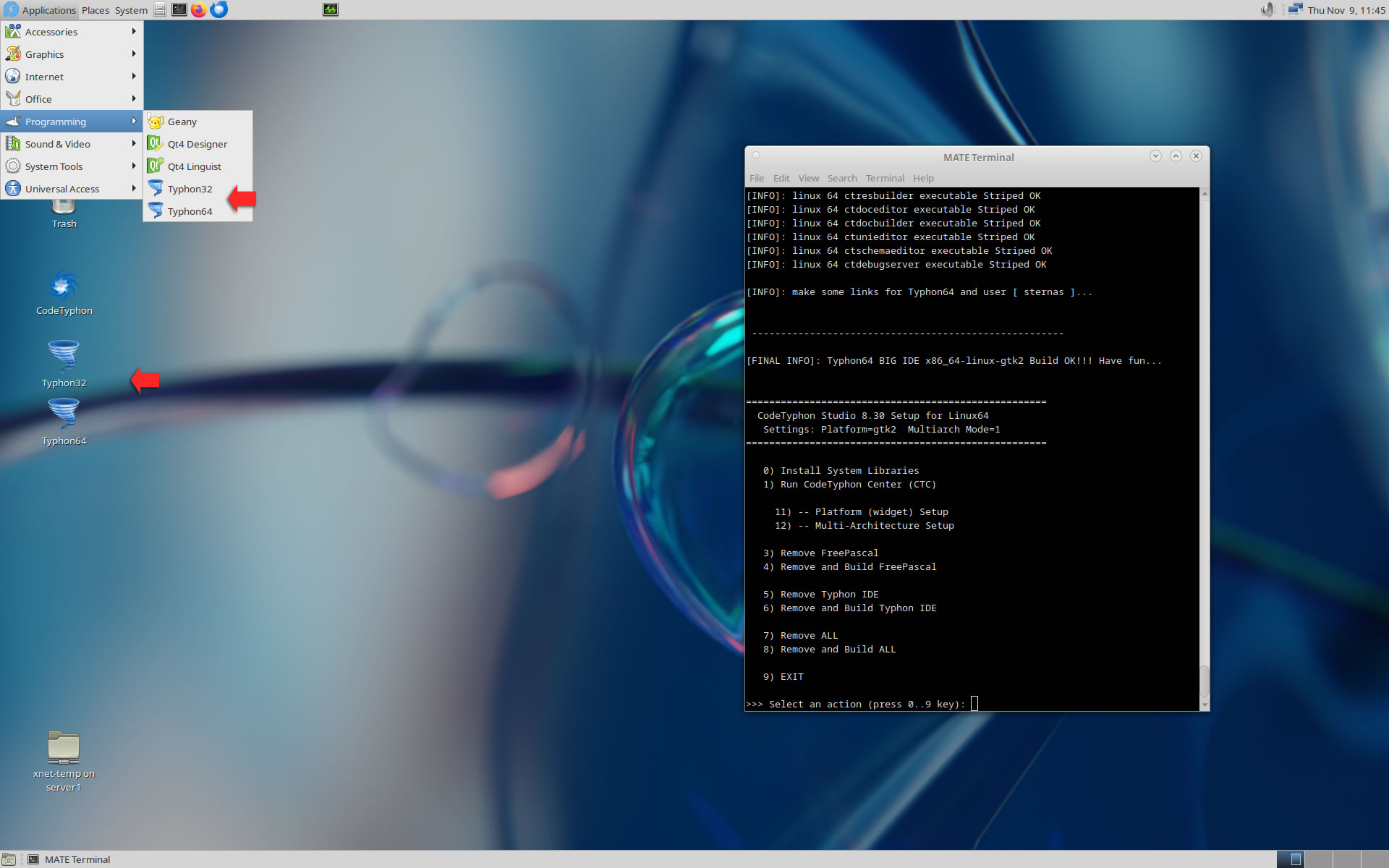

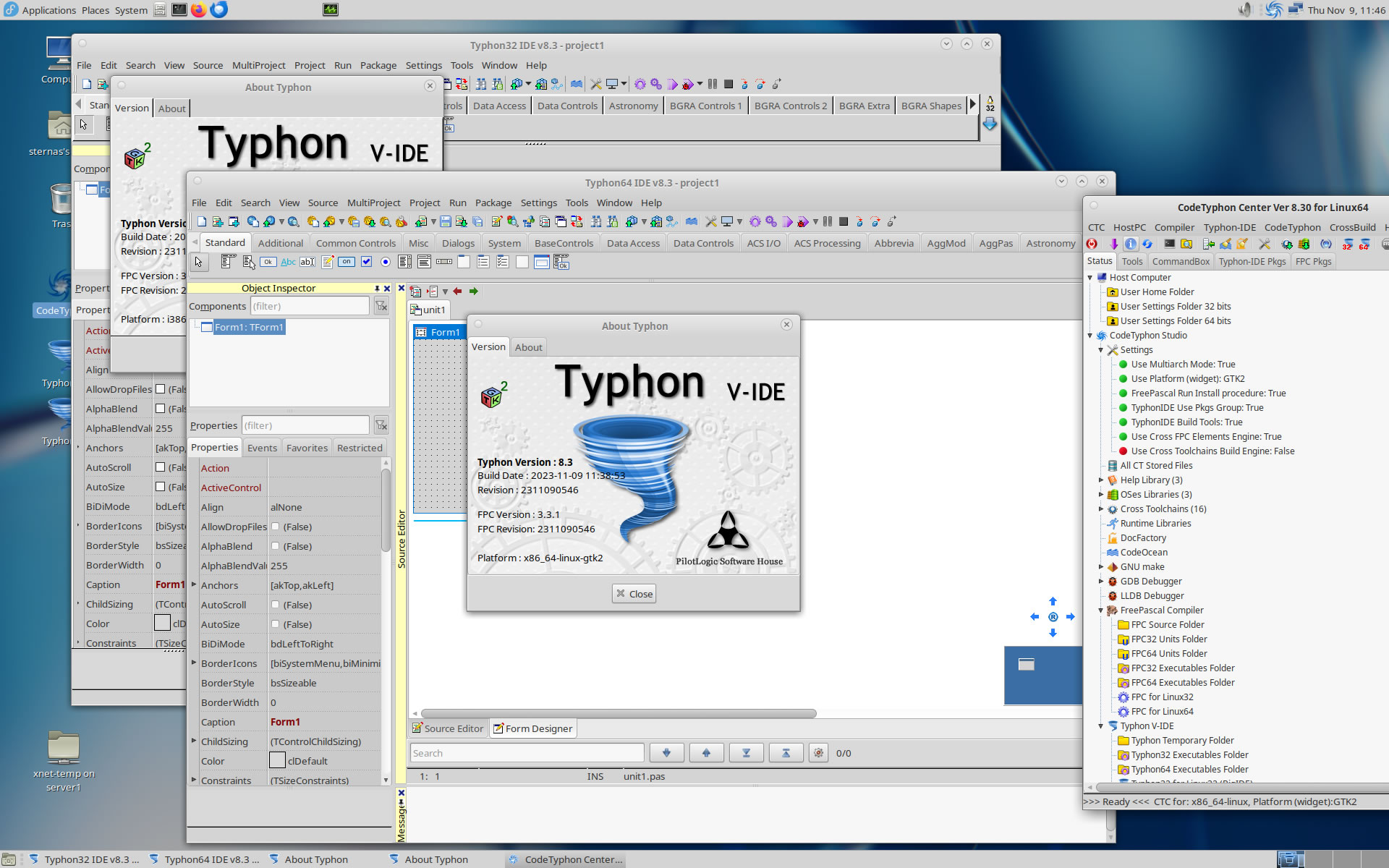

CTCenter, Typhon32 and Typhon64 for GTK2, with ALL Docked Option (single Window)
5. Build Typhon IDE for QT4 (KDE4)
a) Switch Typhon IDE Host Platform to QT4
CodeTyphon Center => Setup Dialog
and select QT4 Platform
b) Only for the first time, install OS System Libraries:
CodeTyphon Center =>HostPC=>"Install System Libraries"
CodeTyphon Center =>CodeTyphon=>QT Platform=>"QT4Pas Install Prebuild Libraries"
c) Remove and Build Typhon IDE for new Platform (QT4)
CodeTyphon Center =>Typhon IDE=>"Remove and Build"
Finally...

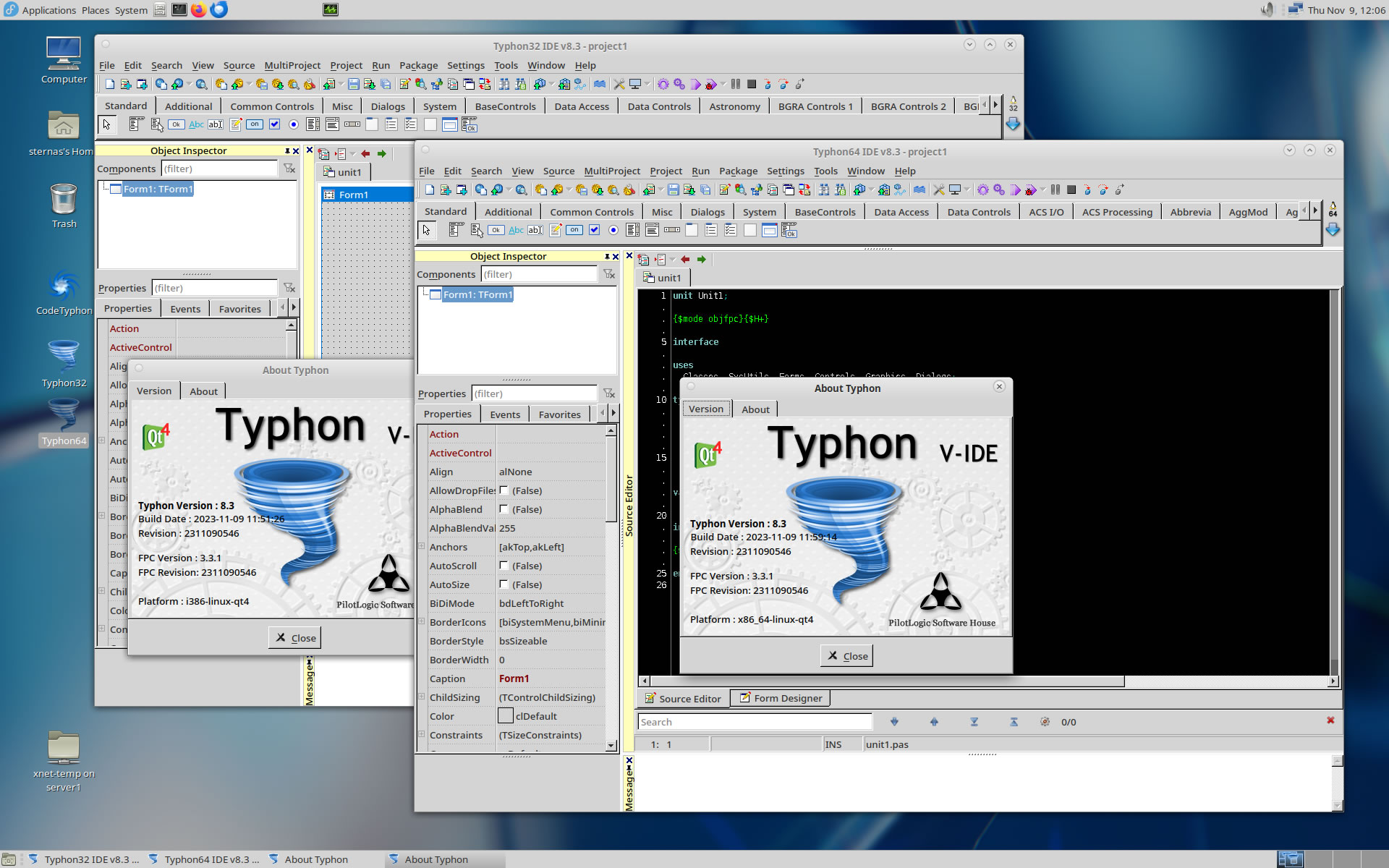

Typhon32 and Typhon64 for QT4 (KDE 4) with ALL Docked Option (single Window)
6. Build Typhon IDE for QT5 (KDE5)
You can Logging to Plasma Desktop for this...
but, it's NOT necessary,
you can build Typhon IDE for QT6 or QT5 or QT4 or GTk2 from ANY Unix desktop...
a) Switch Typhon IDE Host Platform to QT5
CodeTyphon Center => Setup Dialog
and select QT5 Platform
b) Only for the first time, install OS System Libraries:
CodeTyphon Center =>HostPC=>"Install System Libraries"
CodeTyphon Center =>CodeTyphon=>QT Platform=>"QT5Pas Install Prebuild Libraries"
c) Remove and Build Typhon IDE for new Platform (QT5)
CodeTyphon Center =>Typhon IDE=>"Remove and Build"
Finally...

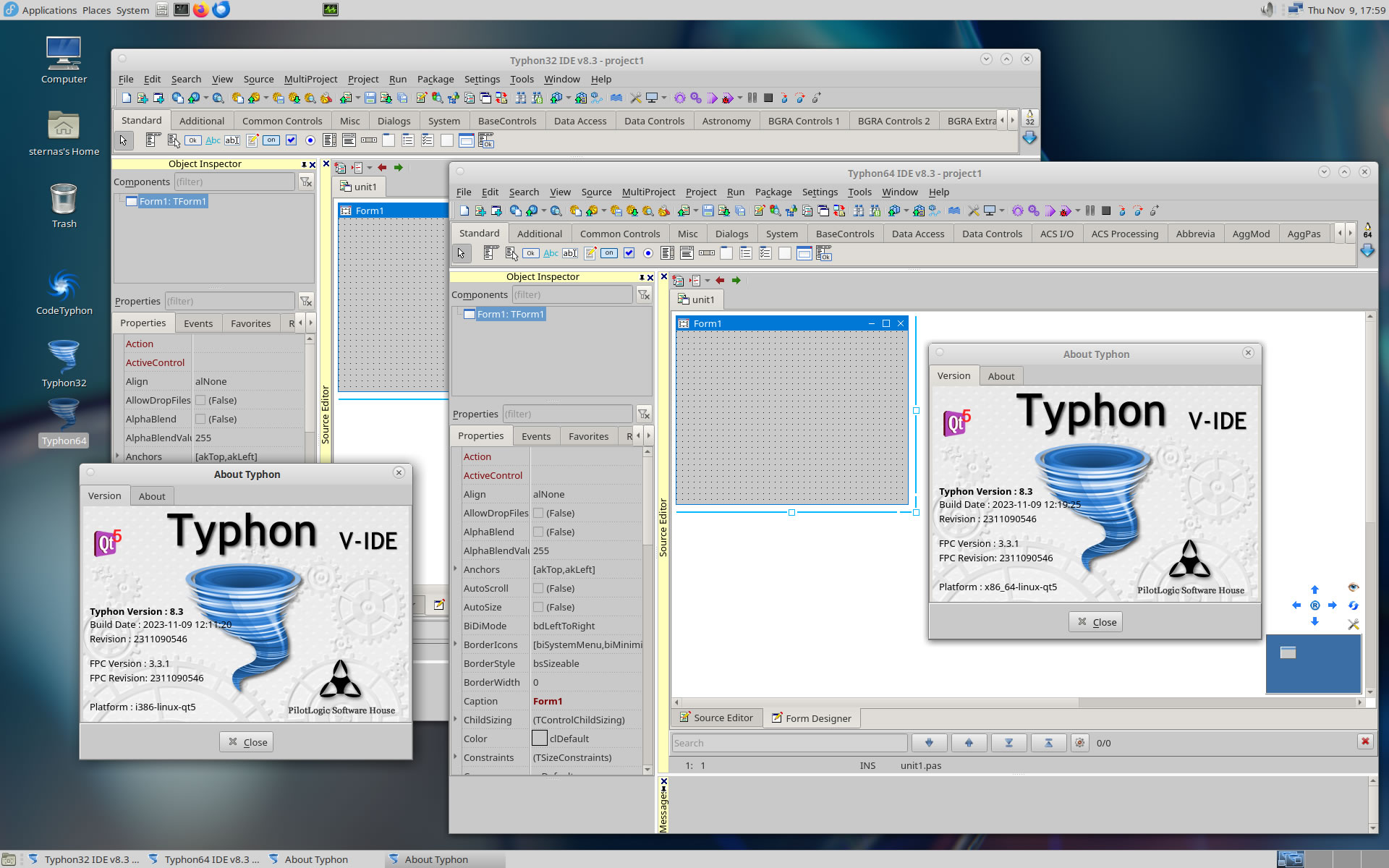

Typhon32 and Typhon64 for QT5 (KDE 5) with ALL Docked Option (single Window)
7. Build Typhon IDE for QT6
You can Logging to Plasma Desktop for this...
but, it's NOT necessary,
you can build Typhon IDE for QT6 or QT5 or QT4 or GTk2 from ANY Unix desktop...
a) Switch Typhon IDE Host Platform to QT6
CodeTyphon Center => Setup Dialog
and select QT6 Platform
b) Only for the first time, install OS System Libraries:
CodeTyphon Center =>HostPC=>"Install System Libraries"
CodeTyphon Center =>CodeTyphon=>QT Platform=>"QT6Pas Install Prebuild Libraries"
c) Remove and Build Typhon IDE for new Platform (QT6)
CodeTyphon Center =>Typhon IDE=>"Remove and Build"
Finally...

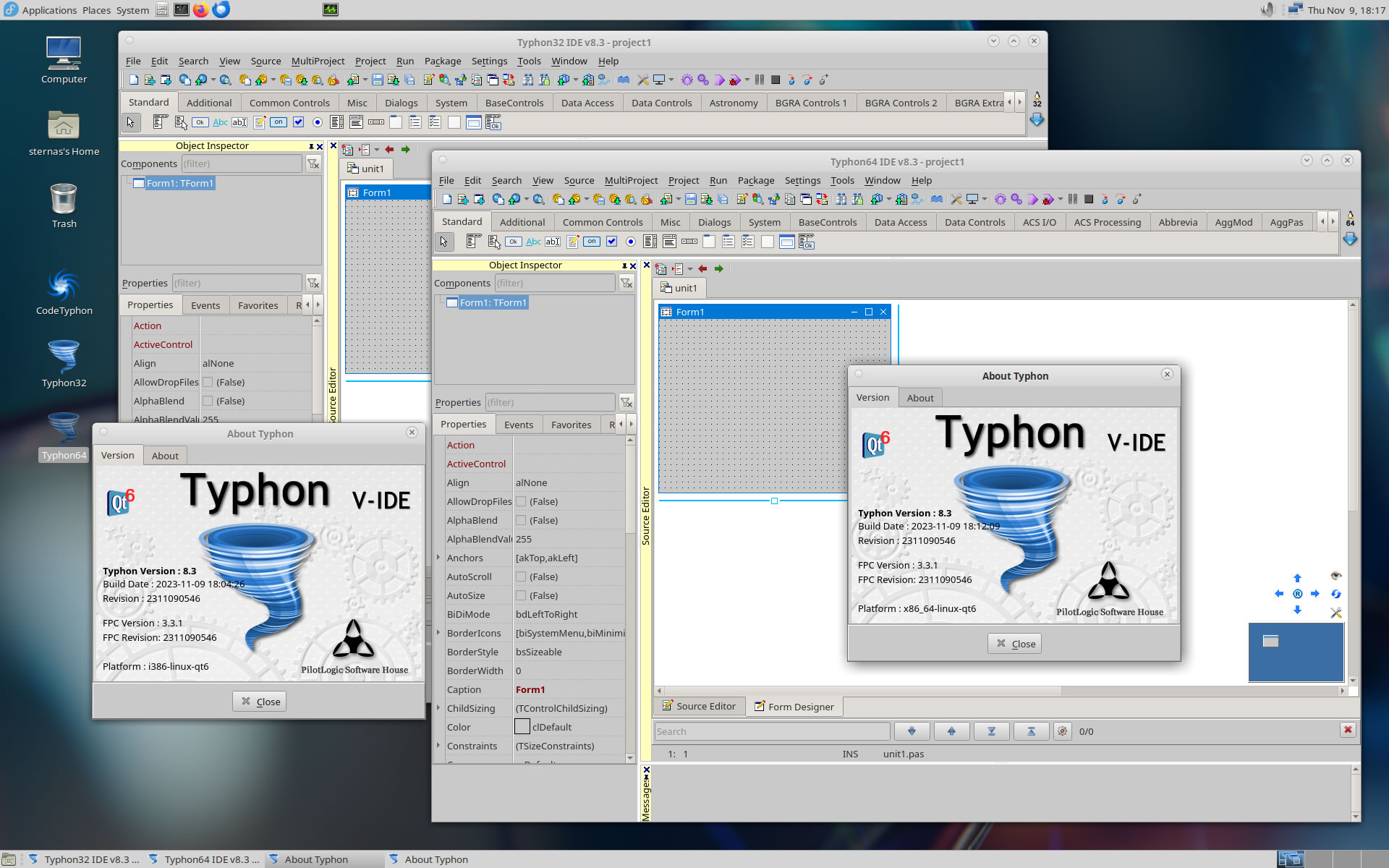

Typhon32 and Typhon64 for QT6 with ALL Docked Option (single Window)
