We test LAB CodeTyphon 8.40 on NetBSD 10.0
NetBSD is a free, secure, and highly portable UNIX-like Open Source operating system available for many platforms, from 64-bit AlphaServers and desktop systems to handheld and embedded devices.
Its clean design and advanced features make it excellent in both production and research environments, and it is user-supported with complete source.
Many applications are easily available through The NetBSD Packages Collection.
NetBSD is one of our LAB Reference OSes
More for NetBSD here
System: Entry level PC with 1 CPU (4-Cores) / 8 Gbyte RAM / 120 Gbytes Hard Disk / 1680x1050 pixels Monitor
OS : NetBSD version 10.0 64 bits
1. OS things and stuff..
NetBSD installation give you only a minimum bootable OS.
First Install the OS to your PC.
1) Our minimum desktop setup procedure:
After OS installation, Logging as "root "
a) Install "bash", "zip", "unzip", "nano", "sudo" and "xorg"
pkgin -y install bash zip unzip nano sudo xorg

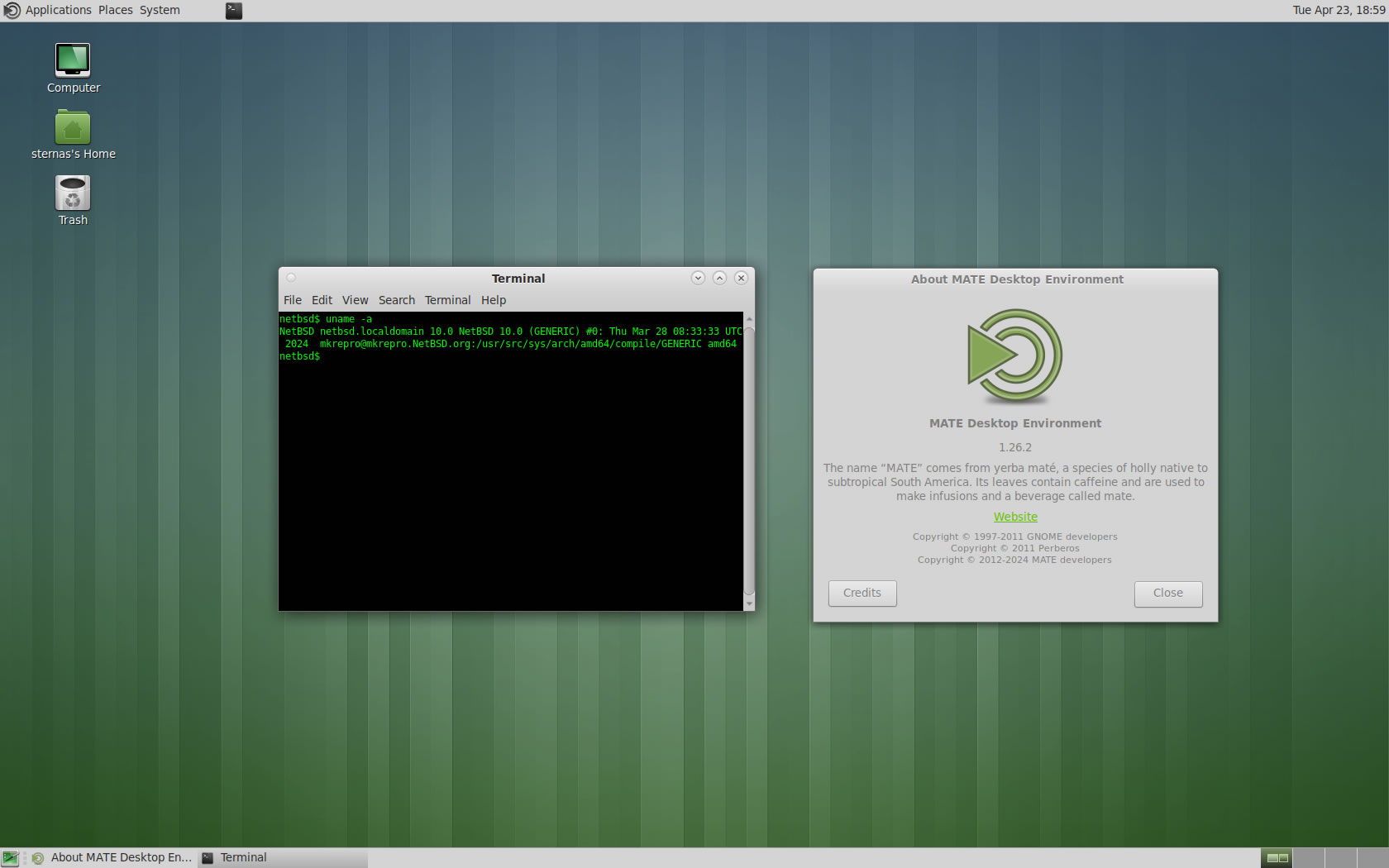

b) At this test we install "MATE" and "xfce4" Desktops
pkgin -y install mate
pkgin -y install xfce4
pkgin -y install thunar-archive-plugin
pkgin -y install gdm
pkgin -y install tint2 fam hal dbus avahi
pkgin -y install atril gvfs samba firefox
c) Setup /etc/rc.conf
nano /etc/rc.conf
and add:
rpcbind=YES
famd=YES
dbus=YES
hal=YES
avahidaemon=YES
nmbd=YES
winbindd=YES
smbd=YES
gdm=YES
d) Add installation user to group "wheel"
usermod -G wheel username
Reboot and logging as installation user...
2) Give to installation user access to OS libraries
This procedure NOT needed to build FPC and Typhon IDE,
needed to run any GUI application on NetBSD.
Globally to ALL OS users
su
nano /etc/profile
add as last line:
export LD_LIBRARY_PATH=/usr/pkg/lib:/usr/X11R7/lib
OR
Locally only to current user
nano ~/.profile
add as last line:
export LD_LIBRARY_PATH=/usr/pkg/lib:/usr/X11R7/lib
Reboot and logging as installation user...
2. Preparation-Give "sudo" root privileges

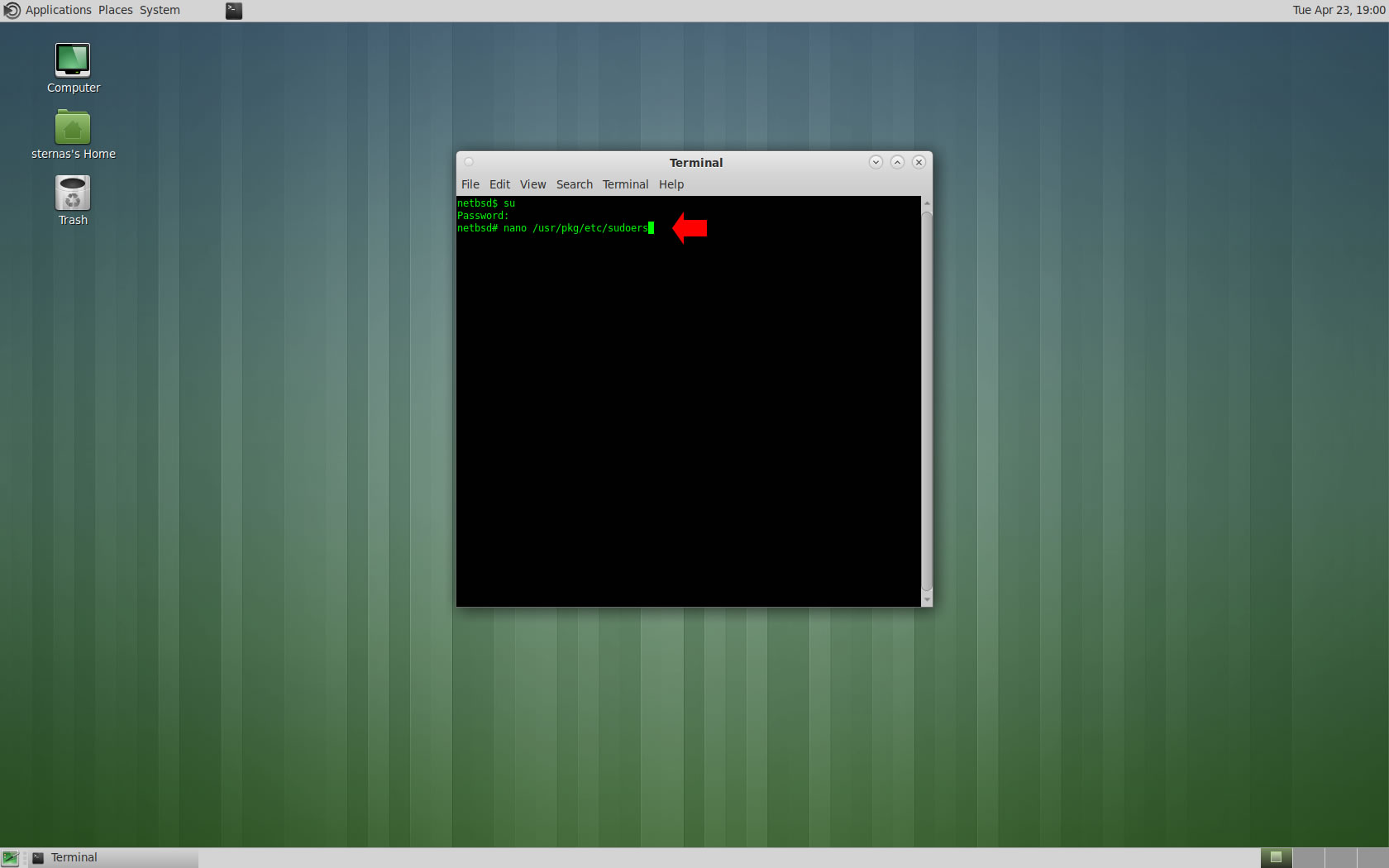

Open a terminal and exec
su

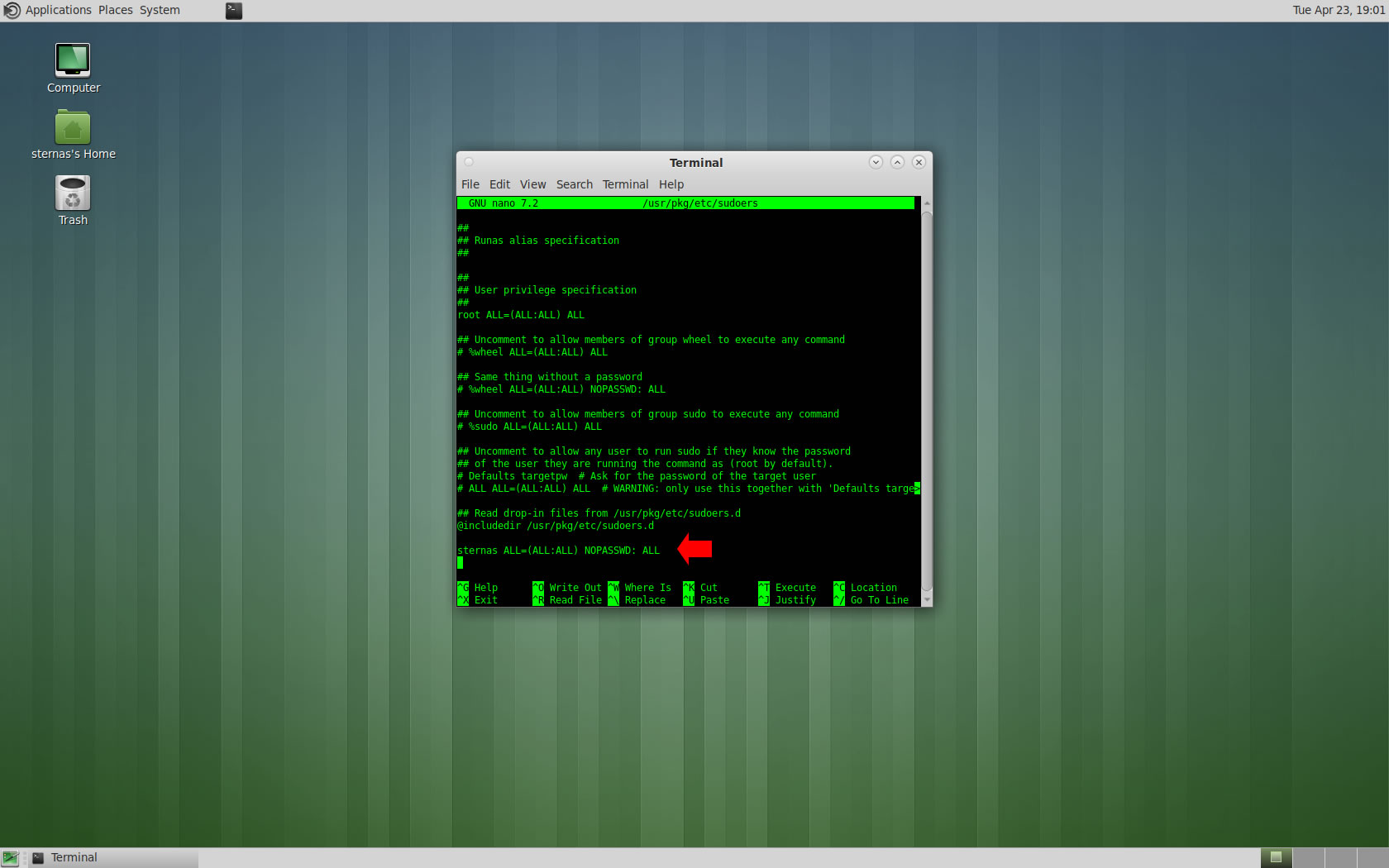

nano /usr/pkg/etc/sudoers
add at the end of /usr/pkg/etc/sudoers 1 line
username ALL=(ALL:ALL) NOPASSWD: ALL
Ctl-X to exit and Y to save
3. Download-Unzip-Install

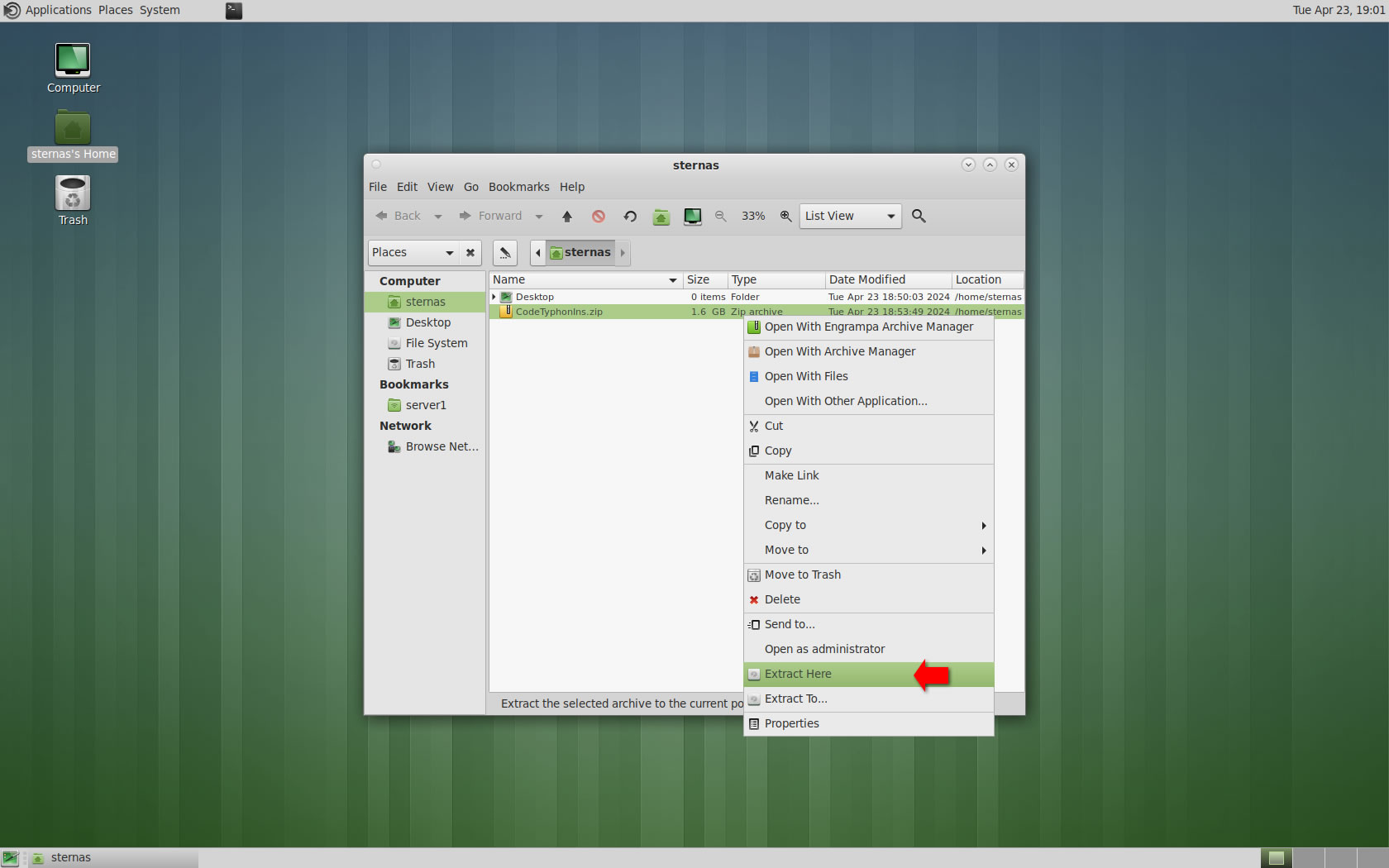

Download CodeTyphonIns.zip and unzip to your home directory

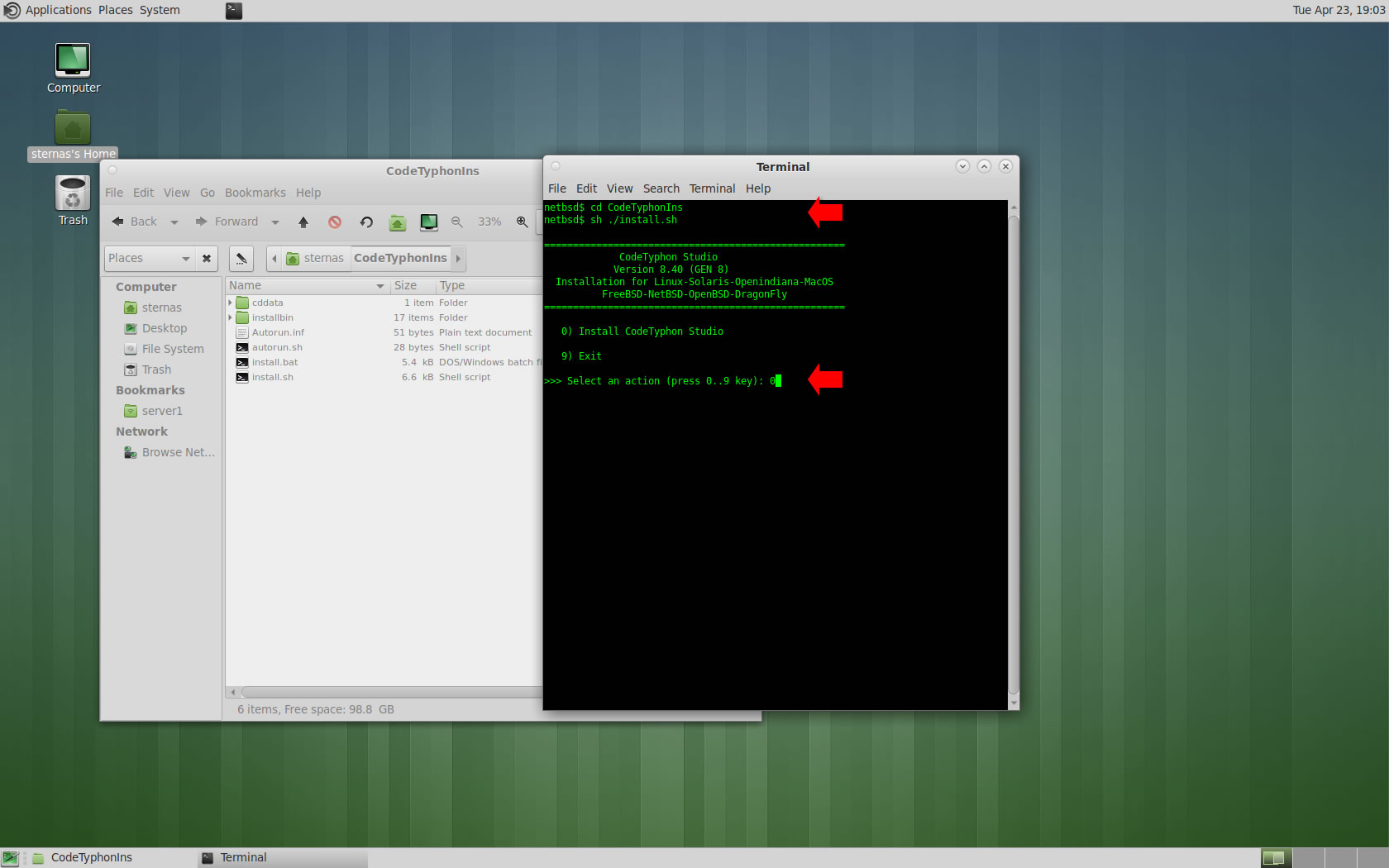

Open a terminal, and go to new CodeTyphonIns directory
cd CodeTyphonIns
Start CodeTyphon Installation with command
sh ./install.sh
Give zero "0" to Install CodeTyphon
4. Setup and Build for GTK2
After CT install you can start CTCenter or to continue with the open terminal
We don't change GTK2 Platform.

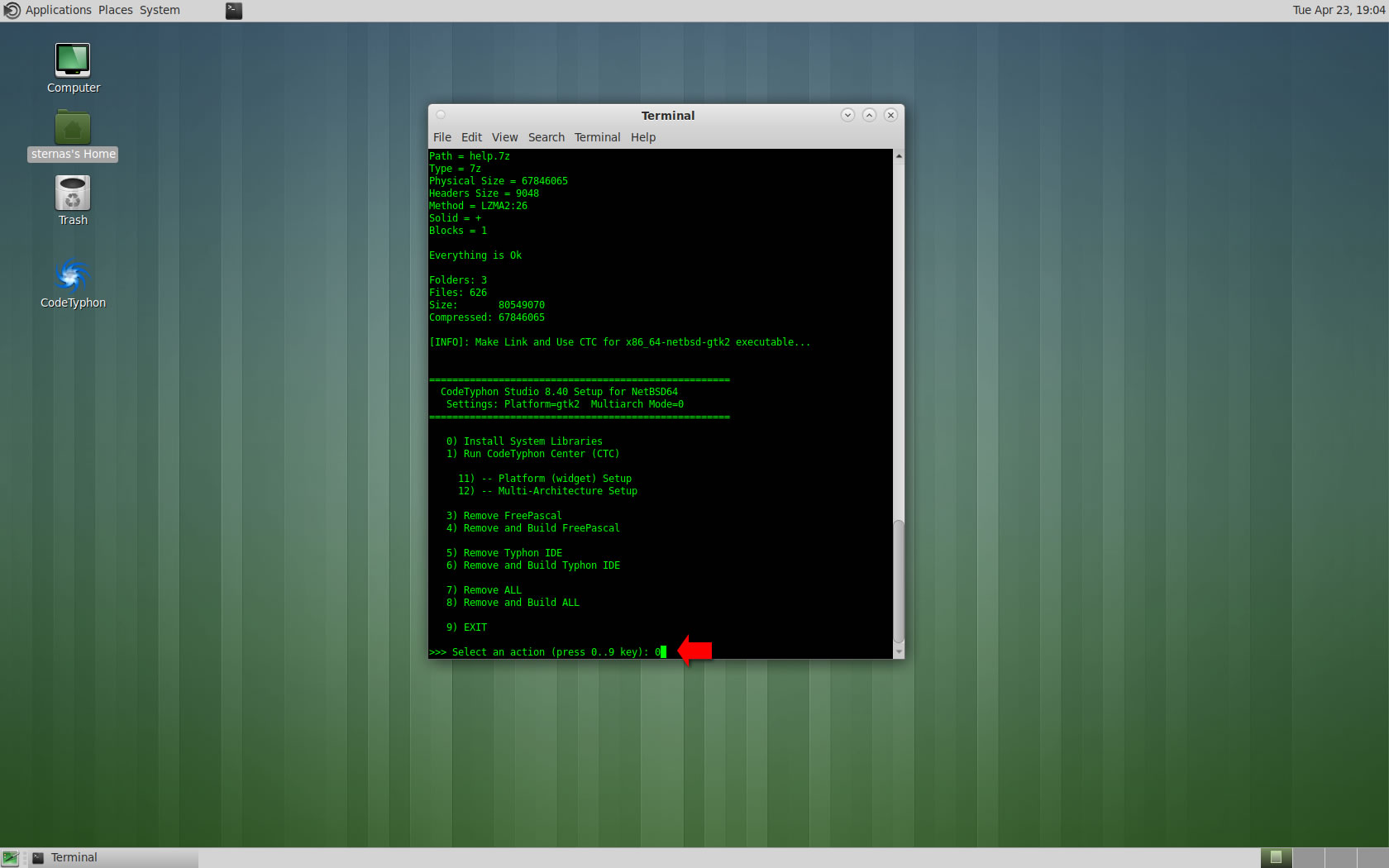

It's the first installation of CodeTyphon on this PC, so we install "system libraries" select "0".

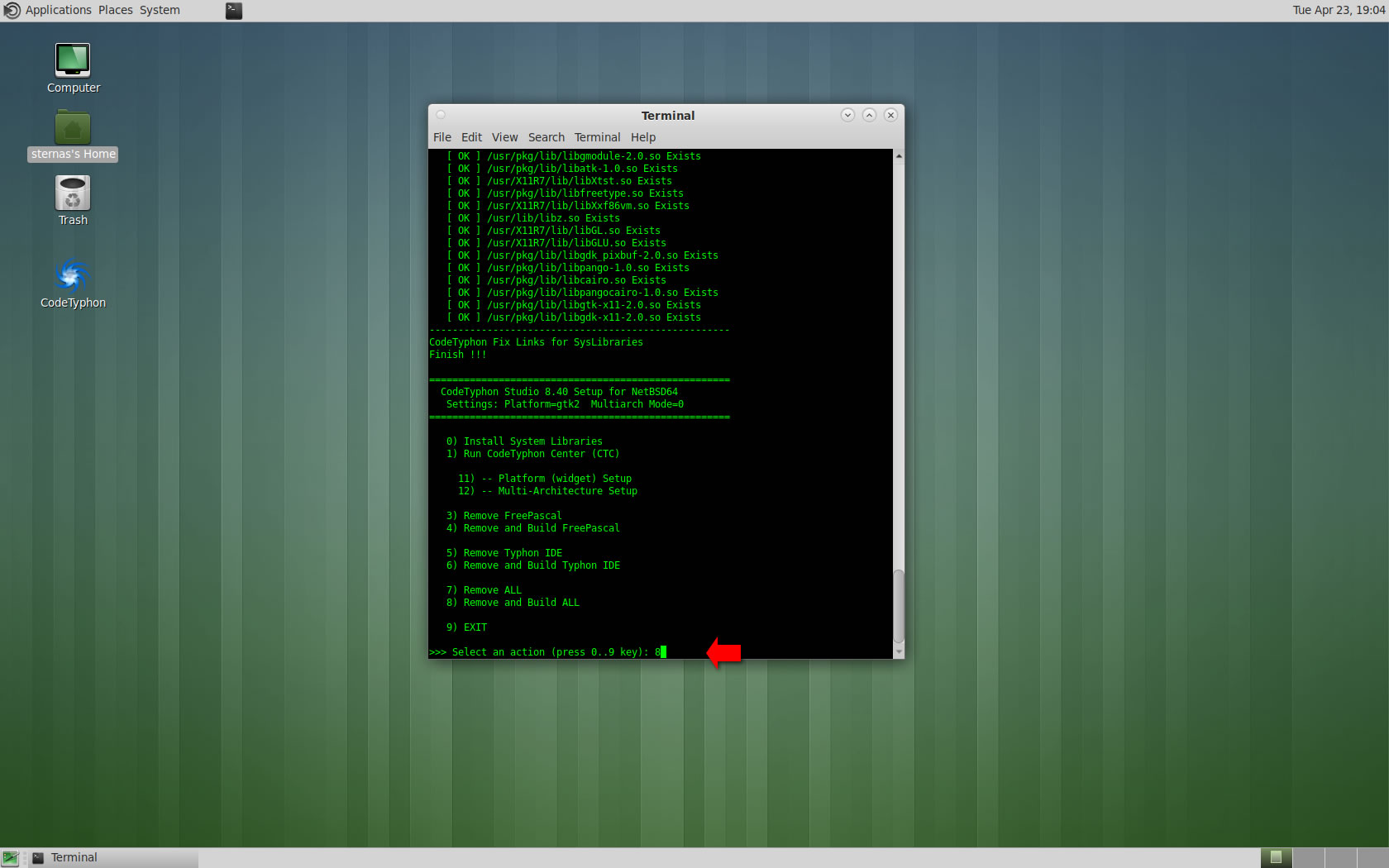

Select "8" to build all...

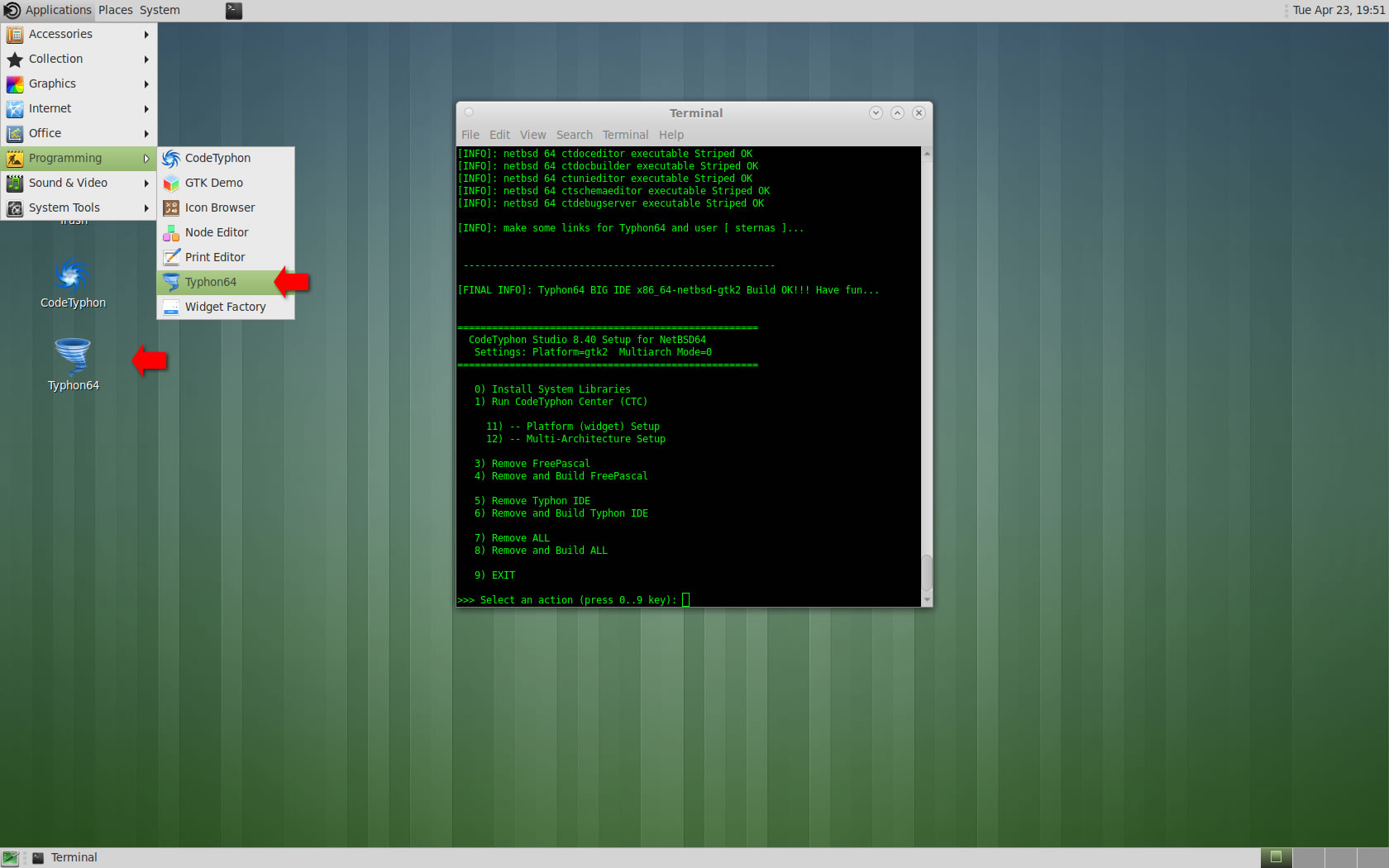

Finally

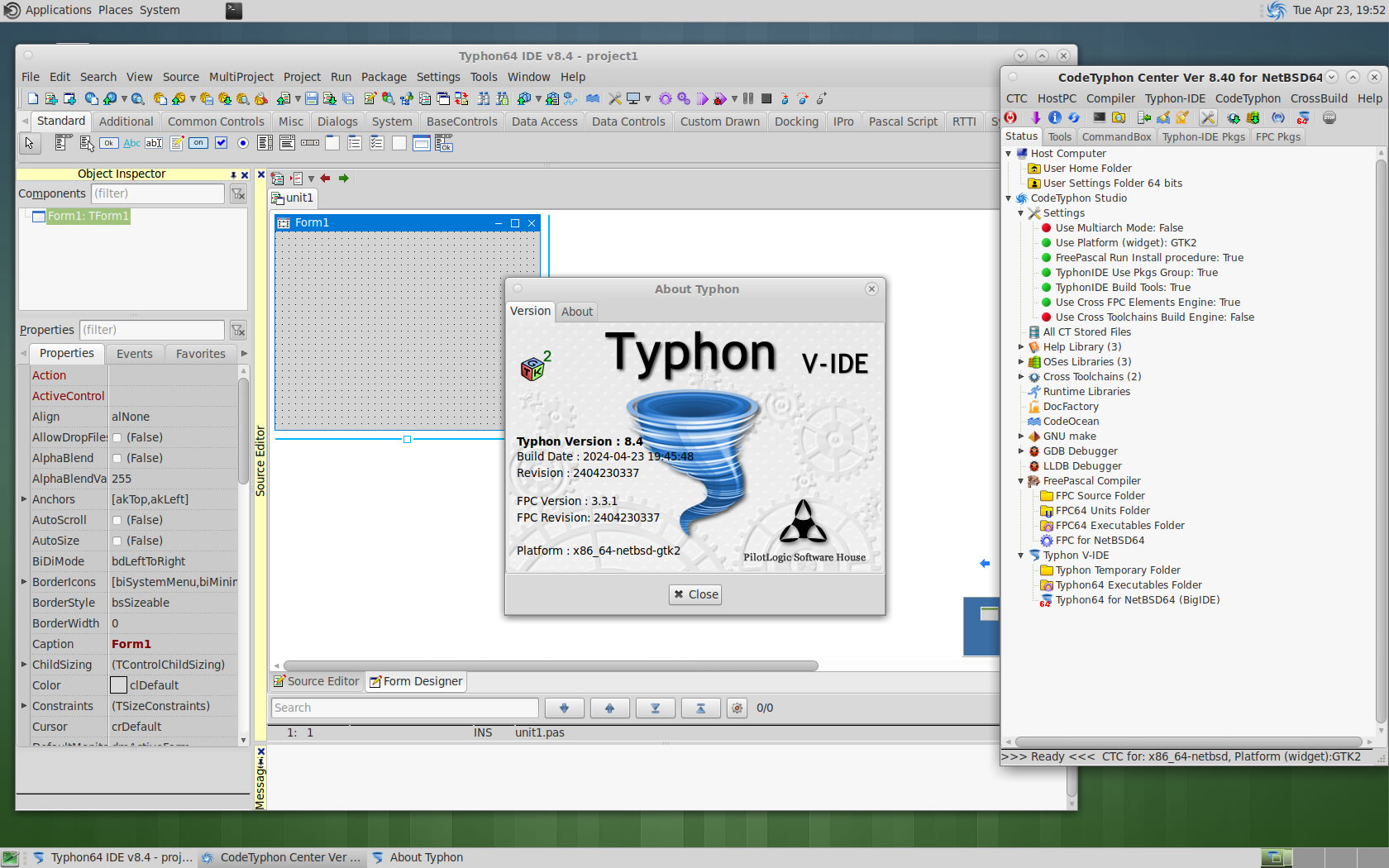

CTCenter and Typhon64 for GTK2
5. Build Typhon IDE for QT5 (KDE5)
You can Logging to Plasma Desktop for this...
but, it's NOT necessary,
you can build Typhon IDE for QT6 or QT5 or GTk2 from ANY Unix desktop...
a) Switch Typhon IDE Host Platform to QT5
CodeTyphon Center => Setup Dialog
and select QT5 Platform
b) Only for the first time, install OS System Libraries:
CodeTyphon Center =>HostPC=>"Install System Libraries"
CodeTyphon Center =>CodeTyphon=>QT Platform=>"QT5Pas Install Prebuild Libraries"
c) Remove and Build Typhon IDE for new Platform (QT5)
CodeTyphon Center =>Typhon IDE=>"Remove and Build"
Finally...

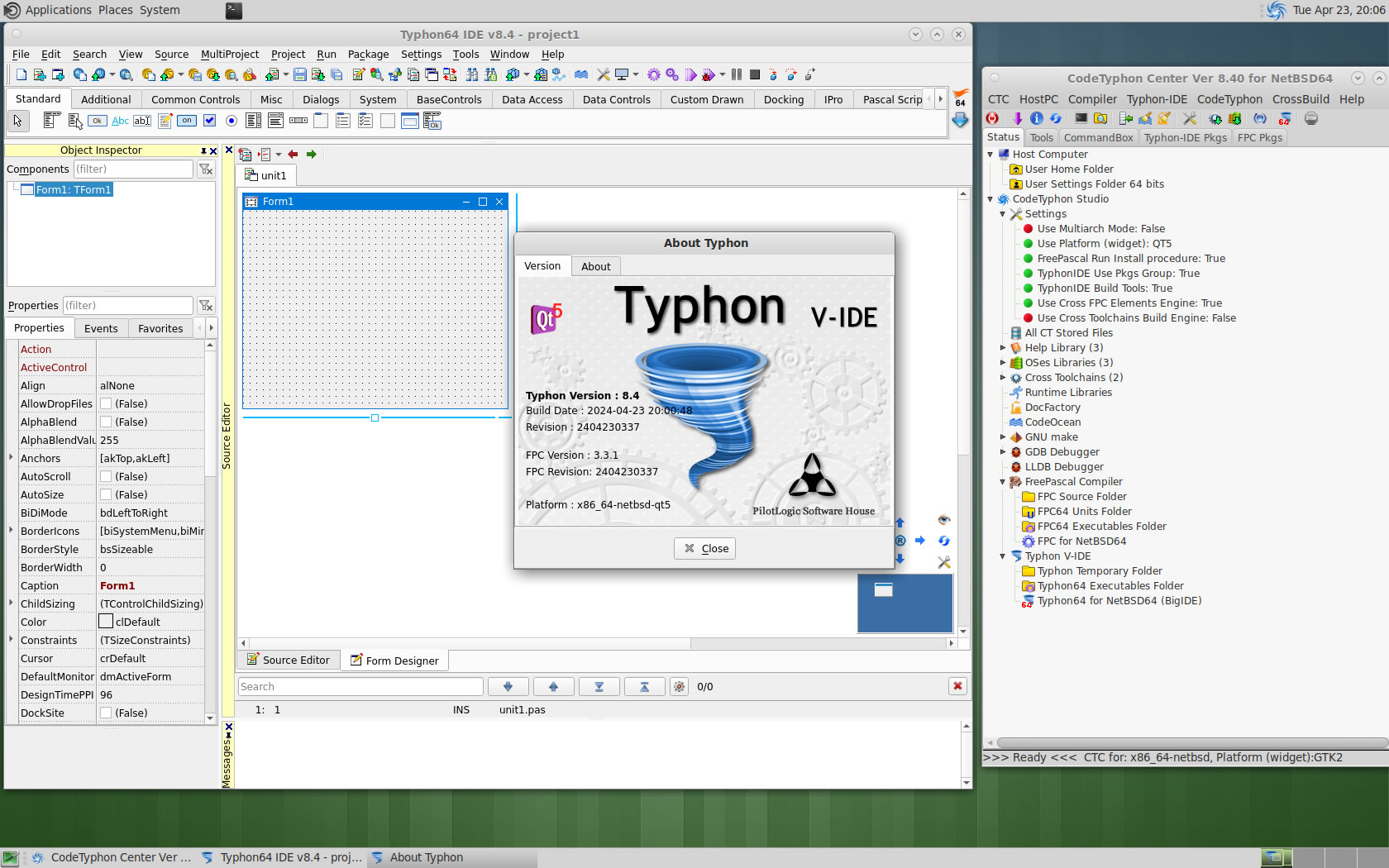

Typhon64 for QT5 (KDE 5) with ALL Docked Option (single Window)
6. Build Typhon IDE for QT6 (KDE6)
You can Logging to Plasma Desktop for this...
but, it's NOT necessary,
you can build Typhon IDE for QT6 or QT5 or GTk2 from ANY Unix desktop...
a) Switch Typhon IDE Host Platform to QT6
CodeTyphon Center => Setup Dialog
and select QT6 Platform
b) Only for the first time, install OS System Libraries:
CodeTyphon Center =>HostPC=>"Install System Libraries"
CodeTyphon Center =>CodeTyphon=>QT Platform=>"QT6Pas Install Prebuild Libraries"
c) Remove and Build Typhon IDE for new Platform (QT6)
CodeTyphon Center =>Typhon IDE=>"Remove and Build"

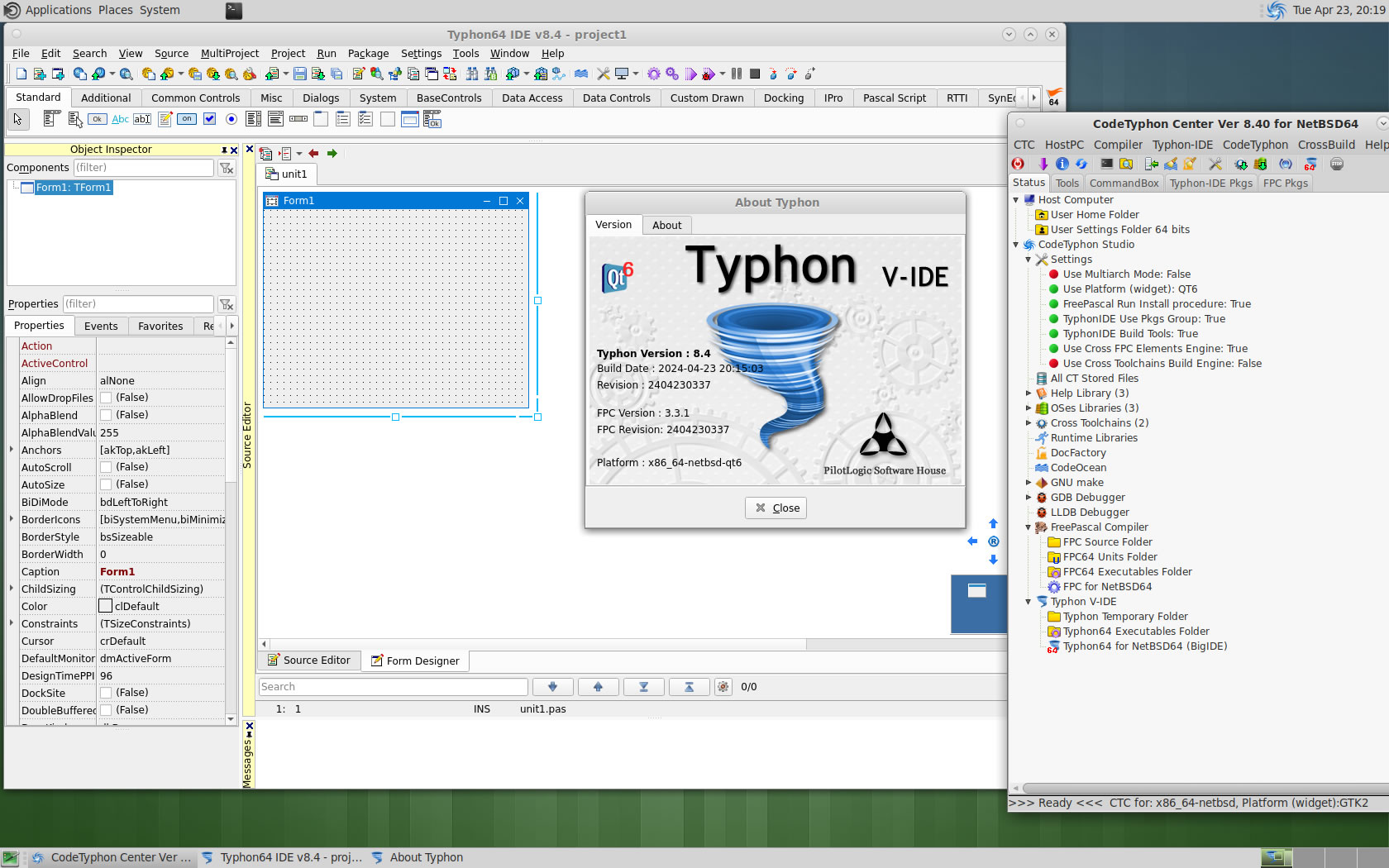

Finally...
Typhon64 for QT6 with ALL Docked Option (single Window)
