Pascal - Multi-dimensional Arrays

Details: Category: Chapter 3; Published: Sunday, 14 April 2013 16:26; Written by Sternas Stefanos; Hits: 19746

Contents[Hide]

Pascal programming language allows multidimensional arrays. Here is the general form of a multidimensional array declaration:

type
   array-identifier = array [index-type1, index-type2,...] of element-type;
   var
   a1, a2,...: array-identifier;

For example, the following declaration creates a three dimensional 5 . 10 . 4 integer array:

var
   threedim: array[1..5,1..10,1..4] of integer;

1. Two-Dimensional Arrays:

The simplest form of the multidimensional array is the two-dimensional array. A two-dimensional array is, in essence, a list of one-dimensional arrays. To declare a two-dimensional integer array of size x, y you would write something as follows:

var
   arrayName: array[1..x,1..y] of element-type;

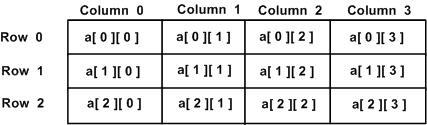

Where element-type can be any valid Pascal data type and arrayName will be a valid Pascal identifier. A two dimensional array can be visualized as a table which will have x number of rows and y number of columns. A 2-dimentional array that contains three rows and four columns can be shown as below:

two dimensional arrays

Thus, every element in array a is identified by an element name of the form a[ i ][ j ], where a is the name of the array, and i and j are the subscripts that uniquely identify each element in a.

2. Initializing Two-Dimensional Arrays:

Multi-dimensional arrays, like one dimensional array are initialized by through assignment, either by specifying a particular subscript or using a for-do loop.

For example,

var
   a: array [0..3,0..3] of integer;
   i, j : integer;
begin
   for i:=0 to 3 do
      for j:=0 to 3 do
         a[i,j]:= i * j;
   ...
end;

3. Accessing Two-Dimensional Array Elements:

An element in 2-dimensional array is accessed by using the subscripts ie. row index and column index of the array. For example:

var
   val: integer;
   val := a[2,3];

The above statement will take 4th element from the 3rd row of the array. You can verify it in the above diagram. Let us check below program where we have used nested loop to handle a two dimensional array:

program ex2dimarray;
var
   a: array [0..3,0..3] of integer;
   i,j : integer;
begin
   for i:=0 to 3 do
      for j:=0 to 3 do
         a[i,j]:= i * j;

   for i:=0 to 3 do
   begin
      for j:=0 to 3 do
         write(a[i,j]:2,' ');
      writeln;
   end;
end.

When the above code is compiled and executed, it produces following result:

As explained above, you can have arrays with any number of dimensions, although it is likely that most of the arrays you create will be of one or two dimensions.
