Need project source files from the Wiki article 2 months 6 days ago #19091

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
Good day.
Could you please attach project source files to this Wiki article.

pilotlogic.com/sitejoom/index.php/wiki/1...y-build-your-project

Want to try build this project for up-to-date date Android version.
And using CT higher than 5.5.
This version of CT is shown on the screenshot in the article.

Please Log in or Create an account to join the conversation.

Last edit: by Ak.Saharov.

Need project source files from the Wiki article 2 months 6 days ago #19092

  • Matis A.
  • Matis A.'s Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 1276
  • Thank you received: 197
For which Android API:  14..35 ?
Which CPU: arm or aarch64?

PilotLogic Core Programmer

Please Log in or Create an account to join the conversation.

Last edit: by Matis A..

Need project source files from the Wiki article 2 months 6 days ago #19093

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
I have smartphone with Android 12.
API: 31
CPU: arm

Please Log in or Create an account to join the conversation.

Last edit: by Ak.Saharov.

Need project source files from the Wiki article 2 months 6 days ago #19094

  • Matis A.
  • Matis A.'s Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 1276
  • Thank you received: 197
With Typhon64 IDE


PilotLogic Core Programmer
Attachments:

Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 6 days ago #19095

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
I am sorry, sir,

but the project you attached in zip archive

is not the same project that was used in the article.

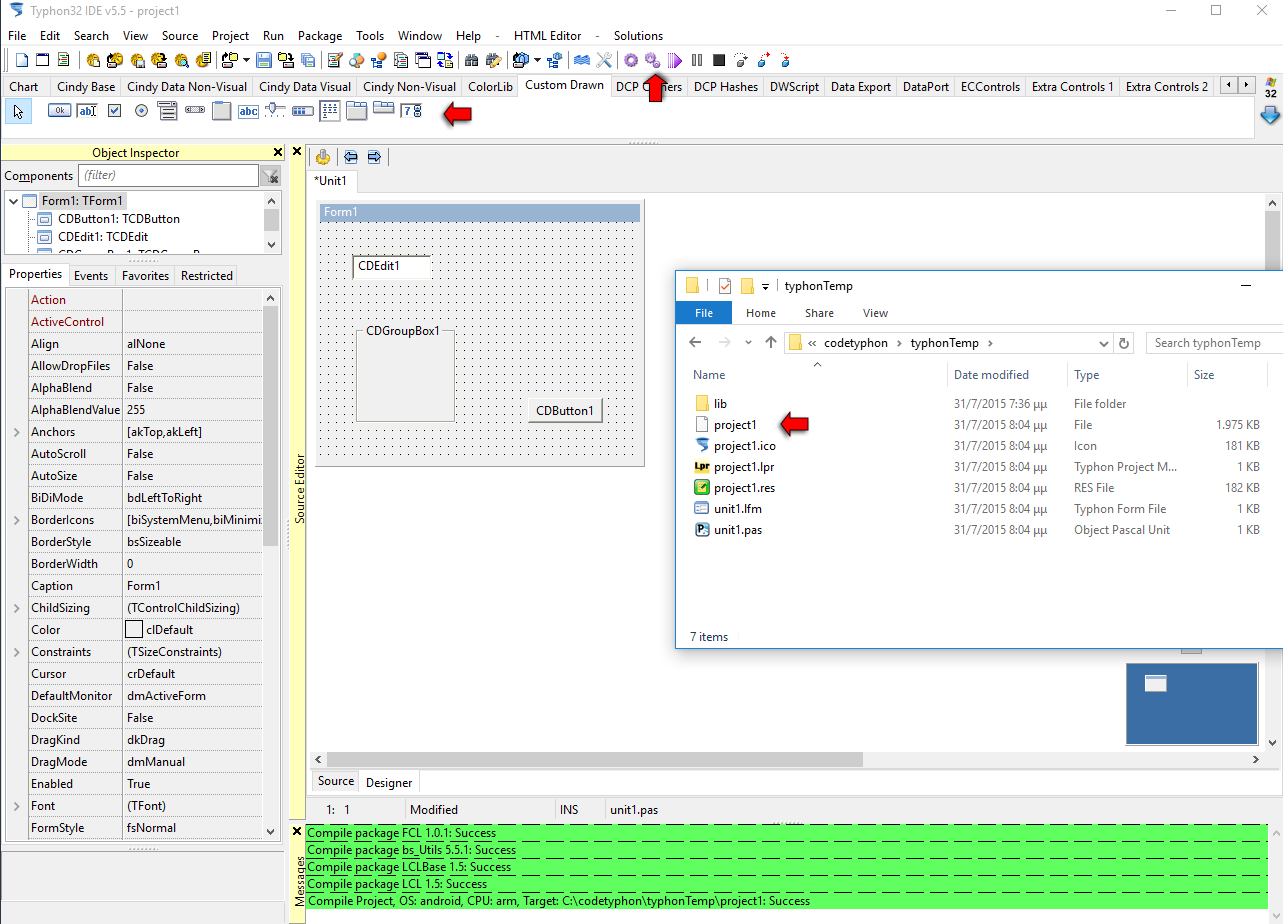

Here is the screenshot from the article.

There is the Form with components on it:
TCDButton, TCDEdit, TCDGroupBox




I failed to search for these components in Code Typhon 64 palettes.

That is why I made my request for that project from the Wiki article.


Attachments:

Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 6 days ago #19096

  • Matis A.
  • Matis A.'s Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 1276
  • Thank you received: 197
Sir
We DON'T support CT 5.5 anymore, it's 10 years OLD.
PLEASE install CT 8.7
PilotLogic Core Programmer

Please Log in or Create an account to join the conversation.

Last edit: by Matis A..

Need project source files from the Wiki article 2 months 6 days ago #19097

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
I have CT 8.3 installed.

Could you, please, hint me where I can find or install the components listed on screenshot: TCDButton, TCDEdit, TCDGroupBox?



Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 5 days ago #19098

  • Matis A.
  • Matis A.'s Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 1276
  • Thank you received: 197

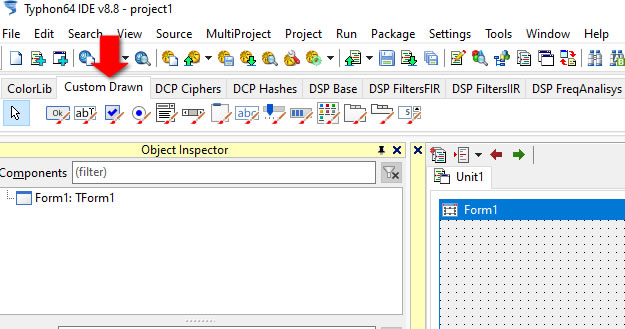

"Custom Drawn" Comp page


PilotLogic Core Programmer
Attachments:

Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 5 days ago #19099

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
Thank you, sir.

I try to build my own music player.

I think the components from Custom Drawn palette will be enough for such project.

Also I plan to use some Android API from binLibraries folder of CT.

To deploy my music player I plan to build library .so file and use the template of Android apk I have written about in this post.
pilotlogic.com/sitejoom/index.php/forum/...ion-to-apk-file.html

Please Log in or Create an account to join the conversation.

Last edit: by Ak.Saharov.

Need project source files from the Wiki article 2 months 5 days ago #19100

  • Matis A.
  • Matis A.'s Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 1276
  • Thank you received: 197
Thanks Sir
Have fun ...
PilotLogic Core Programmer

Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 5 days ago #19101

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
Excuse me, sir.
I have failed to compile and build my music player project with Custom Drawn Widgets.

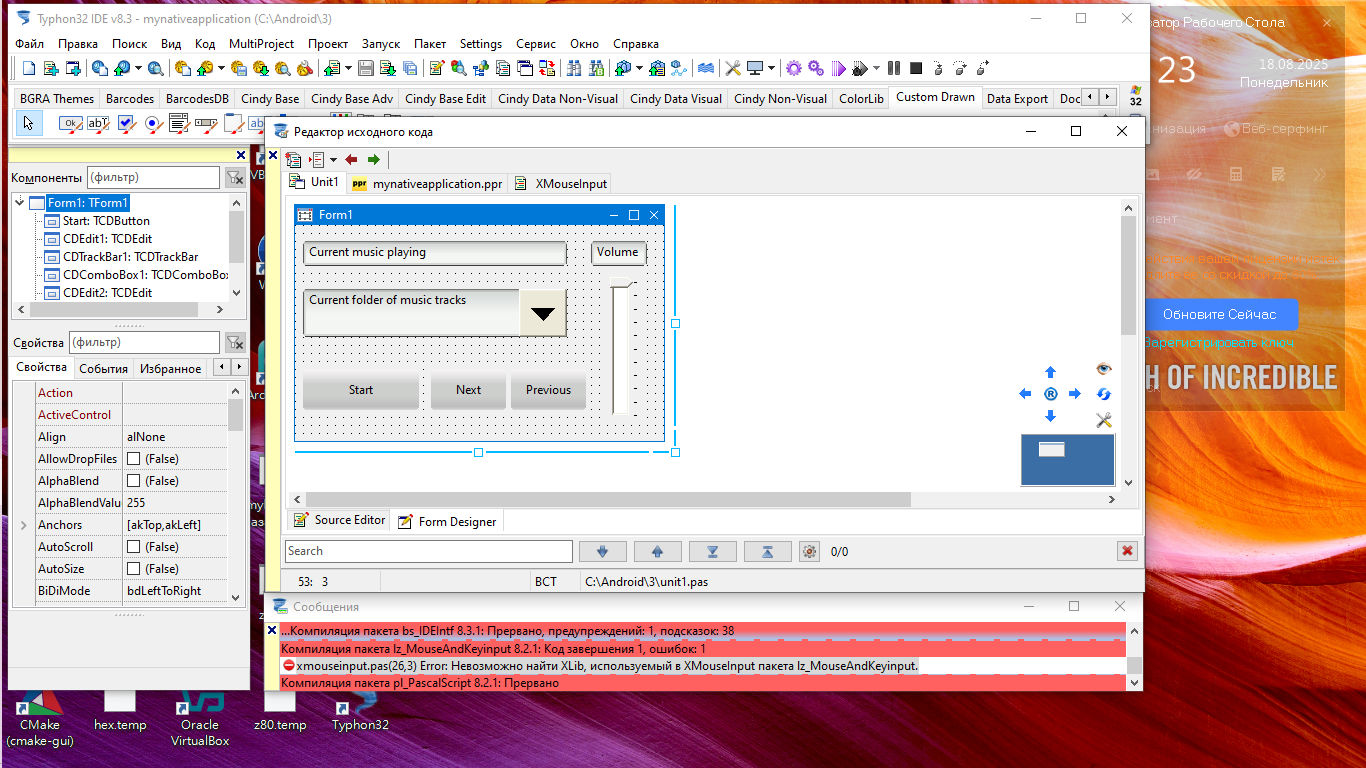

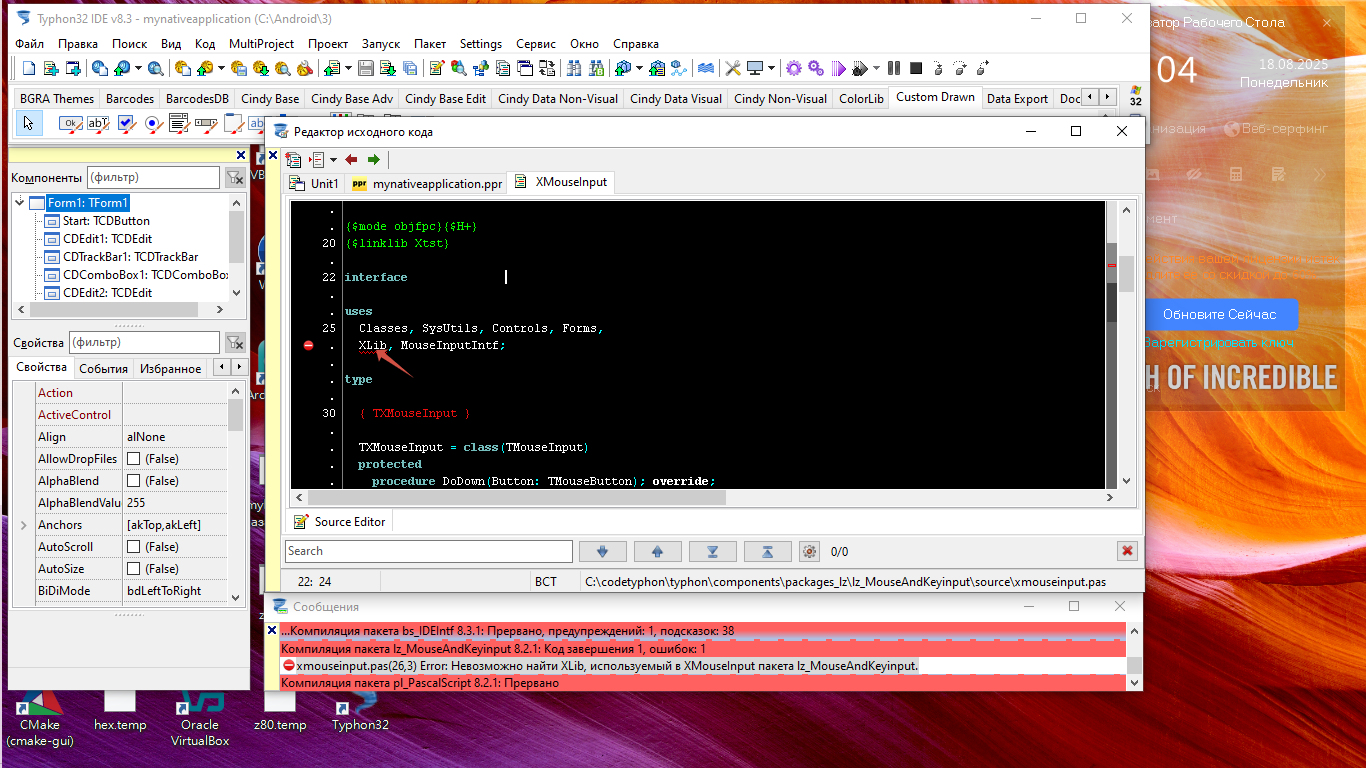

Got an error about missing library Xlib. Marked on screenshot with red arrow.

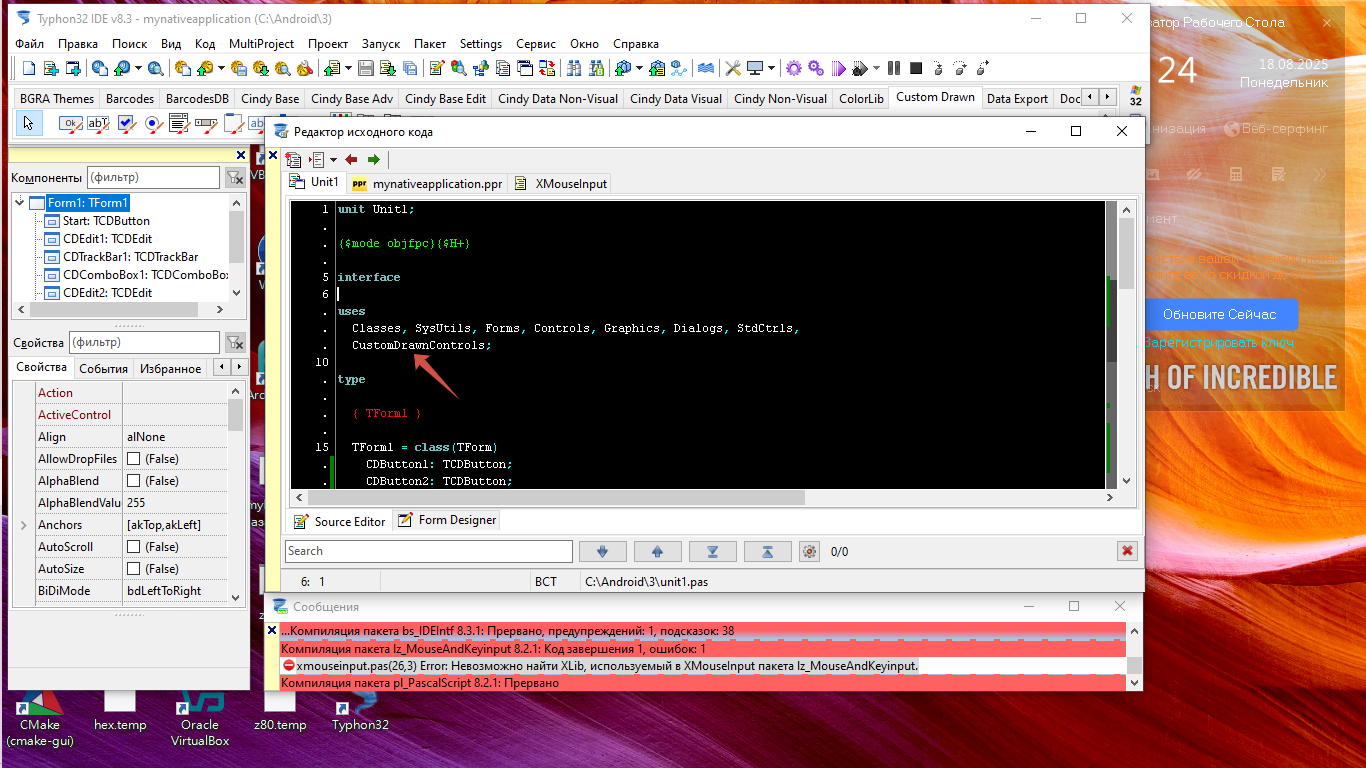

Did I miss something to include from Custom Drawn in section "uses" of my project unit?

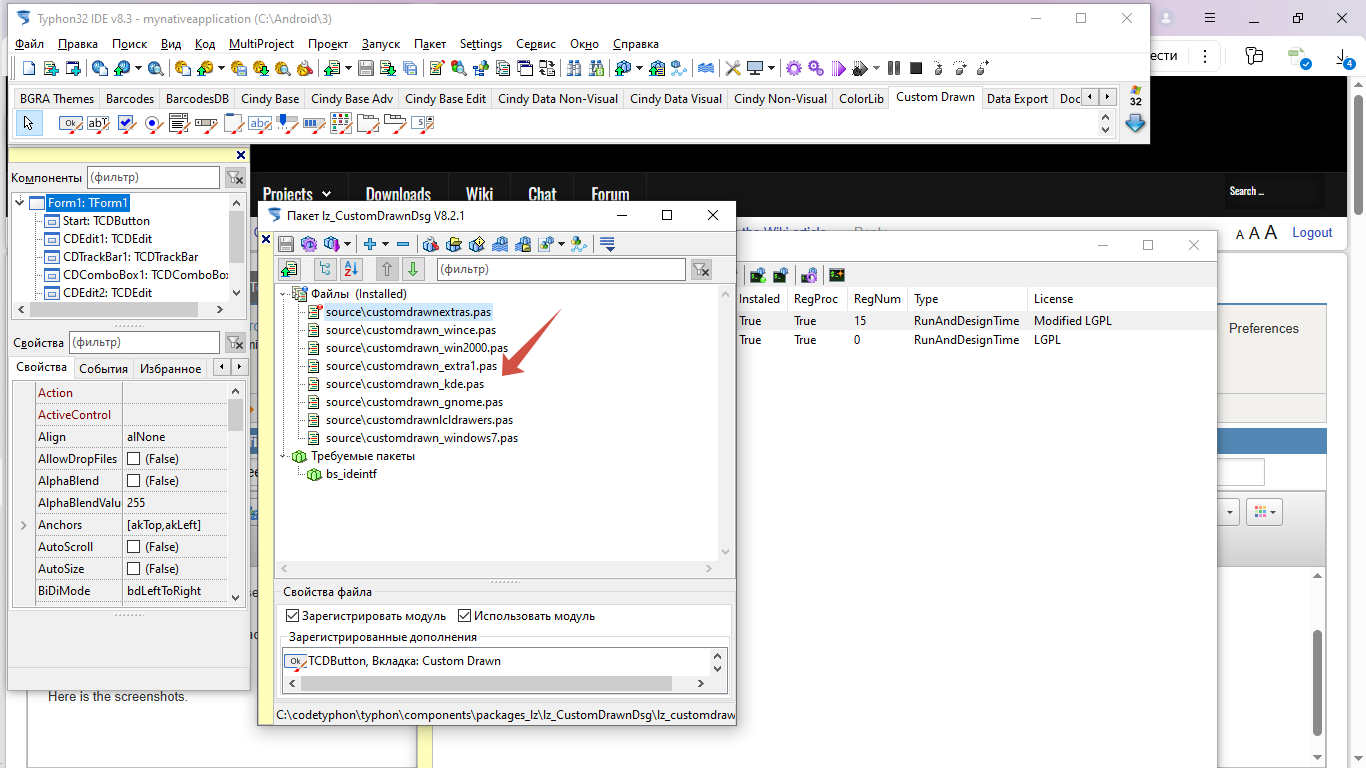

Or maybe it is necessary to activate additional units in package custom drawn?

Here is the screenshots.




Attachments:

Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 5 days ago #19102

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4581
  • Thank you received: 1125
As @Matis post
PLEASE install CT 8.7
PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 5 days ago #19103

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
Thank you , sir.
I hope it will help.

Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 4 days ago #19104

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
Have installed CT 8.7.

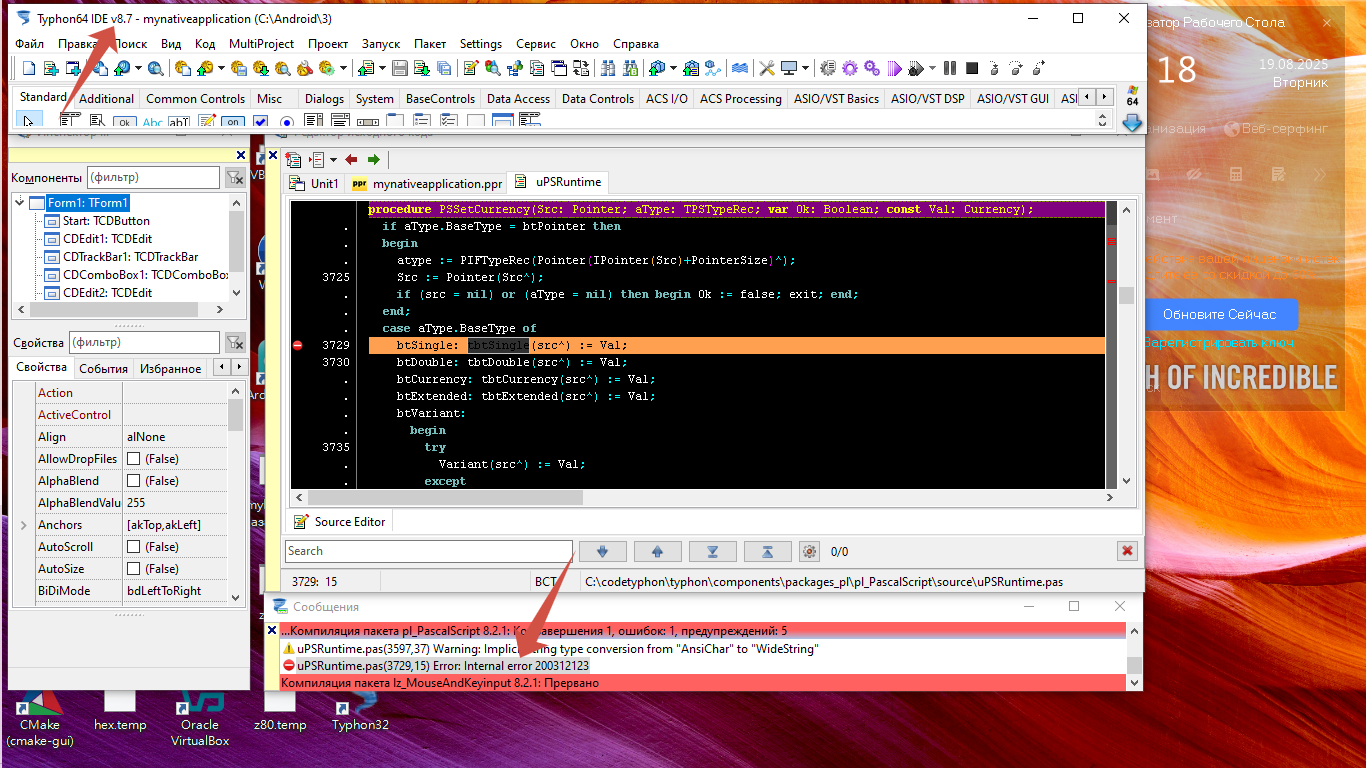

While compiling and building the project have got INTERNAL ERROR 200312123.

Here is screenshot.




THAT IS WHY I have requested for source file from WIKI article. Because that project was compiled successfully.


Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Ak.Saharov.

Need project source files from the Wiki article 2 months 3 days ago #19105

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
Any other idea, mr. ex-Pilot Sternas Stefanos?

What else should I install to compile this project with CustomDrawn widgets?

Not for to deploy into apk, but just build with your IDE?



Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 3 days ago #19106

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4581
  • Thank you received: 1125

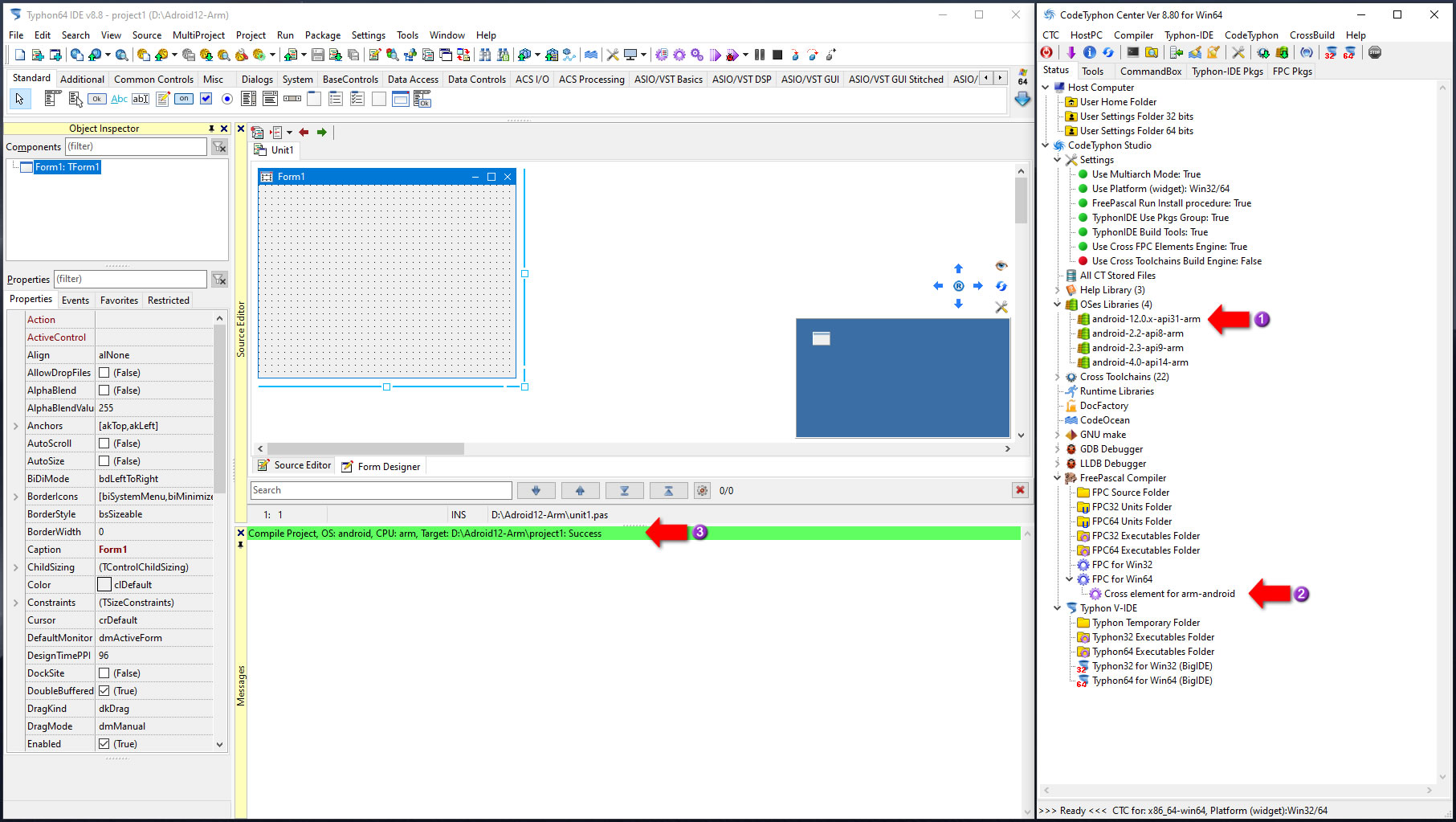

We Build arm-Android
for Typhon32 and for Typhon64

We Build the zzzz-Android projects without problems.

Now,  pl_PascalScript has problem with arm-Android.
Don't use this pkg for arm-Android target









PilotLogic Architect and Core Programmer
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Sternas Stefanos.

Need project source files from the Wiki article 2 months 3 days ago #19107

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
Thank you, sir.

I hope it will work.

Yes, it is just hope, because of screenshots you you have used NEW VERSION 8.8 of CTC and IDE to build the project from zip-archive attached.

As I was told by you I have just installed ACTUAL VERSION 8.7 of CTC.

I will try to build the project from zip attached with VERSION 8.7 of CTC in IDE according to your instructions on screenshots.

It would be grеat, if you share me the link to download new version 8.8 of CTC and IDE 64.







Attachments:

Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 3 days ago #19108

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4581
  • Thank you received: 1125
Please

read this for LAB CT

and this for install LAB CT

You have a lot of things to learn..
PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

Last edit: by Sternas Stefanos.

Need project source files from the Wiki article 2 months 2 days ago #19109

  • Ak.Saharov
  • Ak.Saharov's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 39
  • Thank you received: 1
Thank you, sir.

Project you have attached in zip was successfully built with 8.7 version of IDE.

I failed to launch executable file in Android terminal.

And yes, you are quite right.

I will have a lot of things to learn about cross-compile for Android.

Because of your Wiki article is very incomplete, in fact.




Attachments:

Please Log in or Create an account to join the conversation.

Need project source files from the Wiki article 2 months 2 days ago #19110

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4581
  • Thank you received: 1125
Try
chmod 777 project1

in Android terminal
I think is permission problem
PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

Last edit: by Sternas Stefanos.
