CT on DragonFly 5.8.0

We test Lab CodeTyphon 7.10 on DragonFly 5.8.0

DragonFly belongs to the same class of operating systems as other BSD-derived systems and Linux.
It is based on the same UNIX ideals and APIs and shares ancestor code with other BSD operating systems.
DragonFly provides an opportunity for the BSD base to grow in an entirely different direction from the one taken in the FreeBSD, NetBSD, and OpenBSD series.
DragonFly includes many useful features that differentiate it from other operating systems in the same class.
The most prominent one is HAMMER, our modern high performance filesystem with built-in mirroring and historic access functionality.
Virtual kernels provide the ability to run a full-blown kernel as a user process for the purpose of managing resources or for accelerated kernel development and debugging.

DragonFly BSD is one of our LAB Reference OSes

More for DragonFly BSD here



System: Entry level PC with 1 CPU (4-Cores) / 8 Gbyte RAM / 120 Gbytes Hard Disk / 1680x1050 pixels Monitor

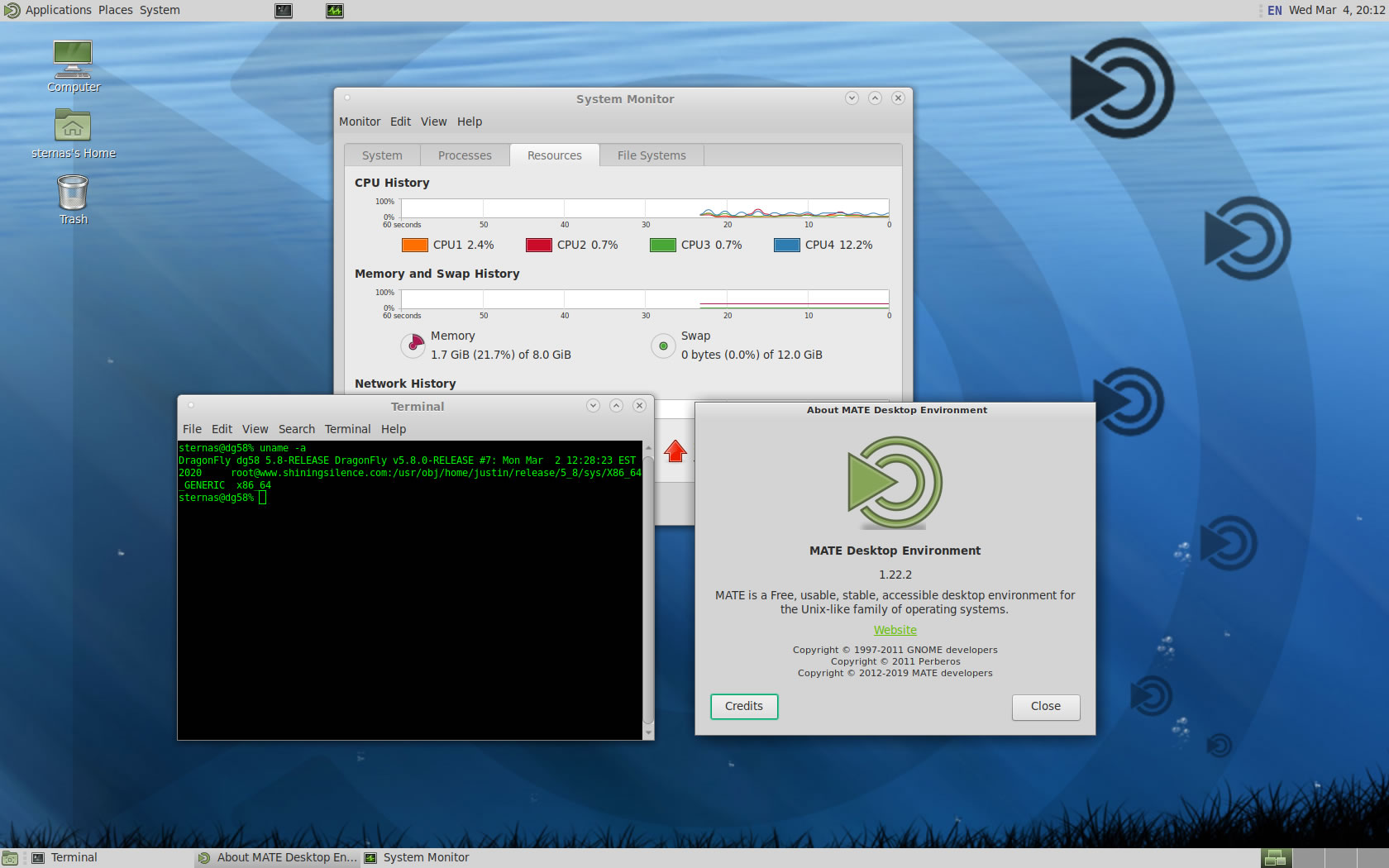

OS : DragonFly version 5.8.0 64 bits  (dfly-x86_64-5.8.0_REL.iso)





OS things and stuff..

Updated for DragonFly BSD 5.8.3 (2020-10-01)

DragonFly BSD installation give you only a minimum bootable OS.

First Install the OS to your PC.

Our minimum desktop setup procedure:

After OS installation, Logging as "root"

a) Install "bash", "zip", "unzip", "nano", "sudo" and "xorg"

pkg install -y bash zip unzip nano sudo xorg

b) At this test we install "MATE", "KDE5", "GNOME3" and "xfce4" Desktops

pkg install -y mate mate-desktop mate-common
pkg install -y xfce xfce4-desktop thunar-archive-plugin
pkg install -y gnome3 gnome-desktop
pkg install -y kde5
pkg install -y lightdm lightdm-gtk-greeter lightdm-gtk-greeter-settings

c) Setup /etc/rc.conf

nano /etc/rc.conf

and add:

moused_enable="YES"
hald_enable="YES"
dbus_enable="YES
lightdm_enable="YES"

d) Add installation user to group "wheel"

pw groupmod wheel -m username



Reboot and logging as installation user...







Preparation-Give "sudo" root privileges

Open a terminal and exec

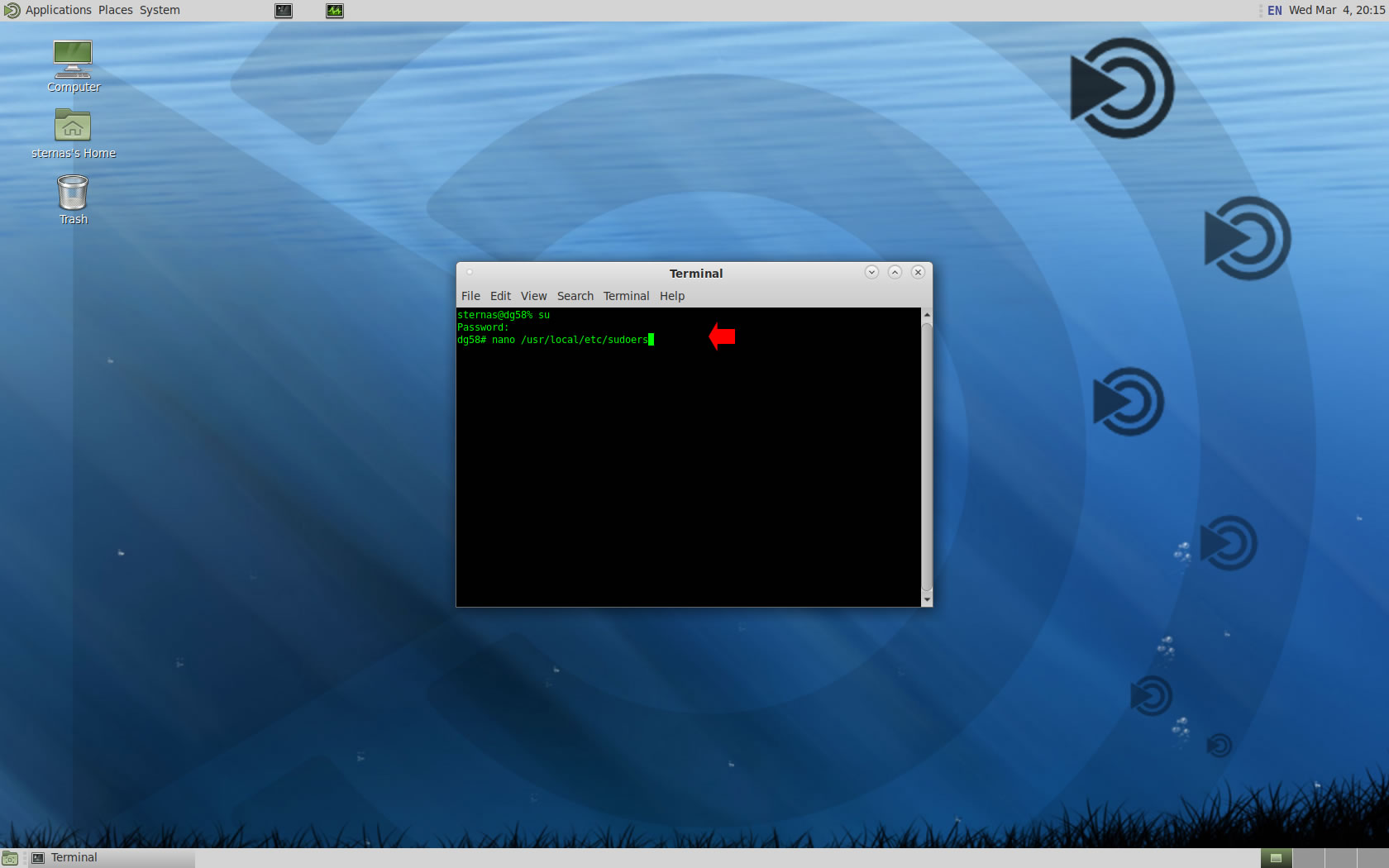

su
nano /usr/local/etc/sudoers

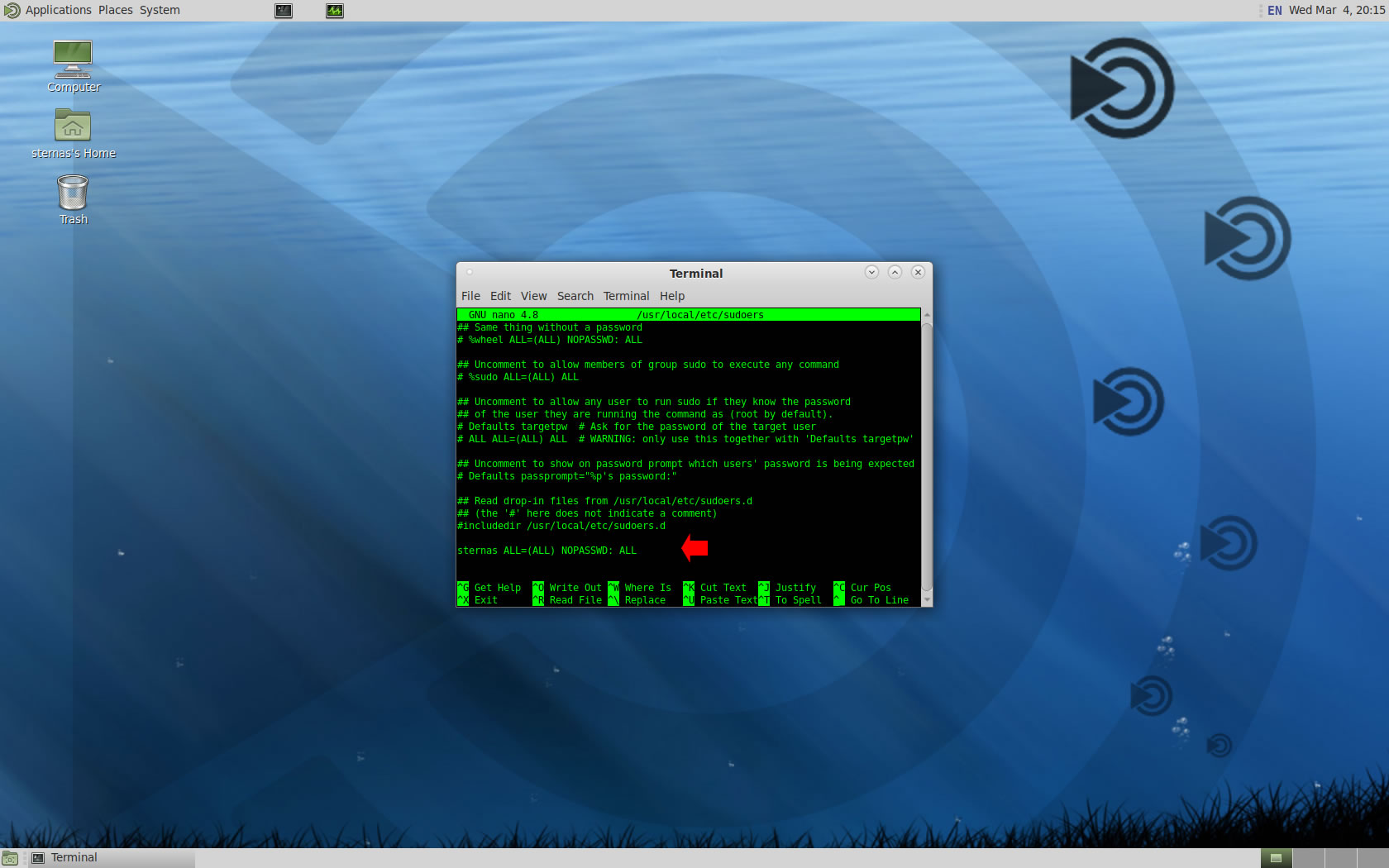

add at the end of /usr/local/etc/sudoers 1 line

username ALL=(ALL) NOPASSWD: ALL

Ctl-X to exit and Y to save





Download-Unzip-Install

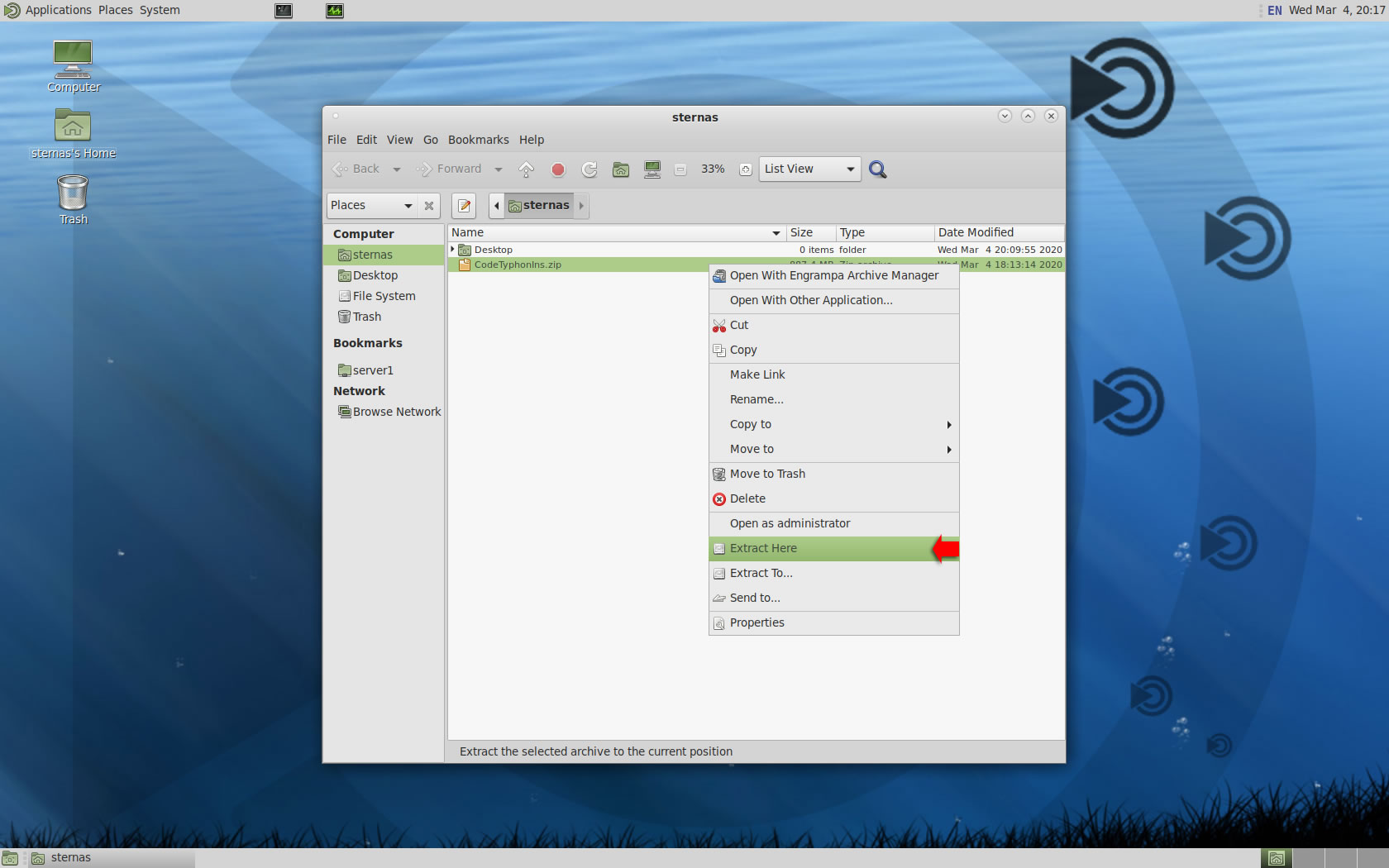

Download CodeTyphonIns.zip and unzip to your home directory



Open a terminal, and go to new CodeTyphonIns directory

cd CodeTyphonIns

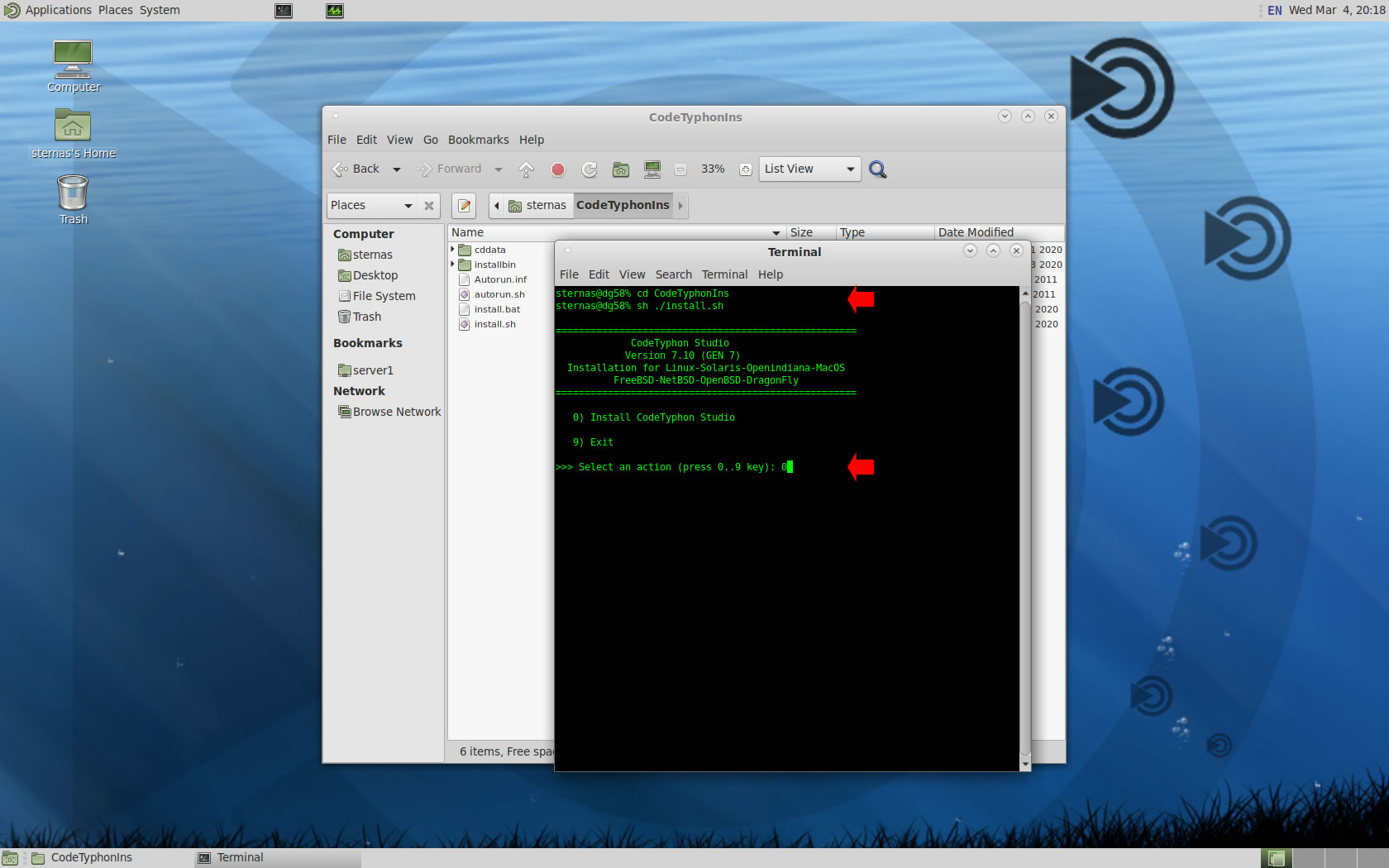

Start CodeTyphon Installation with command

sh ./install.sh

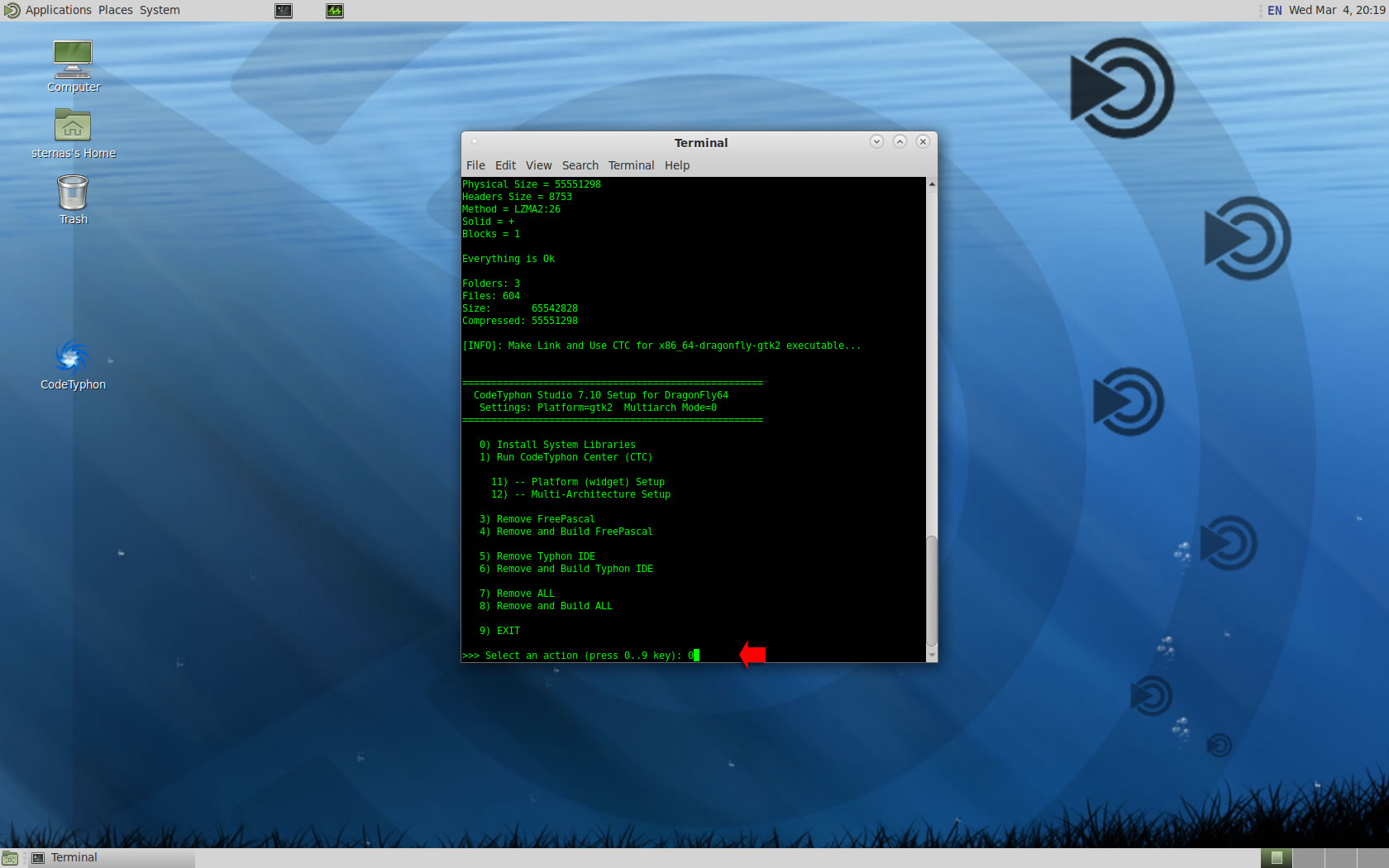

Give zero "0" to Install CodeTyphon







Setup and Build (GTK2)

After CT install you can start CTCenter or to continue with the open terminal

We don't change GTK2 Platform, MATE desktop based on GTK2.

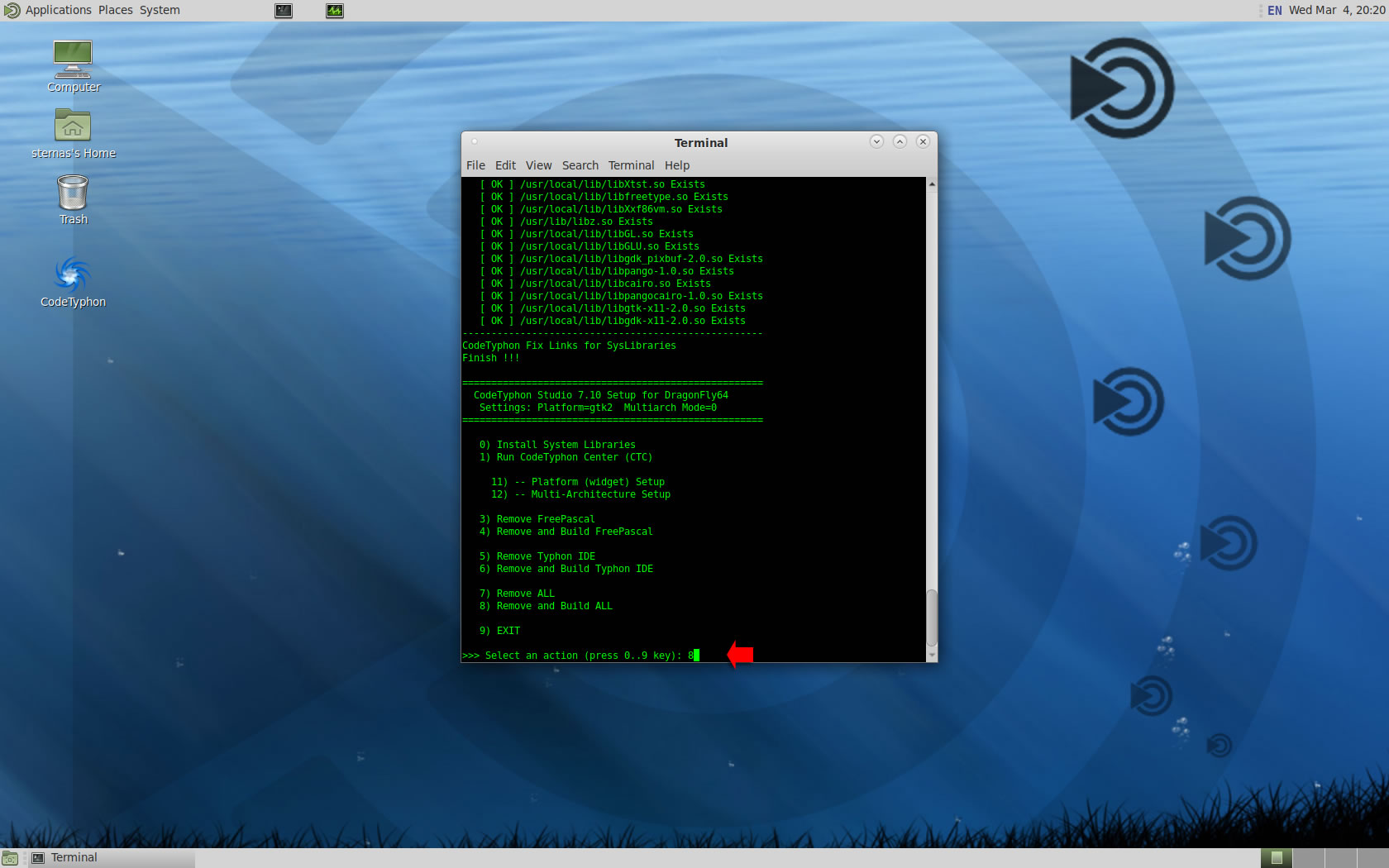

It's the first installation of CodeTyphon on this PC, so we install "system libraries" select "0".



Select "8" to build all...

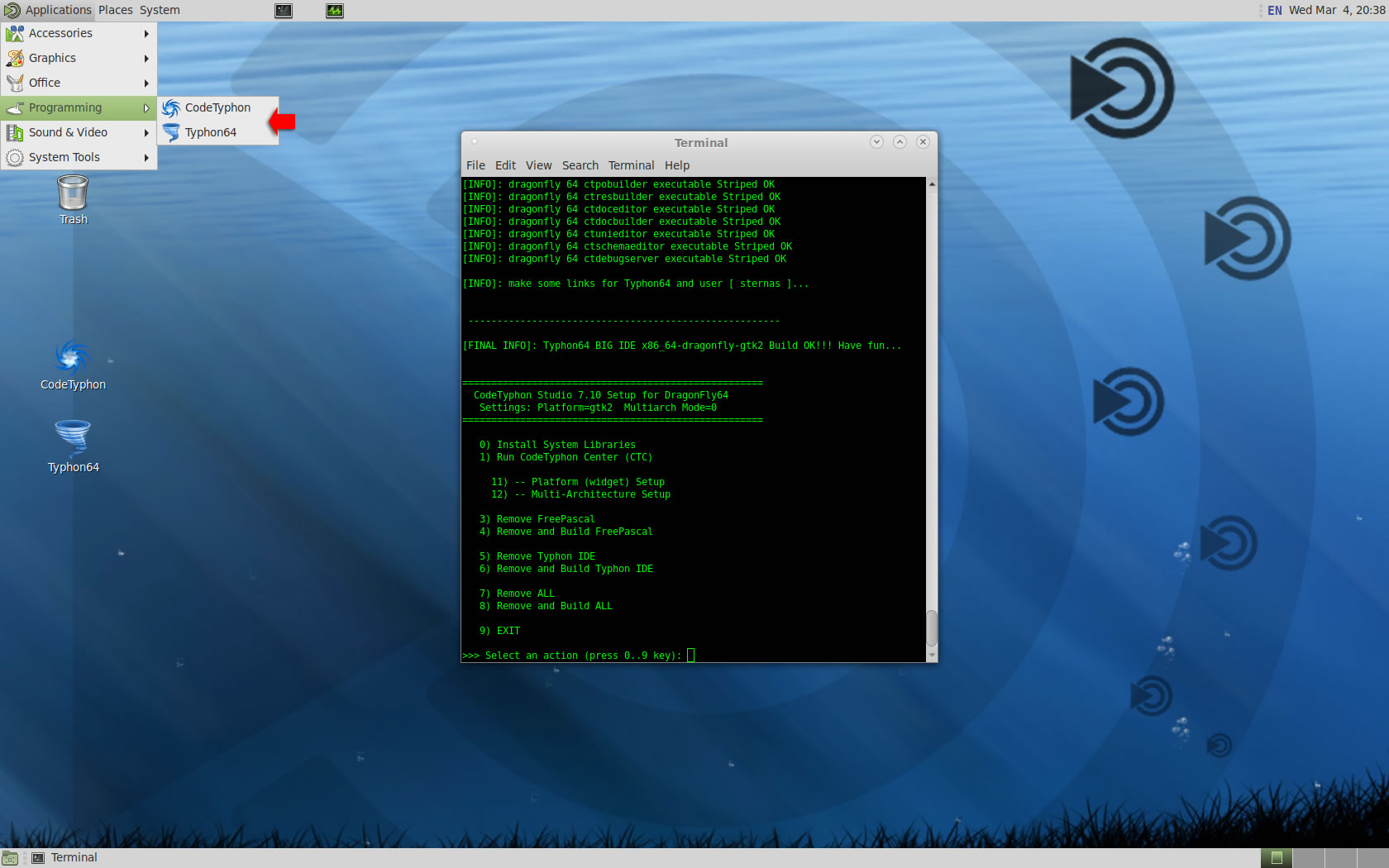

Finally

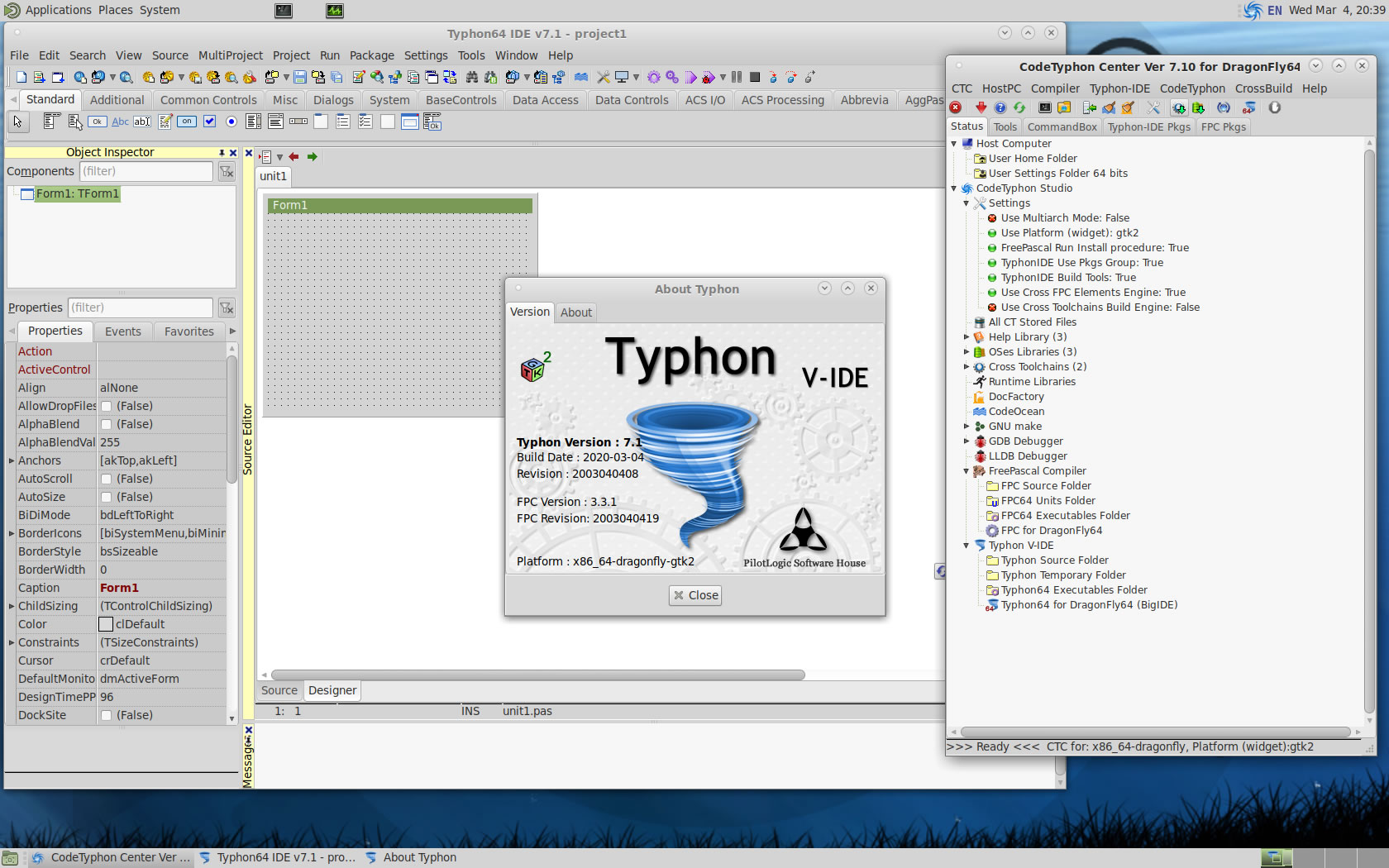

CTCenter and Typhon64 for GTK2







Libraries tests (GTK2)

Typhon IDE on DragonFly BSD has now about 146 packages.

We test some of about 1900 CodeOcean samples...

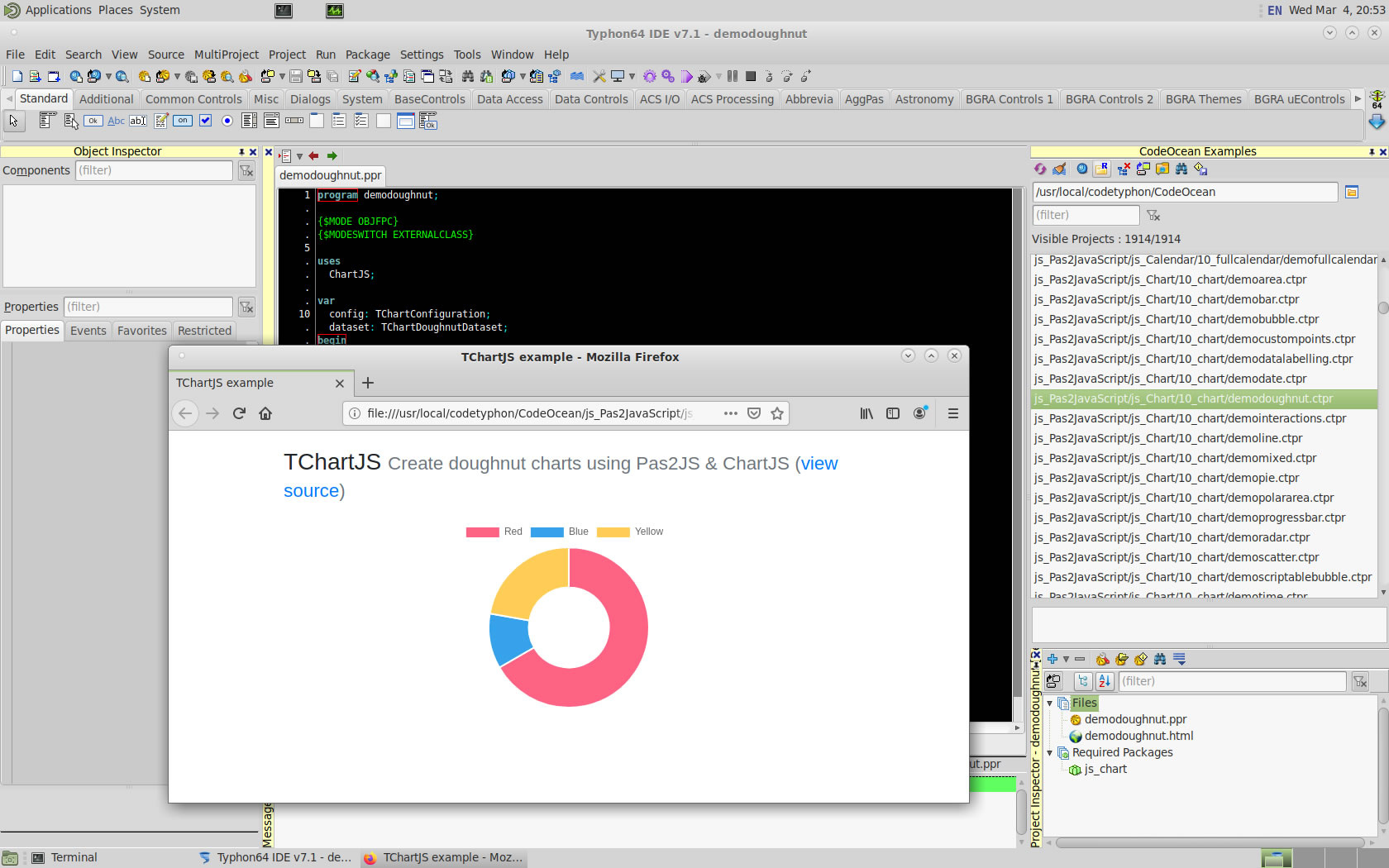

 js_Chart

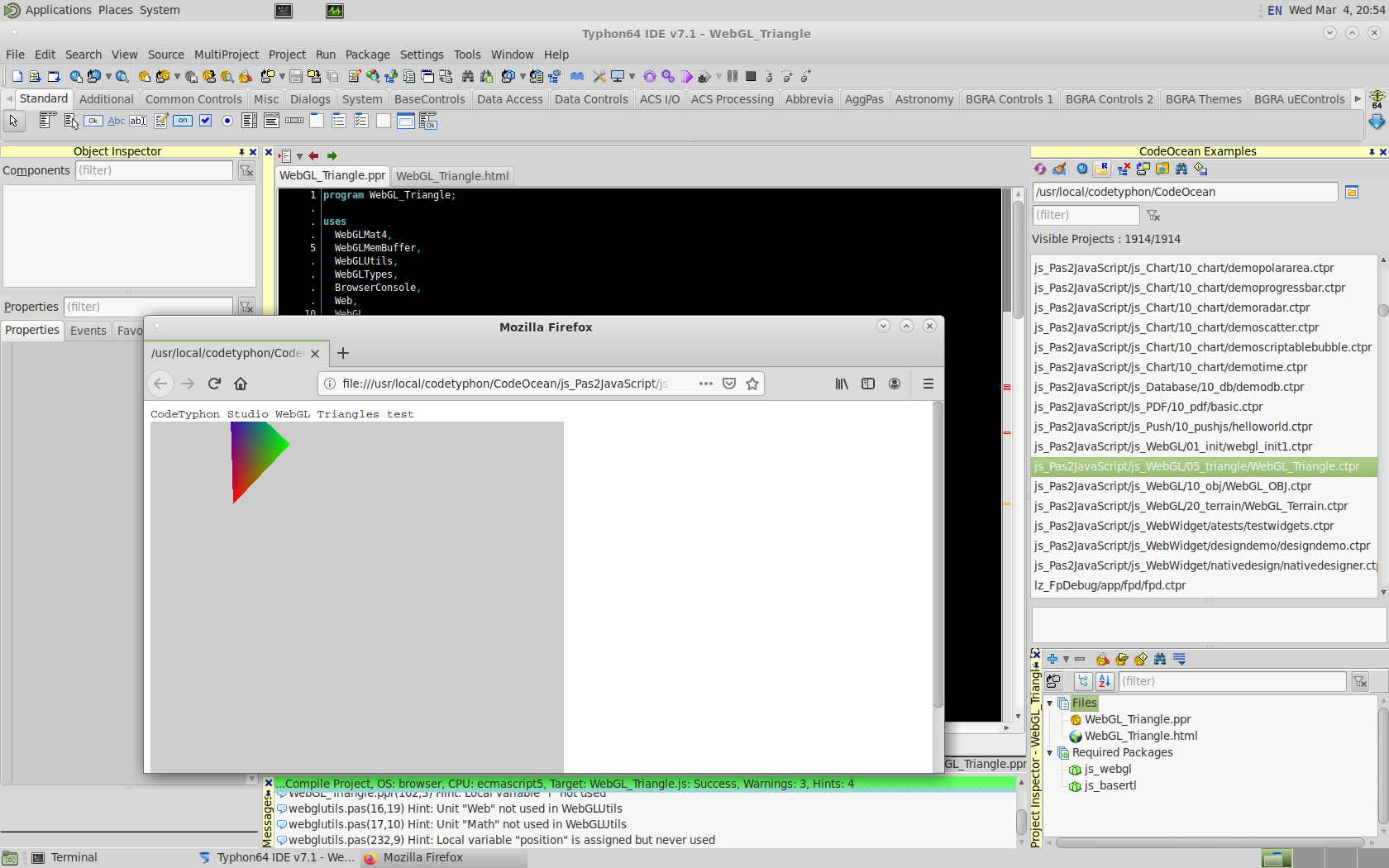

 js_WebGL !!!

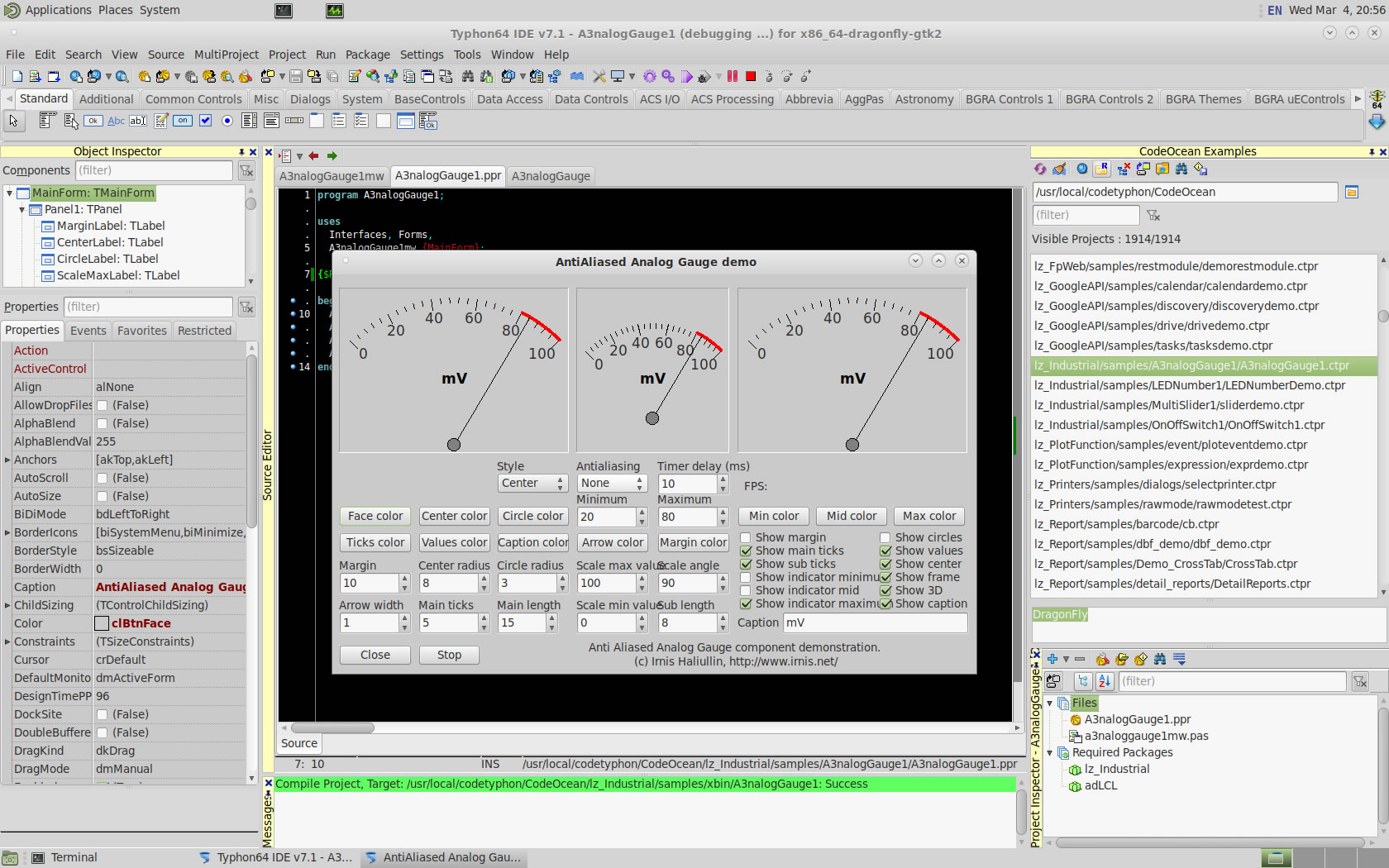

 lz_Industrial

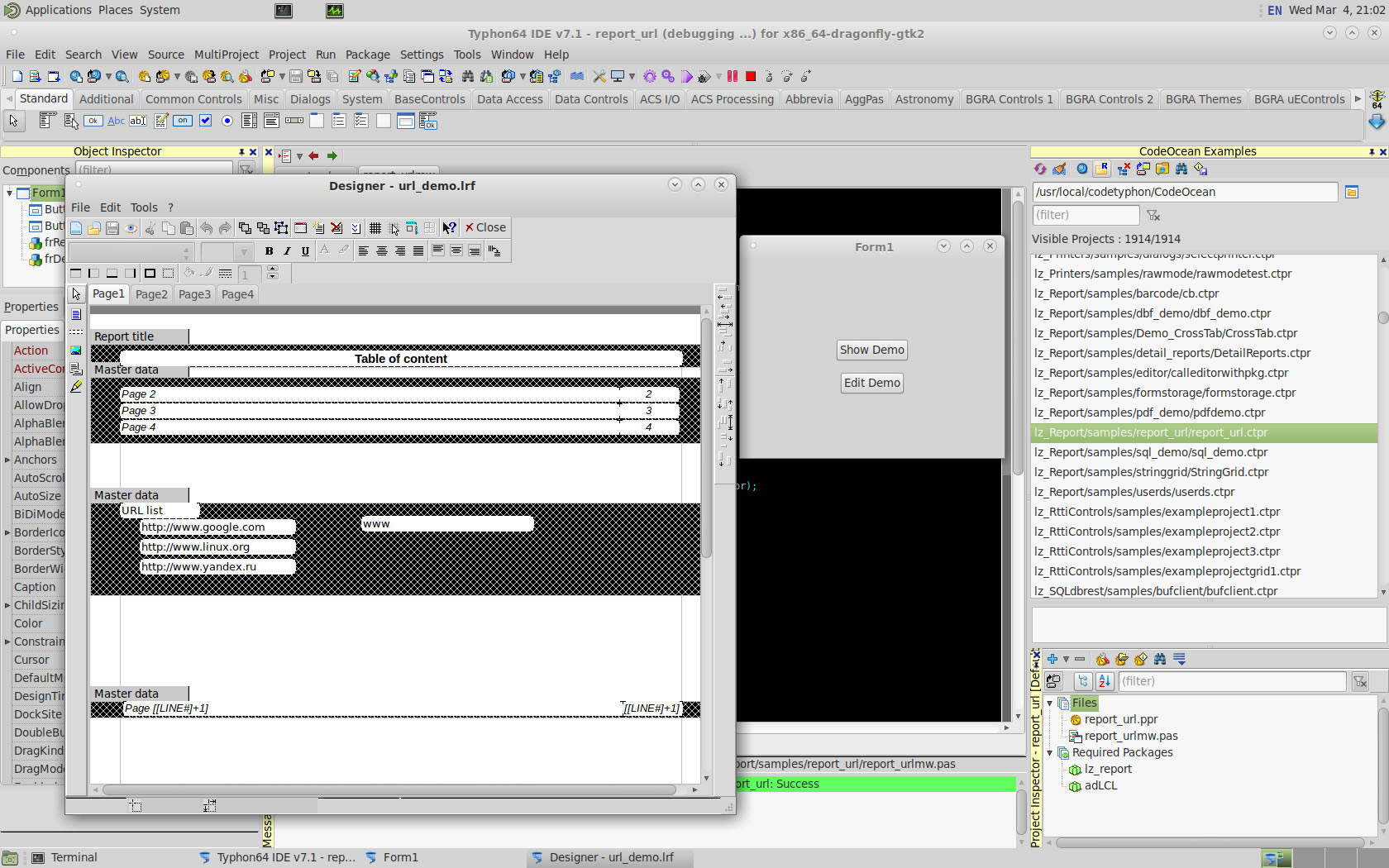

lz_Report

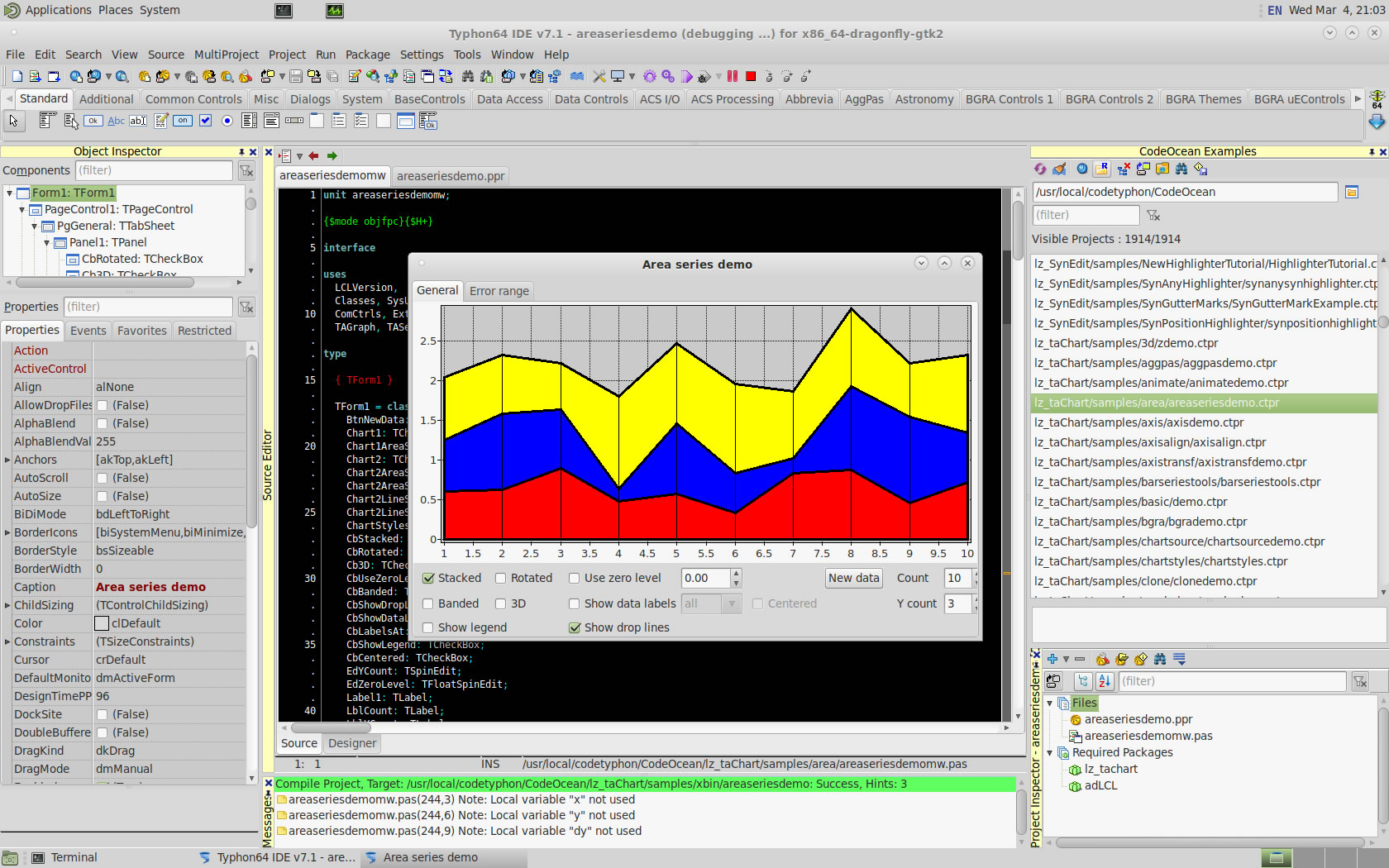

 lz_taChart

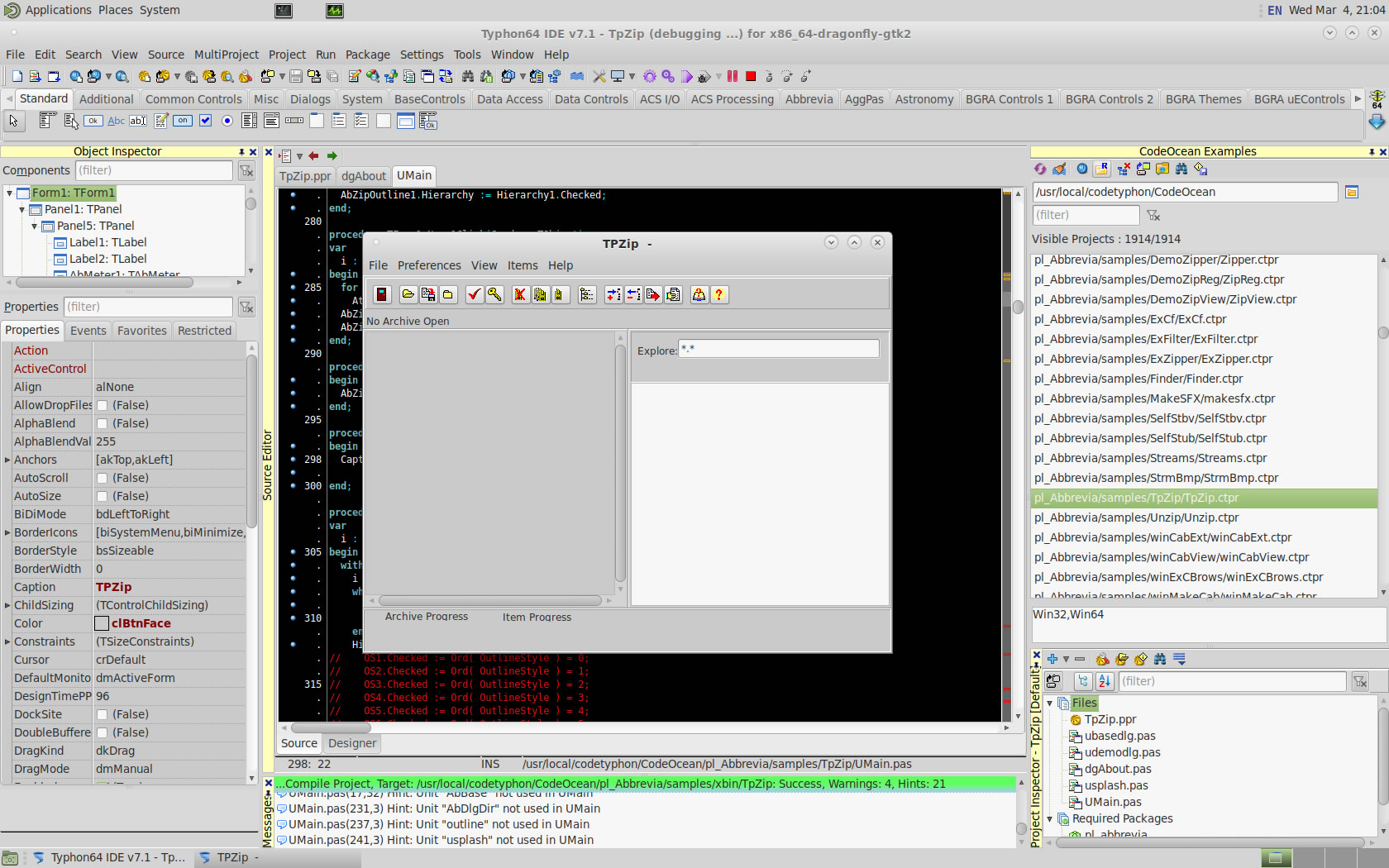

 pl_Abbrevia

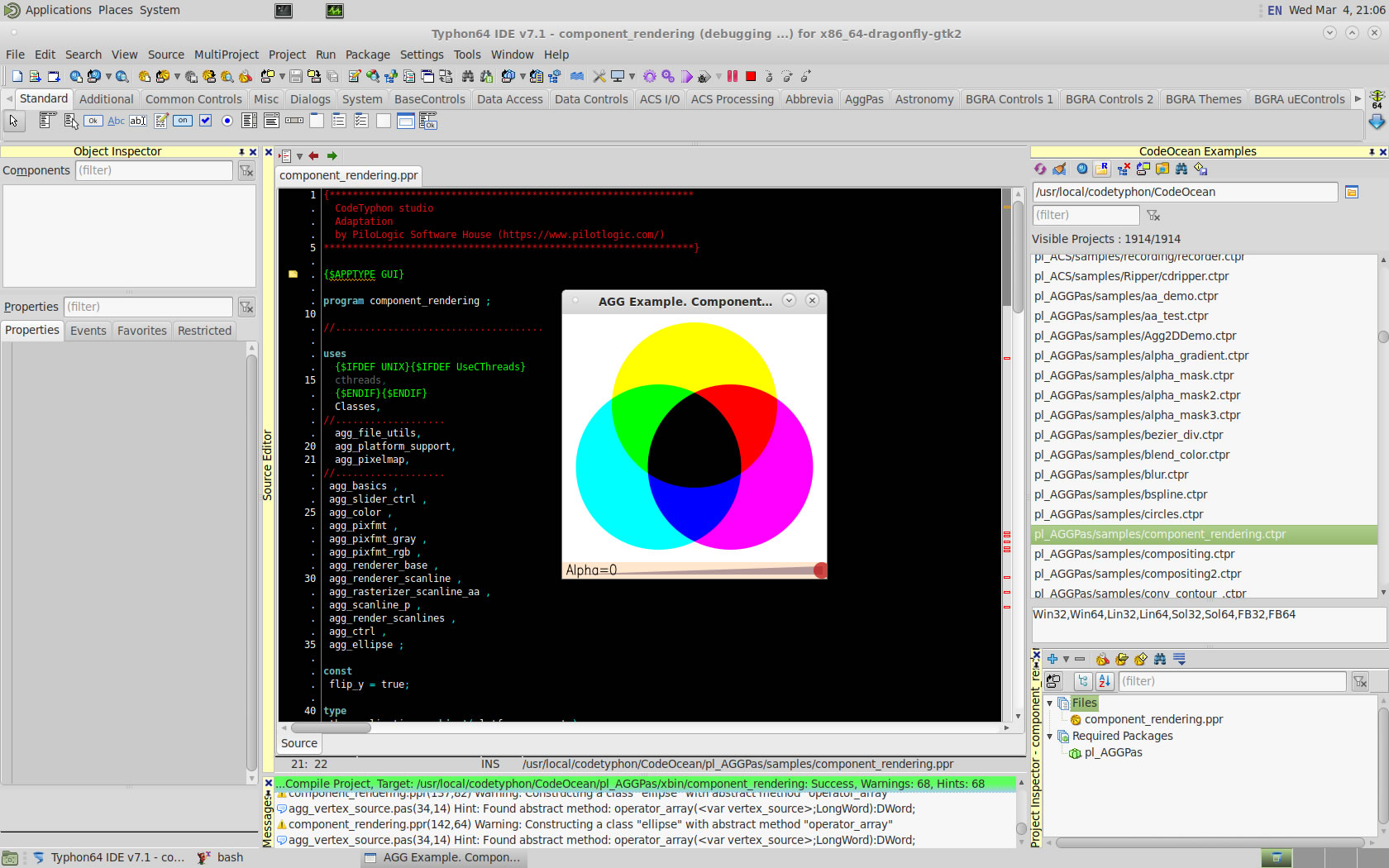

 pl_AGGPas

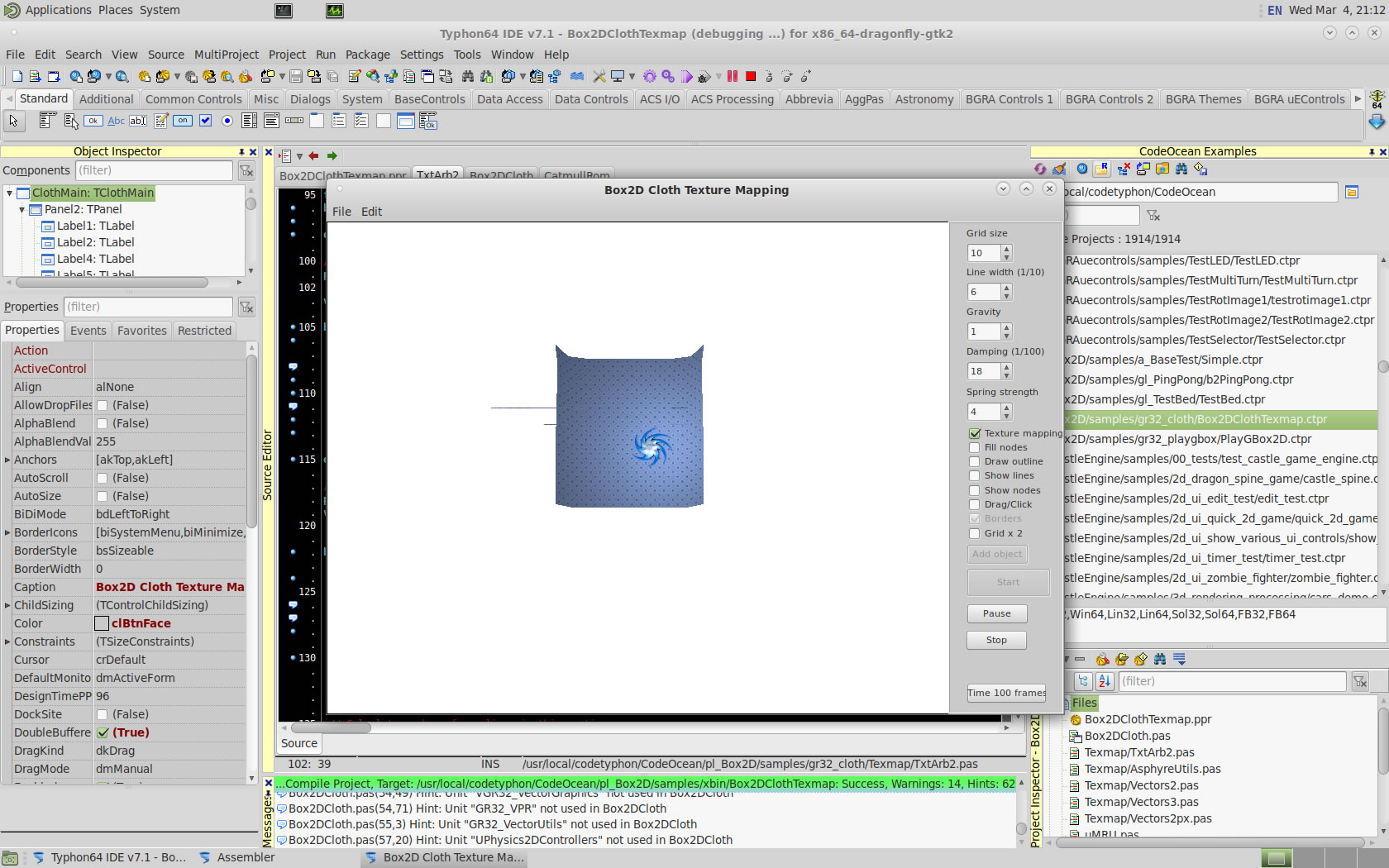

pl_Box2D

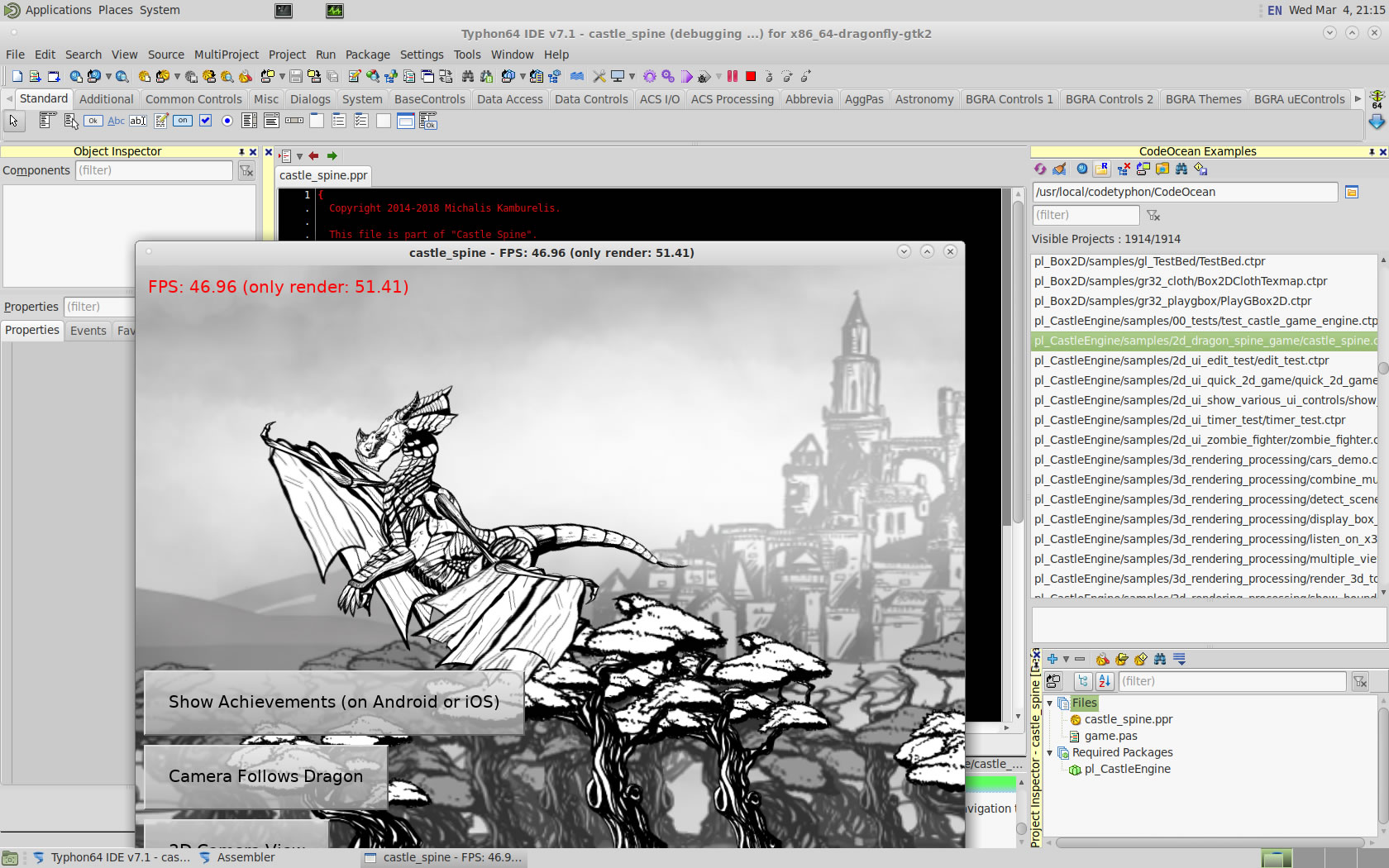

pl_CastleEngine

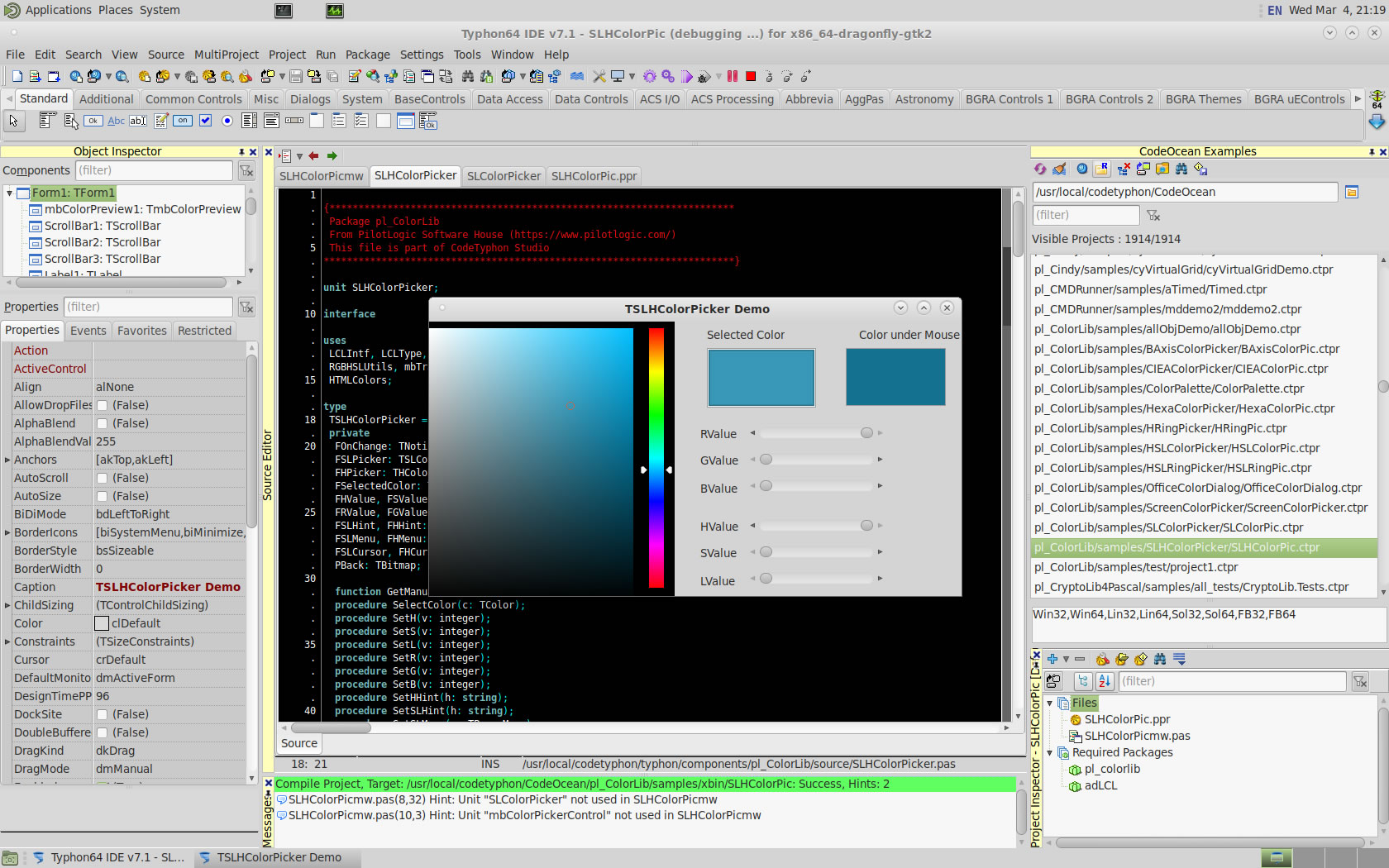

 pl_ColorLib

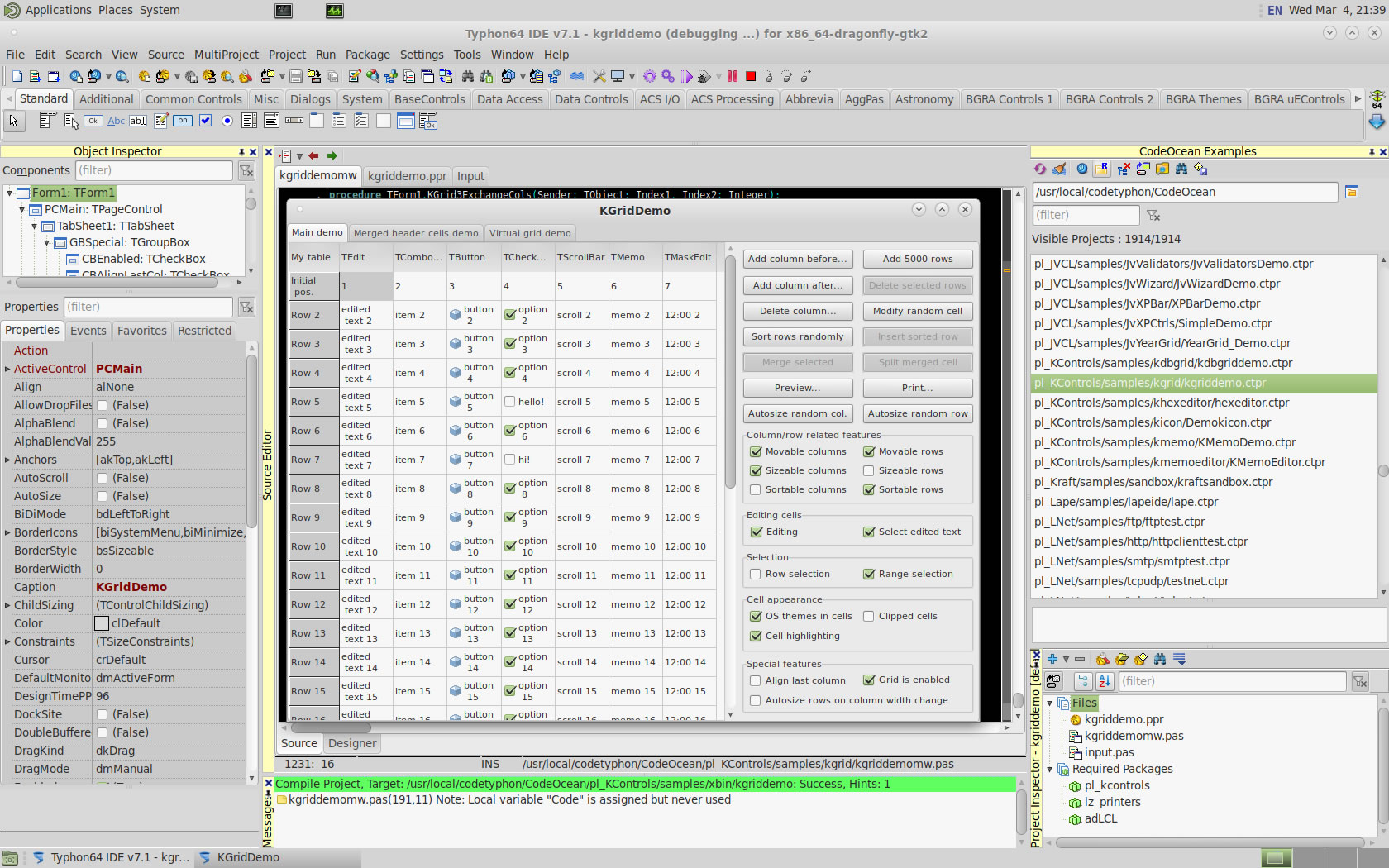

pl_KControls

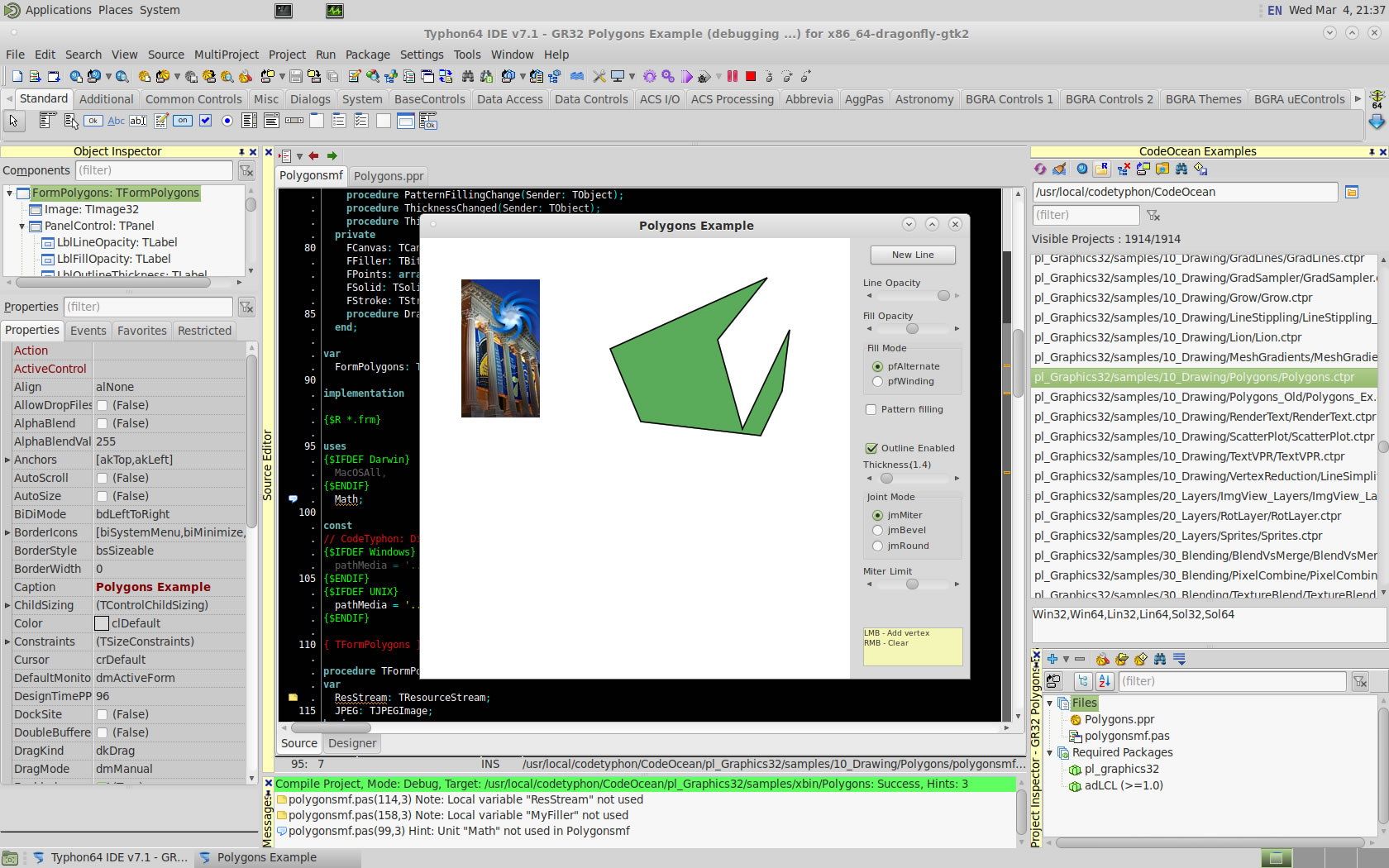

pl_Graphics32

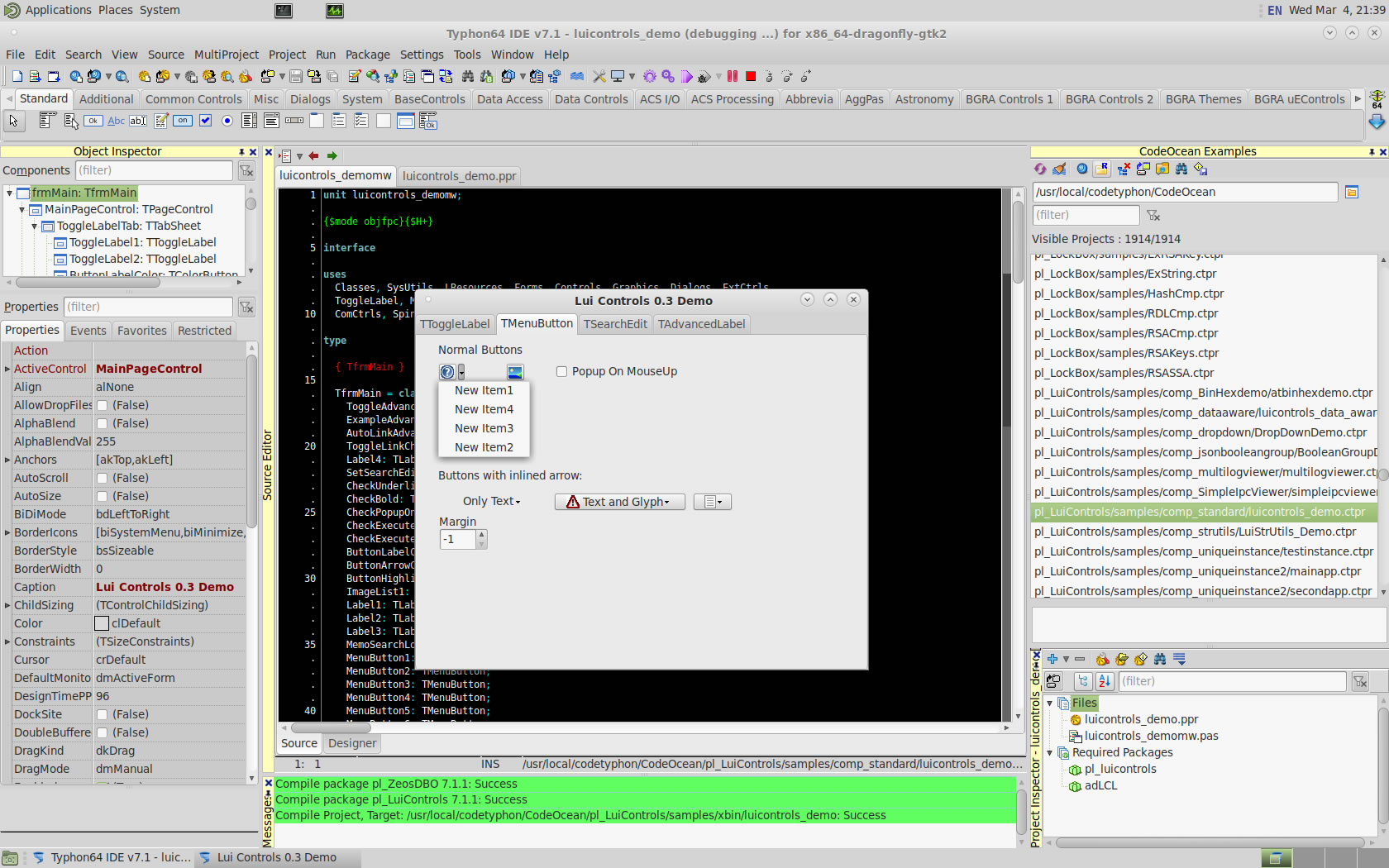

pl_LuiControls

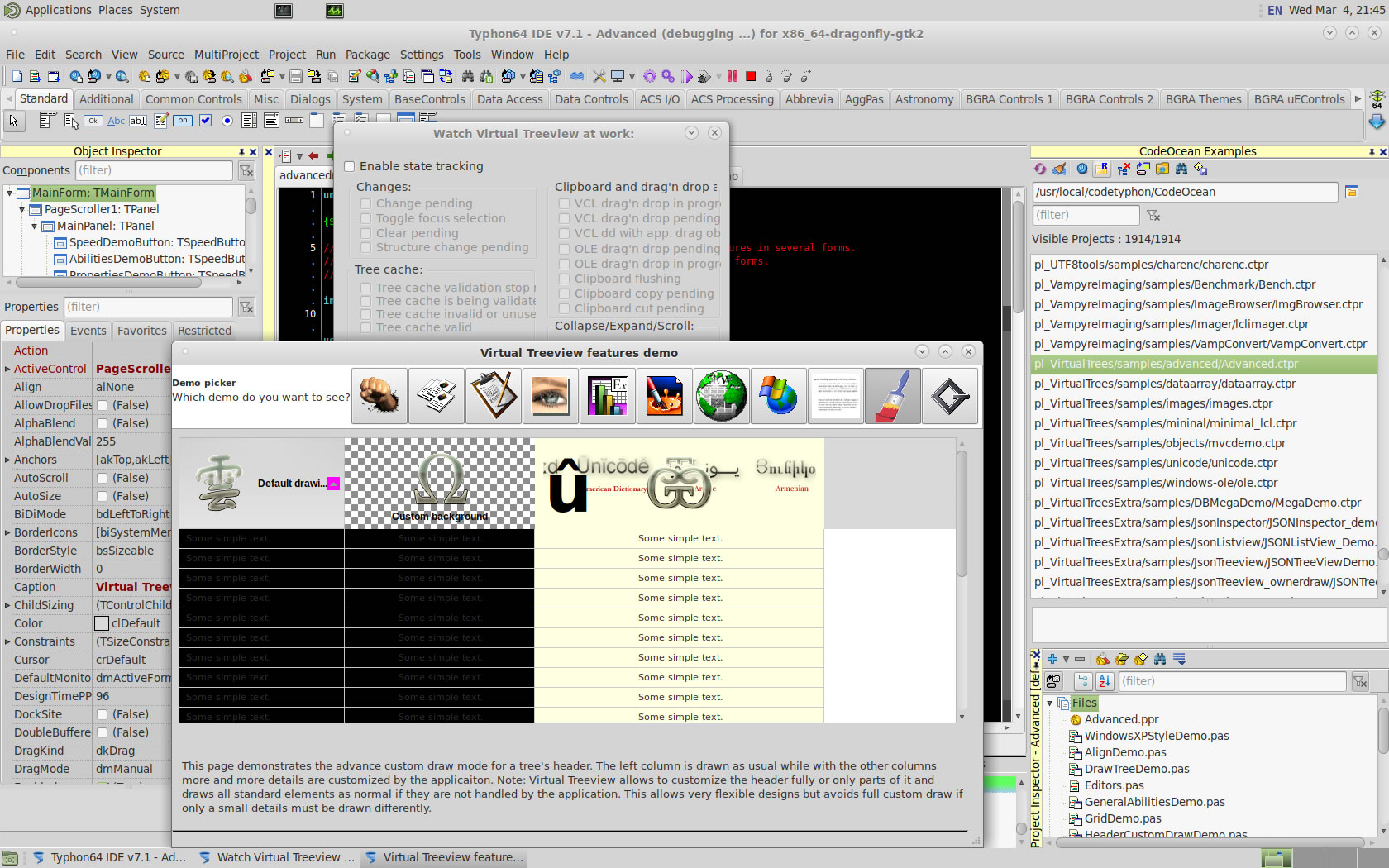

pl_VirtualTrees

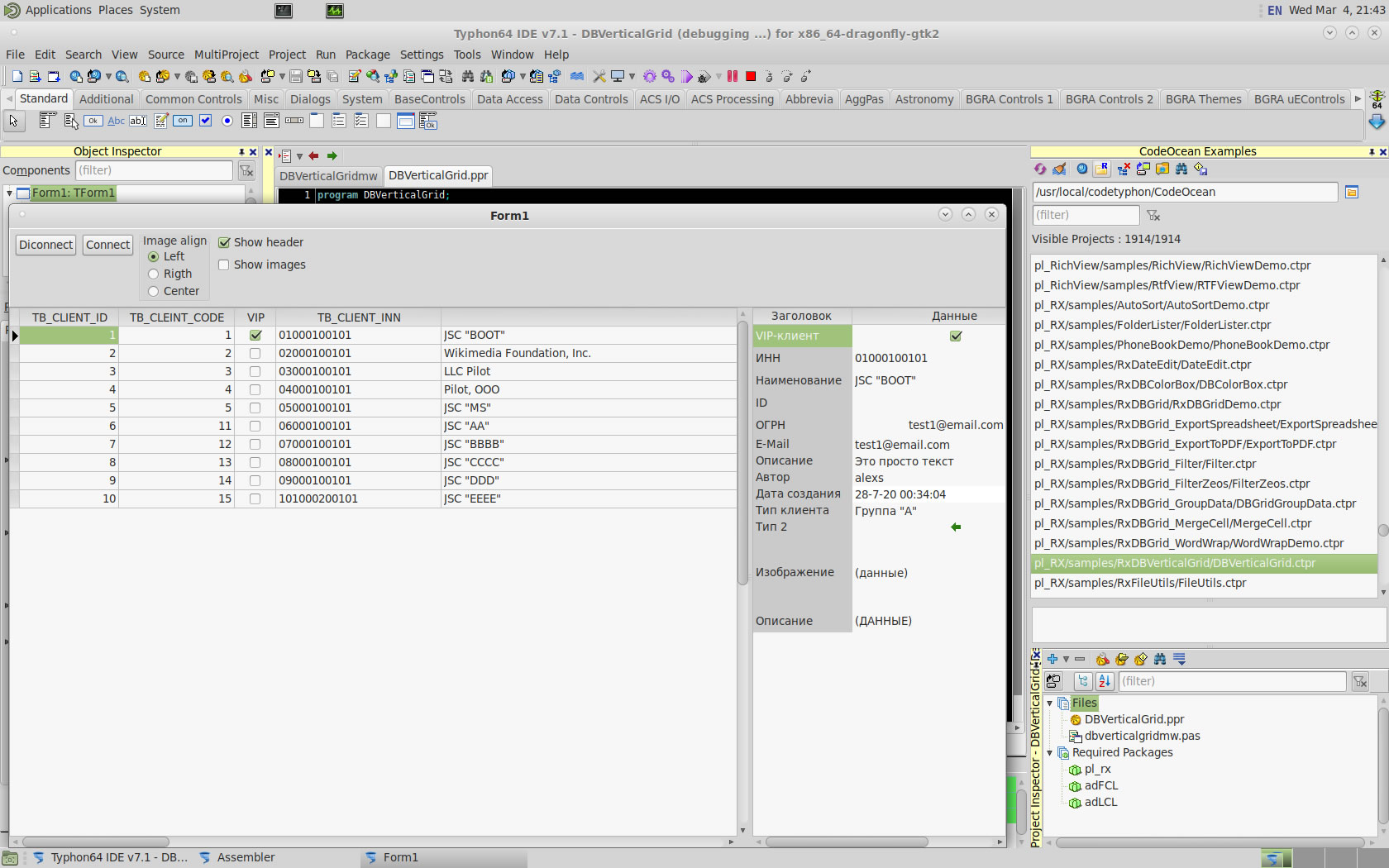

pl_RX

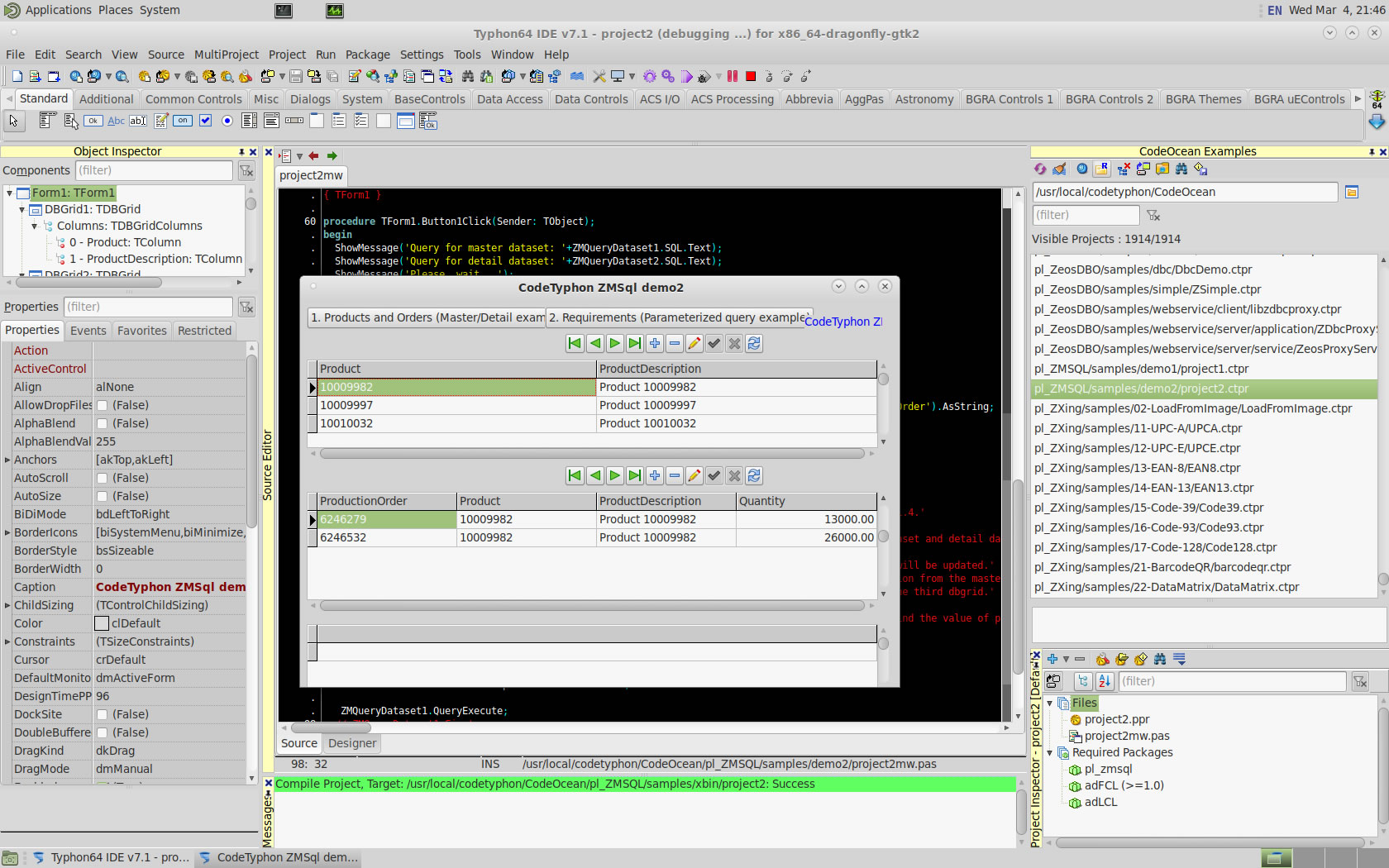

pl_ZMSQL







Build Typhon IDE for QT5 (KDE5)

a) Switch Typhon IDE Host Platform to QT5

CodeTyphon Center => Setup Dialog

and select QT5 Platform

b) Only for the first time, install OS System Libraries

CodeTyphon Center =>HostPC=>"Install System Libraries"

c) Remove and Build Typhon IDE for new Platform (QT5)

CodeTyphon Center =>Typhon IDE=>"Remove and Build"
