IDE - Main window disappeared 10 years 5 months ago #5582

marco
Topic Author
Offline
New Member
Posts: 2
Thank you received: 0

After working with CT for some weeks, something strange begin to happen: the main window of the IDE (the one containing the main menu and the component palette) has disappeared or is hidden somewhere. The only way I found to solve this problem was to rebuild the IDE, but this problem is happening again (and again). Any clues ?

PS
this is my first post, greetings to everyone !

EDIT
the operative system is XP Pro

Please Log in or Create an account to join the conversation.

Last edit: by marco.

IDE - Main window disappeared 10 years 5 months ago #5583

Tony_O_Gallos
Offline
Junior Member
Ελεύθερο λογισμικό ή θάνατος
Posts: 84
Thank you received: 23

Hi Marco,

there is an option in CT menu to restore default settings:
-Typhon-IDE
--IDE Settings, Restore Defaults

Be aware it will reset any customization you have done in your IDE.

Alternatively you could browse inside your "application data" folder (hidden in your windows profile),
then edit, in typhon32 folder, in the following files the Top and Left property for MainIDE:

environmentoptions.xml (see CustomPosition)

<MainIDE>
  <Caption Value="MainIDE"/>
  <WindowPlacement Value="RestoreWindowGeometry"/>
  <CustomPosition Width="1333" Height="91" Left="1" Top="3"/>
  <WindowState Value="Normal"/>
  <Visible Value="True"/>
</MainIDE>

GlassDockingRuntime.xml (see Bounds)

<Item1 Name="MainIDE" Type="CustomSite">
  <Bounds Top="3" Left="1" Width="1333" Height="91">
    <WorkArea>
      <Rect Right="1600" Bottom="870"/>
    </WorkArea>
  </Bounds>
</Item1>

And everything should be fine

Check Wiki and Forum first! - Can't install CT? Check your Path! - Several Versions of CT in Windows (VHD)

The following user(s) said Thank You: Miquel Matas, marco

Please Log in or Create an account to join the conversation.

Last edit: by Tony_O_Gallos.

IDE - Main window disappeared 10 years 4 months ago #5601

marco Topic Author Offline New Member Posts: 2 Thank you received: 0	Changing the xml files did the trick !!! Thanks !!!
	Please Log in or Create an account to join the conversation.

IDE - Main window disappeared 10 years 3 months ago #5766

GoldenFox1 Visitor	Hi All. My main window disappeared after recompiling IDE. Changing the xml files not effect. After restart CT section <WindowState Value="Normal"/> in the file environmentoptions.xml automatic set in <WindowState Value="Minimized"/> and IDE Main window not visible Pleeeeeeeeаse help!!!!!! CodeTyphon Studio 14-Jul-2014 ver 4.92 Windows 8.1 x32 PS: Sorry for my bad english
	Please Log in or Create an account to join the conversation. Last edit: by GoldenFox1.

IDE - Main window disappeared 10 years 3 months ago #5767

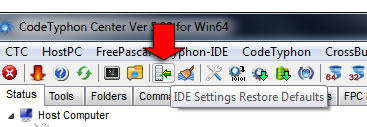

Sternas Stefanos Offline Moderator Ex Pilot, M.Sc, Ph.D Posts: 4535 Thank you received: 1114	Sir my suggestion for these errors : open CTCenter and execute " Typhon IDE ->IDE Settings Restore Default" PilotLogic Architect and Core Programmer Attachments: ...reSettings.jpg The following user(s) said Thank You: GoldenFox1
	Please Log in or Create an account to join the conversation. Last edit: by Sternas Stefanos.

IDE - Main window disappeared 10 years 3 months ago #5771

GoldenFox1 Visitor	It works. Thanks!!!
	Please Log in or Create an account to join the conversation.

IDE - Main window disappeared 10 years 3 months ago #5792

Javor Offline Junior Member M.Sc in Computer Science, (ex-)freelancer Posts: 72 Thank you received: 8	I thought it's fixed as I found the solution to the problem. Please check at the bottom of this topic . It's all there and you don't have to reset anything
