Cannot install CT 8.1 on Raspberry 1 year 3 weeks ago #17963

  • George Christodoulou
  • George Christodoulou's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 17
  • Thank you received: 0
I installed Raspberry OS last version   32 bit to my Rasberry 4 4gb.
I installed all OS updates  and i try to install  CT 8.1   .
I installed all system libraries and CT installation procedure displays
option for installation as Linux64  .
Δεν θα πέθαινα ποτέ για τα πιστεύω μου, γιατί μπορεί να είναι λάθος.

Please Log in or Create an account to join the conversation.

Cannot install CT 8.1 on Raspberry 1 year 3 weeks ago #17964

  • Matis A.
  • Matis A.'s Avatar
  • Away
  • Moderator
  • Moderator
  • Posts: 1080
  • Thank you received: 155
Did you follow this procedure ?

We build CT on PI4 with the latest update before every release.
PilotLogic Core Programmer

Please Log in or Create an account to join the conversation.

Last edit: by Matis A..

Cannot install CT 8.1 on Raspberry 1 year 3 weeks ago #17965

  • George Christodoulou
  • George Christodoulou's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 17
  • Thank you received: 0
I followed the procedure above.
Same result.
Same result withe version 8.0 .
installation ''sees'' 64 bit OS
Same result on another raspberry pi  4 / 8gb board



Δεν θα πέθαινα ποτέ για τα πιστεύω μου, γιατί μπορεί να είναι λάθος.

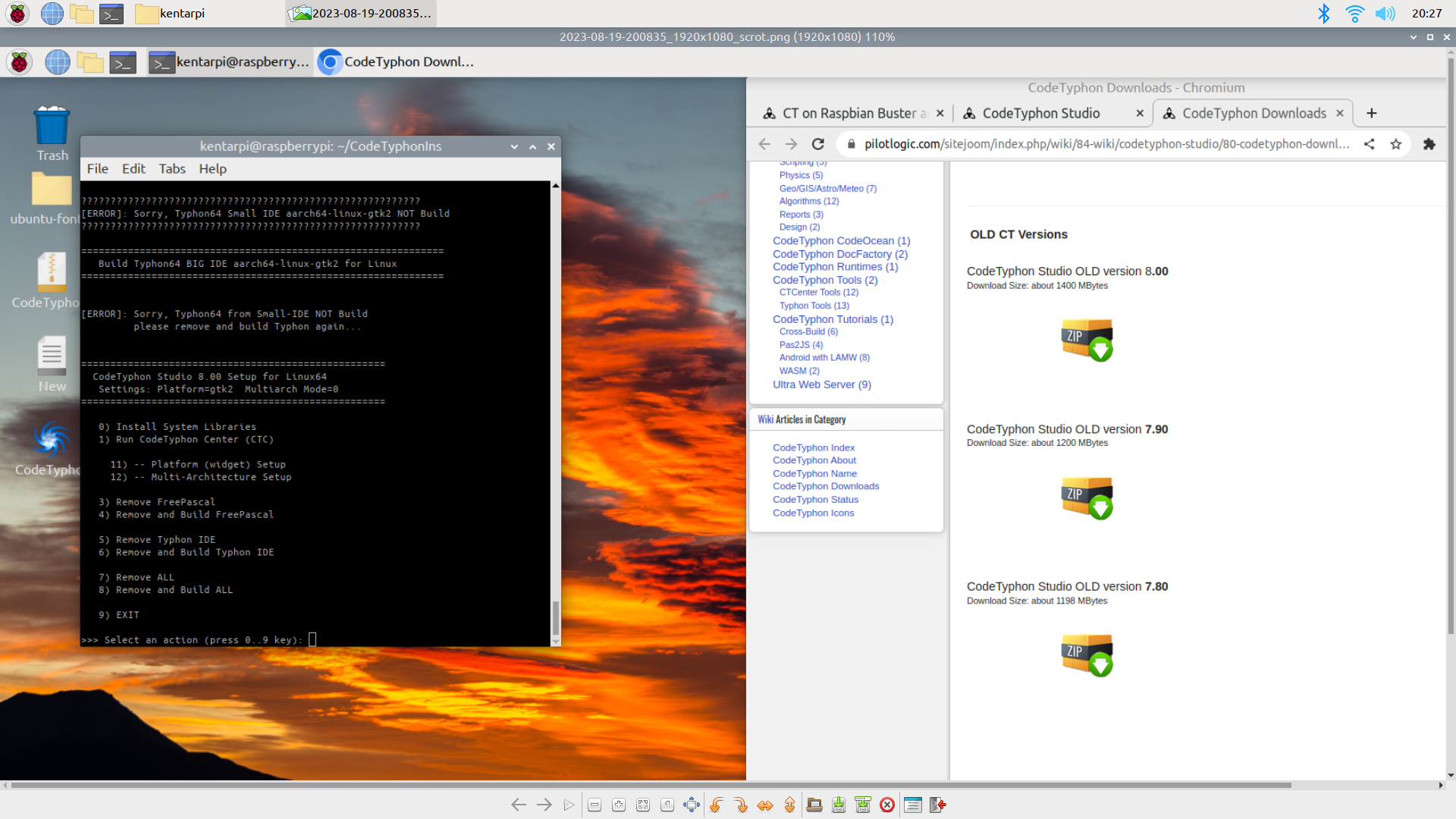

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by George Christodoulou.

Cannot install CT 8.1 on Raspberry 1 year 3 weeks ago #17966

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4518
  • Thank you received: 1106
We test CodeTyphon on PI4 with the latest OSes:

32 bit here
File: raspios_full_armhf-2023-05-03

64 bit here
File: raspios_full_arm64-2023-05-03

Screens:

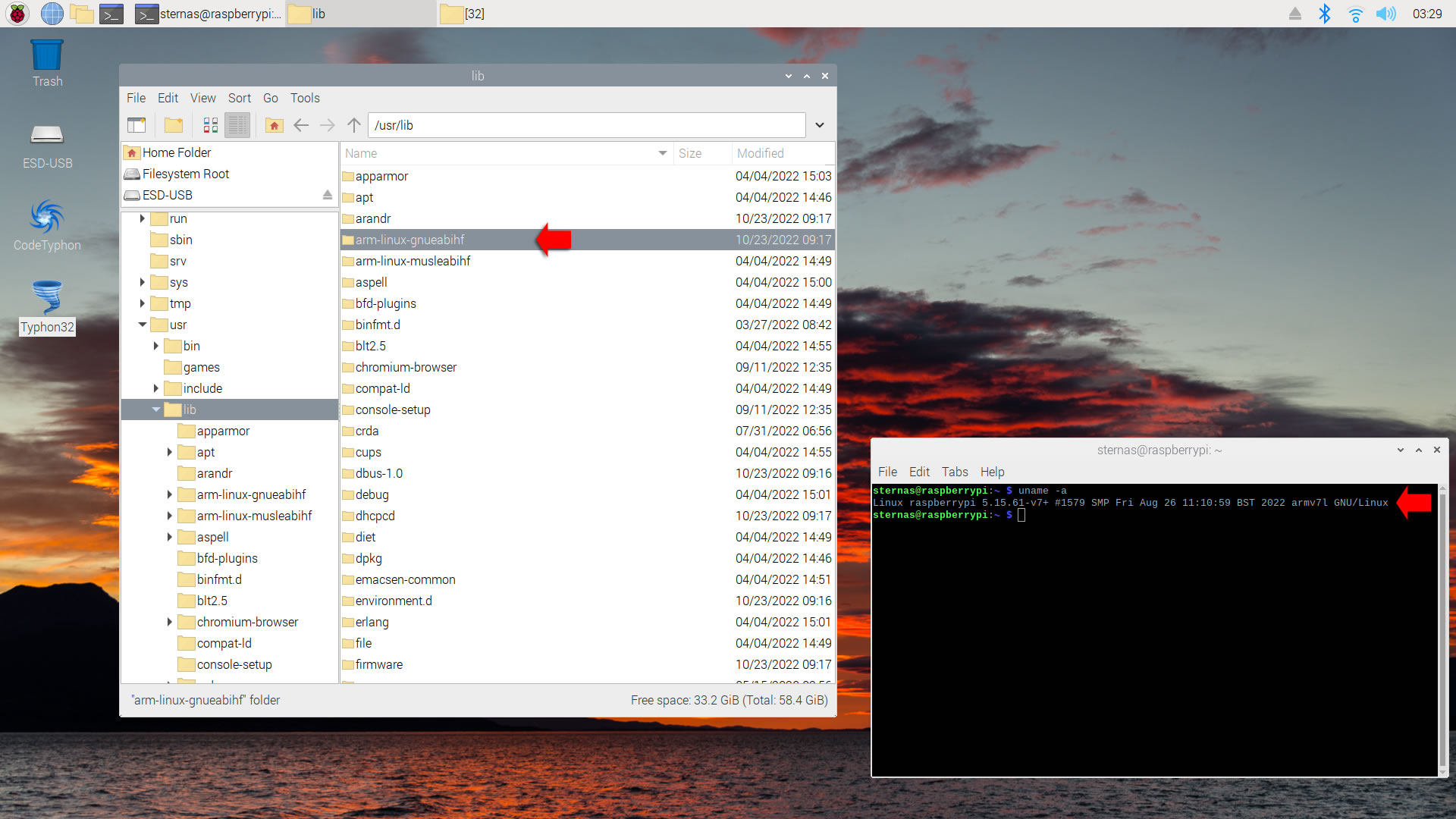

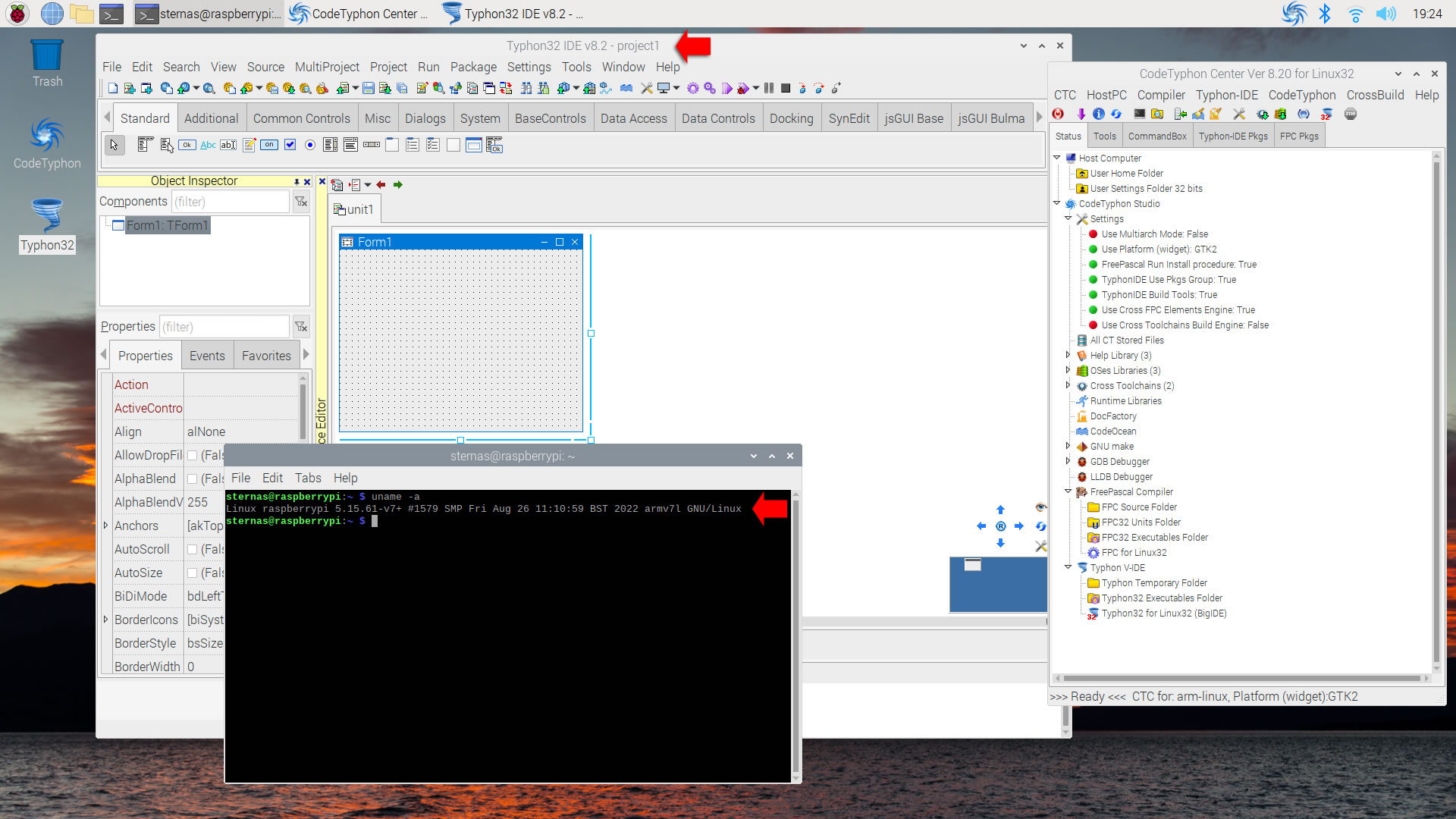

32 Bits OS

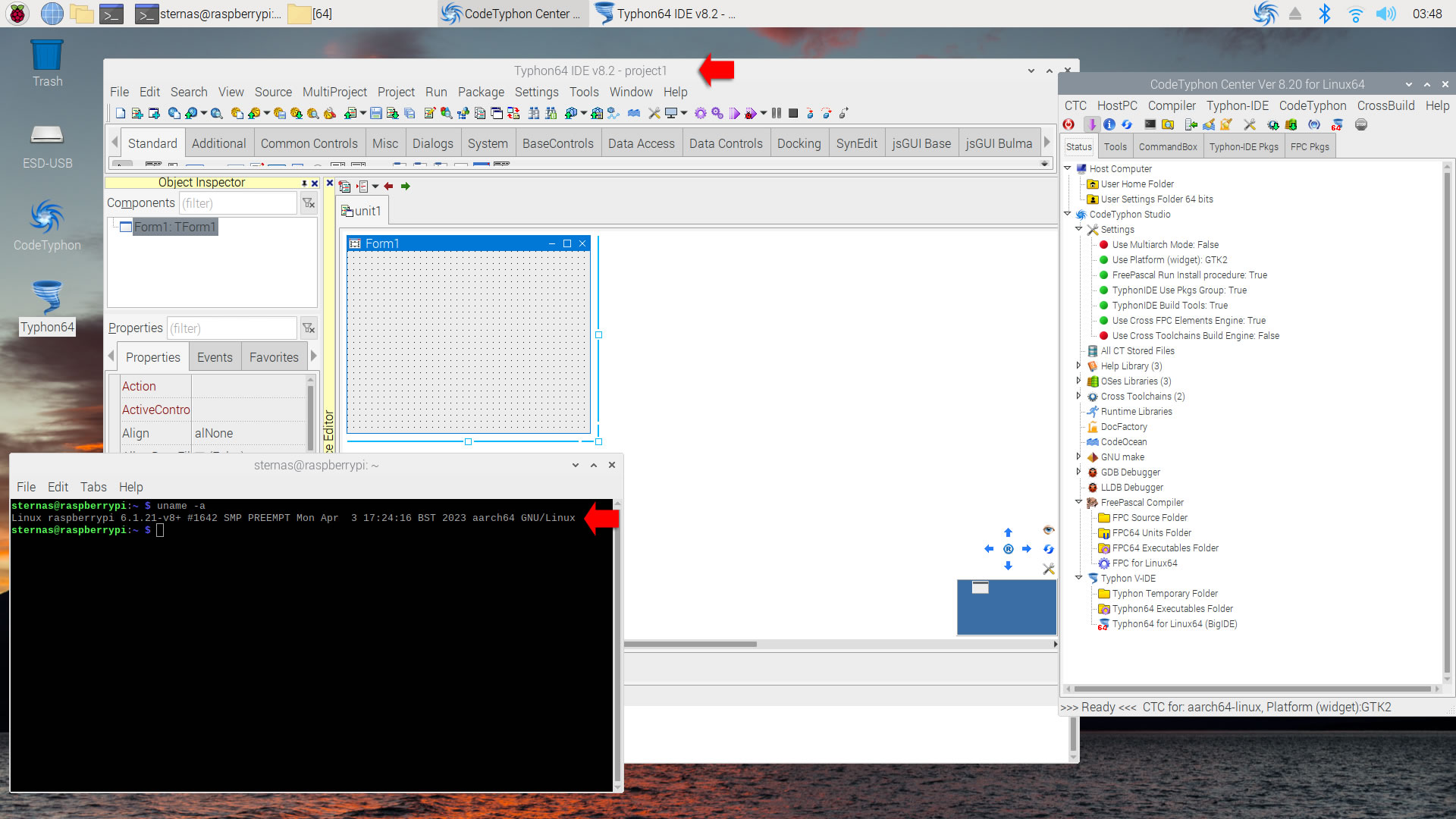

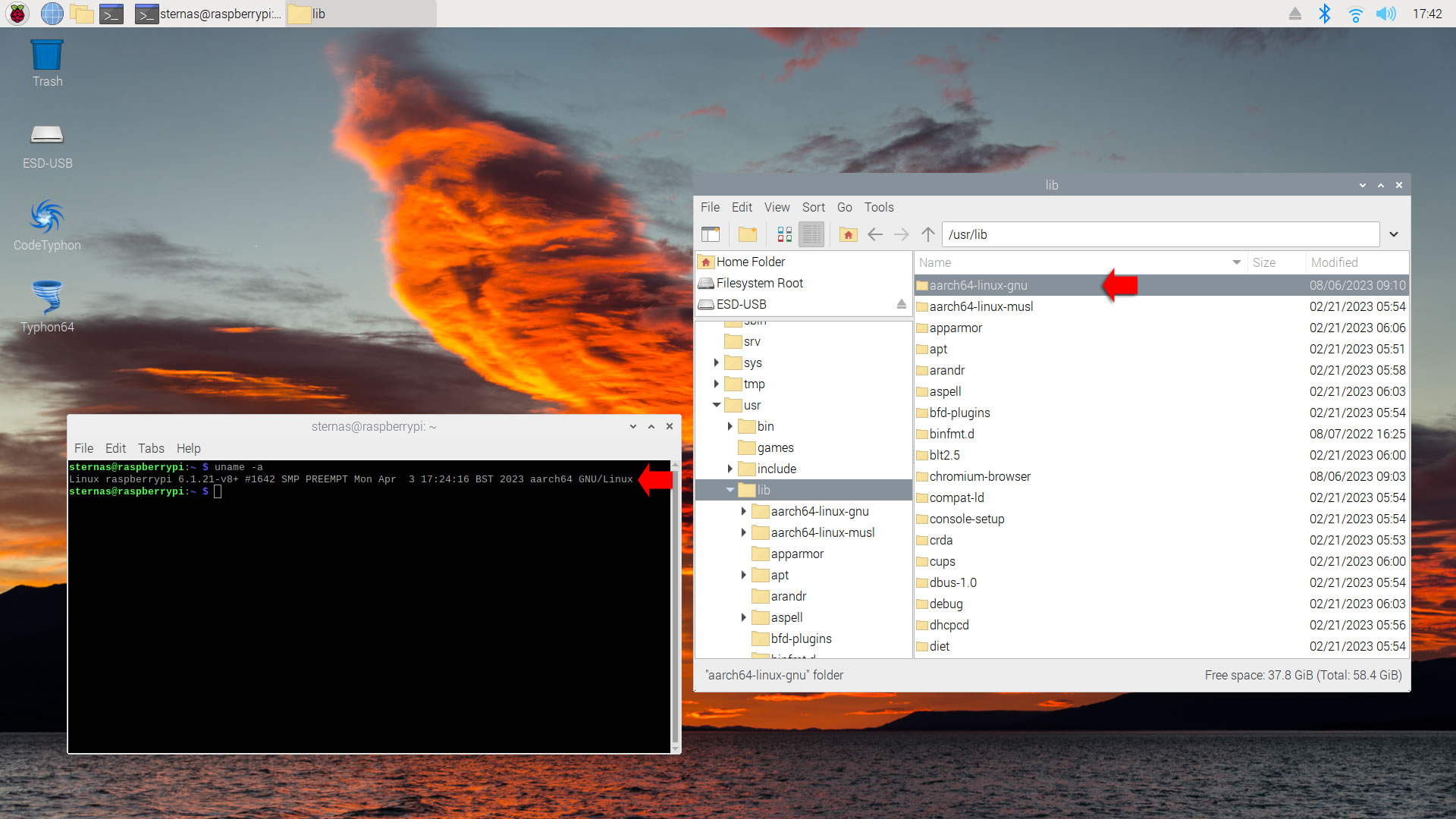

and 64 Bits OS






Always you can "Build ALL" with CTCenter and attach zip actions log file here.
PilotLogic Architect and Core Programmer
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Sternas Stefanos.

Cannot install CT 8.1 on Raspberry 1 year 3 weeks ago #17970

  • George Christodoulou
  • George Christodoulou's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 17
  • Thank you received: 0
I am not experienced in Linux systems so i am confused trying to discover if my system is 32 or 64 bit .
Have got any idea ?


Δεν θα πέθαινα ποτέ για τα πιστεύω μου, γιατί μπορεί να είναι λάθος.

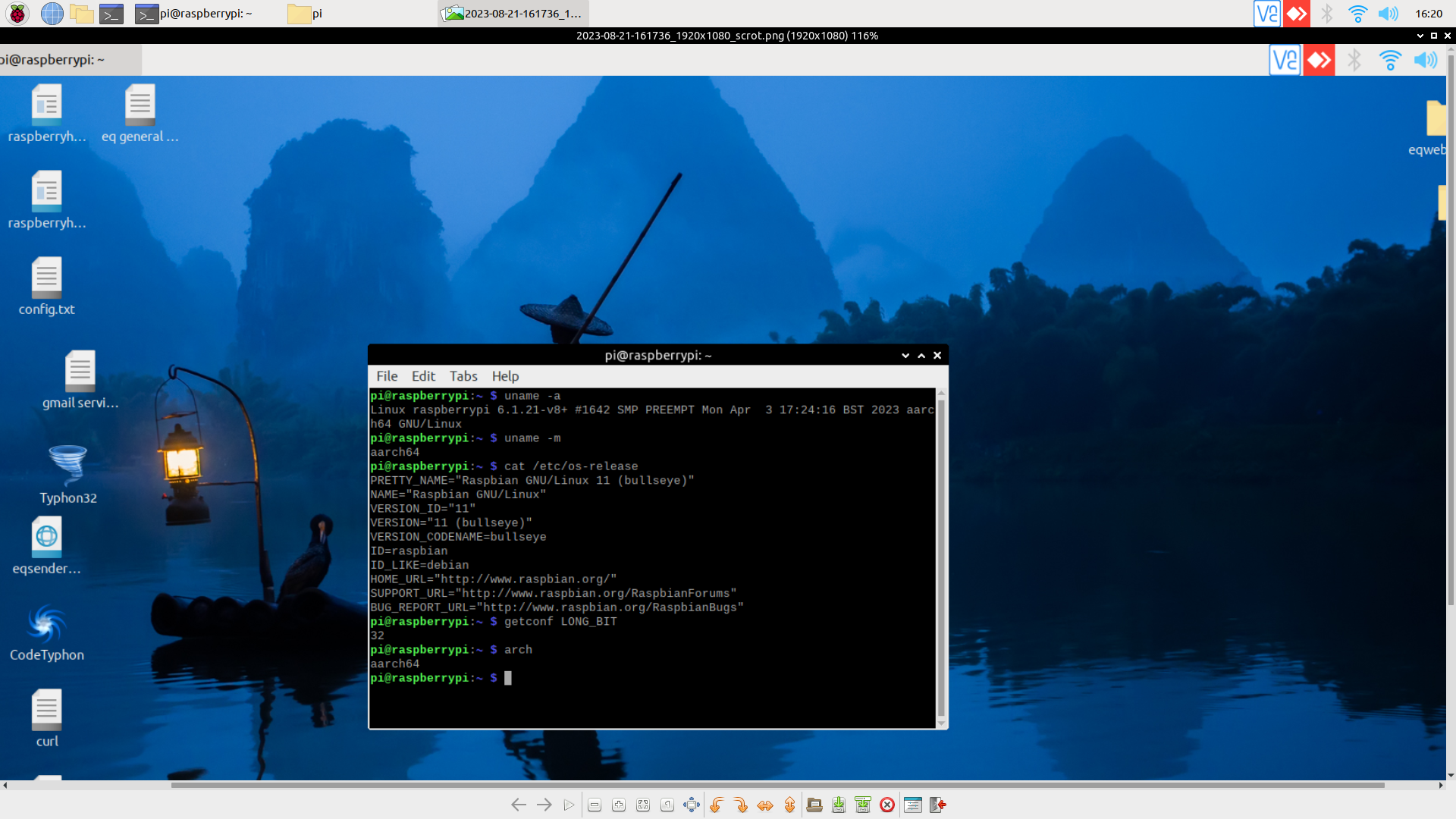

Attachments:

Please Log in or Create an account to join the conversation.

Cannot install CT 8.1 on Raspberry 1 year 3 weeks ago #17971

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4518
  • Thank you received: 1106
Your system with uname -a report aarch64
so is 64Bit OS.

The 32Bits OS with uname -a report armv7l

Look in my screens above.

PS: CodeTyphon has MultiArch ability on Arm64 OSes
PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

Last edit: by Sternas Stefanos.

Cannot install CT 8.1 on Raspberry 1 year 2 weeks ago #17980

  • George Christodoulou
  • George Christodoulou's Avatar Topic Author
  • Offline
  • New Member
  • New Member
  • Posts: 17
  • Thank you received: 0
I installed 32 bit version of of Raspberry OS but 64 bit kernel is also present.
The Pi 4/400 firmware now prefers the 64-bit kernel if one exists.
That is why Codetyphon ''sees'' 64 bit
Setting arm_64bit=0 to   /boot/config,txt  file forces OS  to use the 32-bit kernel.
Thanks for your help.
Δεν θα πέθαινα ποτέ για τα πιστεύω μου, γιατί μπορεί να είναι λάθος.

Please Log in or Create an account to join the conversation.

Last edit: by George Christodoulou.

Cannot install CT 8.1 on Raspberry 1 year 2 weeks ago #17981

  • Sternas Stefanos
  • Sternas Stefanos's Avatar
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4518
  • Thank you received: 1106
Have fun Sir

Και καλο βραδυ...
PilotLogic Architect and Core Programmer
