TOPIC:

[LAB] pl_Win_DSPack tests 12 years 6 months ago #2153

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4540
  • Thank you received: 1117
We port DSPack Audio/Video package for Windows.
This new package (pl_Win_DSPack) has components to write Windows Multimedia Applications using MS Direct Show and DirectX.

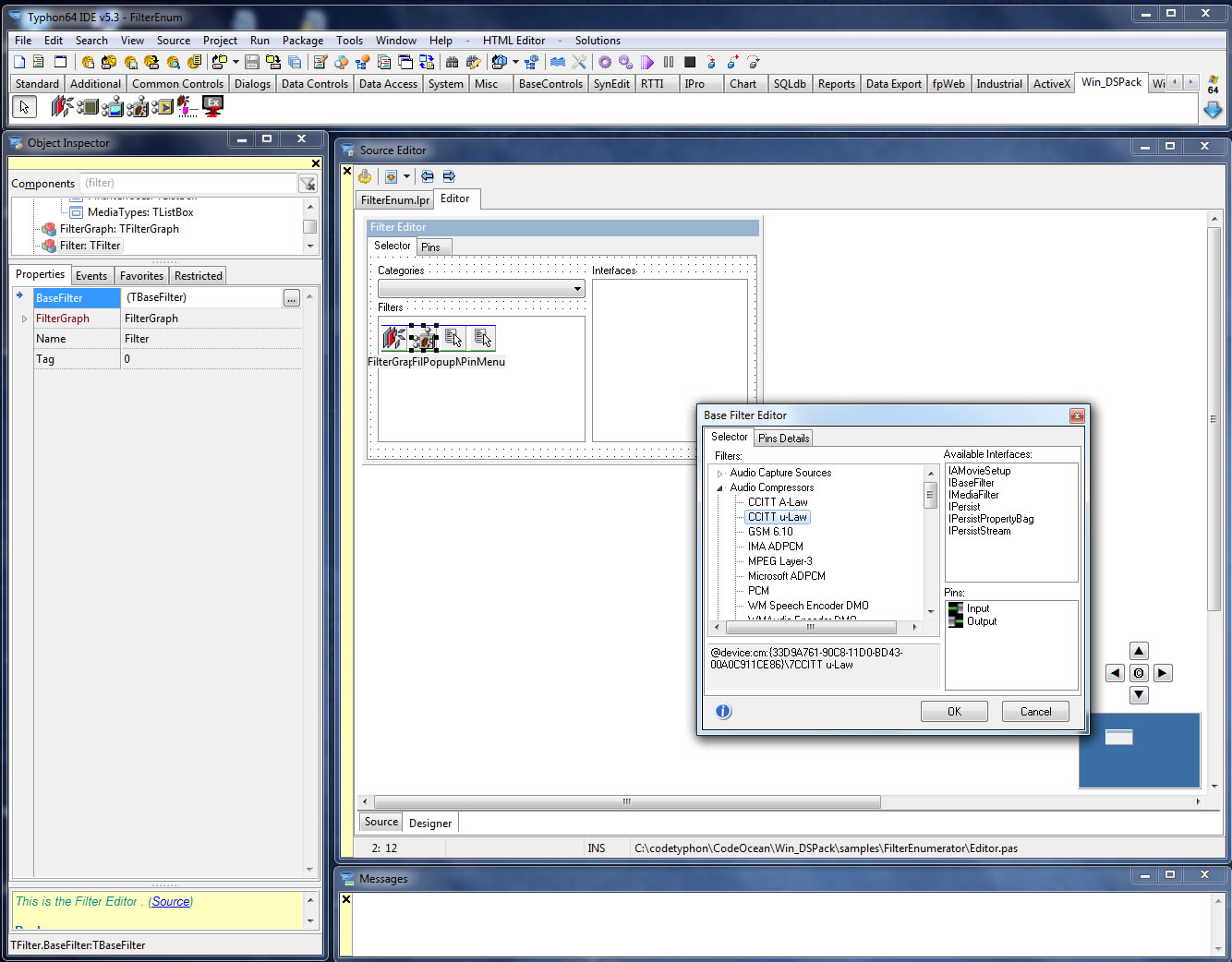

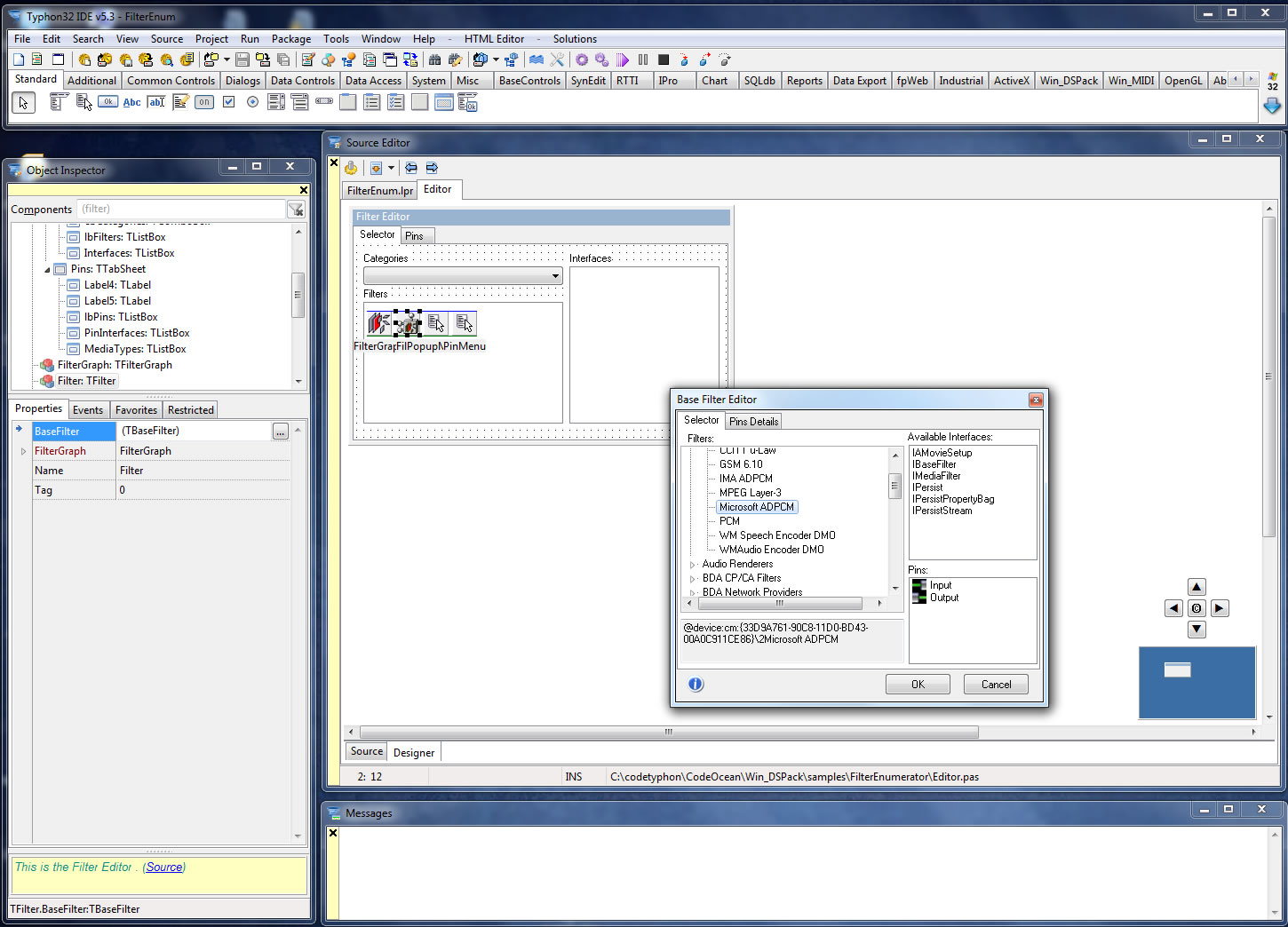

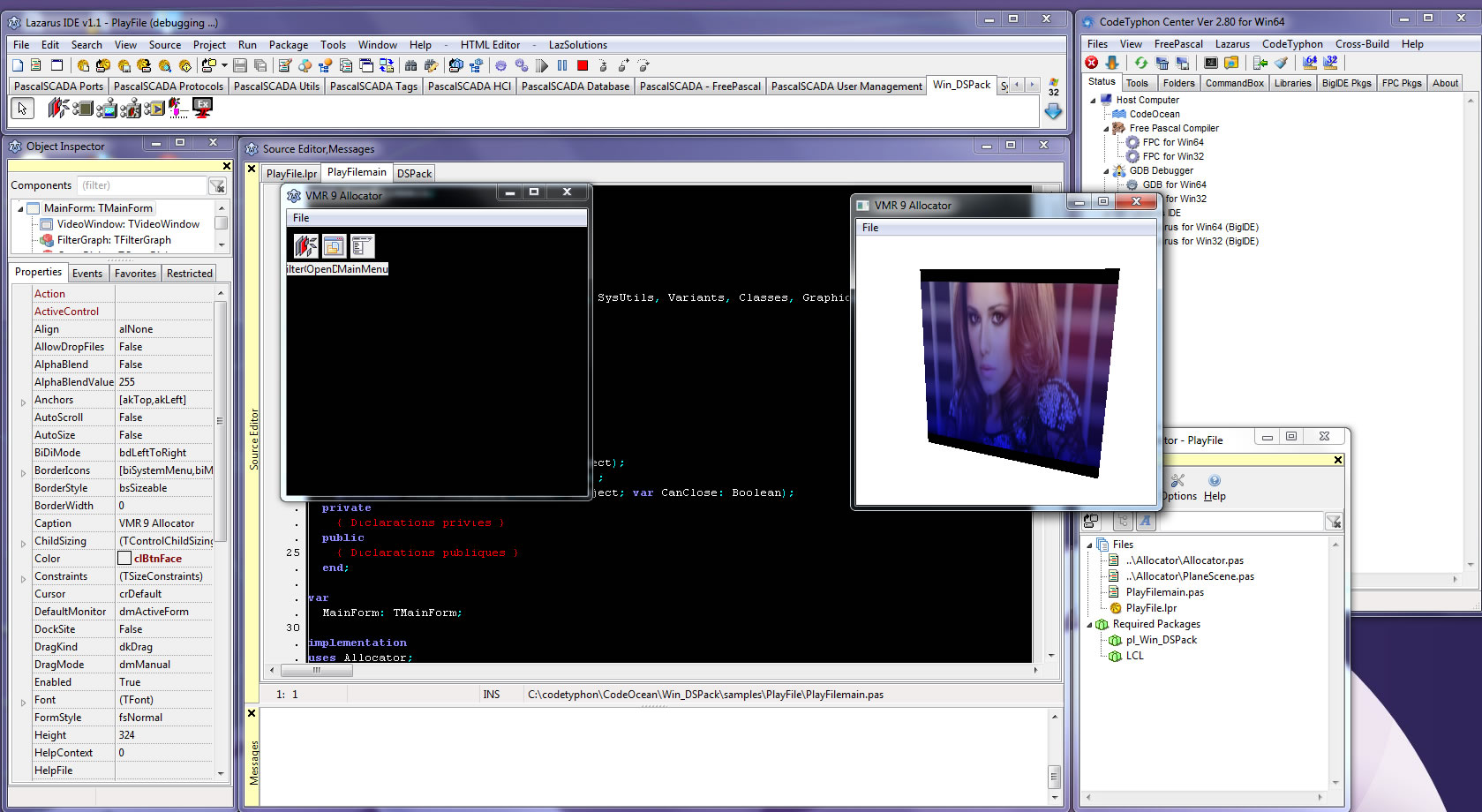

Screen from our video player tests...
PilotLogic Architect and Core Programmer
Attachments:
The following user(s) said Thank You: Miquel Matas, Curt

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 12 years 6 months ago #2158

  • Adriano Soares
  • Adriano Soares's Avatar
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 40
  • Thank you received: 9
Mr. Sternas

That is really great news.
I work developing using DSPack and now with this package in CT all my work will be make in this wonderfull Studio.

Take a look at www.dsp-worx.de/, is about creating and working with Digital Audio Effects in Borland Delphi/Kylix ...

Congratulations with my best regards.

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 12 years 6 months ago #2159

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4540
  • Thank you received: 1117
Thanks Sir
we want to make some more tests for pl_Win_DSPack
and we want your help...
PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 12 years 6 months ago #2160

  • Adriano Soares
  • Adriano Soares's Avatar
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 40
  • Thank you received: 9
Ok.

I am here. Say me , how I can help CT team?

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 12 years 6 months ago #2161

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4540
  • Thank you received: 1117
Simple
here are the new pl_Win_DirectX and pl_Win_DSPack packages
and Win_DSPack.zip with some DSPack Lazarus samples

test, modify and report
oh, and have fun...
PilotLogic Architect and Core Programmer
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Sternas Stefanos.

Re: [LAB] pl_Win_DSPack tests 12 years 6 months ago #2162

  • Adriano Soares
  • Adriano Soares's Avatar
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 40
  • Thank you received: 9
Work in progress...

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 12 years 6 months ago #2163

  • Aleksandar
  • Aleksandar's Avatar
  • Offline
  • Junior Member
  • Junior Member
  • Posts: 150
  • Thank you received: 31

sternas wrote: We port DSPack Audio/Video package for Windows.
This new package (pl_Win_DSPack) has components to write Windows Multimedia Applications using MS Direct Show and DirectX.

Screen from our video player tests...


I need to write some notes since I am very familiar (or maybe too familiar :)) with this package and pl_Win_DirectX that is required by this package.

I see my name in some sources of pl_Win_DirectX, so I see that you use my D2009+ modification of Clootie's DirectX files, but I am not sure where you get them. If they are from songbeamer site, they have some small bugs in few places (nothing too important and mostly not related to directshow). Those bugs were fixed by Embarcadero in latest Delphi versions.

If you find some time, it would be good to compare files from Delphi XE or XE2 with files in this package and to fix those errors.

Yes I know, it would be best that I do that, but I just do not have time. :(

Please also note that TDSVideoWindowEx2 is buggy, and that it have some memory leaks (in fullscreen mode if i remember correctly). It also removes Aero in Vista and later versions.

That's why I have this in my version of DSPack:

// Use TDSVideoWindowEx2 only if you really need it. It is buggy and removes Aero in Vista and later versions!
{.$DEFINE USE_DSVWEX2}
{$IFDEF USE_DSVWEX2}
// Use TDSVideoWindowEx2 fullscreen only if you do not have any other option
{.$DEFINE USE_DSVWEX2_FS}
{$ENDIF}

I can attach it if you are interested.

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 11 years 11 months ago #3051

  • mike
  • mike's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 4
  • Thank you received: 1
G'day,

Firstly - many thanks for porting this to Lazarus. I've been using your DSPack for about a week now. Easily implemented a video player with all the functionality I needed.

A couple of minor points:
I'm running CodeTyphon 2.9 under Windows 8. The Windows 8 may be pertinent. DirectShow was primarily initially Windows XP SDK.
  • Most of the sample apps wouldn't run out of the box for me. SSGIV (or whatever the abbreviation is :-) ). Traced into the code, and it's all when you have FilterGraph.GraphEdit := True. Simply changing this property to false fixed that problem for me. I have no idea if this is a code issue, or if Windows 8 has changed the RunningObjectTable somehow.
  • I'm using form inheritance in my code. Any form with the DS controls on it is unable to be descended. "Control '' has no parent". Solved this easily enough by dynamically creating all the controls at run-time. It's my preferred coding technique anyway, so no real problems there.
  • The SampleGrabber SnapShot code sample simply does not work for me. Tracing into it, the failure is retrieving the SampleGrabber MediaType.
hr := SampleGrabber.GetConnectedMediaType(MediaType);
    if hr <> S_OK then
      Exit;
  • In my own code, using the dynamically created SampleGrabber, code mostly identical to the sample code works just fine. (I pass a created Bitmap - the sample code passes a Image.Picture.Bitmap, can't see that that haven't any effect. I don't use the callback functionality either, but that's easily disabled in the code sample). Just just can't work out why that sample code doesn't work.


As you can see, I've been able to easily work around the issues. Probably helps I've previously spent three years creating DirectShow apps. Back in those days I didn't know the DSPack even existed, so worked my way through the MSDN documentation using the clootie headers.

Many thanks again for bringing this code into the Lazarus world.

Mike Thompson
The following user(s) said Thank You: Glenn Hudson

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 11 years 6 months ago #3994

  • Sonnleitner Norbert
  • Sonnleitner Norbert's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 8
  • Thank you received: 2
Hello,

in Win7 and WinXP also the Problem with the GetRunningObjectTable call if the GraphEdit property is true.
According to MSDN the GetRunningObjectTable the IRunningObjectTable should be declared as out in the ActivX header.
But after correcting this, the problem still remains.
So I dig a little bit deeper and tried to create a bindCtx.
var
  BindCtx: IBindCtx;

result:=CreateBindCtx(0, BindCtx);
result := bindCtx.GetRunningObjectTable(ROT);
//   result :=  GetRunningObjectTable(0, ROT);

Also in the RemoveGraphFromRot routine.
OleCheck(CreateBindCtx(0, BindCtx));
result := bindCtx.GetRunningObjectTable(ROT);

The code now produces no exception, but GraphEdit doesn't show the remote graph (even the playback of a Video is running).
Someone has an idea what could be the problem. Since I want do develope a BDA application it would great if the GraphEdit function is working :)

best regards
The following user(s) said Thank You: Glenn Hudson

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 11 years 6 months ago #3995

  • Sonnleitner Norbert
  • Sonnleitner Norbert's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 8
  • Thank you received: 2
Hello,

in Win7 and WinXP also the Problem with the GetRunningObjectTable call if the GraphEdit property is true.
According to MSDN the GetRunningObjectTable the IRunningObjectTable should be declared as out in the ActivX header.
But after correcting this, the problem still remains.
So I dig a little bit deeper and tried to create a bindCtx.
var
  BindCtx: IBindCtx;

result:=CreateBindCtx(0, BindCtx);
result := bindCtx.GetRunningObjectTable(ROT);
//   result :=  GetRunningObjectTable(0, ROT);

Also in the RemoveGraphFromRot routine.
OleCheck(CreateBindCtx(0, BindCtx));
result := bindCtx.GetRunningObjectTable(ROT);

The code now produces no exception, but GraphEdit doesn't show the remote graph (even the playback of a Video is running).
Someone has an idea what could be the problem. Since I want do develope a BDA application it would great if the GraphEdit function is working :)

best regards

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 11 years 5 months ago #4323

  • Glenn Hudson
  • Glenn Hudson's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 7
  • Thank you received: 0
It is not a Windows 8 issue. I have the same problem with Windows 7 or 8 x86/x64. I believe there is a problem with the TFilter class in the pl_WinDSPack component set. When you click on the TFilter component's BaseFilter property ellipsis it should trigger the BaseFilterEditor form to open in order for you to select the filter settings. However, when the BaseFilter ellipsis is clicked, an error occurs that there is no input source instead of popping up the form. Any thoughts on how to get this fixed? I'm new to Code Typhon and it's forums. I just found this wonderful project after a 16 year C++ Bulder5 career. Pascal is quite different but appears extremely powerful.

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 11 years 4 months ago #4333

  • Sonnleitner Norbert
  • Sonnleitner Norbert's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 8
  • Thank you received: 2
I have modified the Routins for AddGraphToRot and RemoveGraphFromRot. I build the graphs now with source code. Using MonoGraphStudio I can also connect remote.
You need the ComObj unit too... Also the functions us a ID as DWORD which is also different to the DSPack.

Happy using :)
//----------------------------------------------------------------------------
  // Enable Graphedit to connect with your filter graph
  //----------------------------------------------------------------------------
  function AddGraphToRot(Graph: IFilterGraph; out ID: DWORD): HRESULT;
  var
    Moniker: IMoniker;
    ROT    : IRunningObjectTable;
    wsz    : WideString;
    BindCtx: IBindCtx;
  begin
    result:=CreateBindCtx(0, BindCtx);
    result := bindCtx.GetRunningObjectTable(ROT);
//    result := GetRunningObjectTable(0, ROT);
    if (result <> S_OK) then exit;
    wsz := format('FilterGraph %p pid %x',[pointer(graph),GetCurrentProcessId()]);
    result  := CreateItemMoniker('!', PWideChar(wsz), Moniker);
    if (result <> S_OK) then exit;
    result  := ROT.Register(0, Graph, Moniker, ID);
    Moniker := nil;
  end;



  //----------------------------------------------------------------------------
  // Disable Graphedit to connect with your filter graph
  //----------------------------------------------------------------------------
  function RemoveGraphFromRot(ID: DWORD): HRESULT;
  var ROT: IRunningObjectTable;
    BindCtx: IBindCtx;
  begin
    OleCheck(CreateBindCtx(0, BindCtx));
    result := bindCtx.GetRunningObjectTable(ROT);
//    result := GetRunningObjectTable(0, ROT);
    if (result <> S_OK) then exit;
    result := ROT.Revoke(ID);
    ROT := nil;
  end;
The following user(s) said Thank You: mike

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 9 years 10 months ago #6834

  • Carmelo
  • Carmelo's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 13
  • Thank you received: 0
Hello
I have problems:

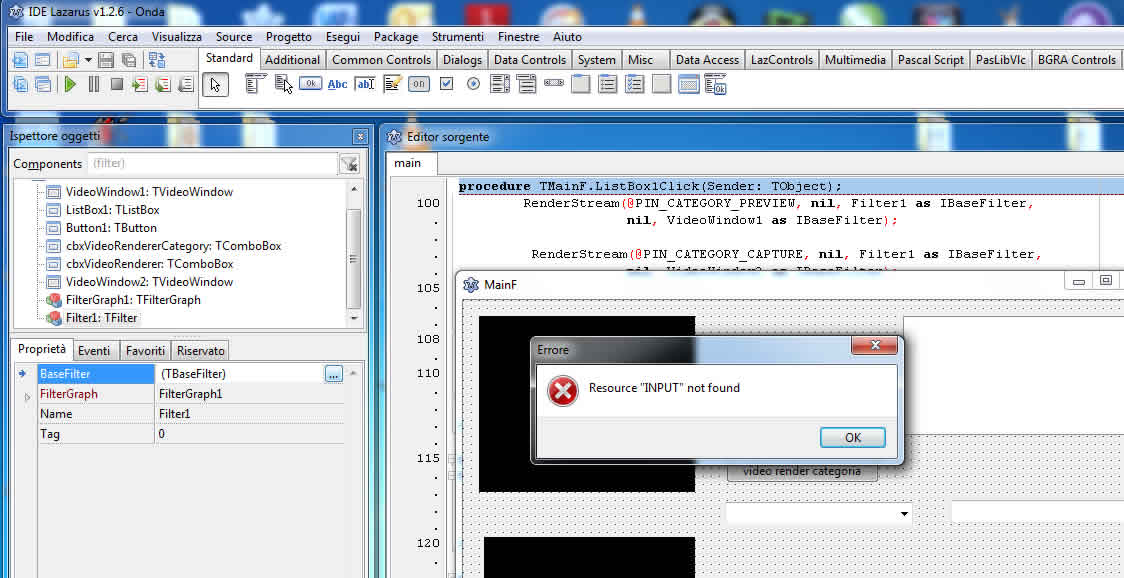

1) with properties BaseFilter click (TBaseFilter).

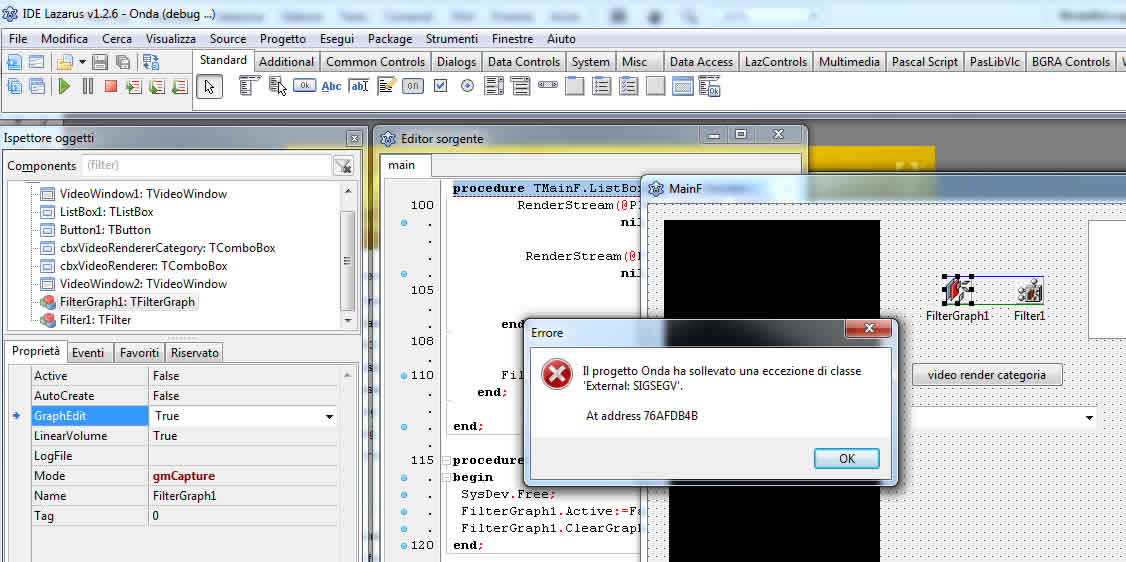

2) FilterGraph1 GraphichEdit: = True (error in run)
graphedt.exe not see my video files to run the application.
I have installed:
pl_Win_DirectX.zip (824KB) and pl_Win_DSPack.zip (270KB) of Mr. Sternas,
I have installed and tried WindowsSDK 8.1 or WindowsSDK 7.1 .
I have win7 32bit

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Carmelo.

Re: [LAB] pl_Win_DSPack tests 9 years 10 months ago #6835

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4540
  • Thank you received: 1117
Sir
Is this Lazarus IDE ?
My suggestion is to post the problem to Lazarus forum here
Typhon IDE is NOT the same with Lazarus IDE
PilotLogic Architect and Core Programmer

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 9 years 9 months ago #6838

  • Carmelo
  • Carmelo's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 13
  • Thank you received: 0
Ok. sorry, I'm new with Lazarus and CT.

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 9 years 9 months ago #6841

  • mike
  • mike's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 4
  • Thank you received: 1

SonnyBoyXXL wrote: Hello,
in Win7 and WinXP also the Problem with the GetRunningObjectTable call if the GraphEdit property is true.
According to MSDN the GetRunningObjectTable the IRunningObjectTable should be declared as out in the ActivX header.
...
The code now produces no exception, but GraphEdit doesn't show the remote graph (even the playback of a Video is running).
Someone has an idea what could be the problem. Since I want do develope a BDA application it would great if the GraphEdit function is working :)


Took me a long time to get around to this. In truth I was hoping someone else would deal with this...

I've submitted a patch to the fpc team for the missing out declaration...
bugs.freepascal.org/view.php?id=27555

UPDATE: ?? @SonnyBoyXXL - I completely missed your post where you posted the full solution. Ahh... Many thanks...

Please Log in or Create an account to join the conversation.

Last edit: by mike. Reason: Missed information first time...

Re: [LAB] pl_Win_DSPack tests 9 years 9 months ago #6842

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4540
  • Thank you received: 1117
For your info
we update pl_Win_DSPack to ver 5.3.4
and we fix more errors...

Typhon IDE for Win32 and for Win64 give same results on Windows7 64bits (screen1 and 2).

My Suggestion:
We can work together to fix any problem of pl_Win_DSPack
with common reference the current LAB CT 5.3 rev 005230

For this reason, I can give the task to our lab and release tomorrow the current LAB CT
PilotLogic Architect and Core Programmer
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Sternas Stefanos.

Re: [LAB] pl_Win_DSPack tests 9 years 9 months ago #6901

  • mike
  • mike's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 4
  • Thank you received: 1

sternas wrote: For your info
we update pl_Win_DSPack to ver 5.3.4
and we fix more errors...
Typhon IDE for Win32 and for Win64 give same results on Windows7 64bits (screen1 and 2).
My Suggestion:
We can work together to fix any problem of pl_Win_DSPack
with common reference the current LAB CT 5.3 rev 005230
For this reason, I can give the task to our lab and release tomorrow the current LAB CT


Many thanks for the offer.

The underlying cause was in fpc. I've posted a patch for that that has been accepted, so subsequent fpc releases should be fine.
bugs.freepascal.org/view.php?id=27555

@SonnyBoyXXL's code was a workaround for the fpc bug. But in all honesty, a perfectly valid workaround.

However, despite that fact that both scenario's now fully compile (your original code + fpc fix AND @SonnyBoyXXL workaround with original fpc) and run without error, I'm personally unable to connect to the graph in GraphEdt. I know @SonnyBoyXXL reported success, but so far I've been unable to reproduce. I *think* that's because I'm on 64bit, and I'm *guessing* @SonnyBoyXXL was on 32bit.

However, while your offer of working together is on the table, there are two minor changes I always make to the code after I get an update from you. I suspect both of them are due to the fact that I'm more used to dealing with DirectShow than the DSPack, however I'd like to submit them for consideration. What's the appropriate channel for that discussion?

Please Log in or Create an account to join the conversation.

Re: [LAB] pl_Win_DSPack tests 9 years 9 months ago #6902

  • Sternas Stefanos
  • Sternas Stefanos's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • Ex Pilot, M.Sc, Ph.D
  • Posts: 4540
  • Thank you received: 1117
Simple Sir
zip and attach modified file here

This forum has 2Terabytes disk to our web server...
From CT 6.x we plan our SVN Server for this reason
PilotLogic Architect and Core Programmer
The following user(s) said Thank You: mike

Please Log in or Create an account to join the conversation.

[LAB] pl_Win_DSPack tests 9 years 1 month ago #8568

  • Sven Hakansson
  • Sven Hakansson's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 1
  • Thank you received: 0
I am trying to use pl_Win_DSPack without success. I have read all the comments and implemented all the suggested changes and still can't make it work.
Specifically SampleGrabberBuffer and Snapshot in the example. Has any body been able to grab a frame or make the SampleGrabber example work?

Please Log in or Create an account to join the conversation.
  • Page:
  • 1
  • 2
Forum
CodeTyphon Studio
CodeTyphon Studio Components and Libraries
Audio and Video Development
[LAB] pl_Win_DSPack tests
