CT on Mageia 7

We test Lab CodeTyphon 6.90 on Mageia 7

Mageia is a fork of Mandriva Linux formed in September 2010 by former employees and contributors to the popular French Linux distribution. Unlike Mandriva, which is a commercial entity, the Mageia project is a community project and a non-profit organisation whose goal is to develop a free Linux-based operating system.

More for Mageia OS here dearth

System: Entry level PC with 1 CPU (4-Cores) / 8 Gbyte RAM / 120 Gbytes Hard Disk / 1600x1200 pixels Monitor

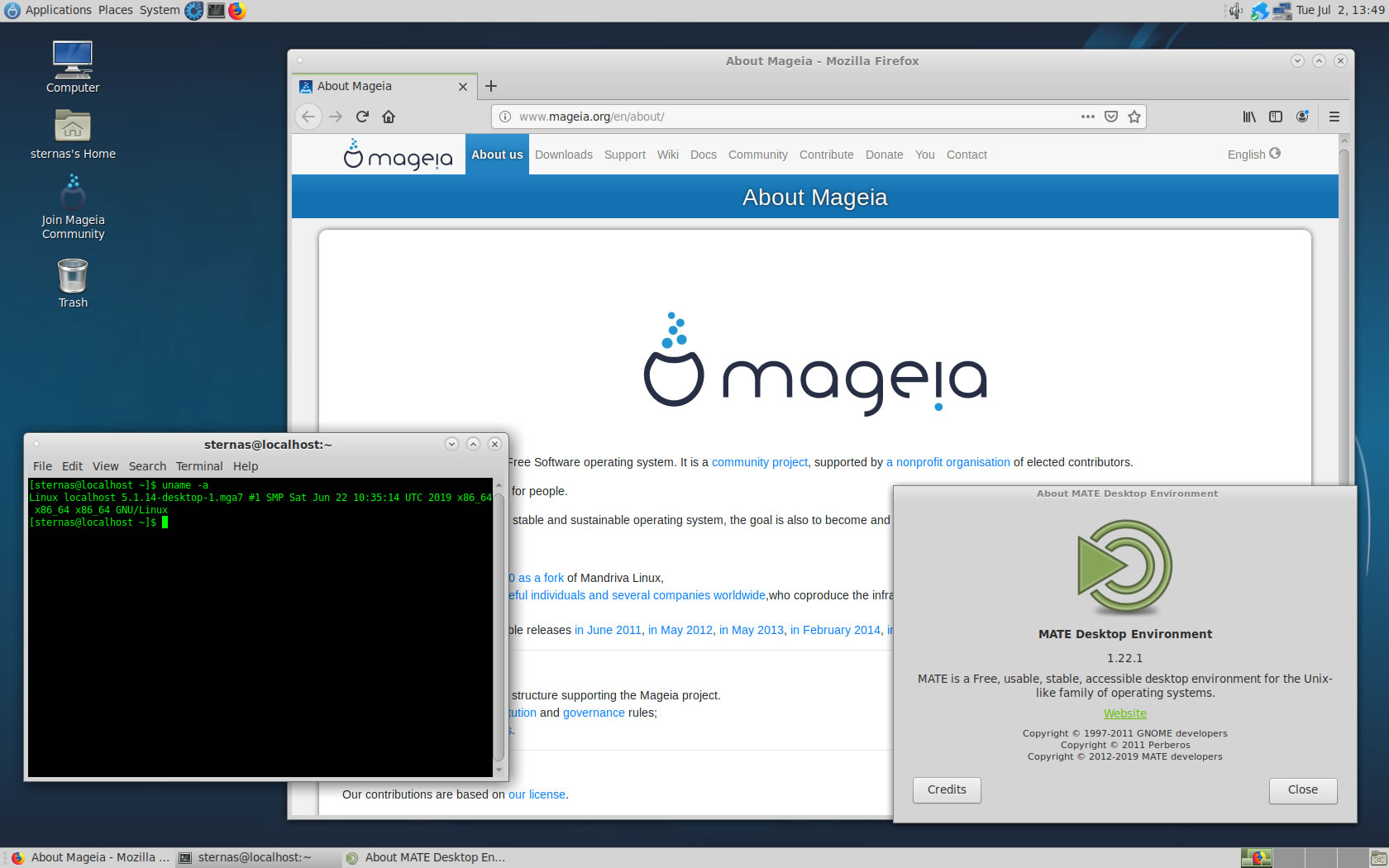

OS : Mageia 7 64bits with MATE as frontend Desktop

OS things and stuff..

Mageia 7 Linux is a true Multi-Platform OS.

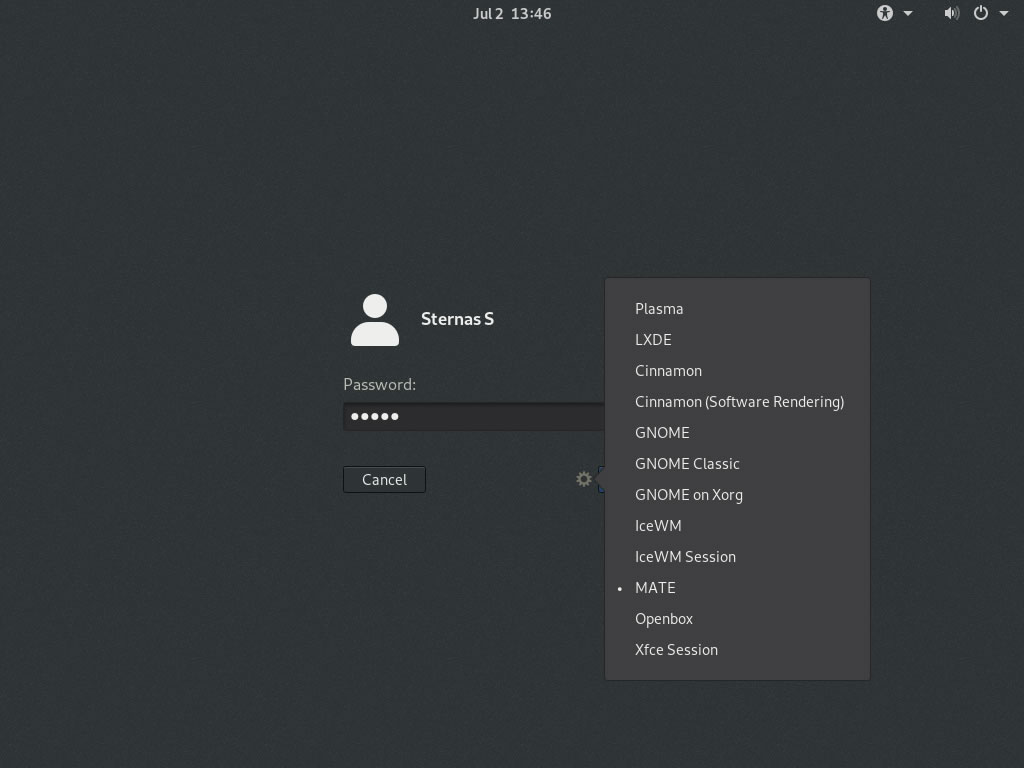

We install all big Desktops in this installation
GNOME 3, Xfce, KDE (QT5), Cinnamon, MATE and LXDE

Preparation-Give "sudo" root privileges

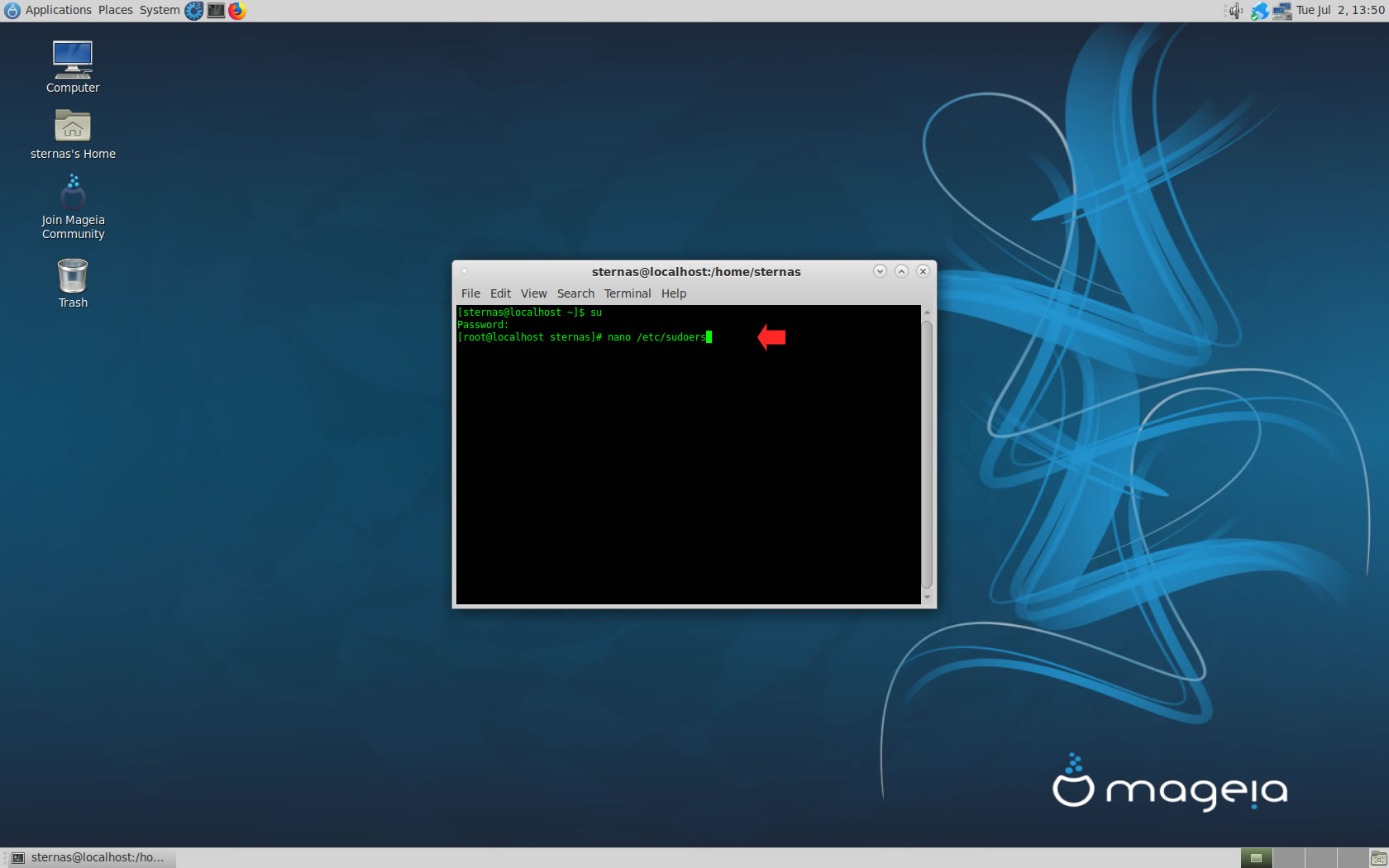

Open a terminal and exec

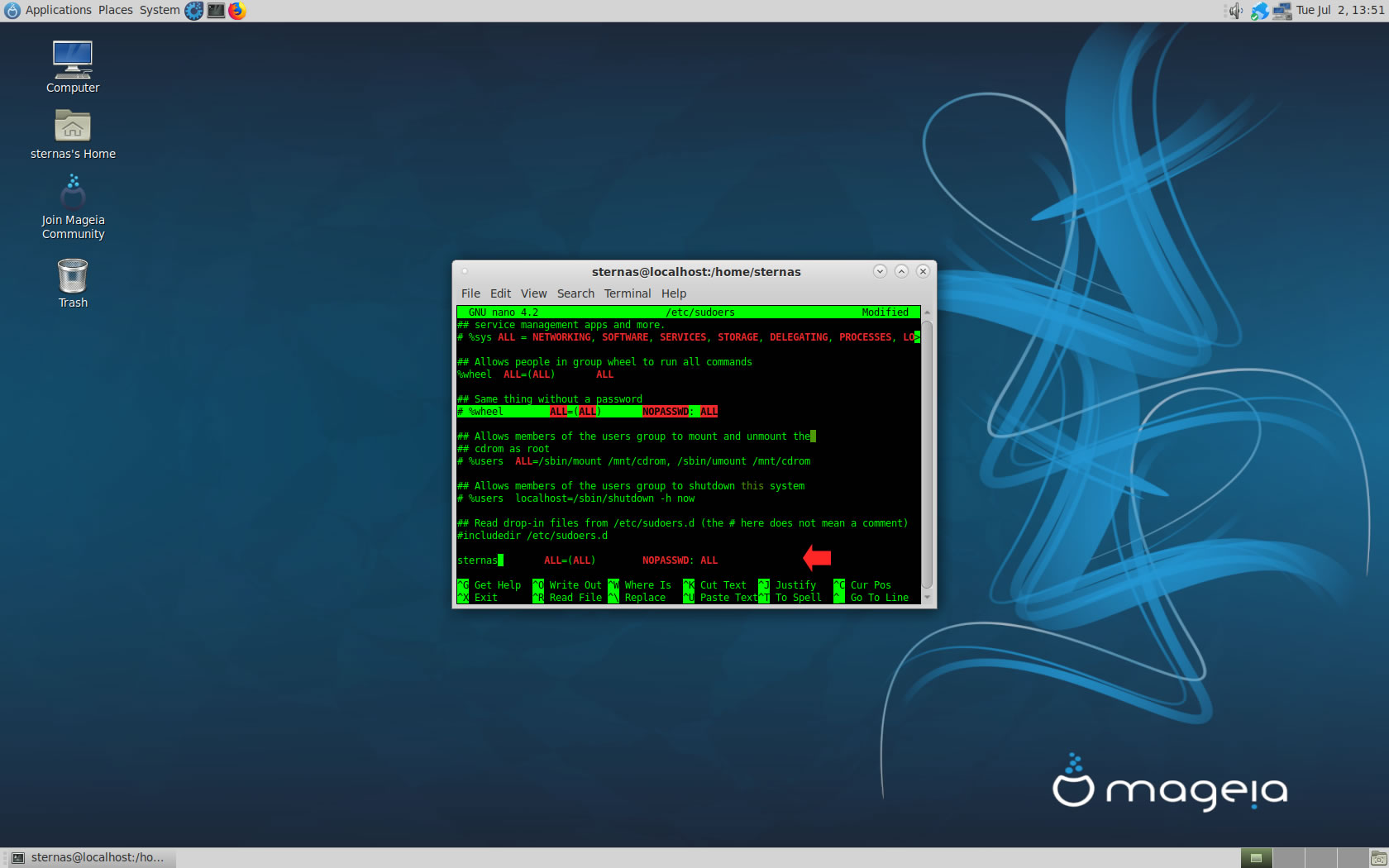

sudo nano /etc/sudoers

add at the end of /etc/sudoers the line

username ALL=(ALL) NOPASSWD: ALL

Ctl-X to exit and Y to save

Download-Unzip-Install

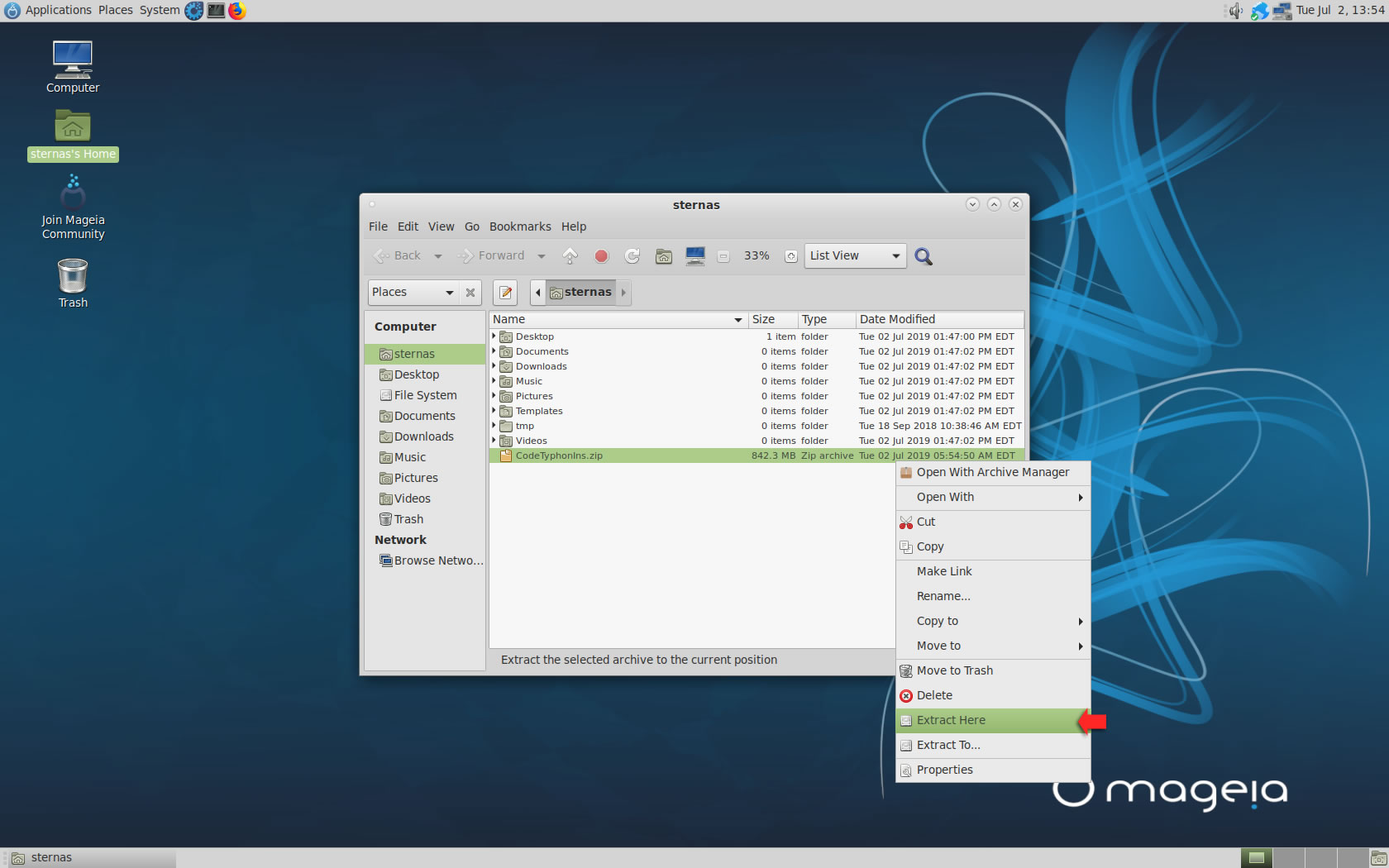

Download CodeTyphonIns.zip and unzip to your home directory

Open a terminal, and go to the new CodeTyphonIns directory

cd CodeTyphonIns

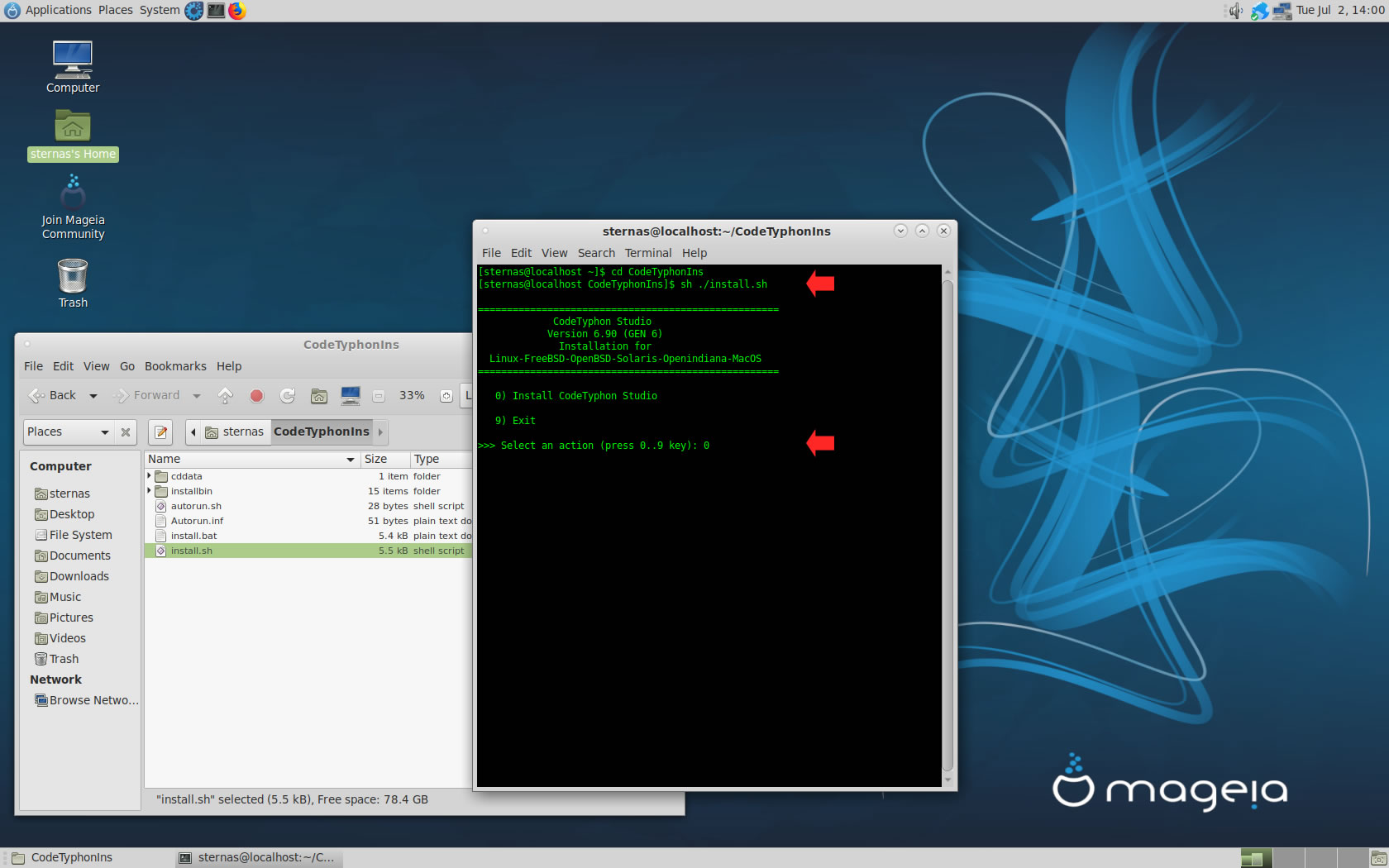

Start CodeTyphon Installation with command

sh ./install.sh

Give zero "0" to Install CodeTyphon

Setup and Build (for GTK2)

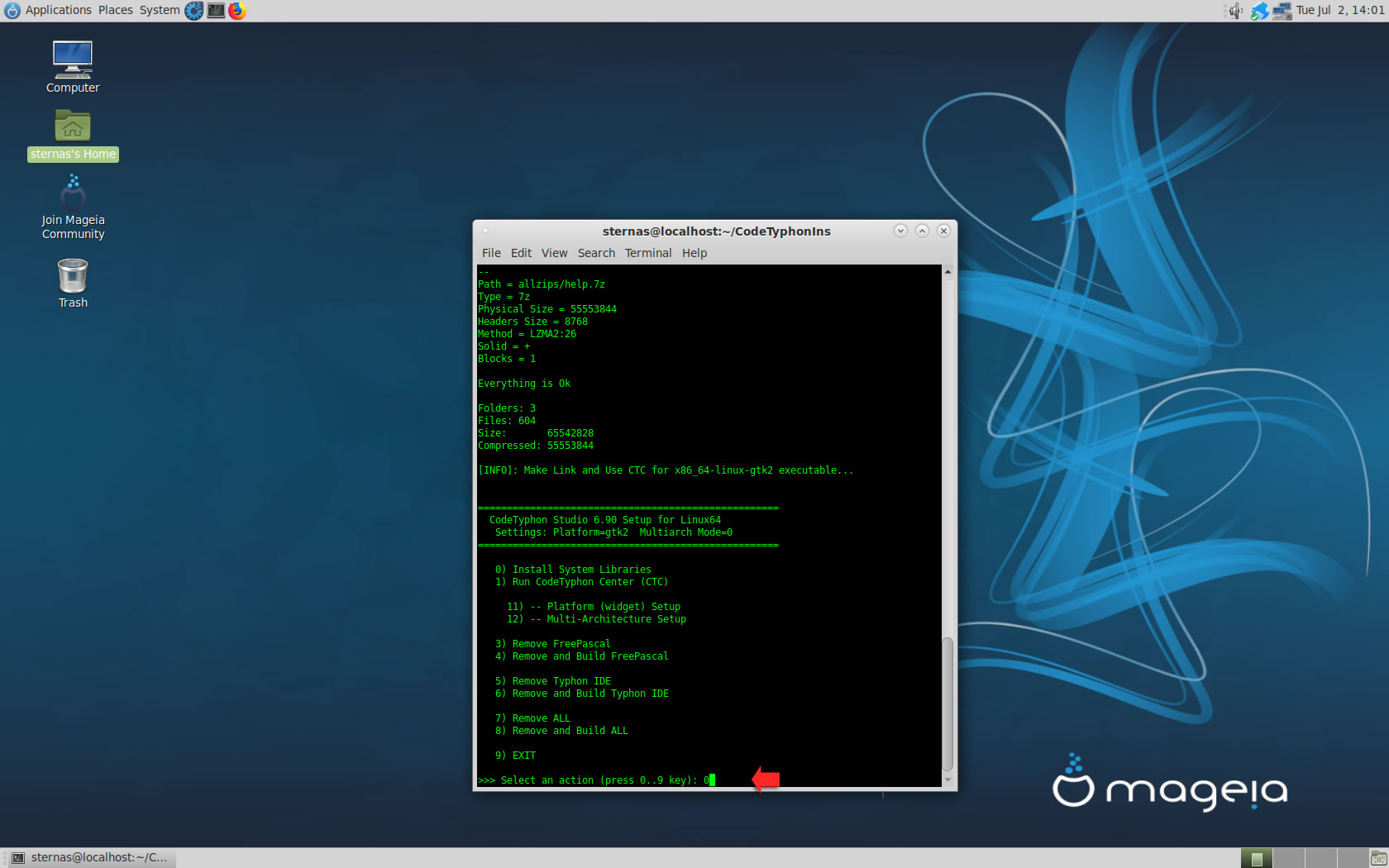

After CT install you can start CTCenter or to continue with the open terminal and CT Setup script

It's the first installation of CodeTyphon on this PC, so we install "system libraries" select "0".

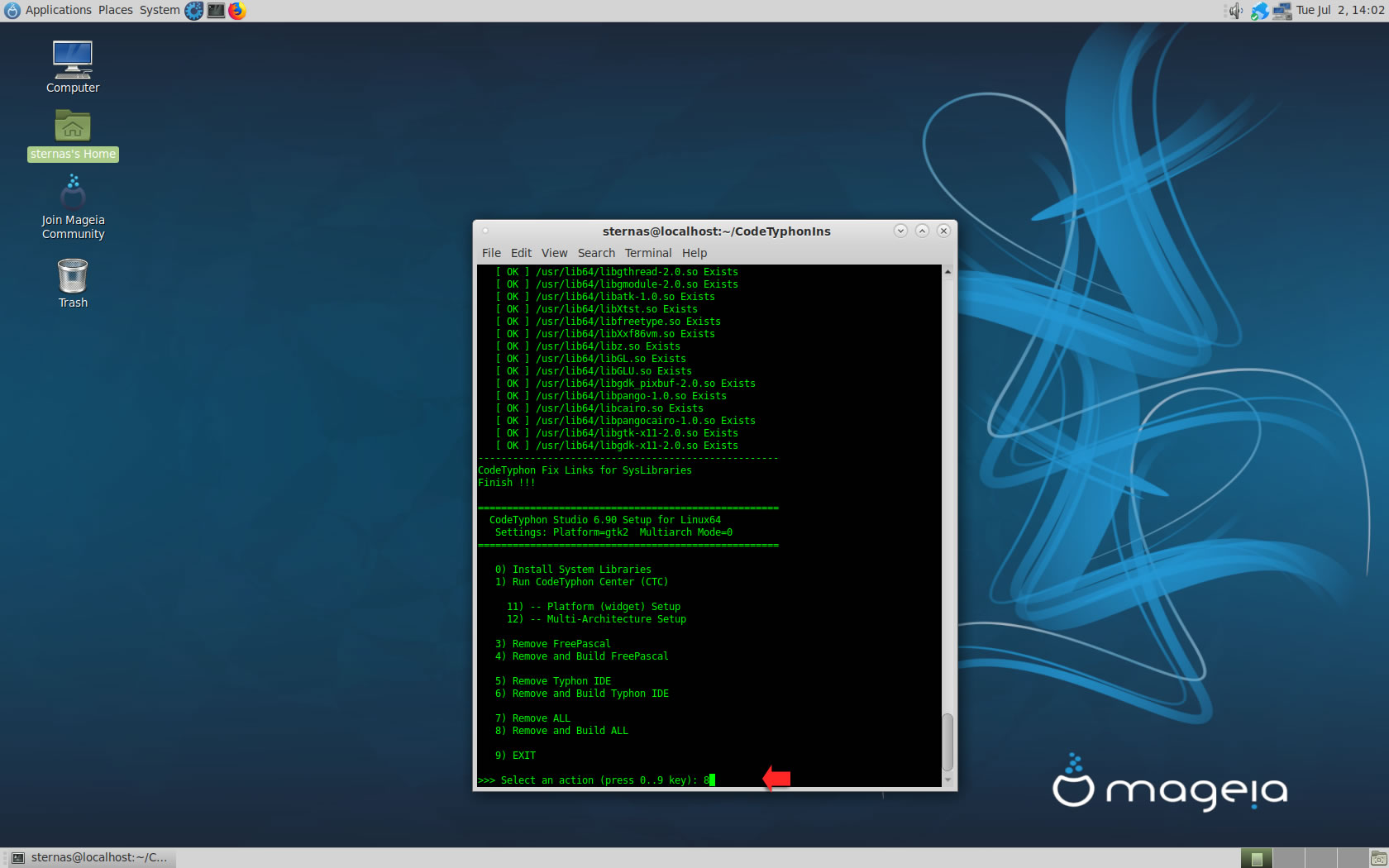

Select "8" to build all...

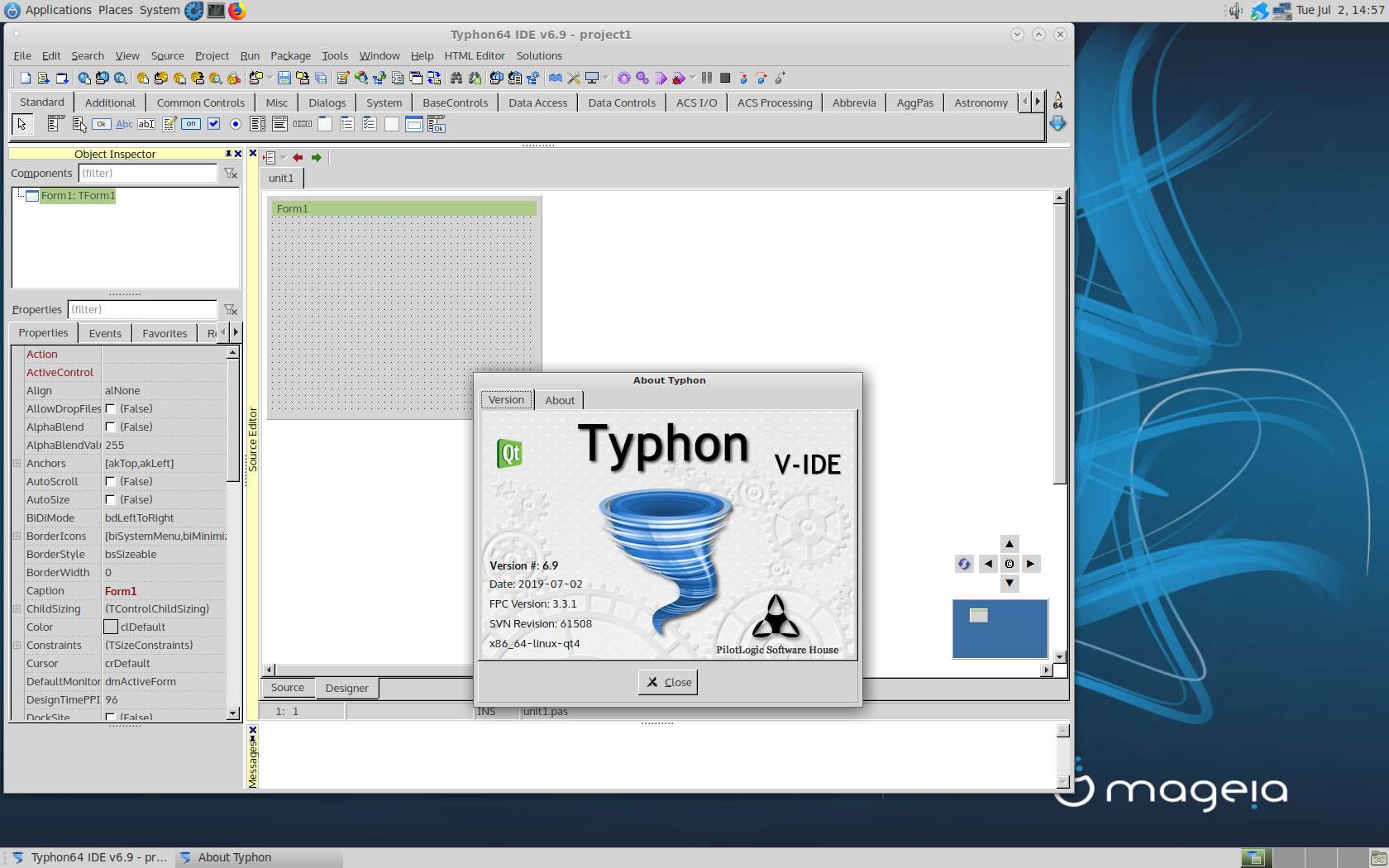

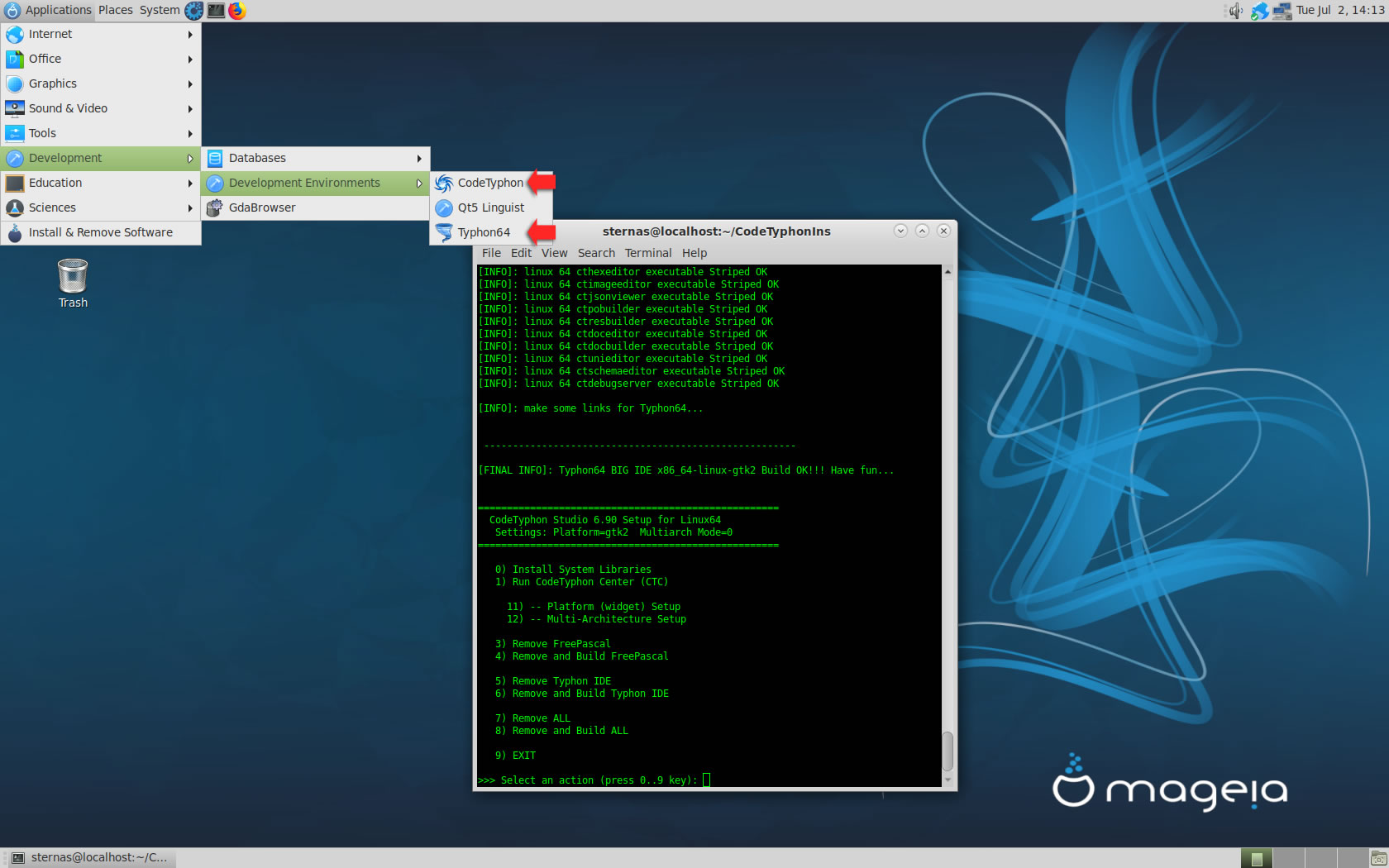

Finally

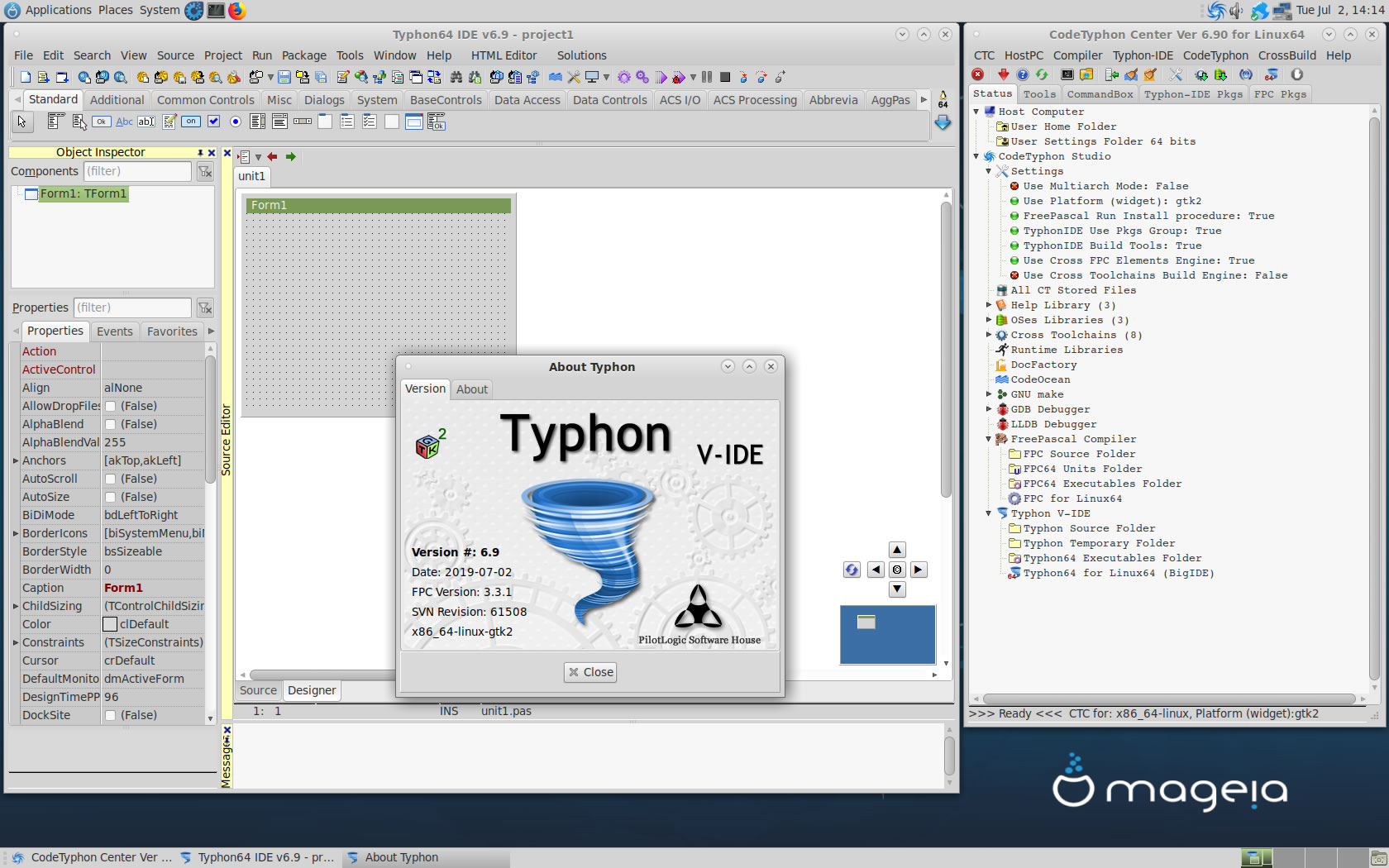

CTCenter, Typhon64 for GTK2, with ALL Docked Option (single Window)

Libraries tests (GTK2)

We test some of about 1850 CodeOcean samples...

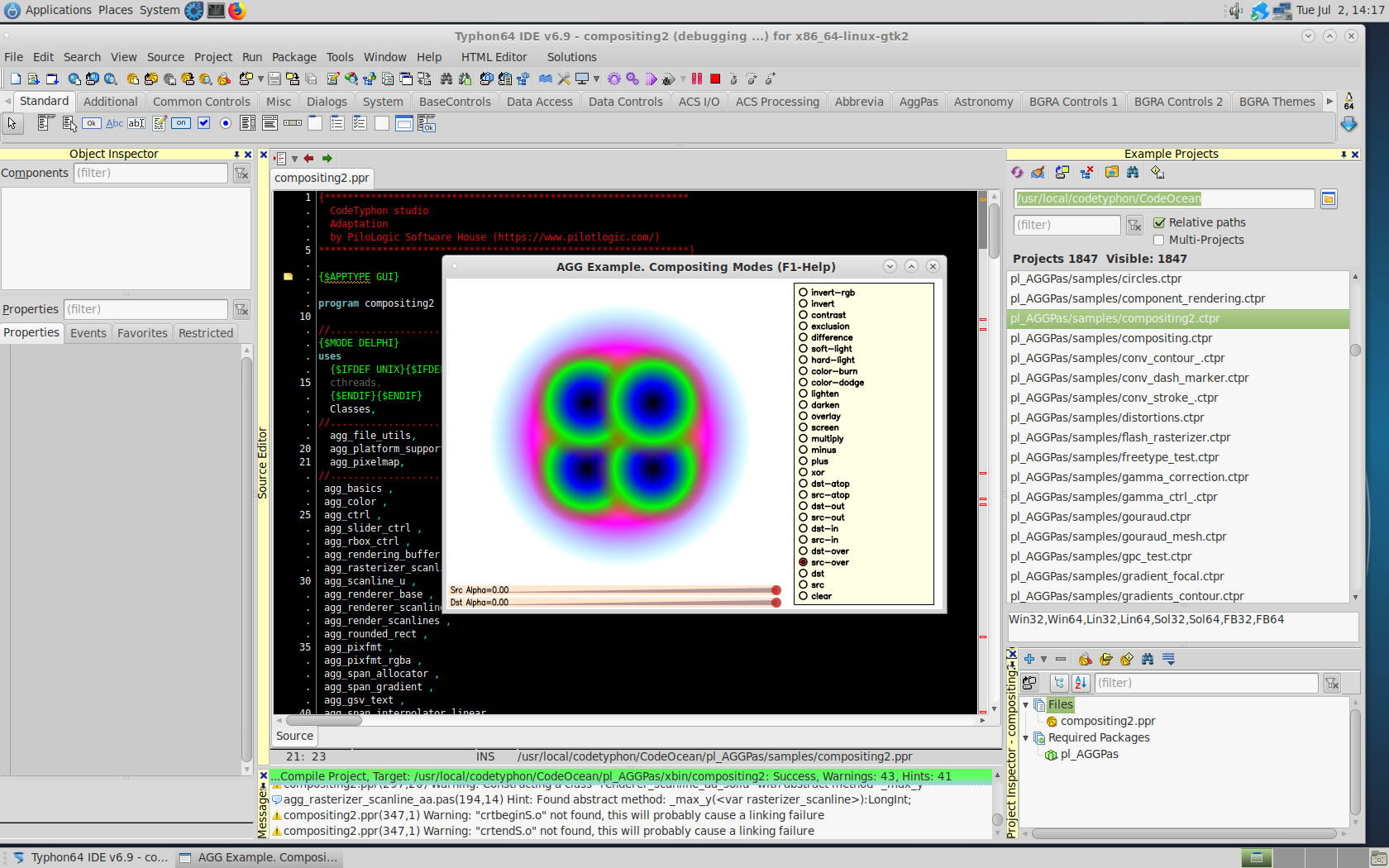

pl_AGGPas

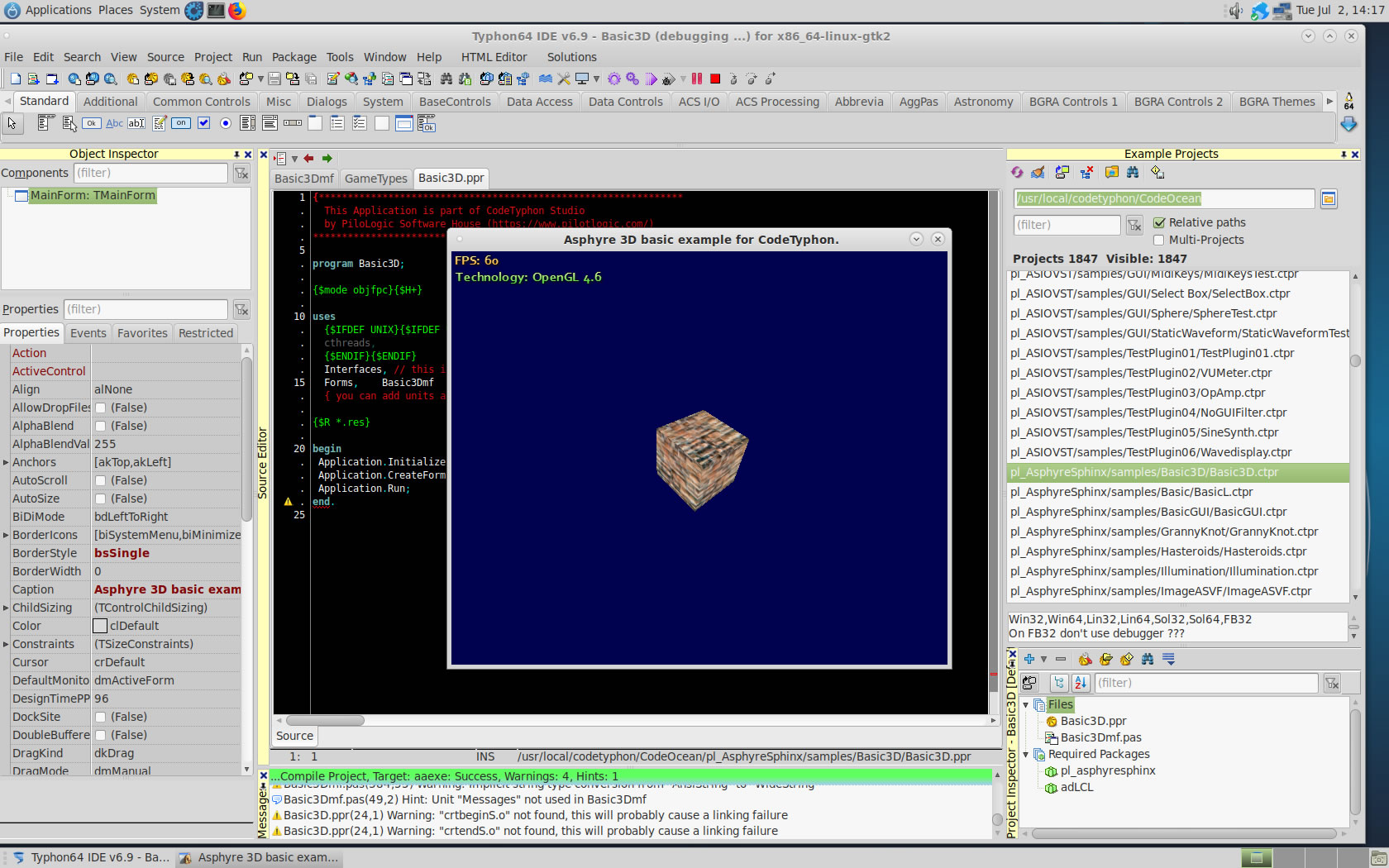

pl_AsphyreSphinx

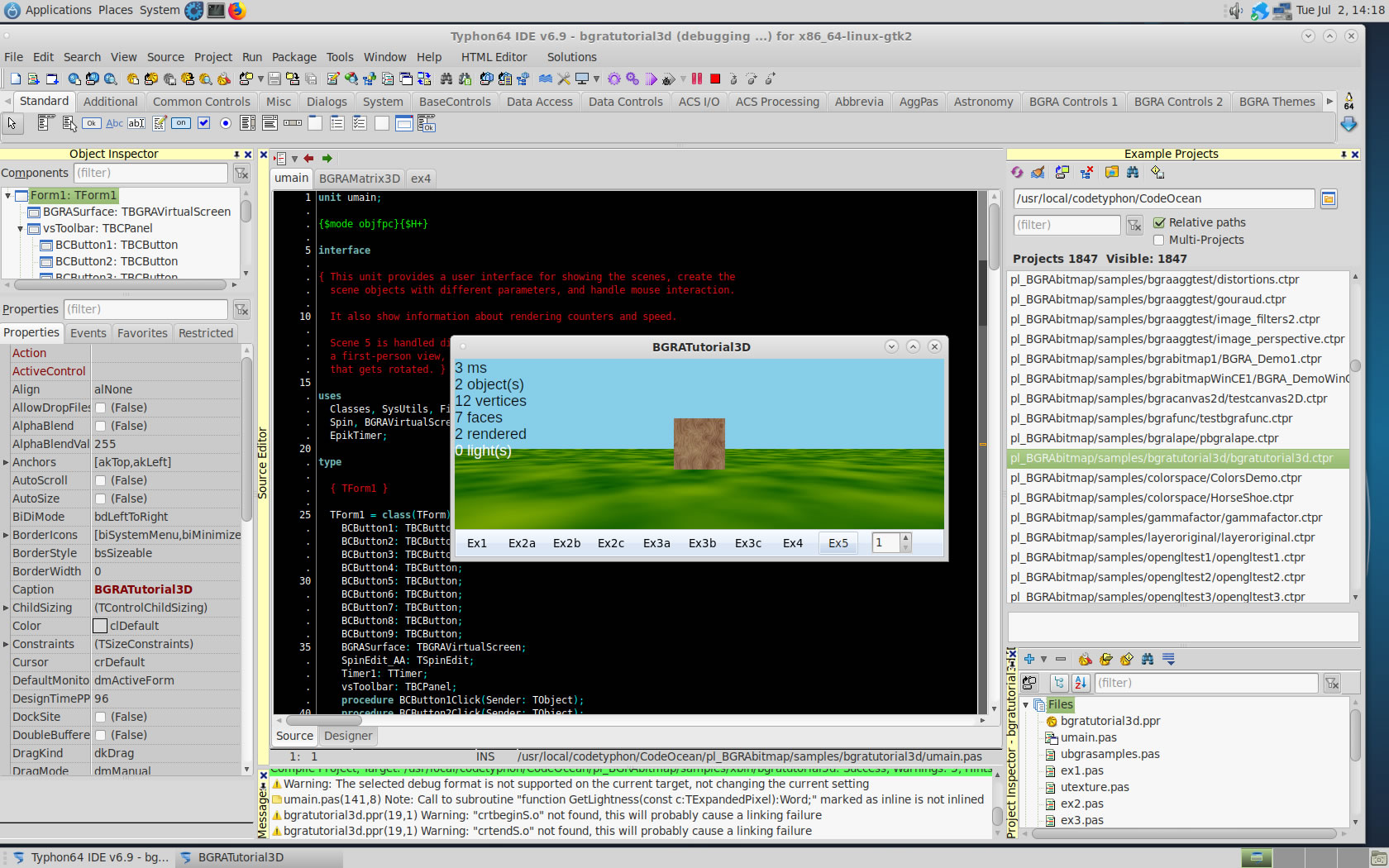

pl_BGRAbitmap

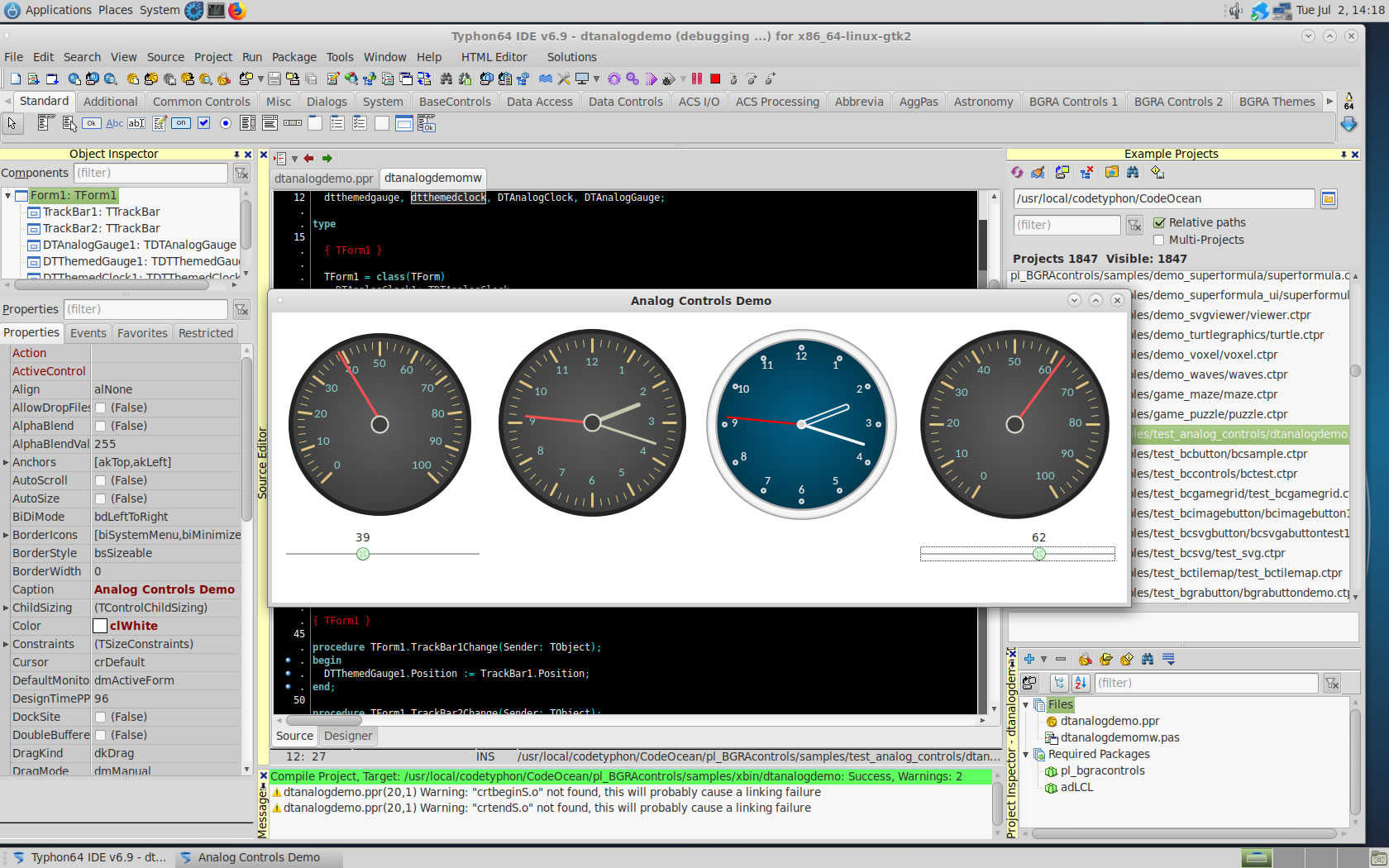

pl_BGRAcontrols

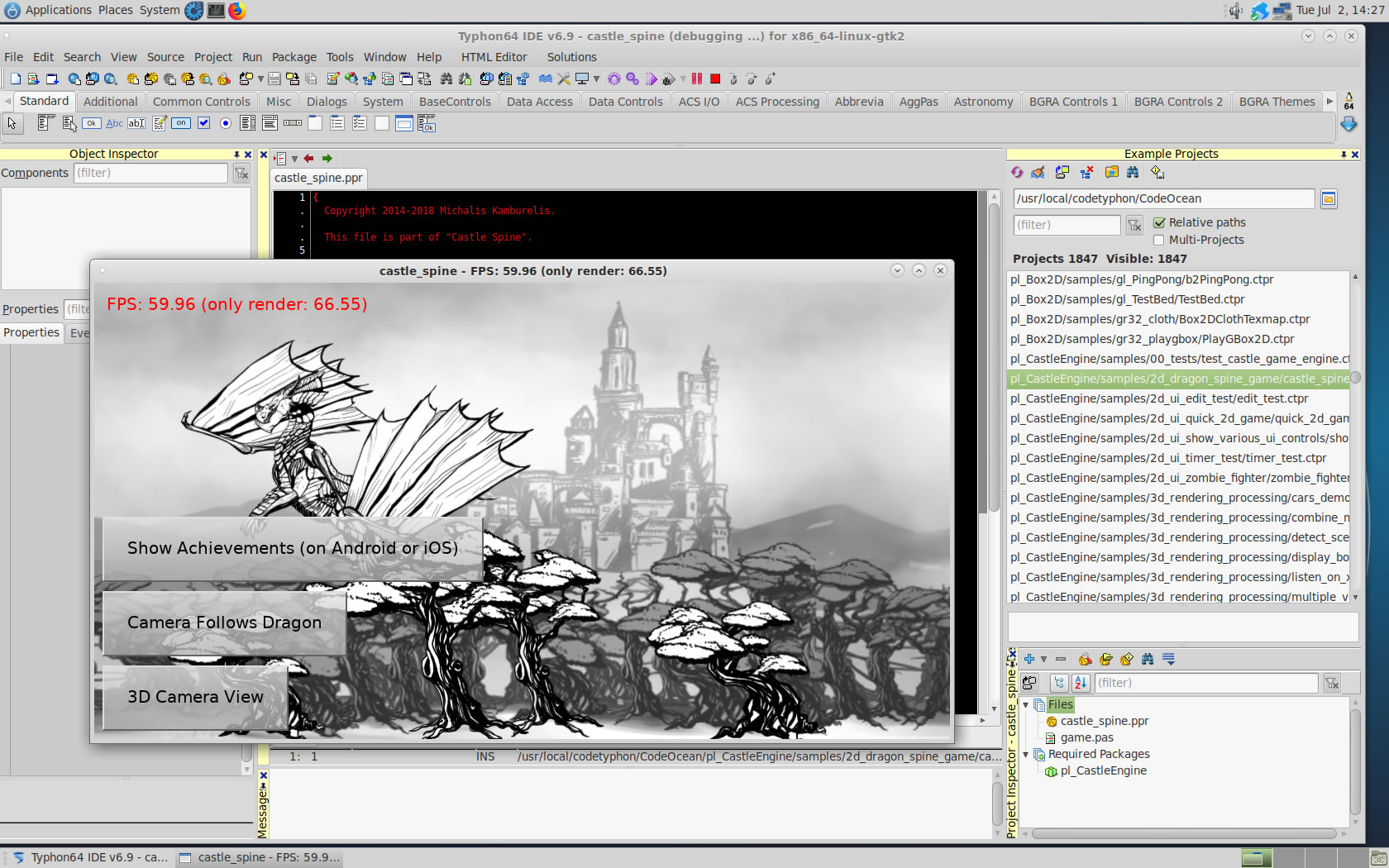

pl_CastleEngine

NOTE : install first

-libgtkglext-x11-1.0.so
-libgdkglext-x11-1.0.so

with command

sudo urpmi --auto -a gtkglext-devel

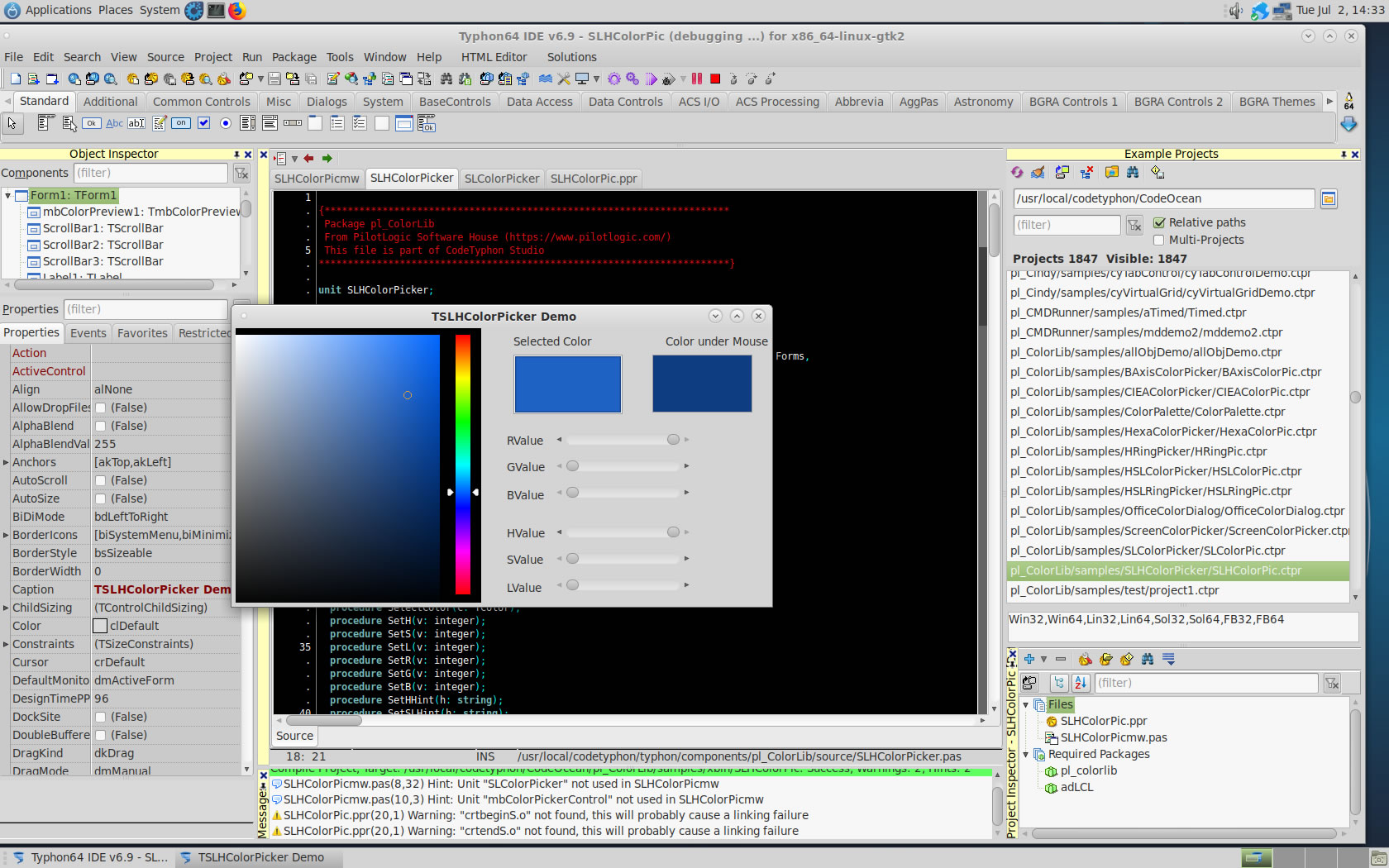

pl_ColorLib

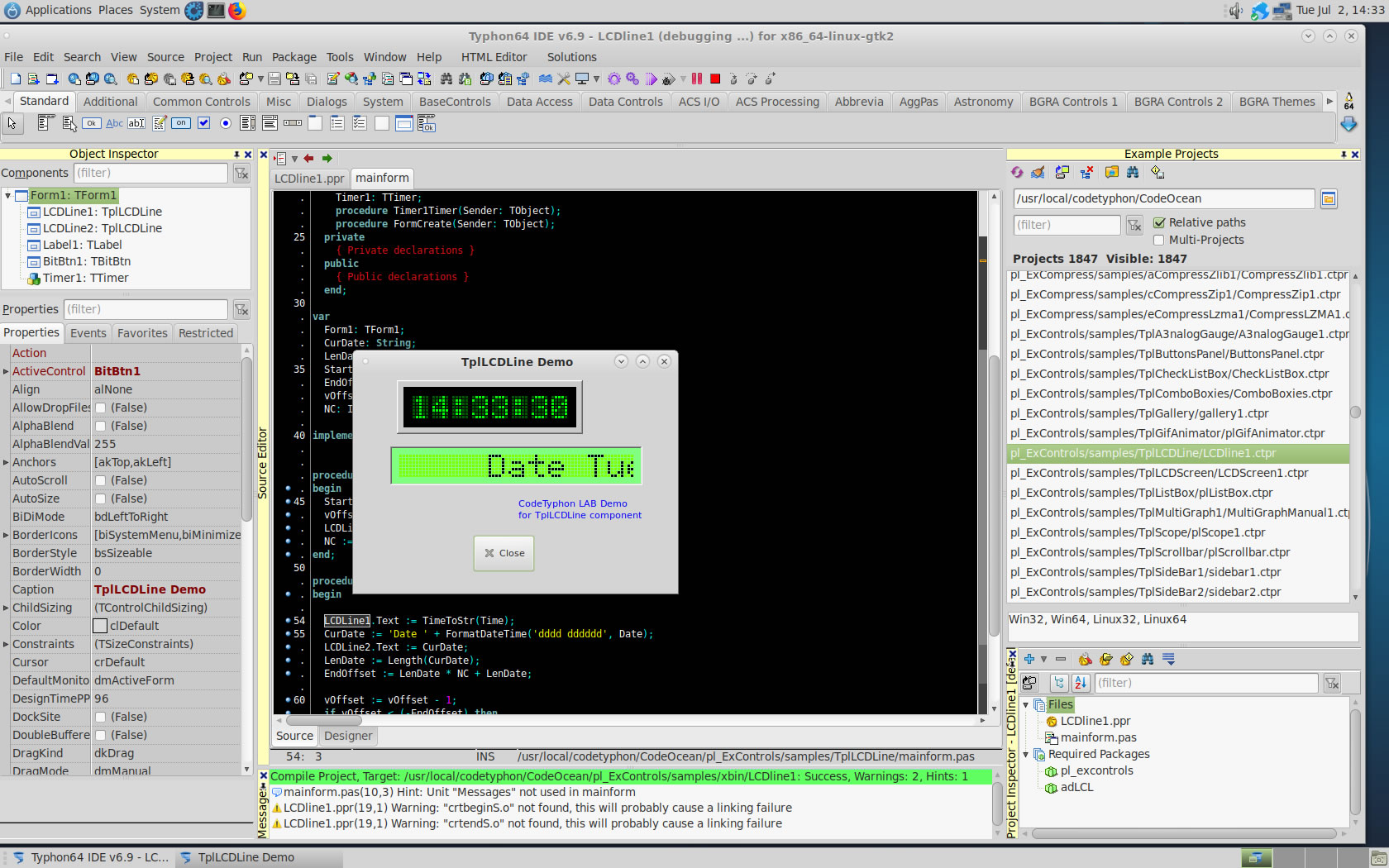

pl_ExControls

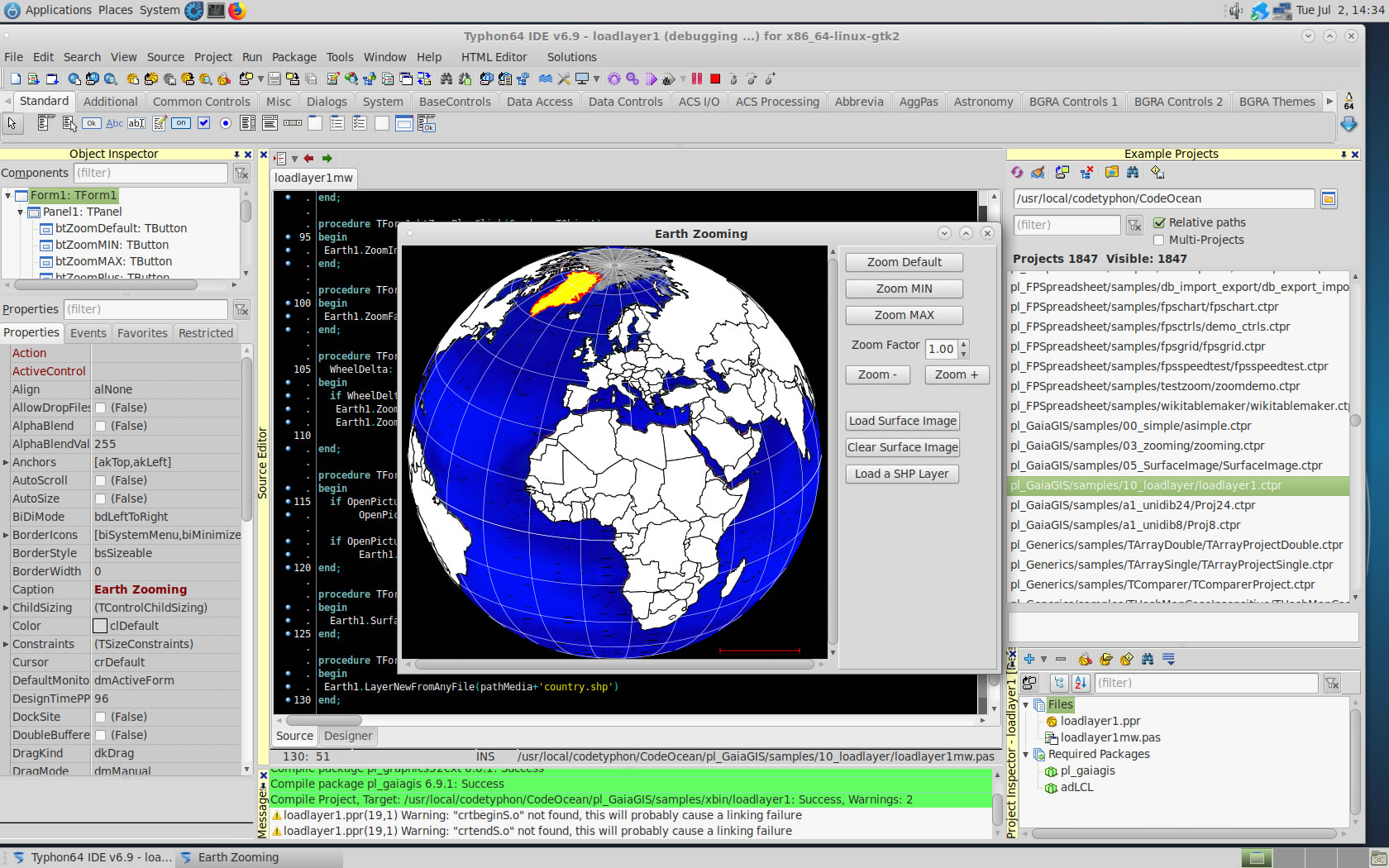

pl_GaiaGIS

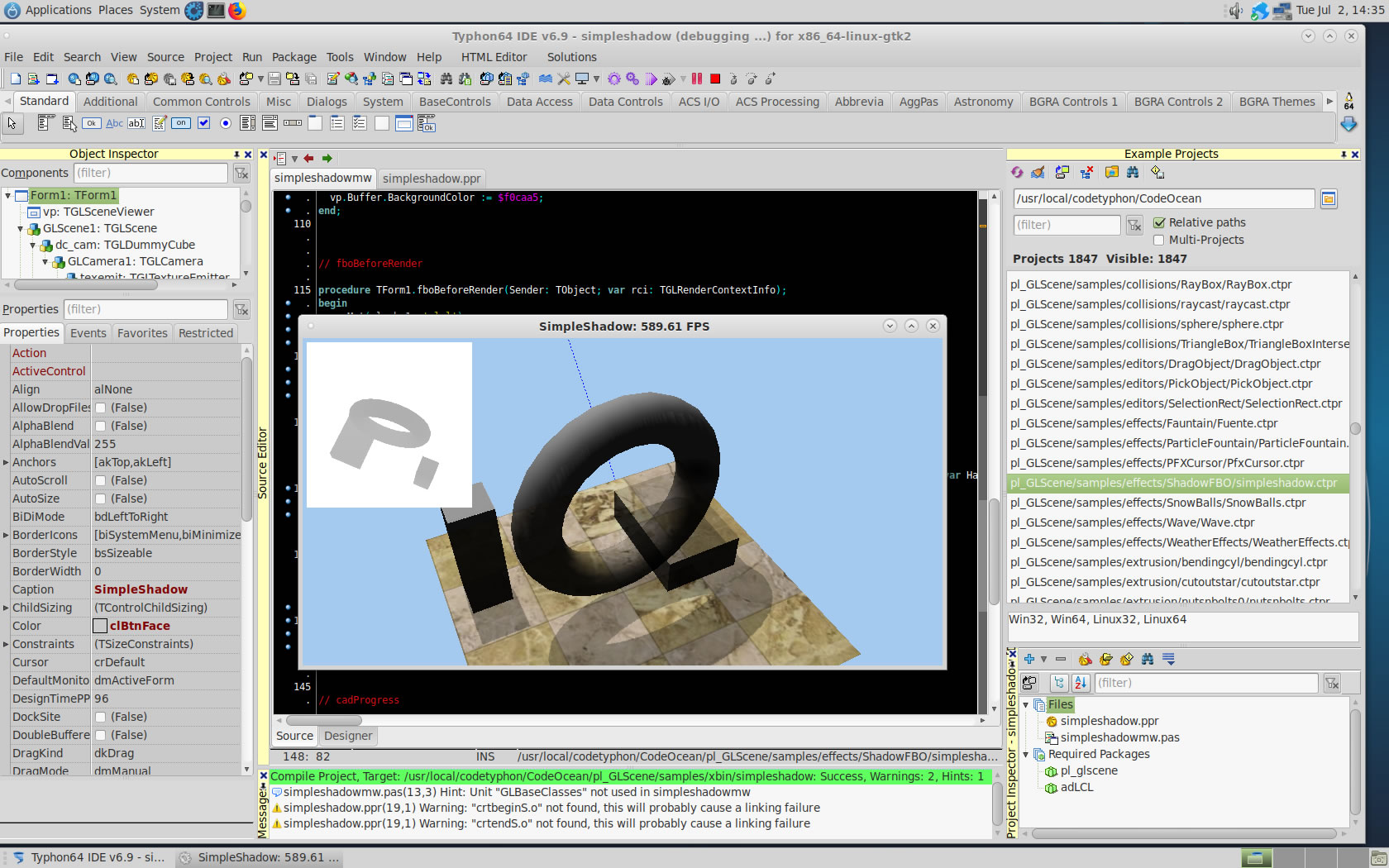

pl_GLScene

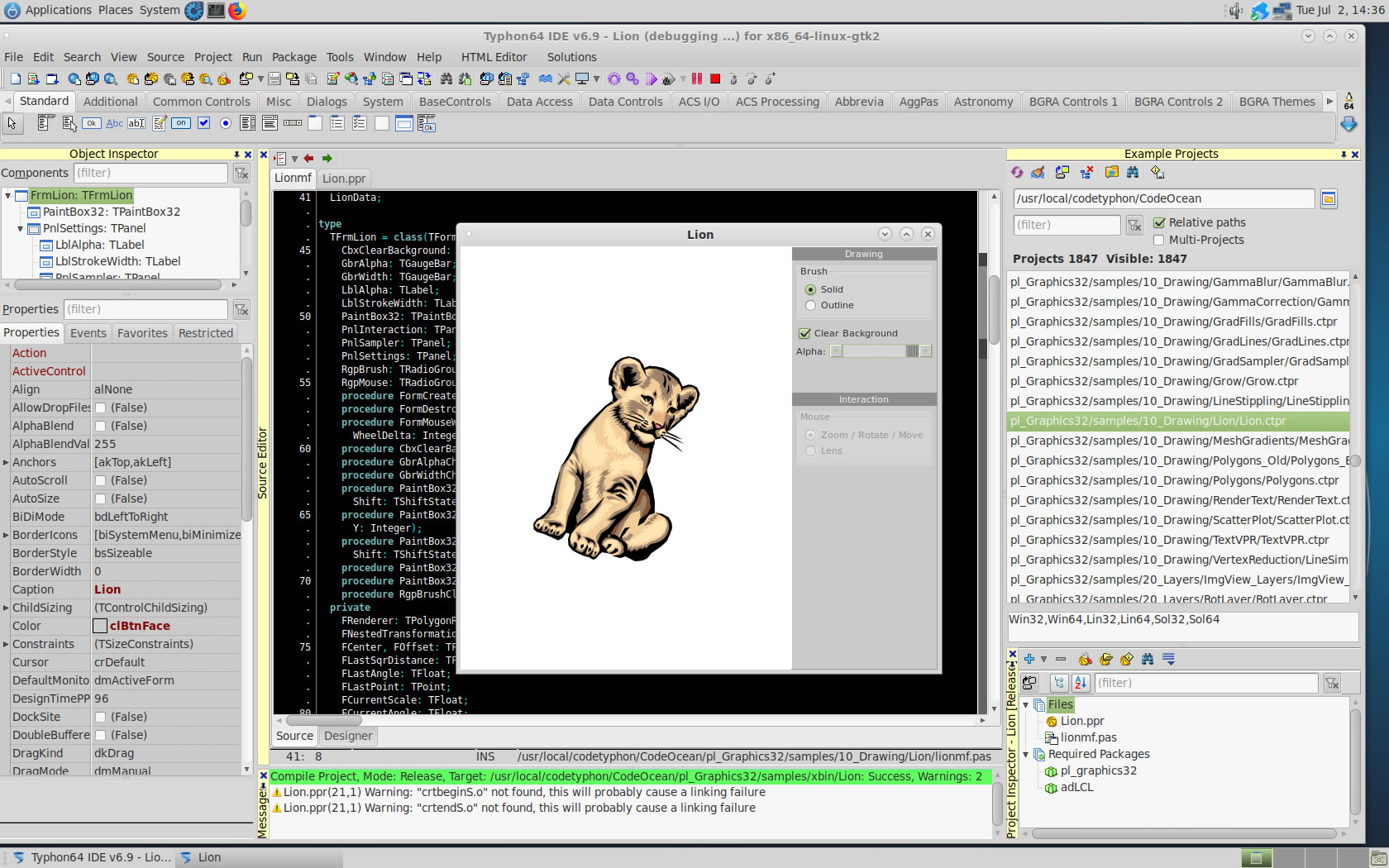

pl_Graphics32

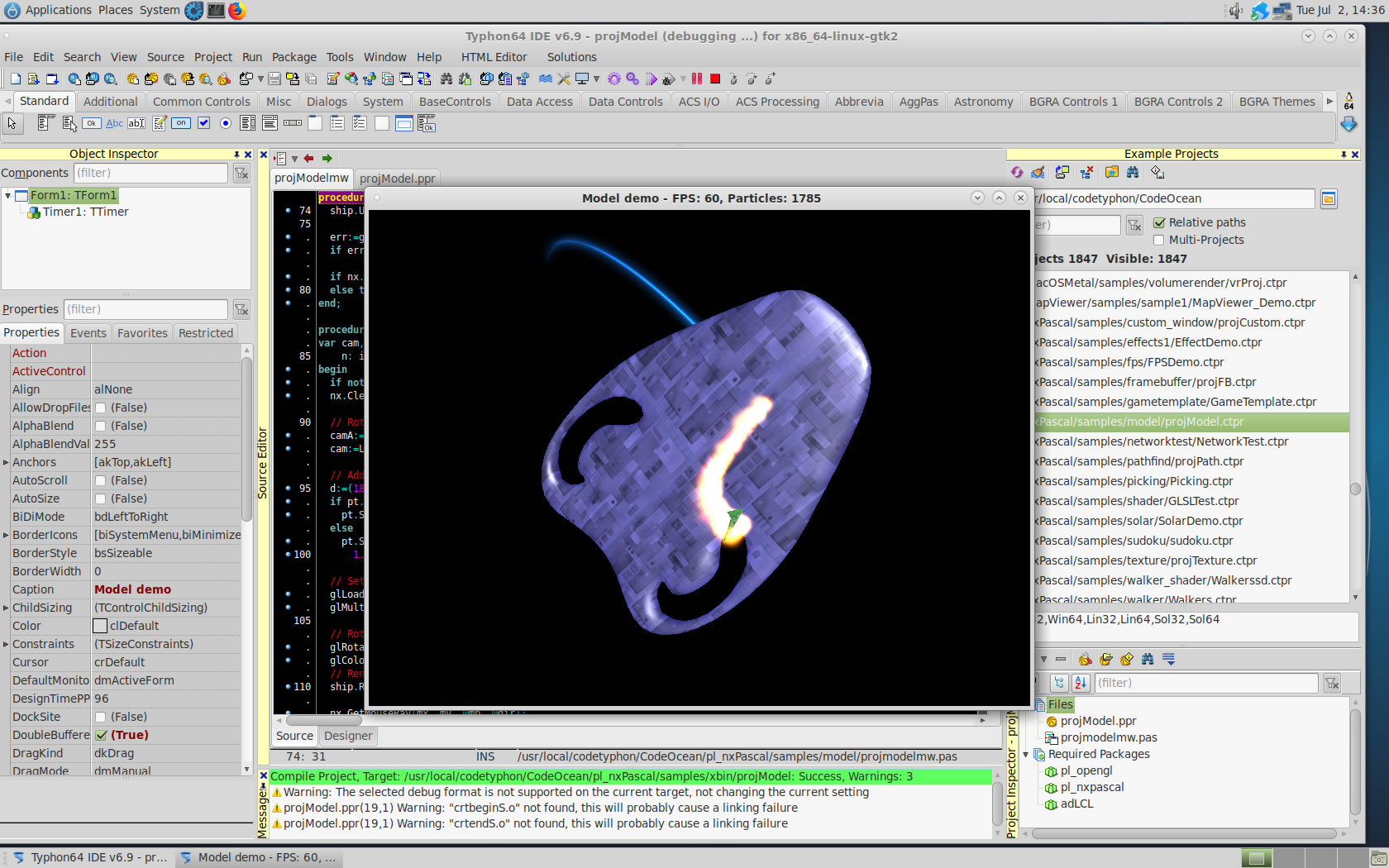

pl_nxPascal

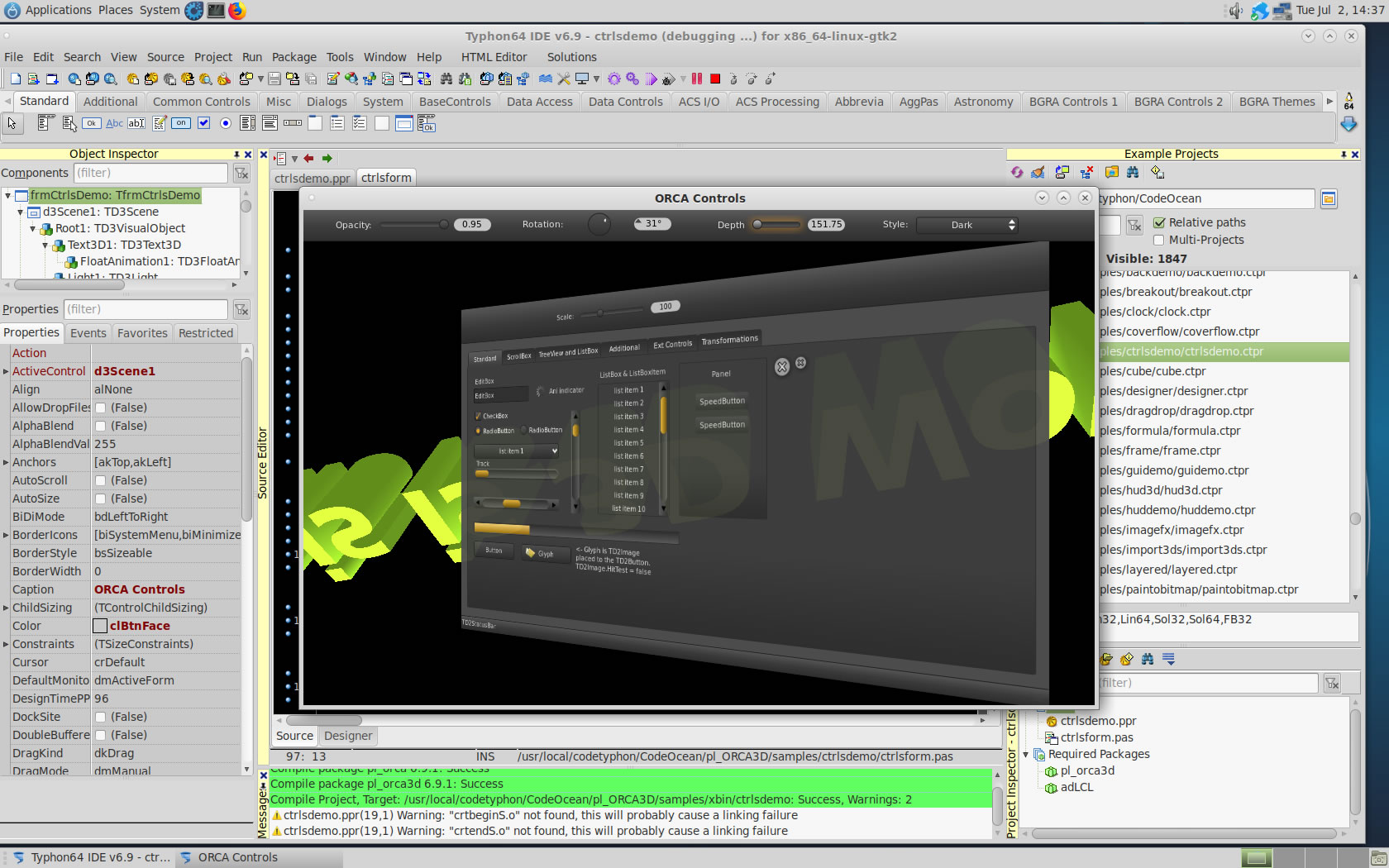

pl_ORCA3D

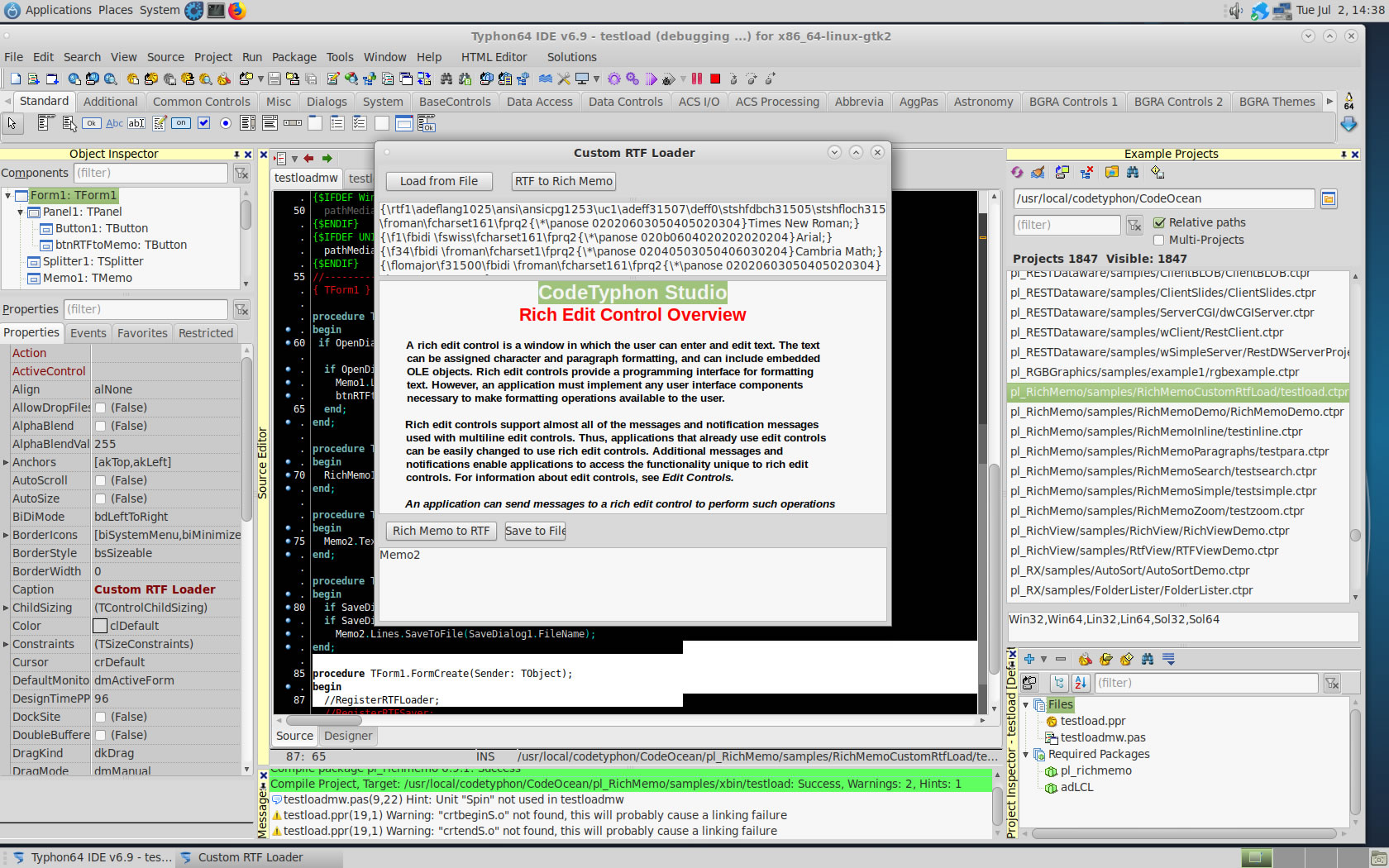

pl_RichMemo

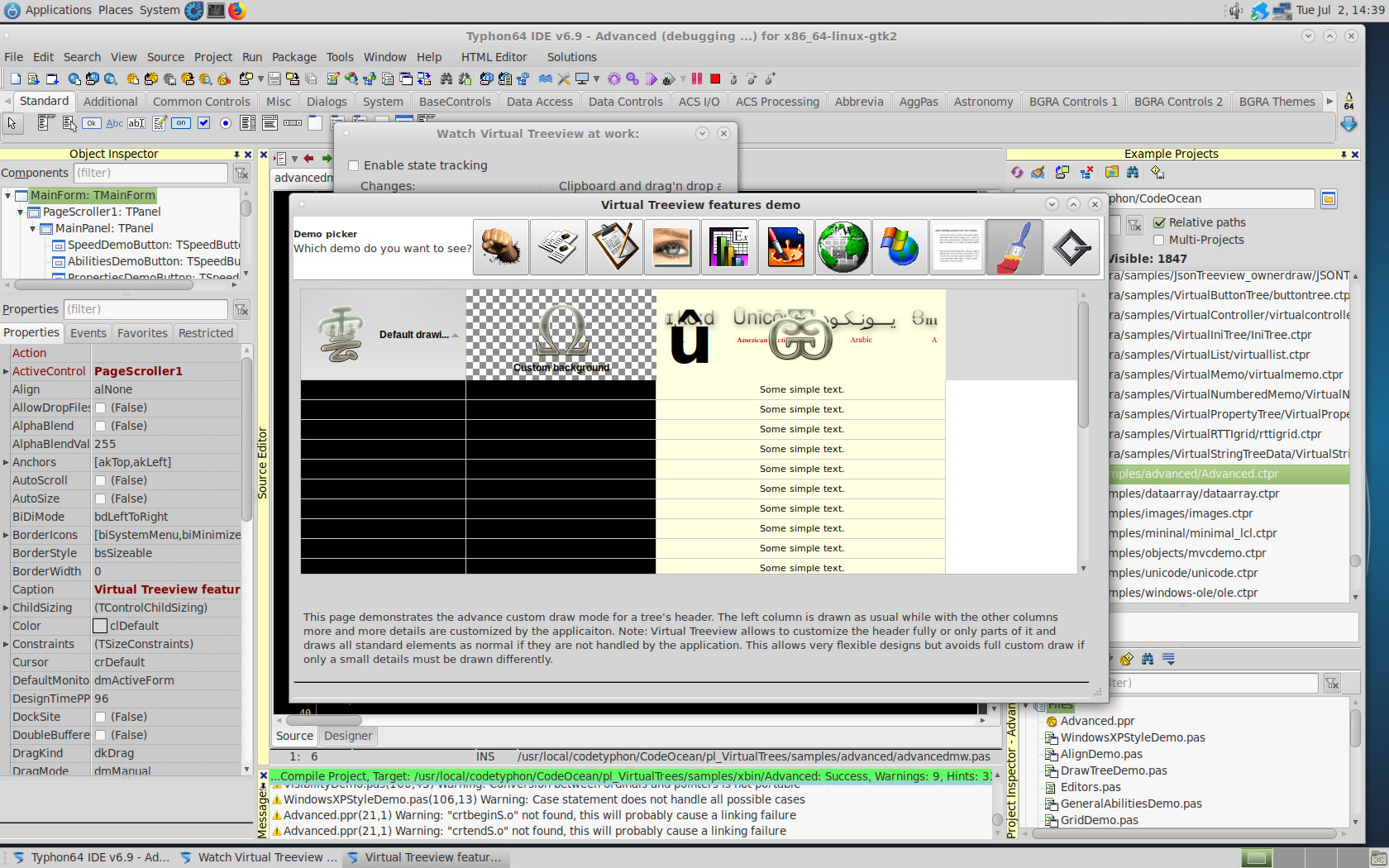

pl_VirtualTrees

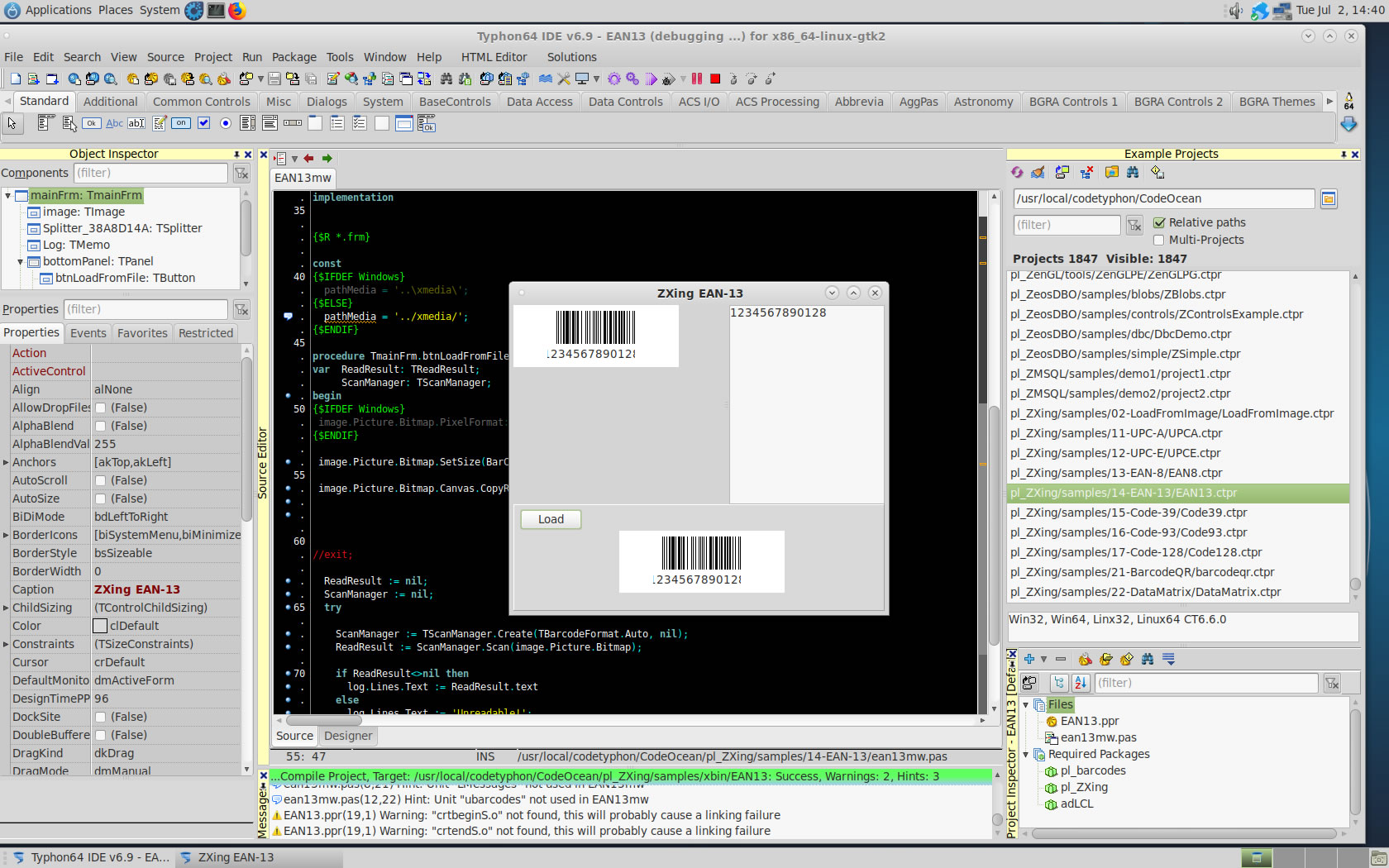

pl_ZXing

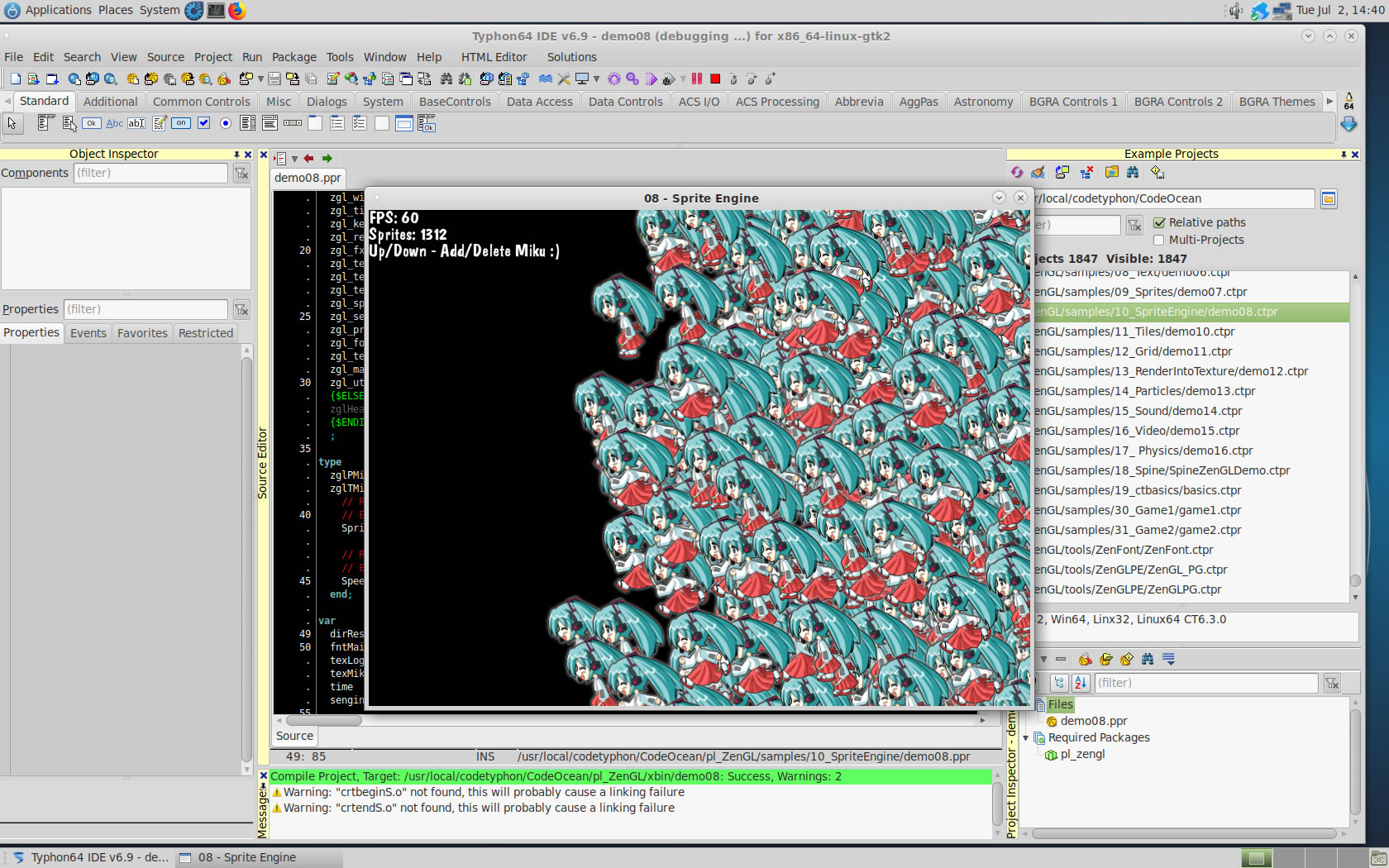

pl_ZenGL

Build Typhon IDE for QT4 (KDE4)

a) Switch Typhon IDE Host Platform to QT4

CodeTyphon Center => Setup Dialog

and select QT4 Platform

b) Only for the first time, install OS System Libraries

CodeTyphon Center =>HostPC=>"Install System Libraries"

c) Remove and Build Typhon IDE for new Platform (QT4)

CodeTyphon Center =>Typhon IDE=>"Remove and Build"

Finally...

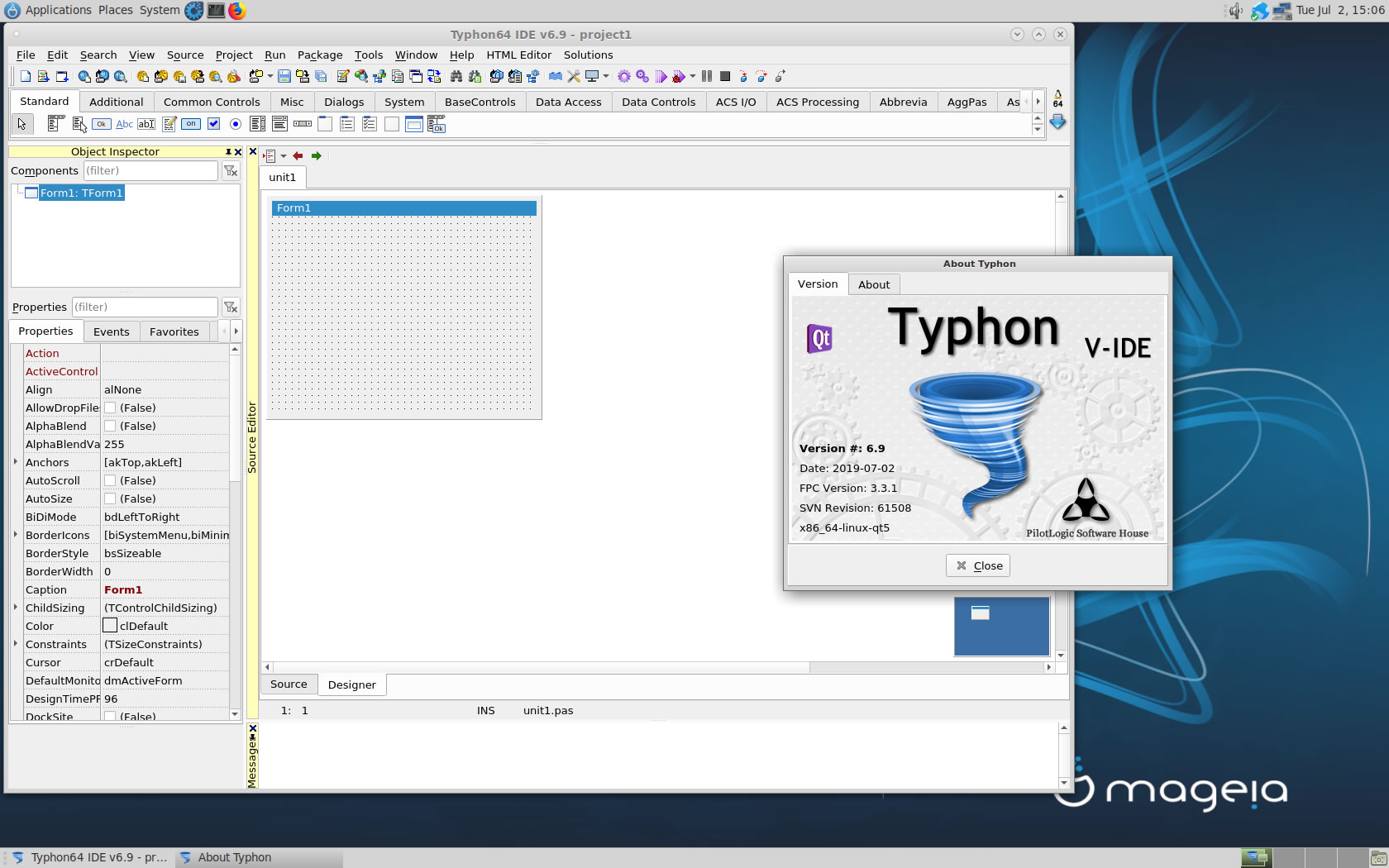

Typhon64 for QT4 (KDE 4) with ALL Docked Option (single Window)

Build Typhon IDE for QT5 (KDE5)

a) Switch Typhon IDE Host Platform to QT5

CodeTyphon Center => Setup Dialog

and select QT5 Platform
