CT on Raspbian Buster armhf

We test LAB CodeTyphon 6.90 on Raspbian Buster

Raspbian is a free operating system based on Debian optimized for the Raspberry Pi hardware.
An operating system is the set of basic programs and utilities that make your Raspberry Pi run.
However, Raspbian provides more than a pure OS: it comes with over 35,000 packages, pre-compiled software bundled in a nice format for easy installation on your Raspberry Pi.

It's one of our LAB Reference OSes

More for Raspbian OS here dearth



Raspberry Pi 3 Model B is circuit-board computer that caused such a fuss in 2012.
This is the most powerful version. To some this may seem the sort of annual refresh from your favourite phone makers.
However, in adding greater power and both Wi-Fi and Bluetooth to the Pi without increasing the price, it's now a more versatile "all-in-one" board.

More for Raspberry Pi 3 Model B board here dearth





System: Micro level PC (Raspberry Pi 3 Model B) with 1CPU (4 cores) / 1 Gbyte RAM / 64 Gbytes Micro-SD / 1920x1080 pixels Monitor
OS : Raspbian Buster (armhf) with desktop and recommended software (2019-06-20-raspbian-buster-full.zip)









OS things and stuff..

We use 64 Gbytes microSD for this test (microSDXC UHS-I Class 10 U3, Read/Write 100/60 MB/s)

We must enable swapfile to prevent ‘out of memory’ during compilation.
Install dphys-swapfile (dynamic swap space).


in a terminal exec

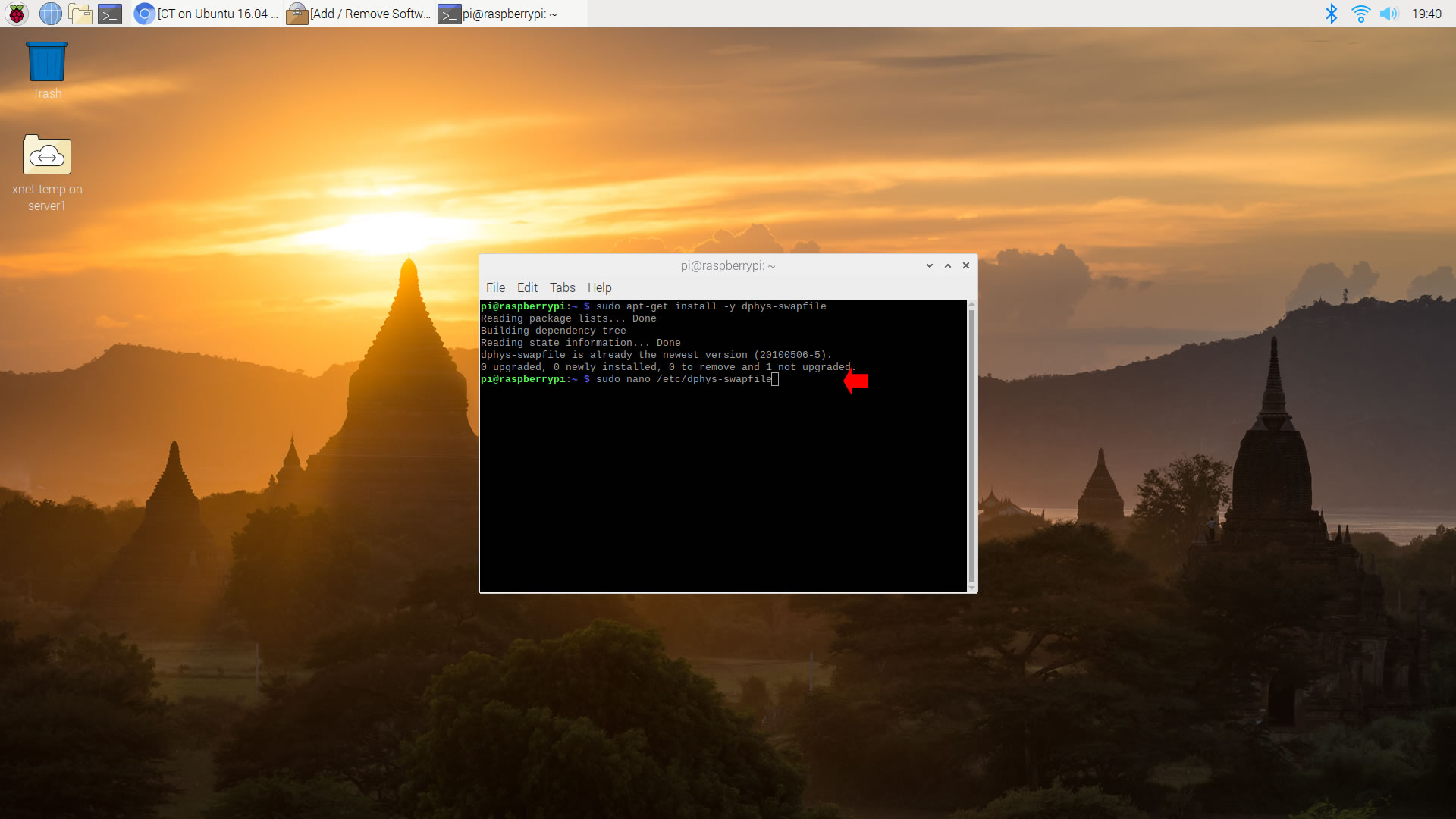

sudo apt-get install -y dphys-swapfile

set to dphys-swapfile configuration file CONF_SWAPSIZE = 1800 MBytes

sudo nano /etc/dphys-swapfile

and set:

CONF_SWAPSIZE=1800



Restart dphys-swapfile

sudo /etc/init.d/dphys-swapfile restart

 Or

 sudo /etc/init.d/dphys-swapfile start







Preparation-Give "sudo" root privileges

Open a terminal and exec

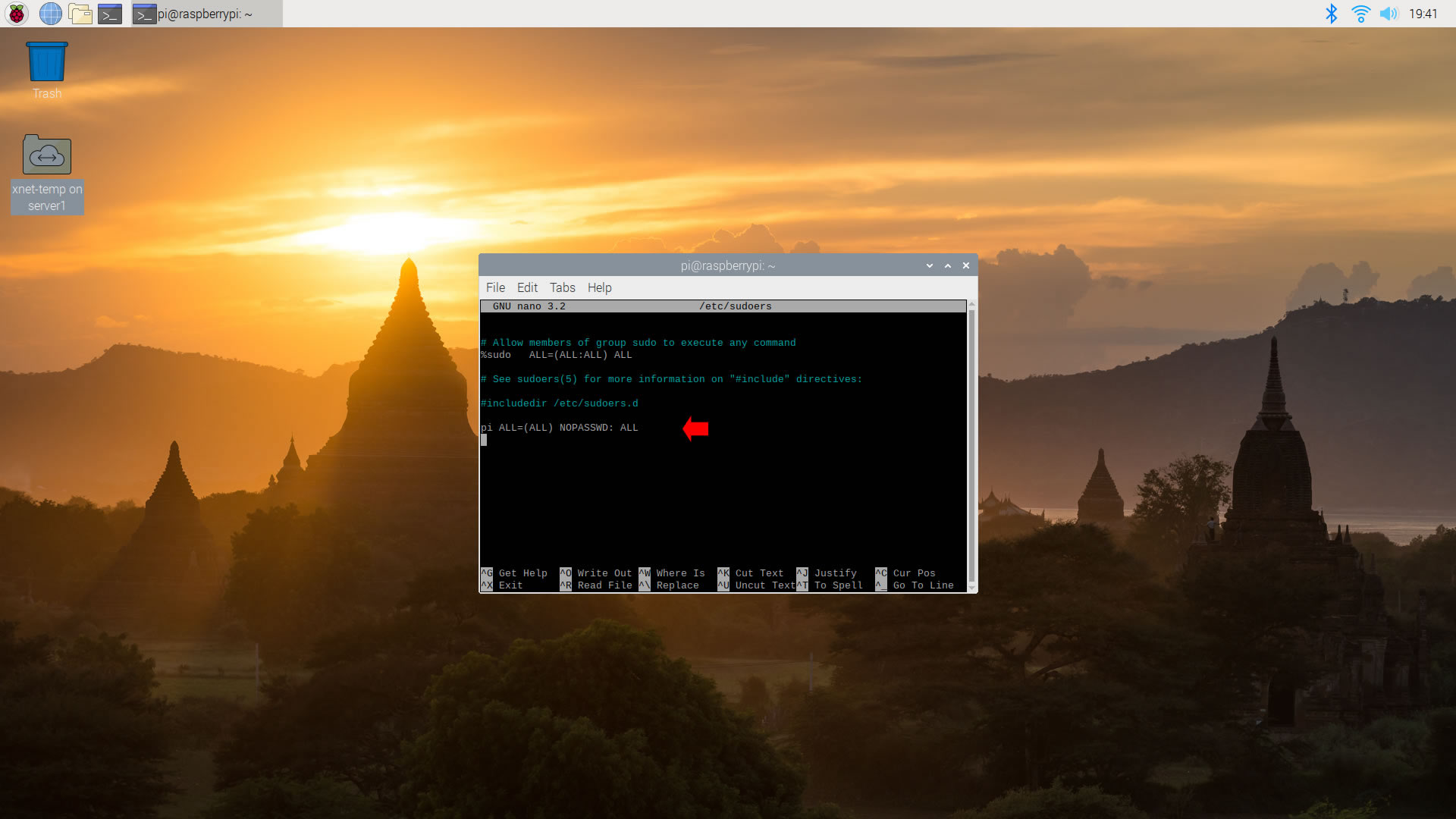

sudo nano /etc/sudoers



add at the end of /etc/sudoers the line

username ALL=(ALL:ALL) NOPASSWD: ALL

Ctl-X to exit and Y to save





Download-Unzip-Install

Download CodeTyphonIns.zip and unzip to your home directory



Open a terminal, and go to the new CodeTyphonIns directory

cd CodeTyphonIns

Start CodeTyphon Installation with command

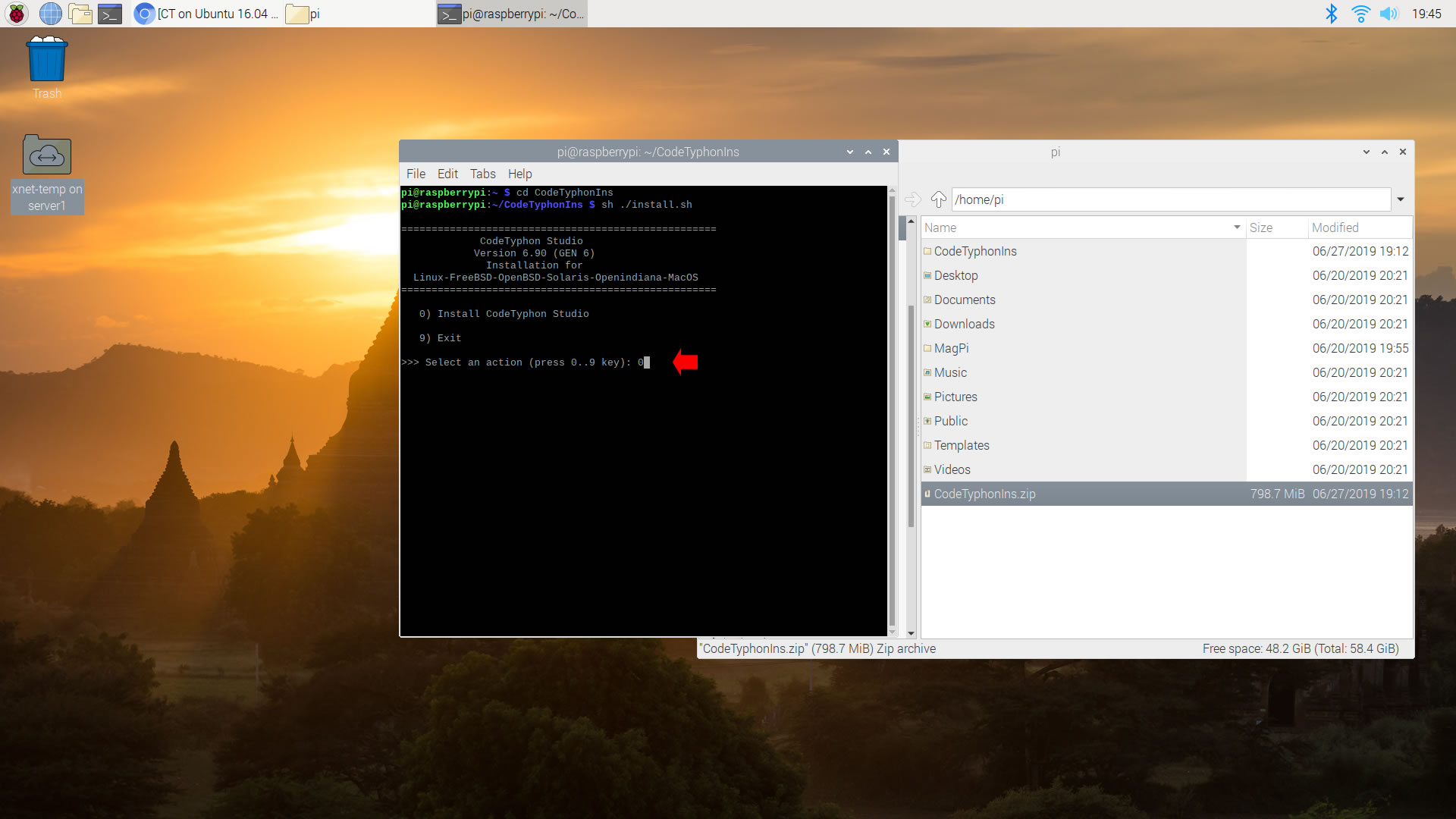

sh ./install.sh

Give zero "0" to Install CodeTyphon







Setup and Build

After CT install you can start CTCenter or to continue with the open terminal

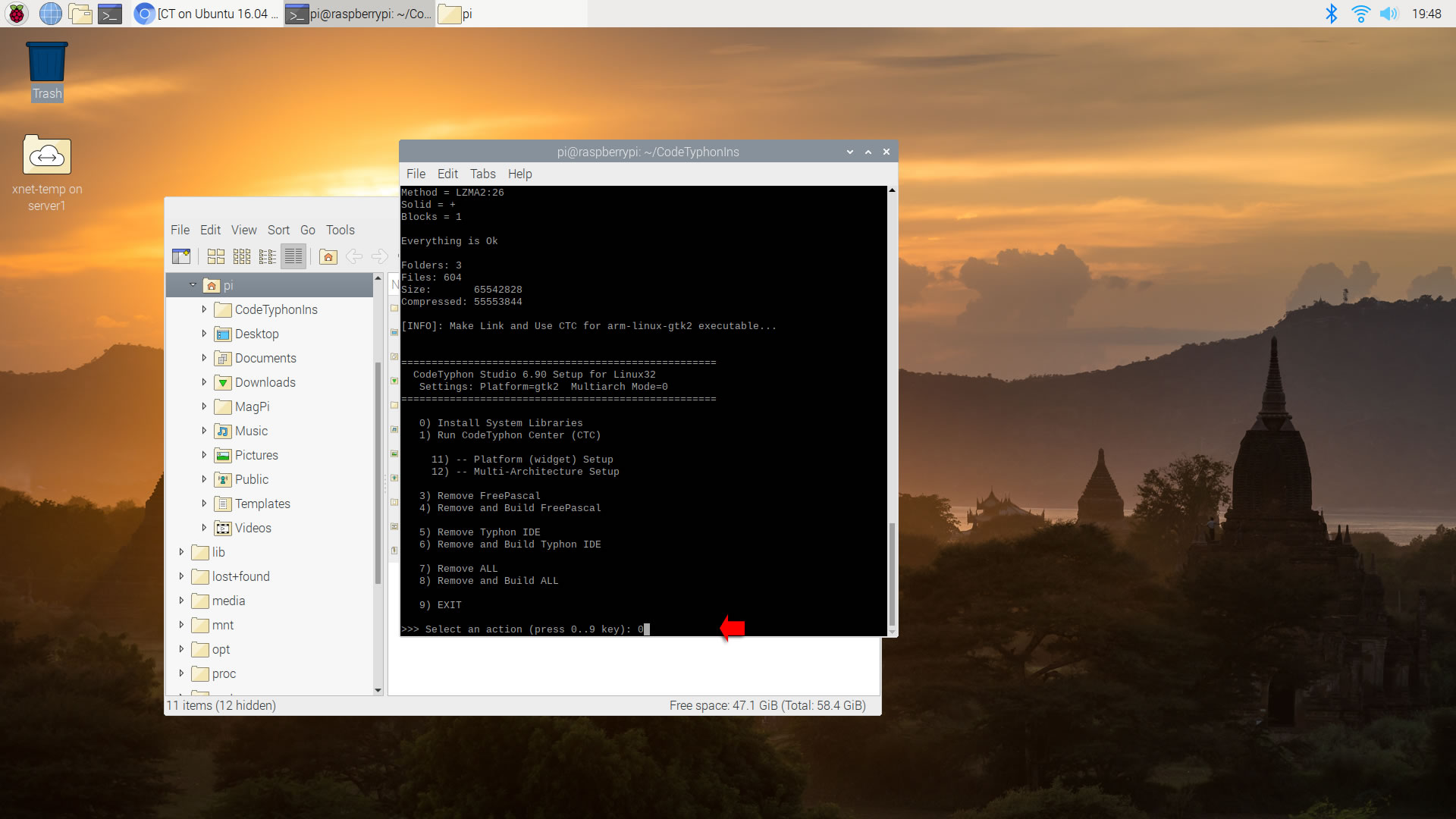

It's the first installation of CodeTyphon on this Micro PC, so first we install "system libraries", select "0".

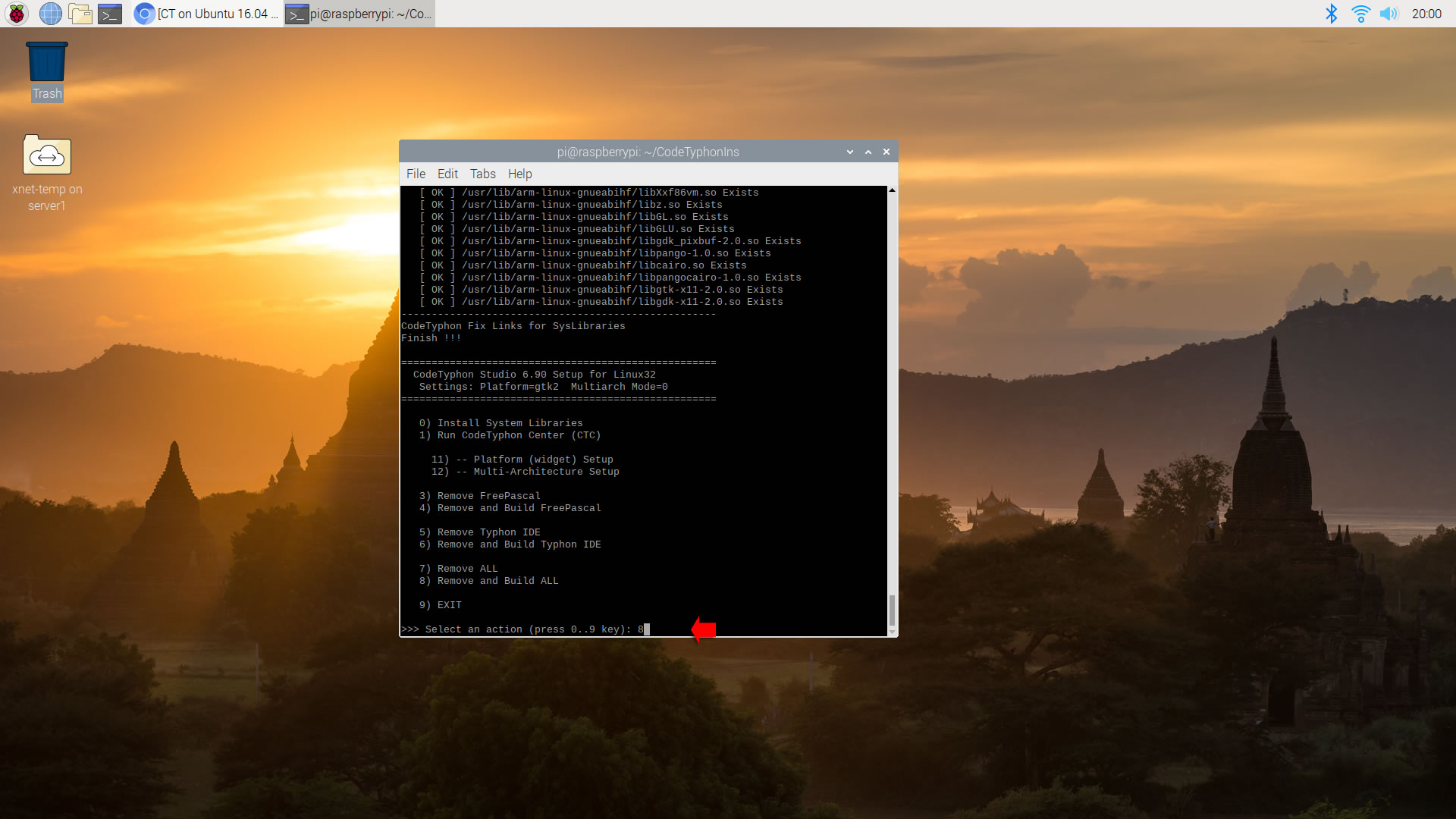

Select "8" to build all...







Finally

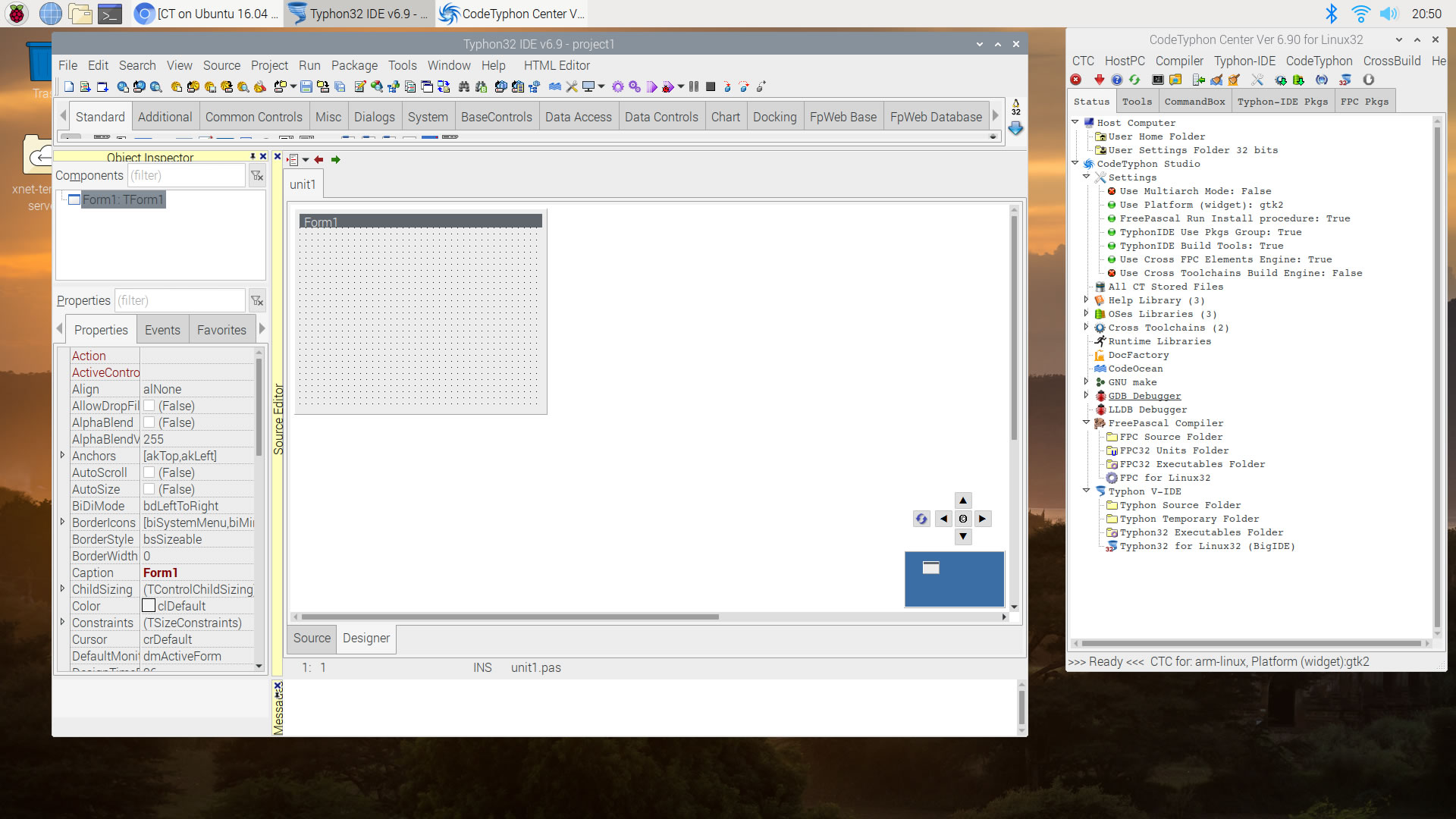

CTCenter and Typhon32 IDE with ALL Docked Option (single Window)
