CT on Manjaro 17.1.12

We test Lab CodeTyphon 6.50 on Manjaro 17.1.12

Manjaro Linux is a fast, user-friendly, desktop-oriented operating system based on Arch Linux.
Key features include intuitive installation process, automatic hardware detection, stable rolling-release model, ability to install multiple kernels, special Bash scripts for managing graphics drivers and extensive desktop configurability.
Manjaro Linux offers Xfce as the core desktop options, as well as a minimalist Net edition for more advanced users.
Community-supported GNOME 3/Cinnamon and KDE flavours are available.
Users also benefit from the supportive and vibrant Manjaro community forum.

More for Manjaro OS here dearth



System: Entry level PC with 1 CPU (4-Cores) / 8 Gbyte RAM / 120 Gbytes Hard Disk / 1680x1050 pixels Monitor

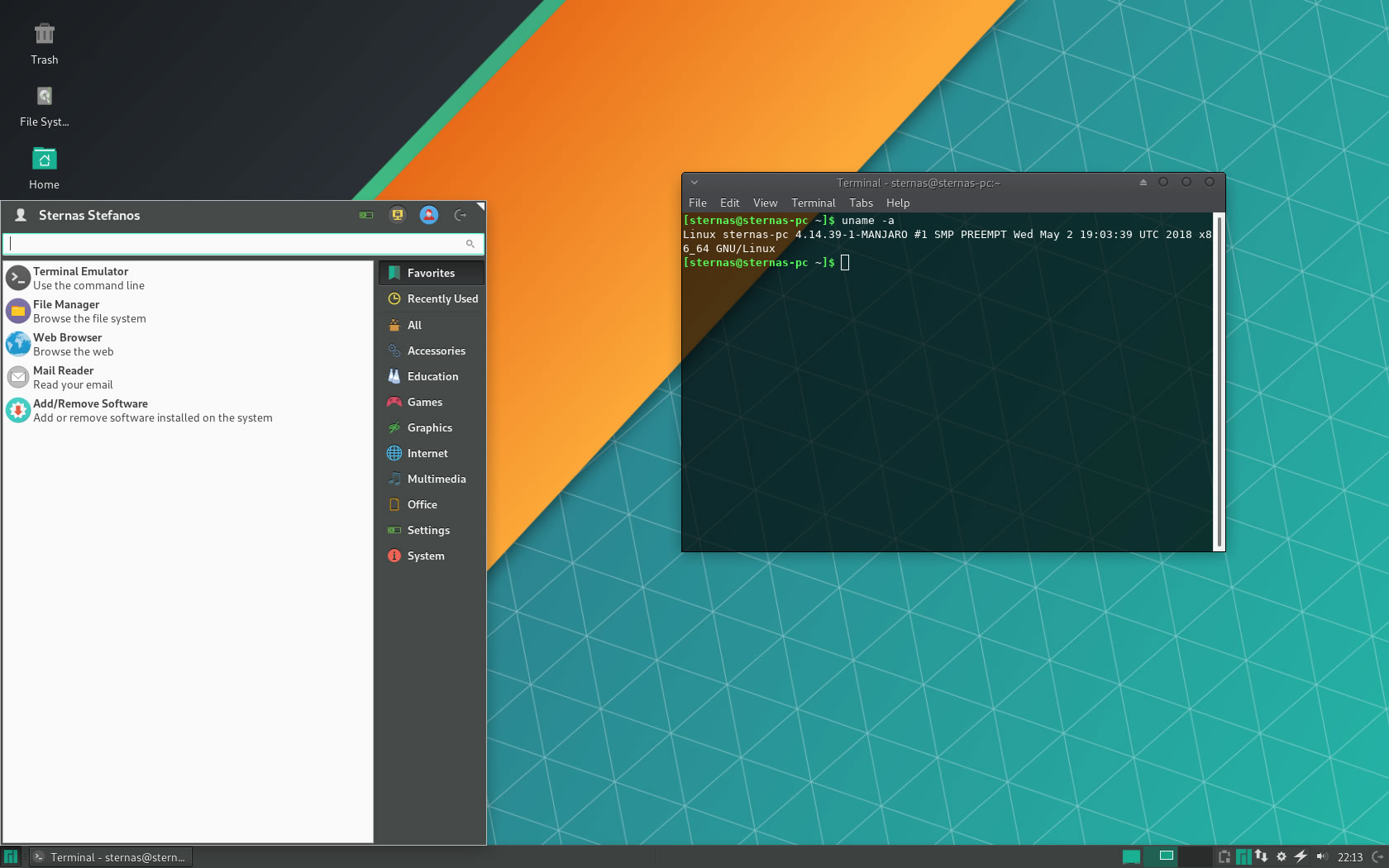

OS : Manjaro 64bits with Xfce as frontend Desktop









Preparation-Give "sudo" root privileges

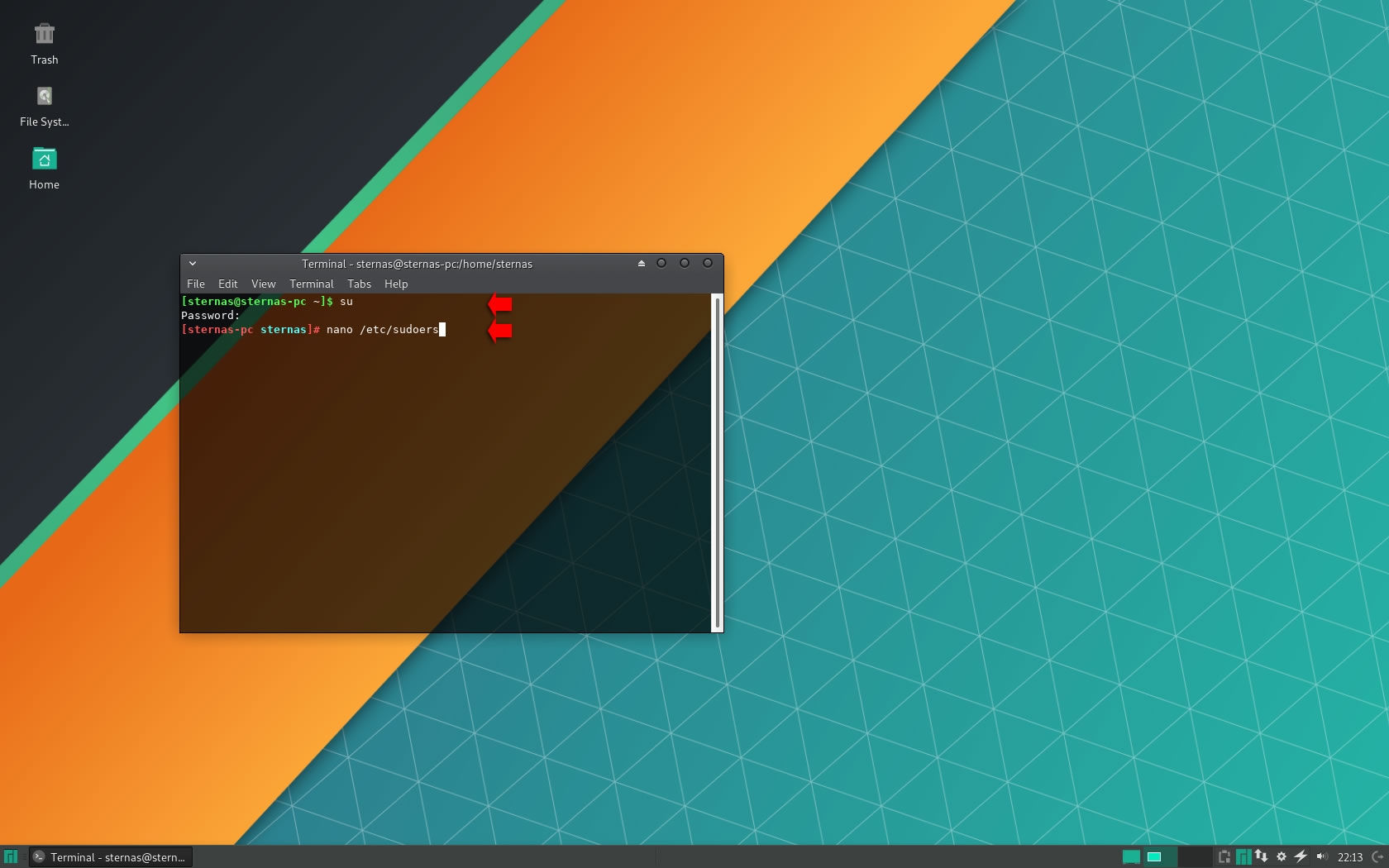

Open a terminal and exec

su
nano /etc/sudoers

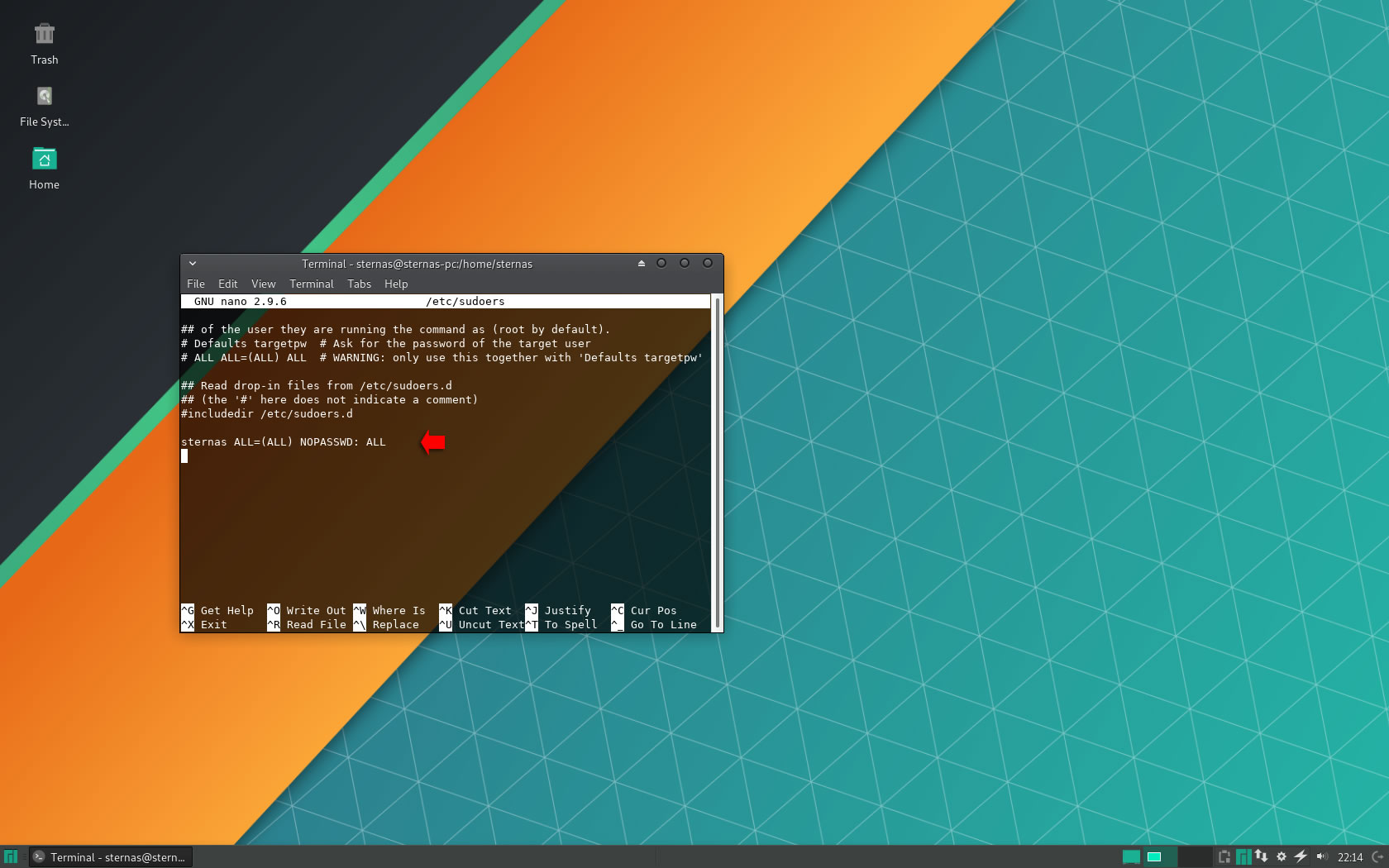

add at the end of /etc/sudoers the line

username ALL=(ALL) NOPASSWD: ALL

Ctl-X to exit and Y to save







Download-Unzip-Install

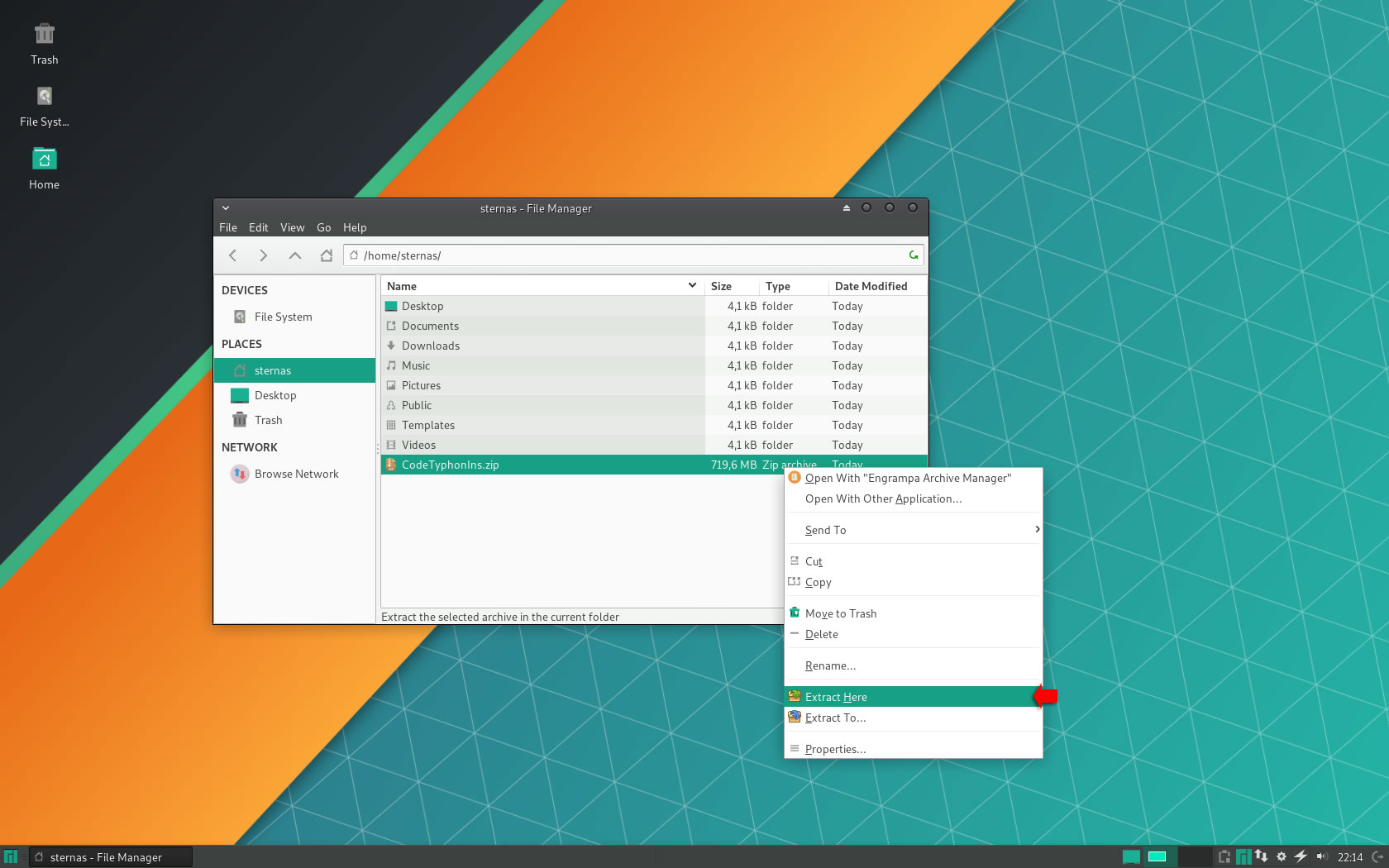

Download CodeTyphonIns.zip and unzip to your home directory



Open a terminal, and go to new CodeTyphonIns directory

cd CodeTyphonIns

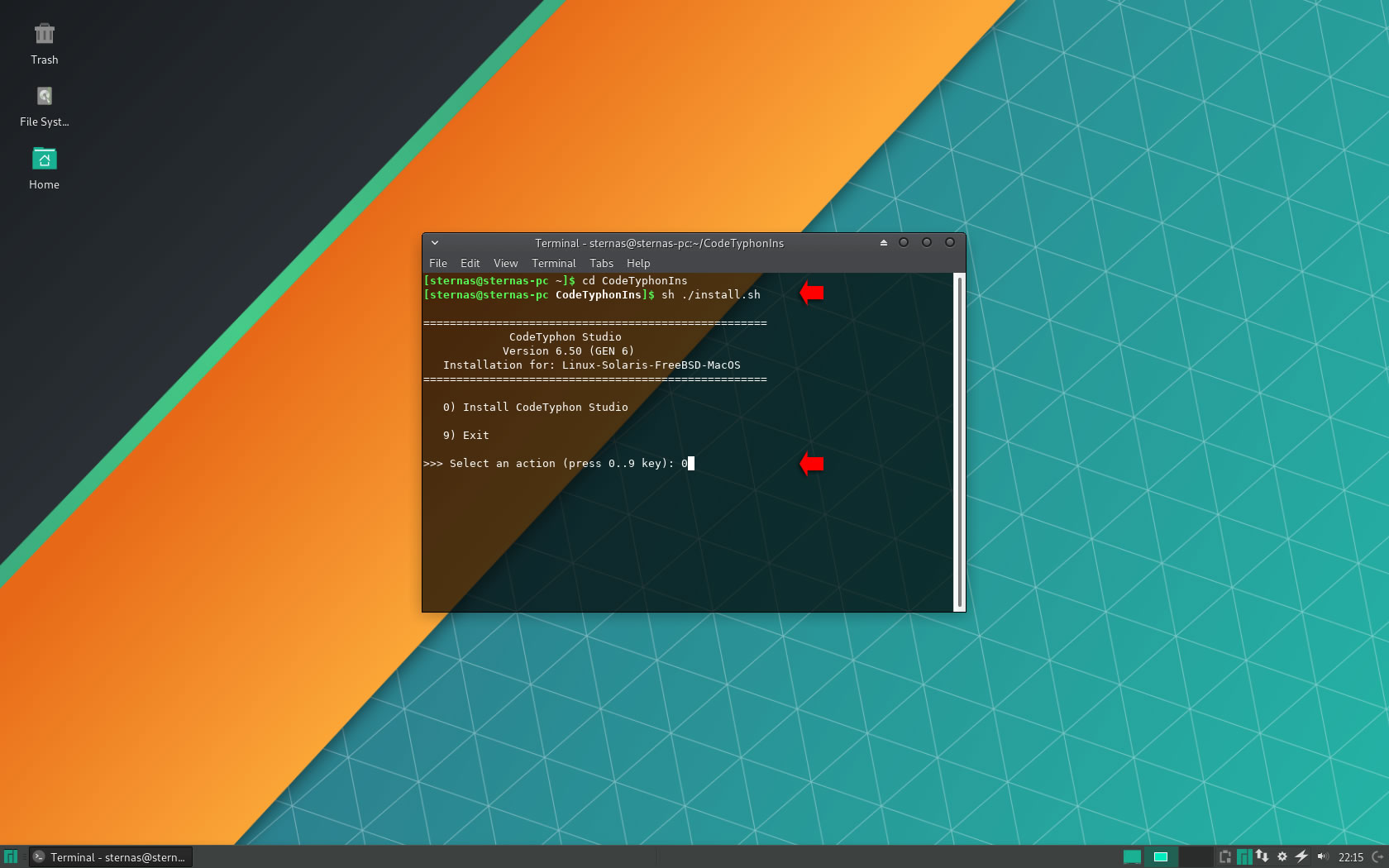

Start CodeTyphon Installation with command

sh ./install.sh

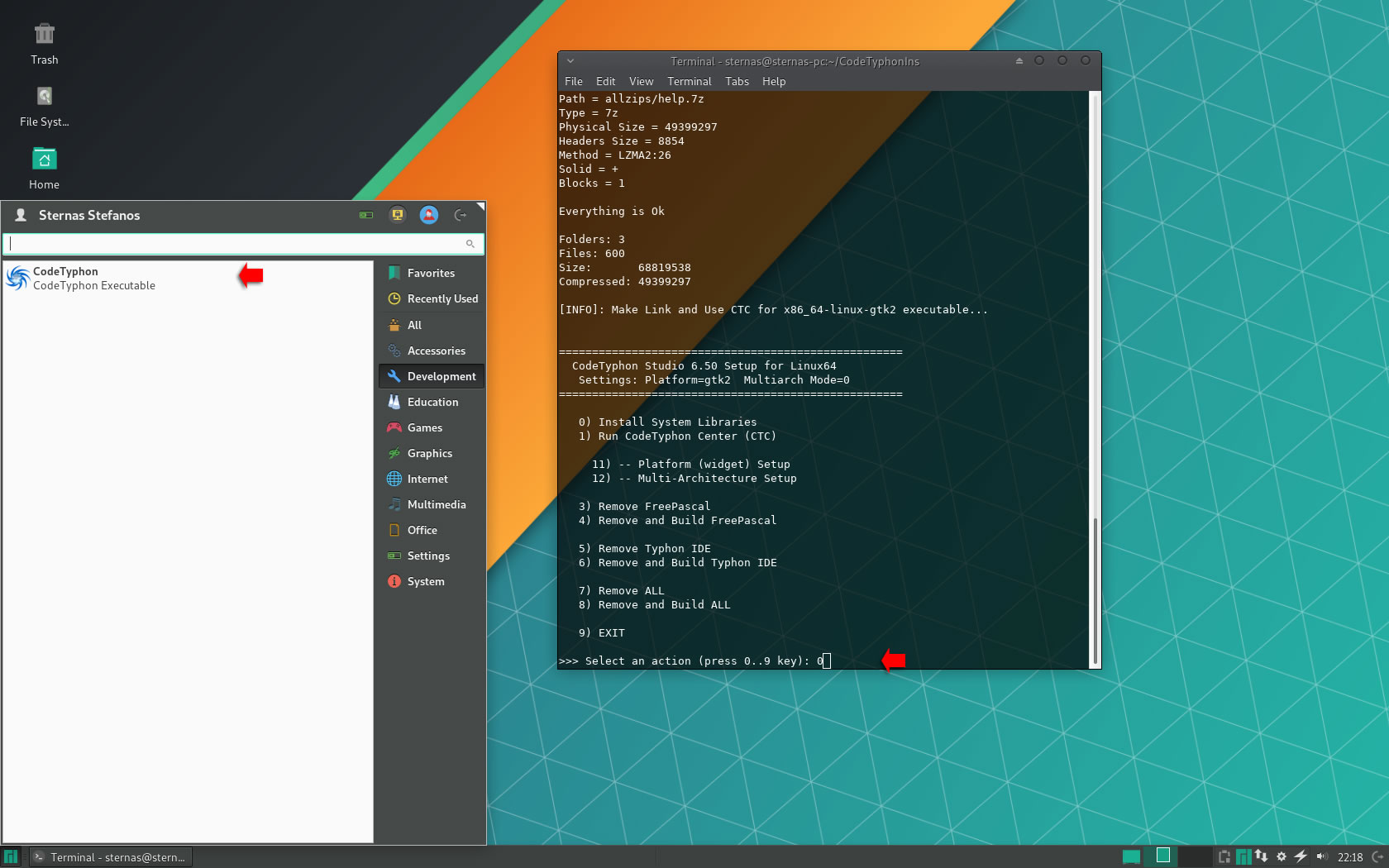

Give zero "0" to Install CodeTyphon







Setup and Build (for GTK2)

After CT install you can start CTCenter or to continue with the open terminal

We don't select "MultiArch" option.

It's the first installation of CodeTyphon on this PC, so we install "system libraries" select "0".

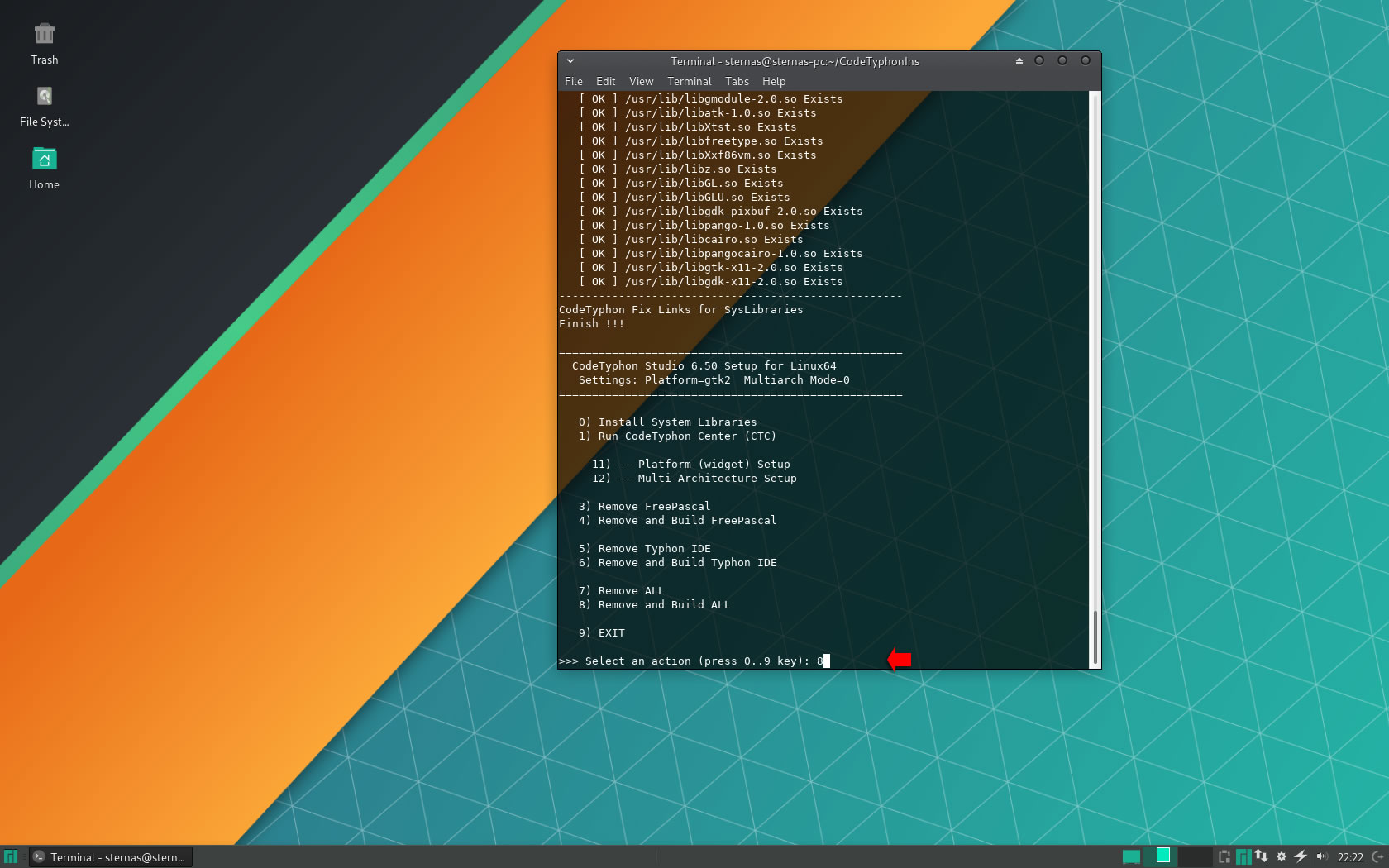

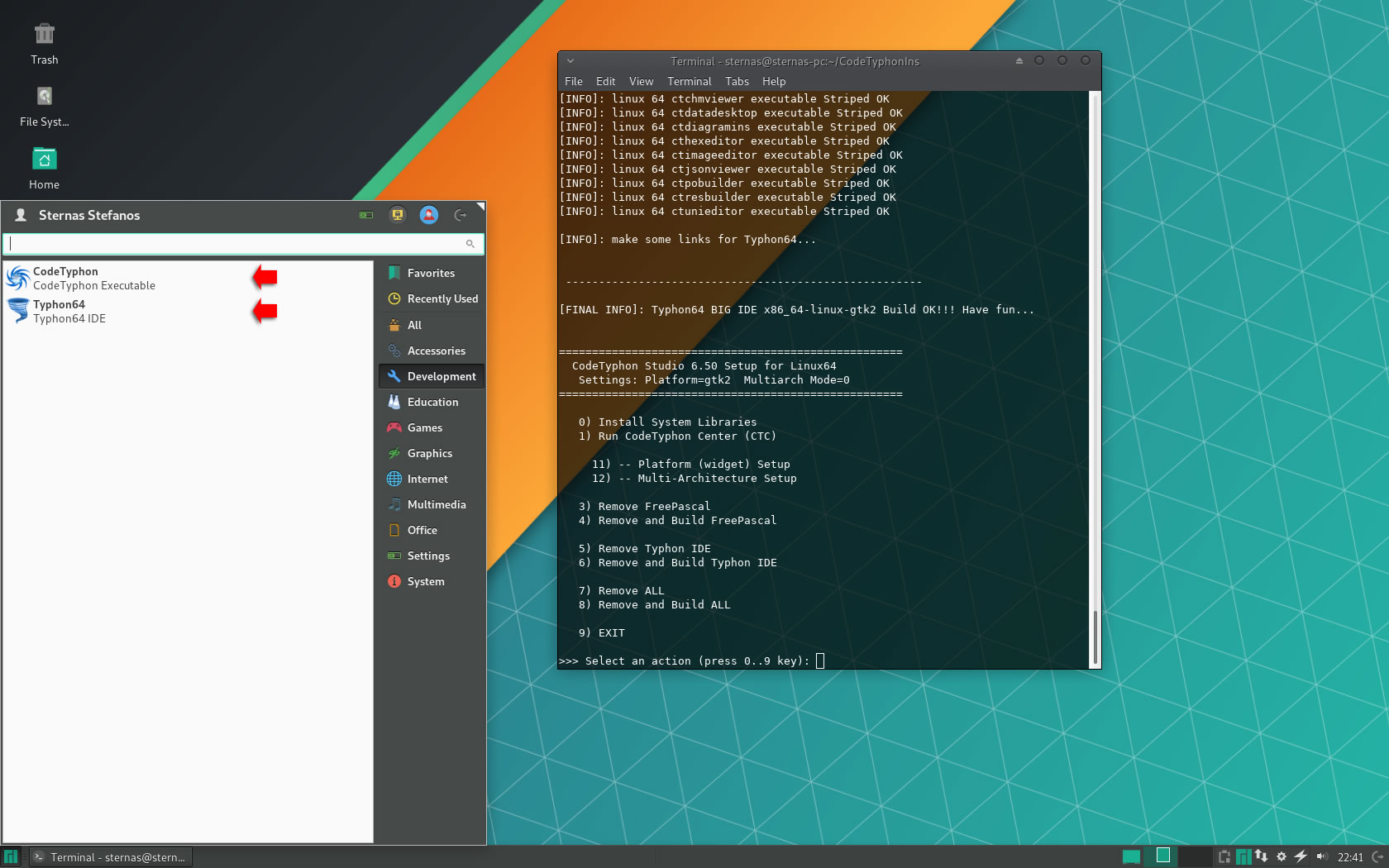

Select "8" to build all...







Finally

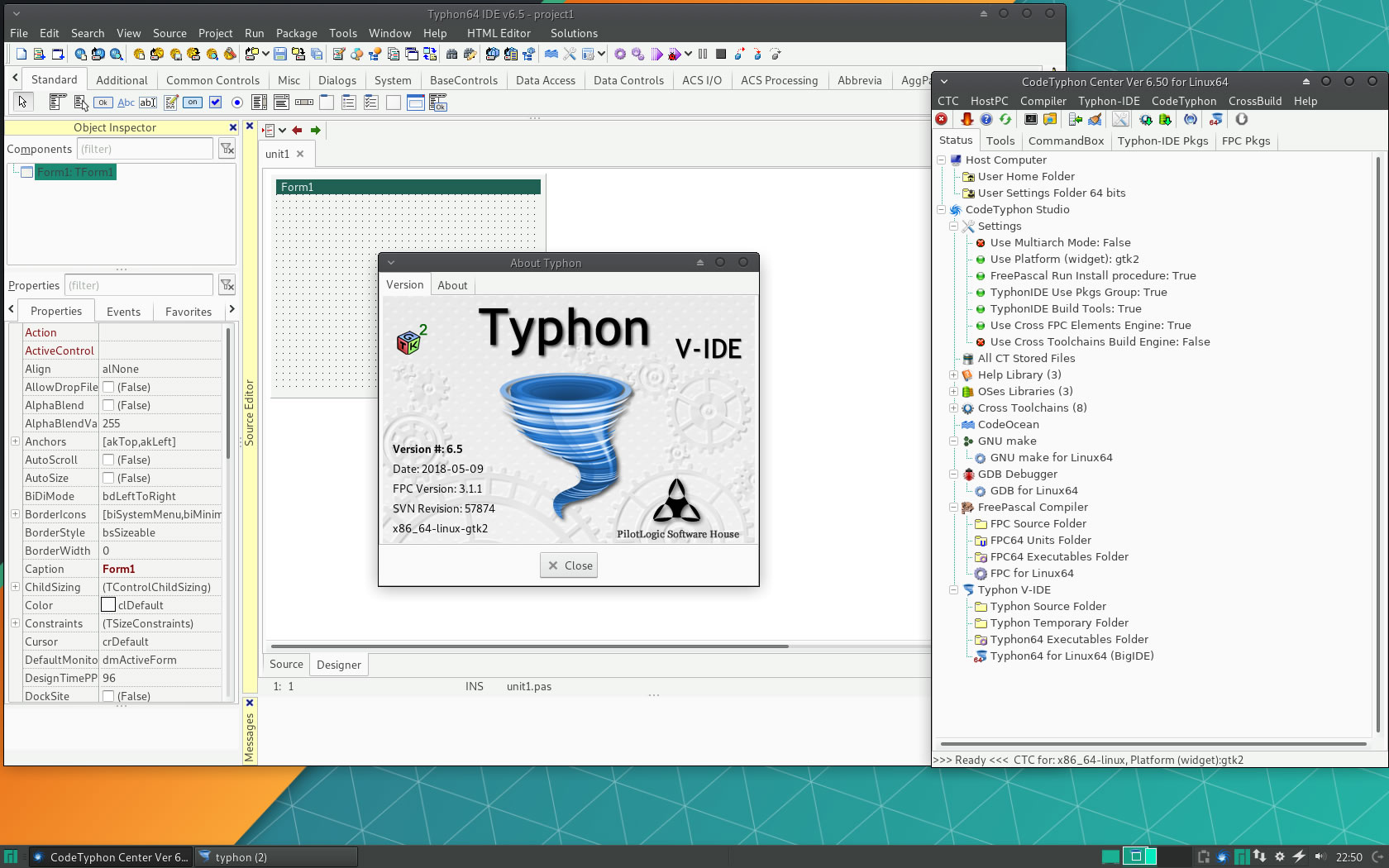

CTCenter and Typhon64 for GTK2, with ALL Docked Option (single Window)







Libraries tests (GTK2)

We test some of about 1500 CodeOcean samples...

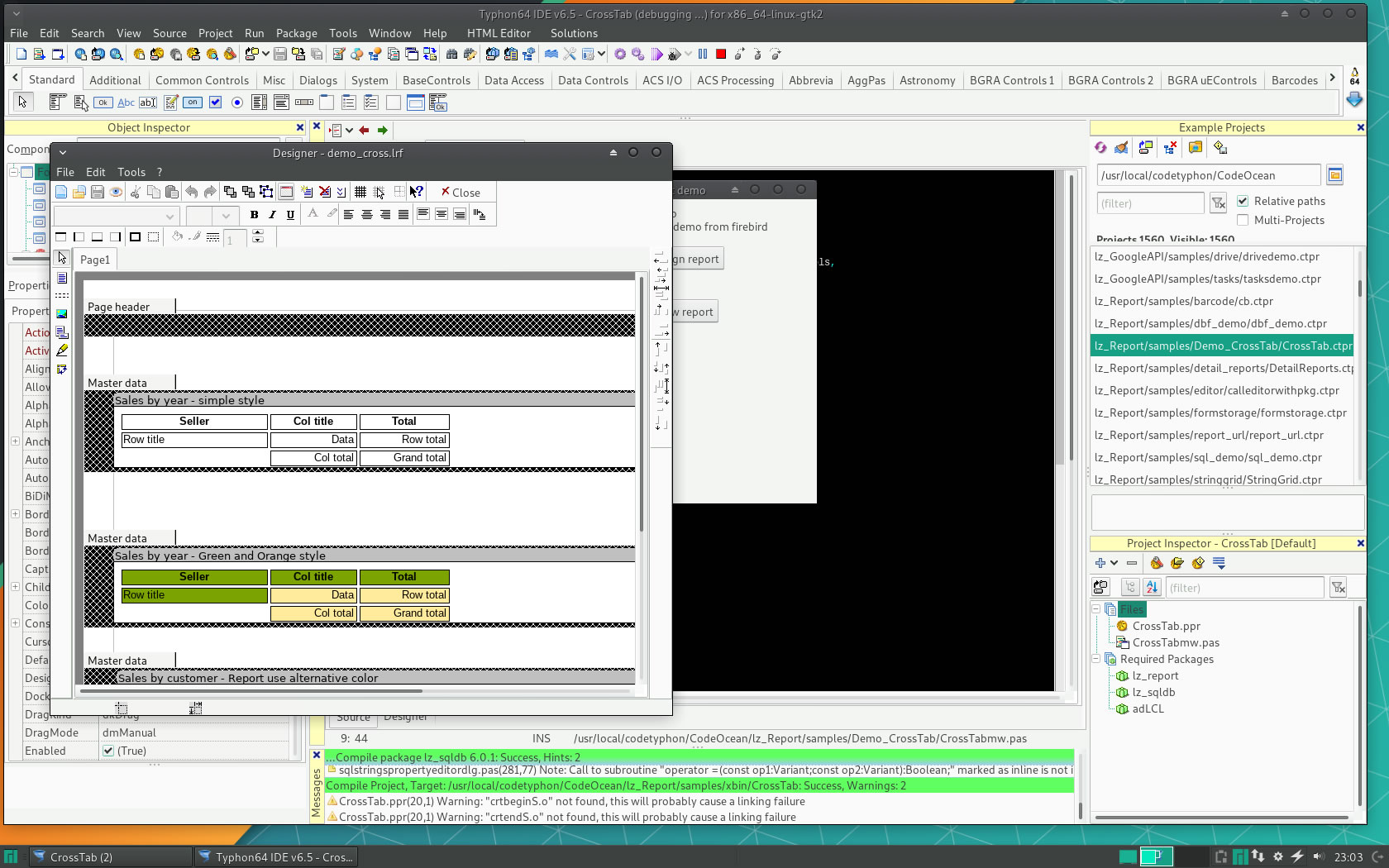

 lz_Report

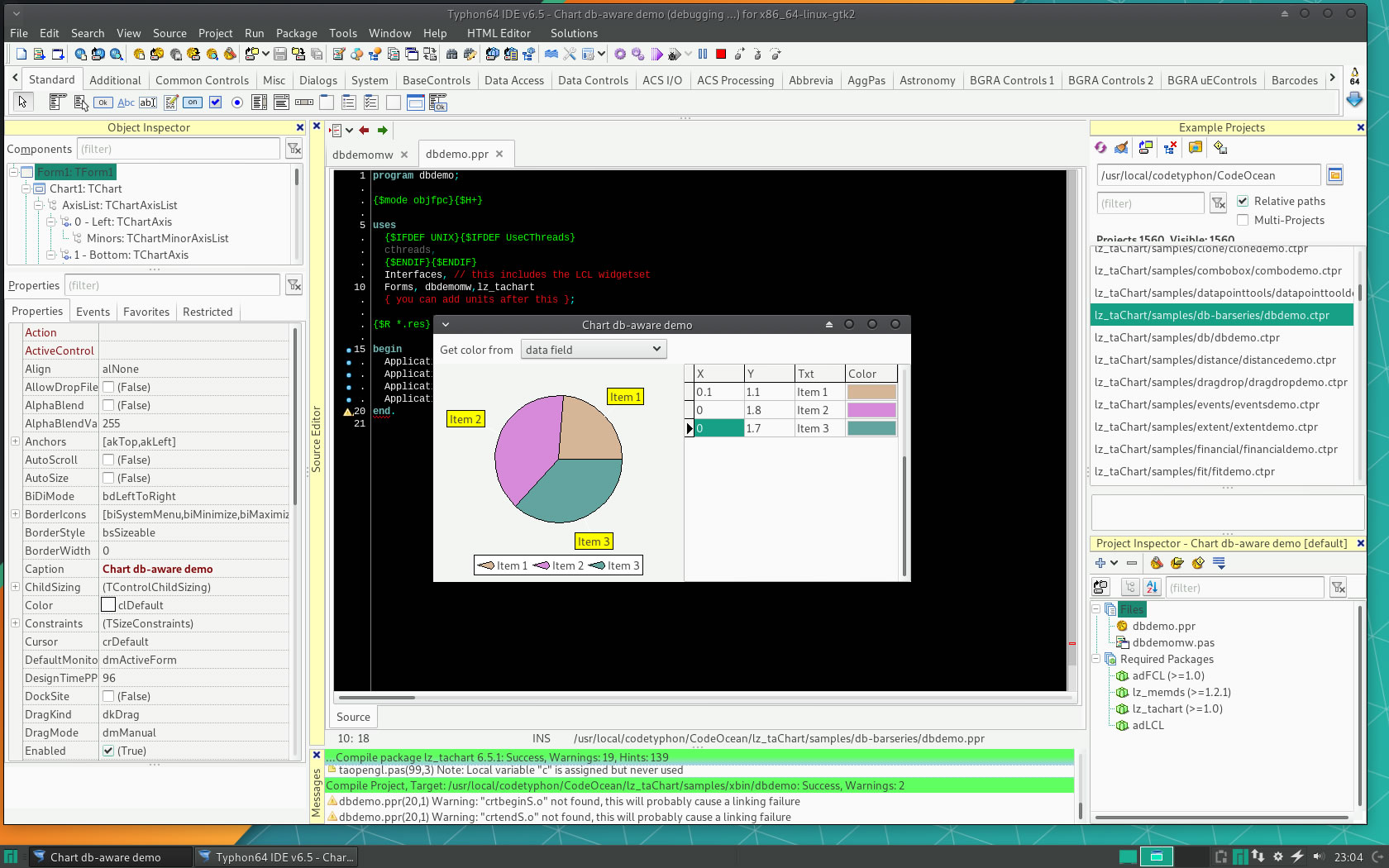

lz_taChart

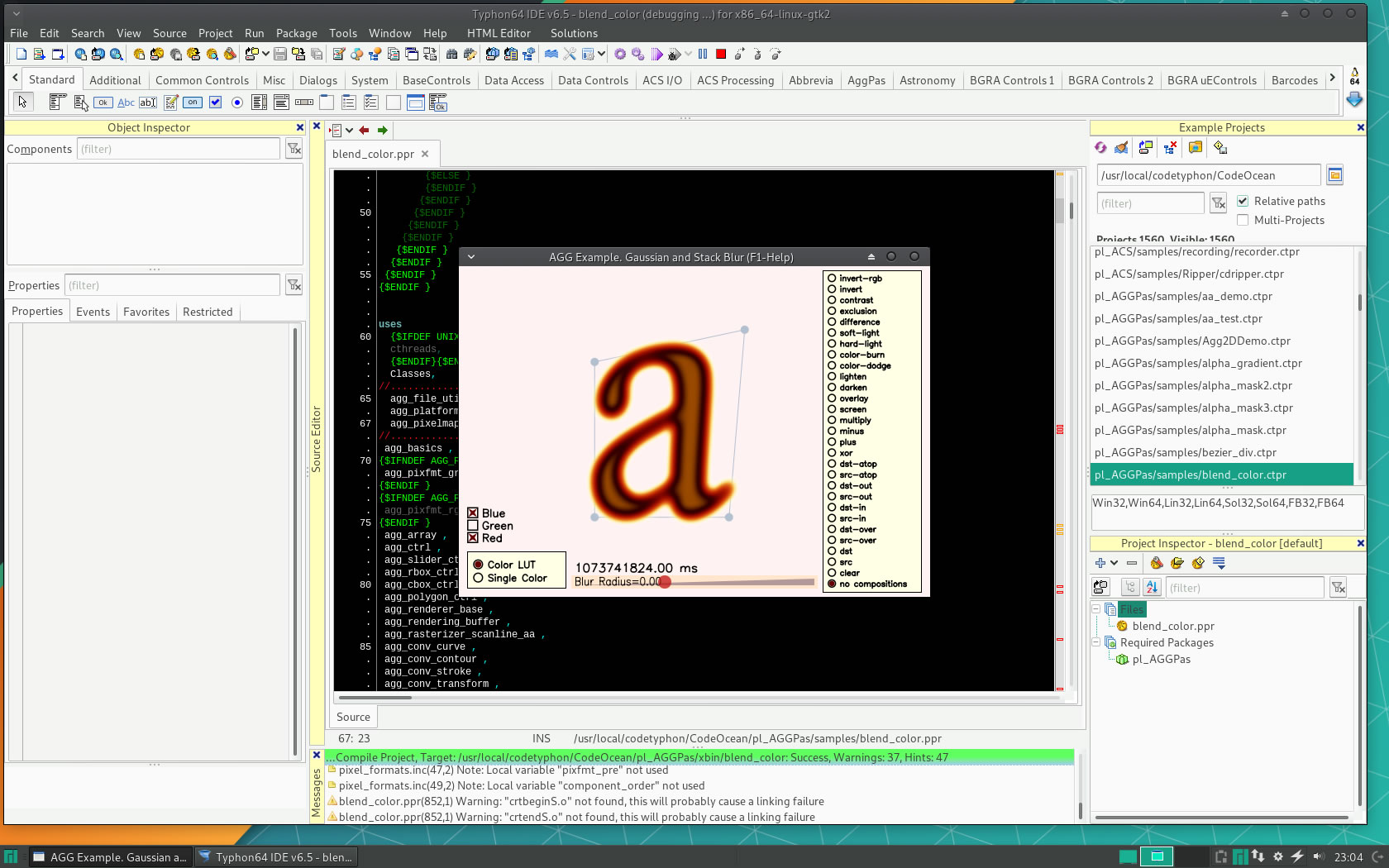

pl_AGGPas

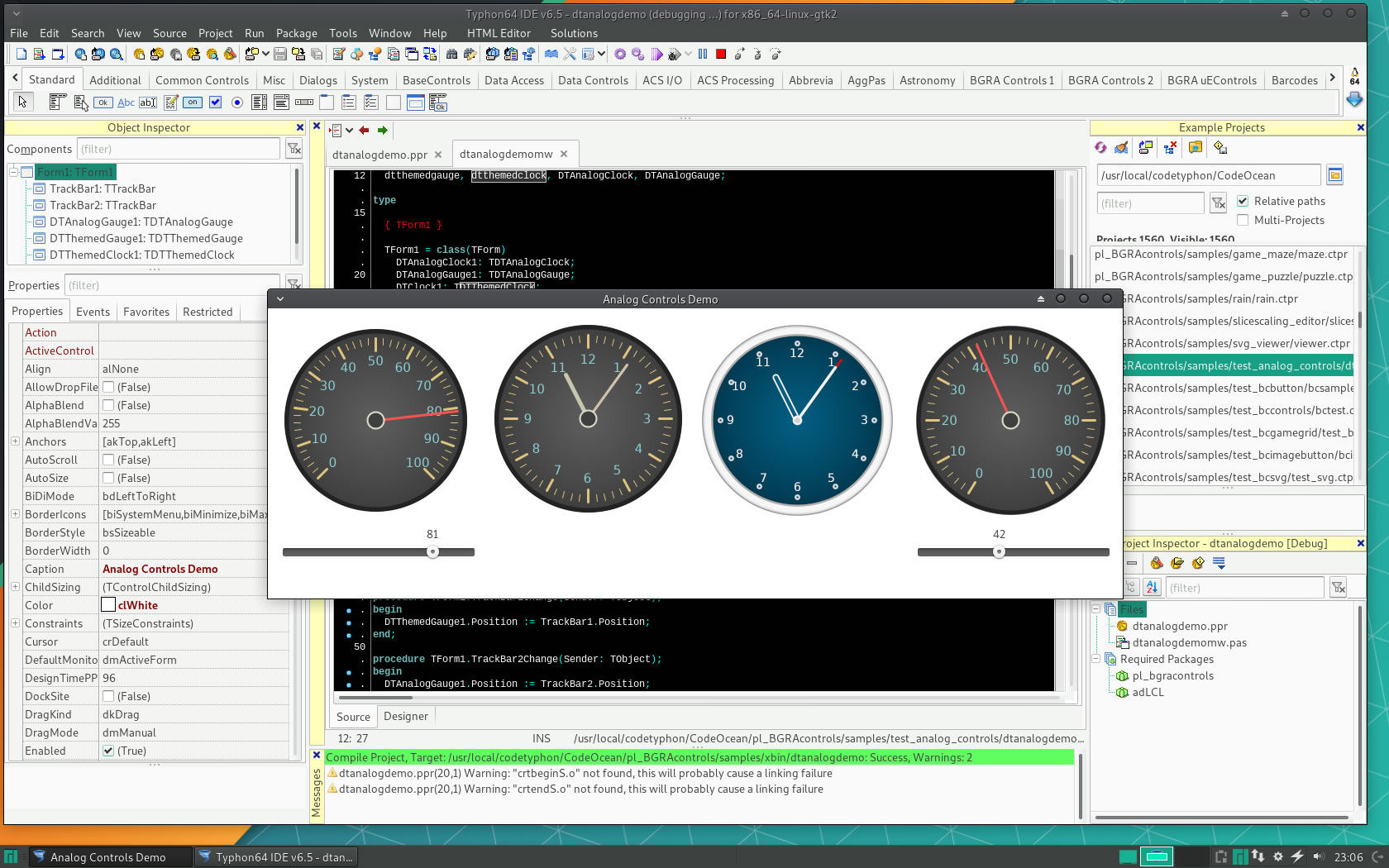

 pl_BGRAcontrols

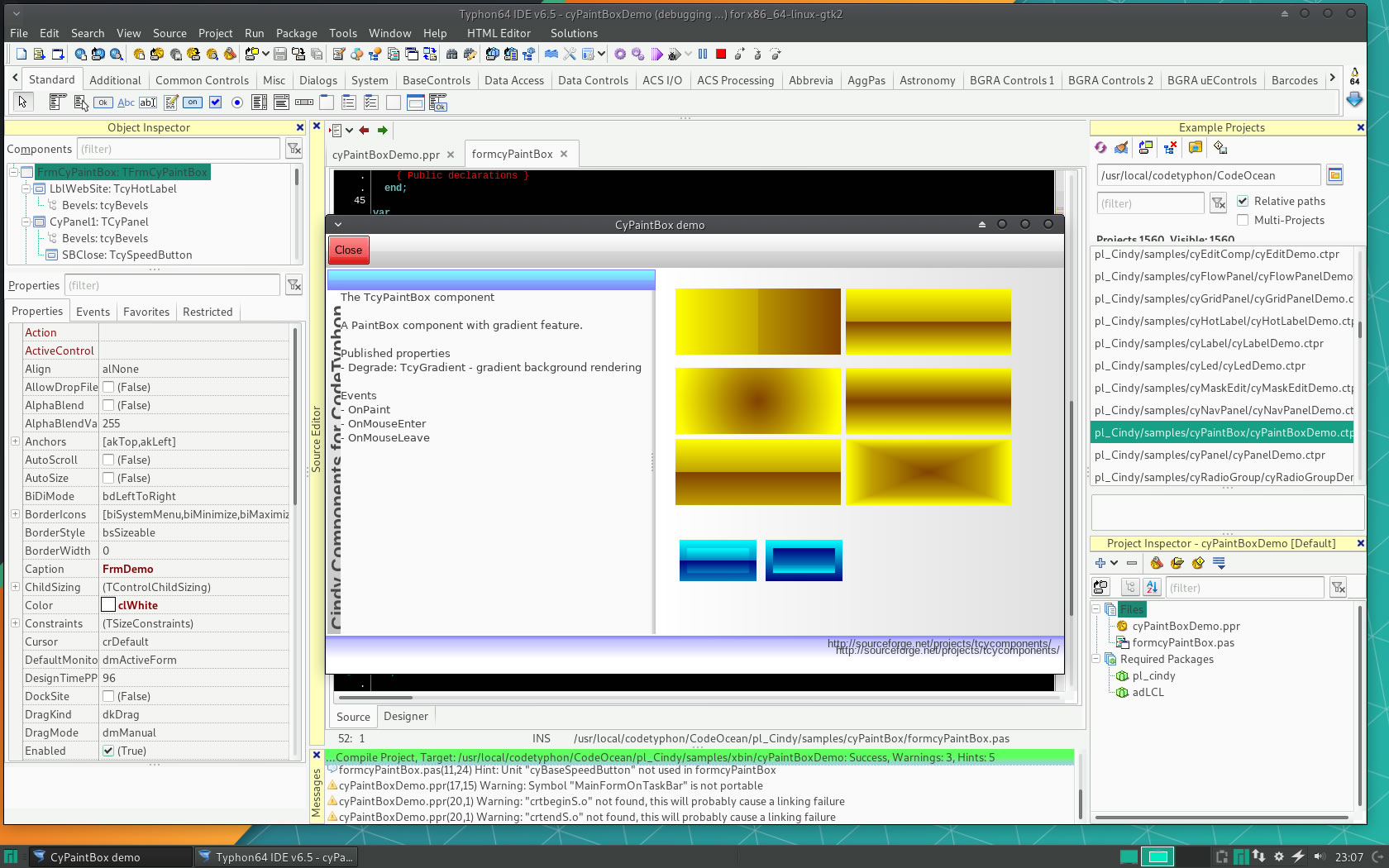

pl_Cindy

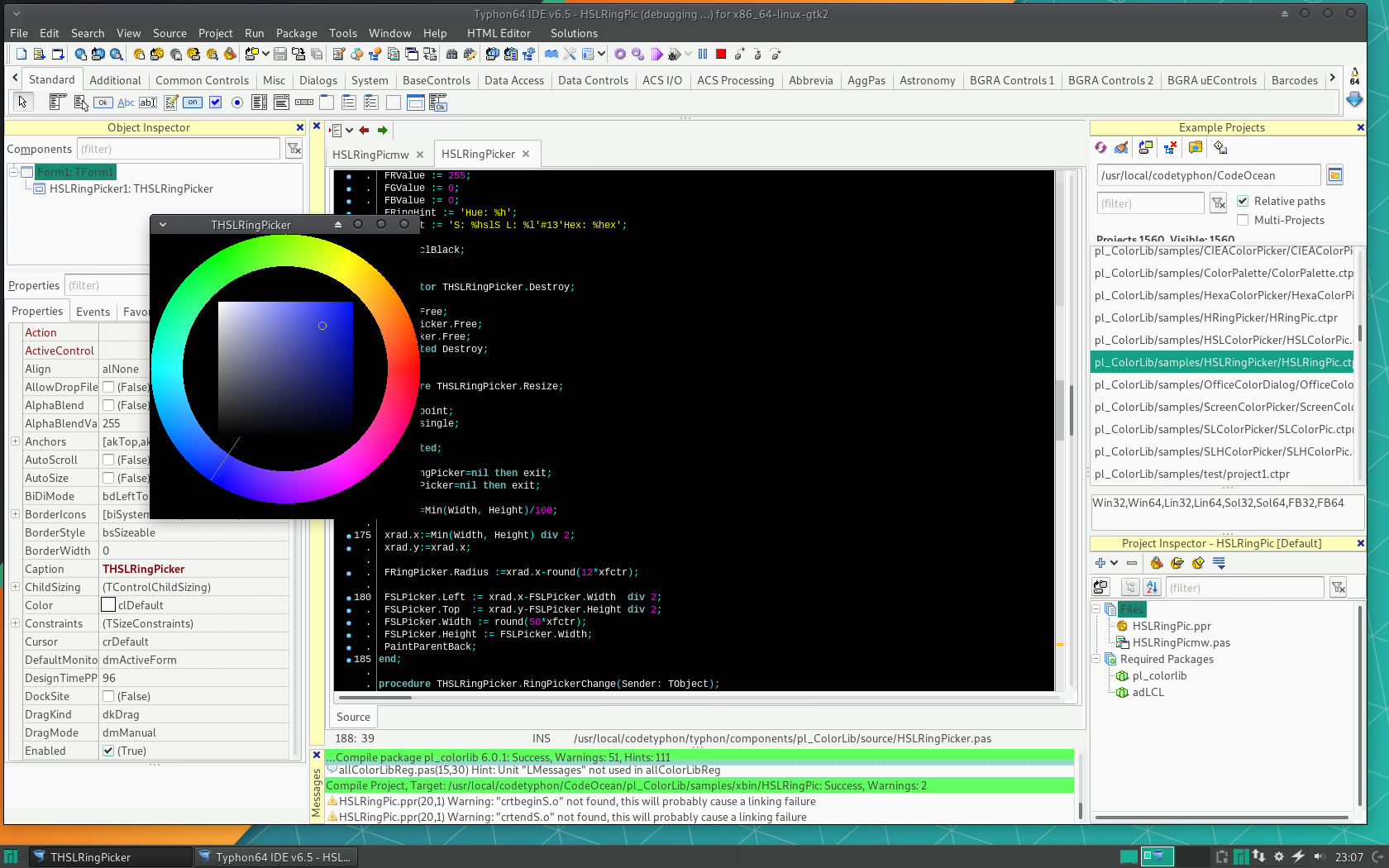

 pl_ColorLib

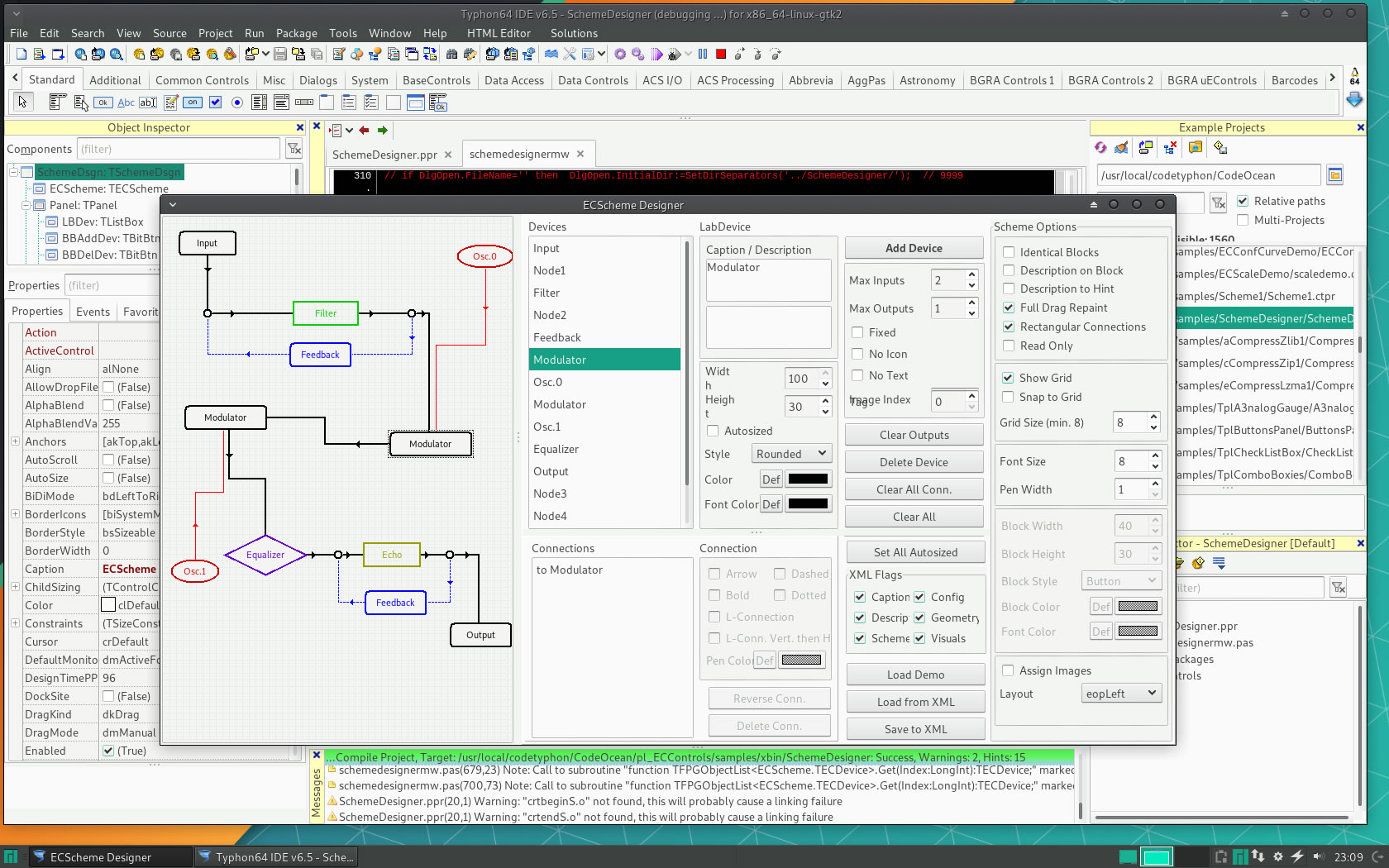

pl_ECControls

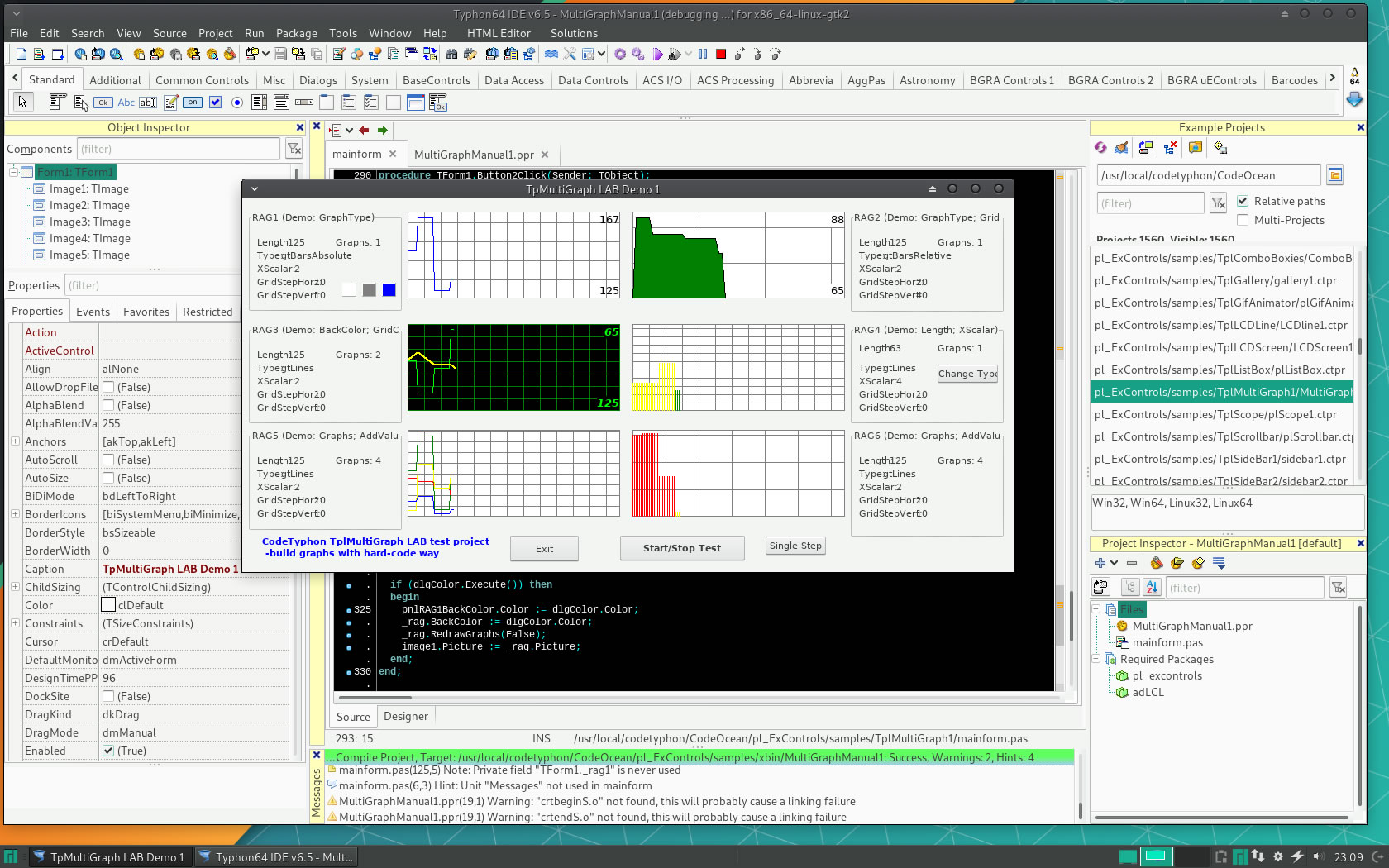

 pl_ExControls

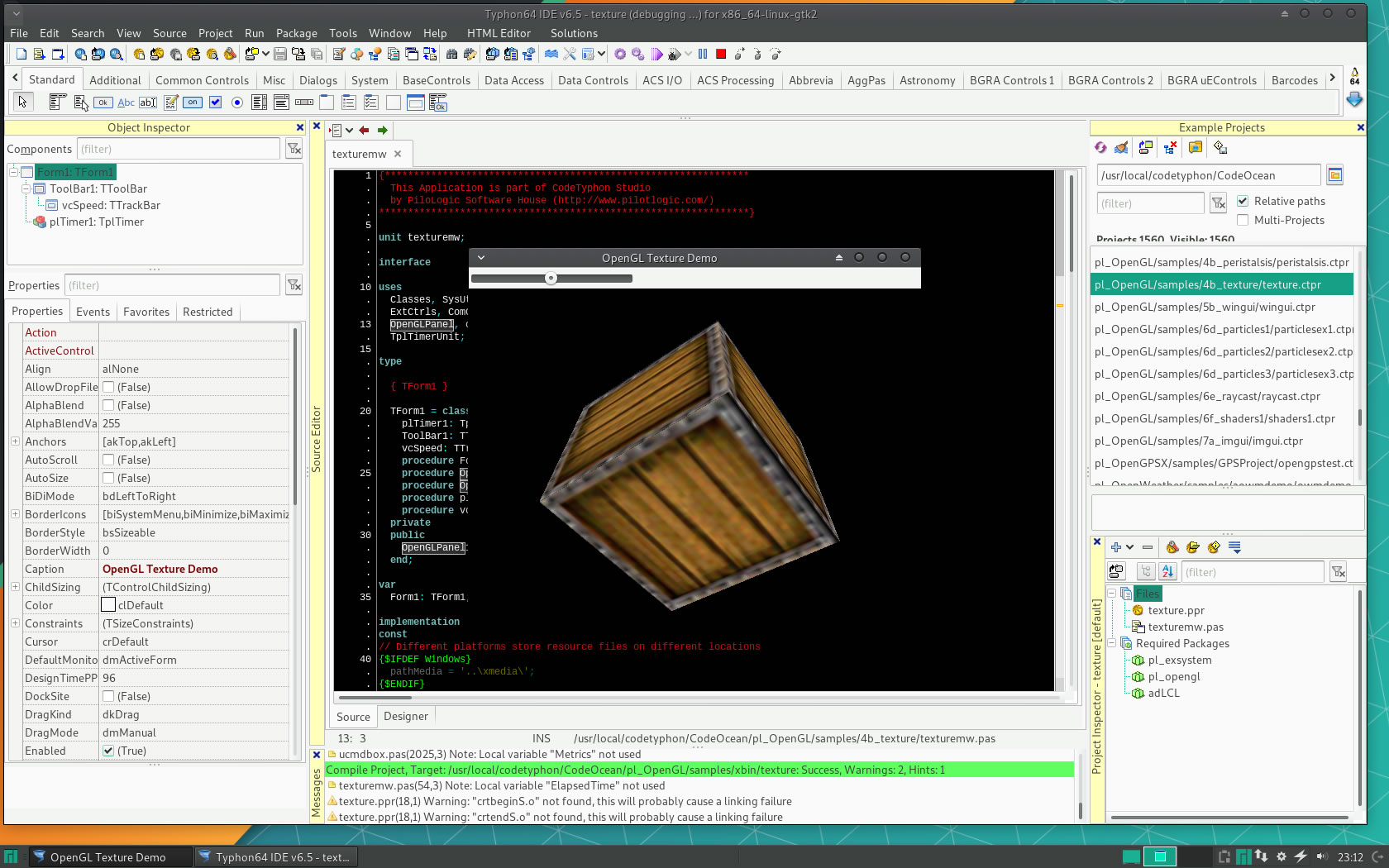

pl_OpenGL

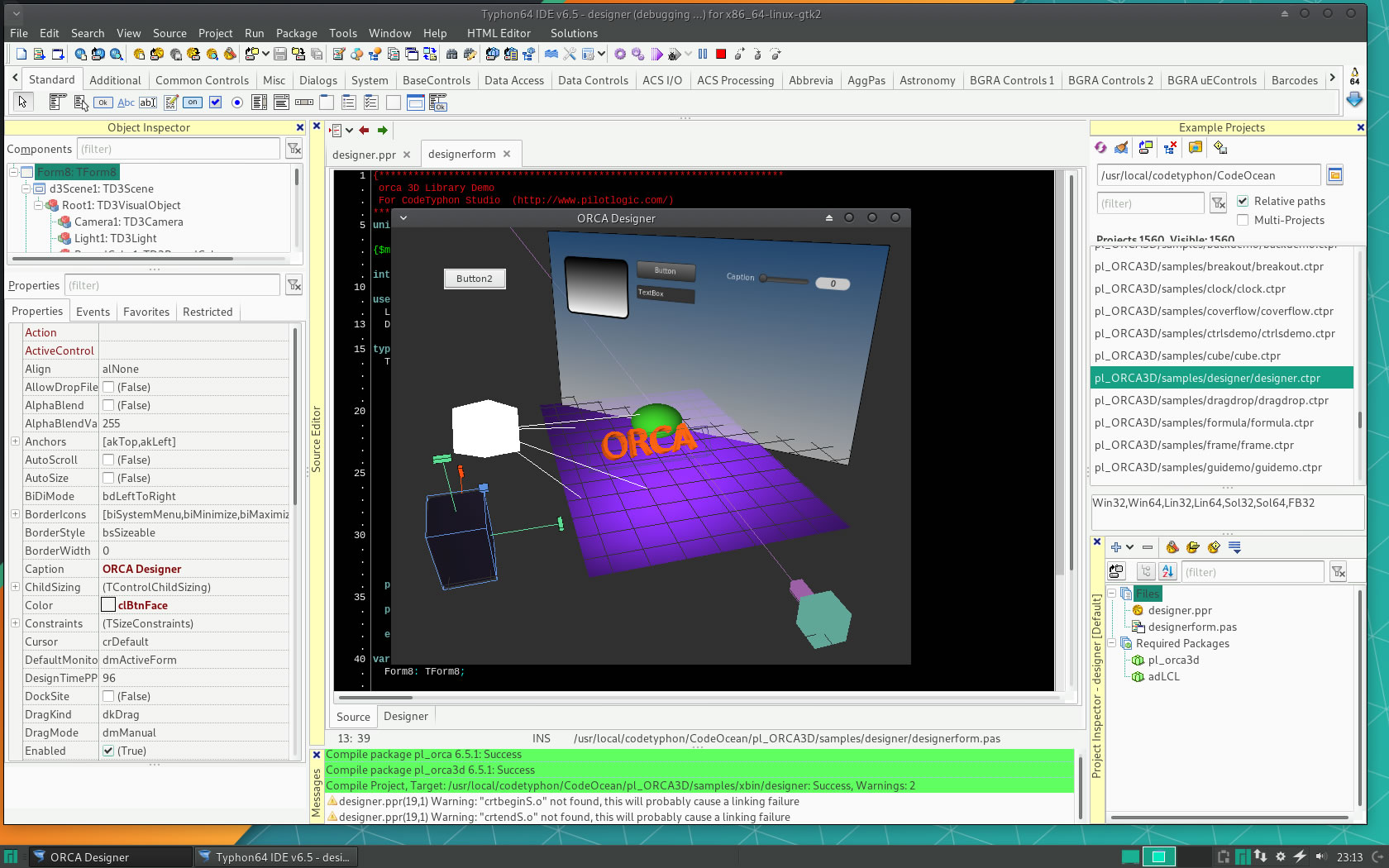

pl_ORCA3D

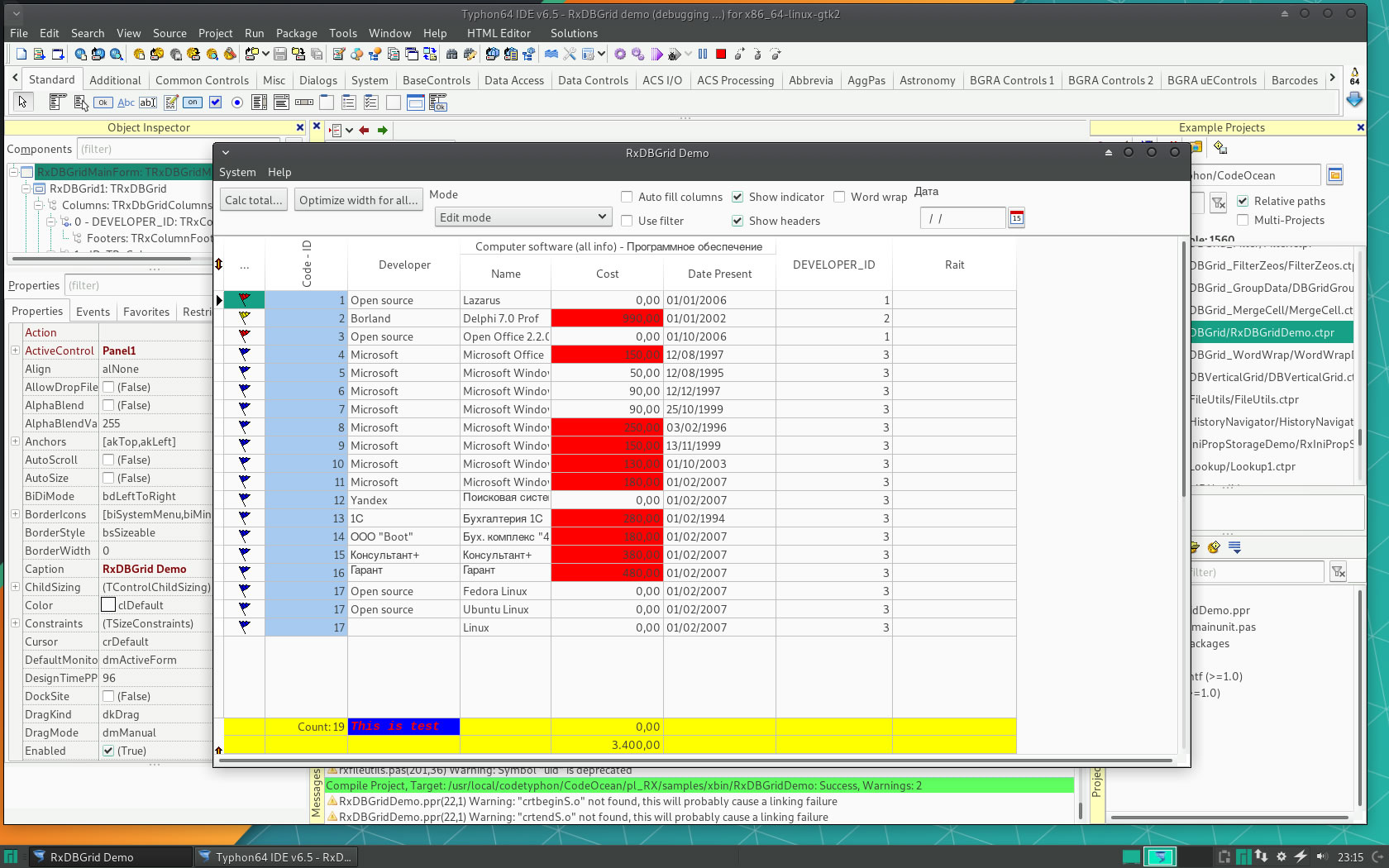

pl_RX

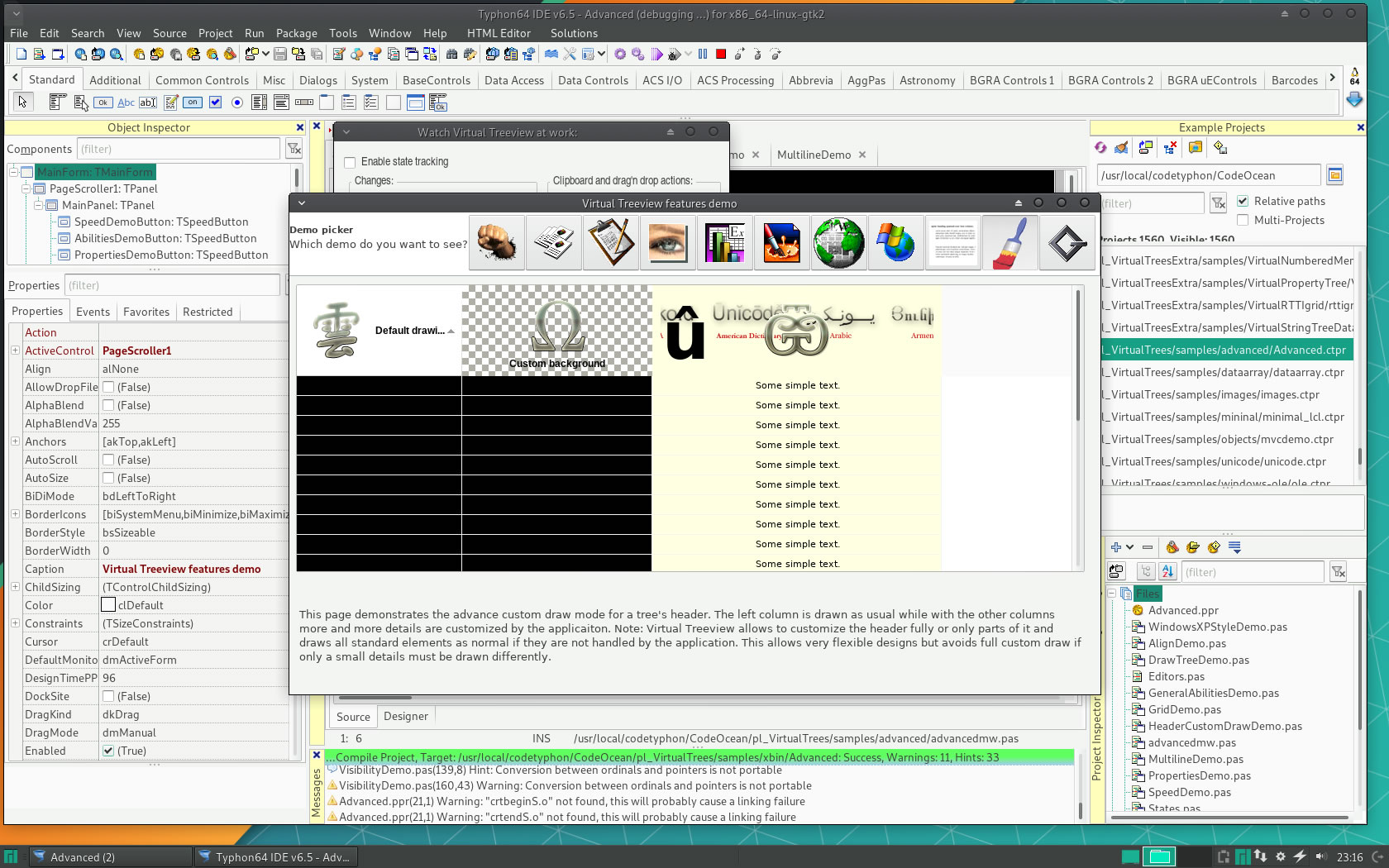

pl_VirtualTrees
