Cross-Build for WinCE

Our target is to build a project for Windows Mobile 6.5 Professional.

At this demonstration we use as host Operating System, the Windows 7 64bit, with classic theme for better screenshots.

This procedure works with the same way for all Win32 or Win64 Layers Operating Systems.



Prepare Your PC

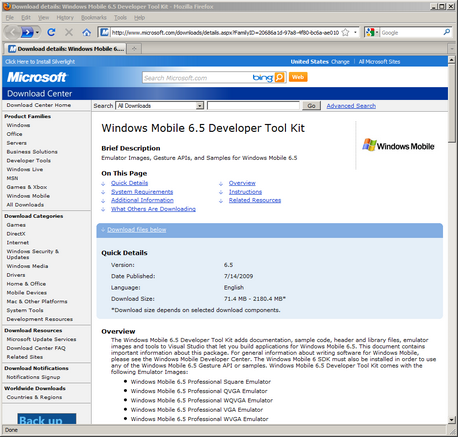

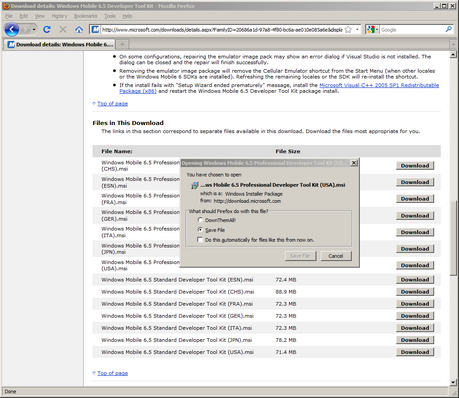

Download from Microsoft Web Site the WM6.5 Emulator (here )





Install the emulator



Prepare CodeTyphon Studio

Build Lazarus32 Element for arm-Wince
Only for 64bit Windows, switch first from CodeTyphon Center to lazarus32 IDE.
From CodeTyphon Center select "Cross-Build->FreePascal 32bits->FPC32 build cross element arm-wince"

wait to finish the CodeTyphon script...

After the end of script the "Cross element for arm-WinCE" is at Status Tab



Configure your Application

Open Lazarus32 IDE and make a new Project.
Set to project1 compiler options
Target OS: WinCE
Target CPU family: arm

Set LCLWidgetType to WinCE

build only and save project1 to a directory, for us to C:\LazarusTemp.

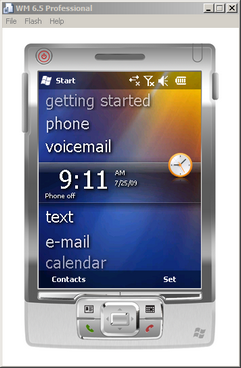

Start emulator..

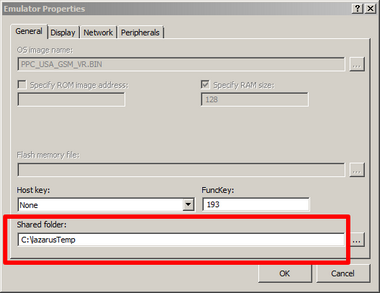

Set to Emulator Shared folder the folder of  Project1.exe.

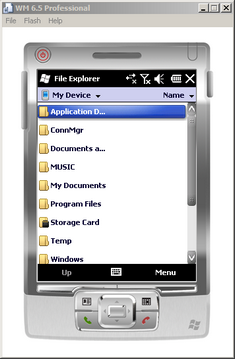

Open the "File Explorer" application to emulator.

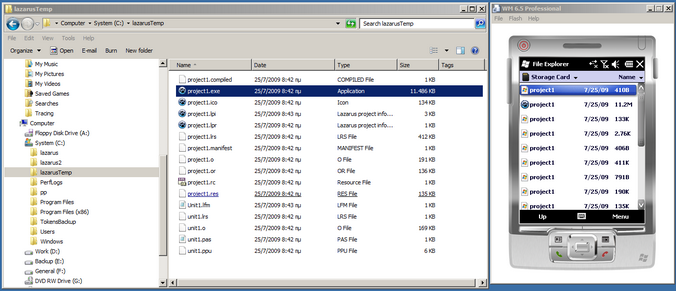

Now the emulator "Storage Card" looks direct to our project1.exe folder.

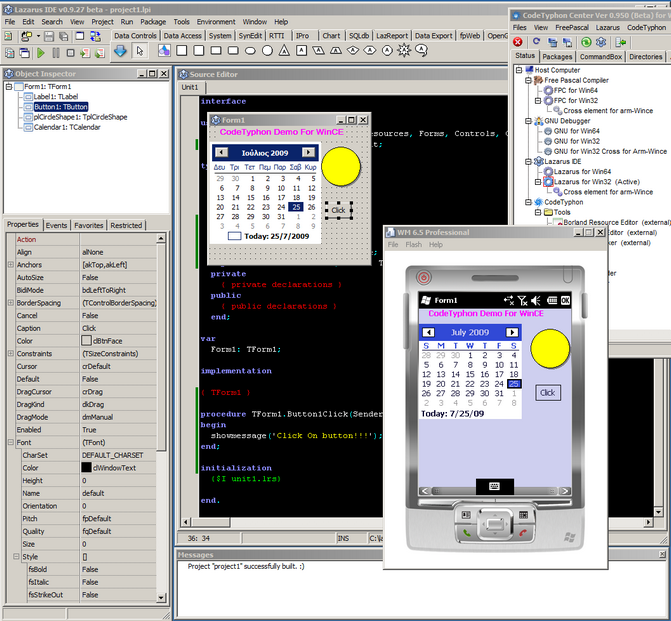

Build  project1.exe from lazarus32 IDE and Run Project1.exe from emulator.

Yes, the circle is from CodeTyphon pl_Shape package !!!

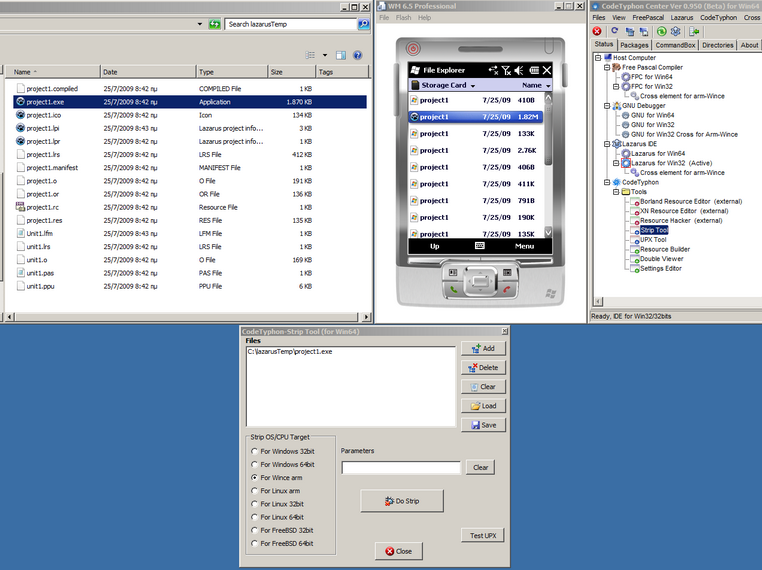

Strip WinCE Project

Build size: 11Mbytes
with Strip : 1.8Mbytes

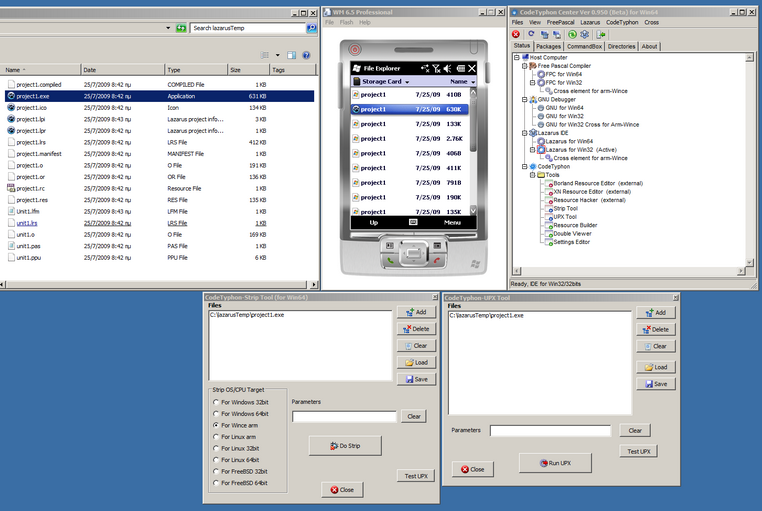

Strip and UPX WinCE Project

Build size: 11Mbytes
with Strip : 1.8Mbytes
with Strip and UPX: 630Kbytes.
